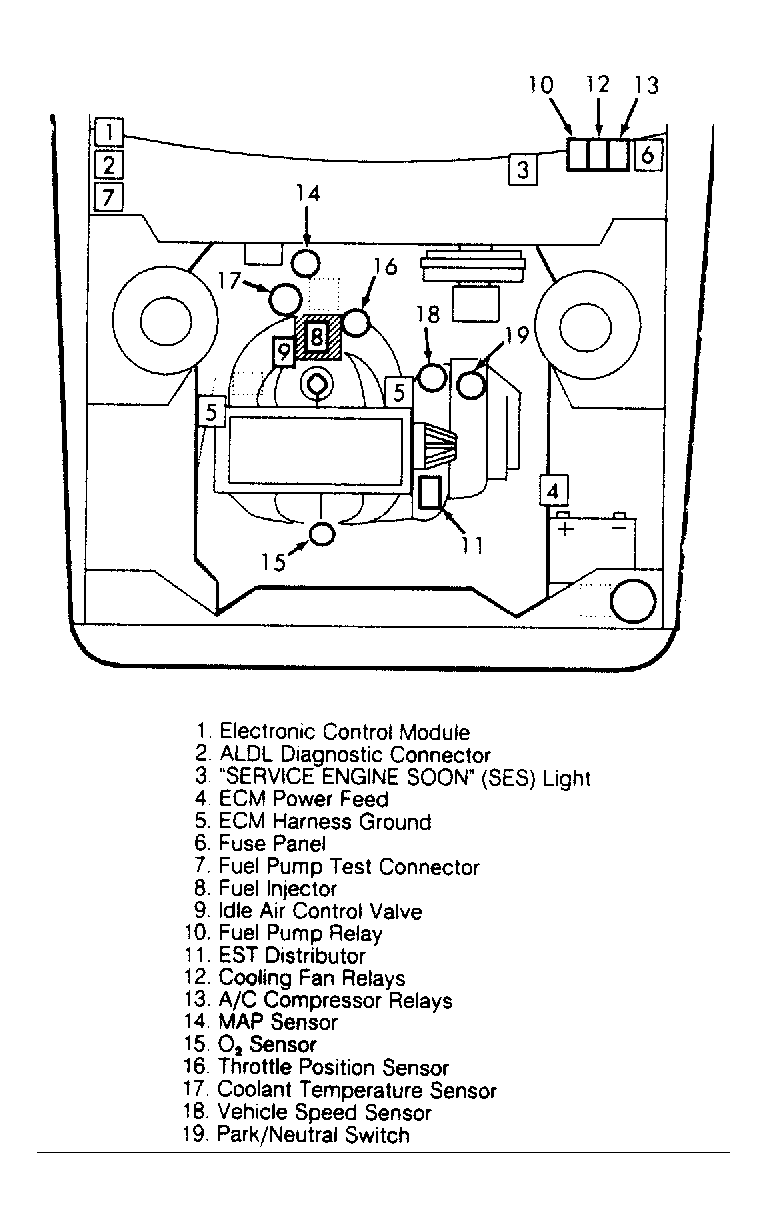

1.6L TBI System: Operation: Notes
The ECM is provided information on vehicle electrical load, exhaust gas oxygen concentration, engine coolant temperature, engine speed (RPM), engine load, throttle valve position, intake air temperature, vehicle speed and air conditioner pressure switches. This information is used by ECM to calculate proper operation of TBI, ignition timing, idle air control valve and emission control devices.
