System Tests: Notes

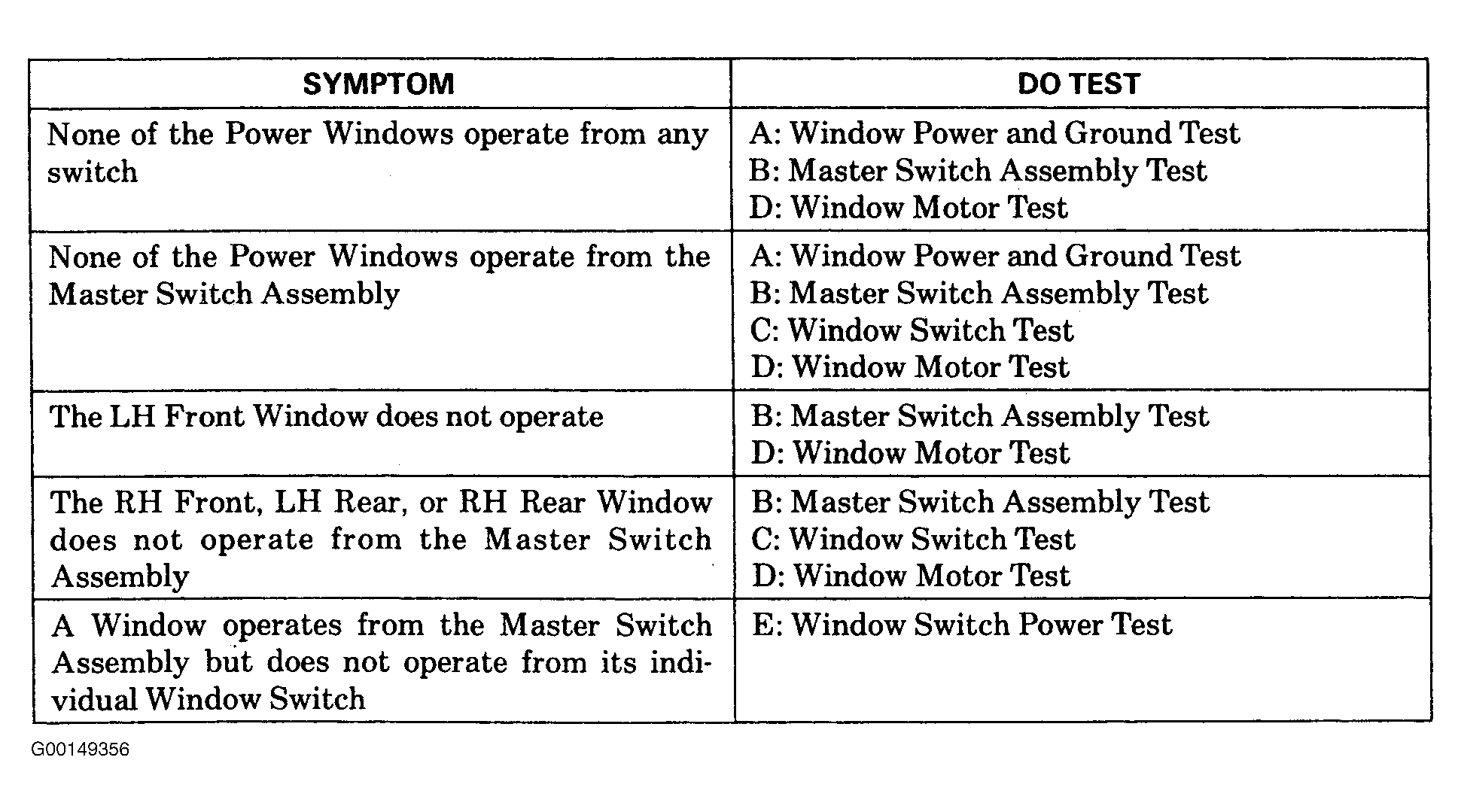

If symptom does not appear in the Symptom Table, perform all of the tests. For a complete list of symptoms, refer to Fig 1
.
Courtesy of GENERAL MOTORS CORP. SYSTEM TEST INDEX
| Circuit |
Perform Test |
| Window Power & Ground |
A |
| Master Switch Assembly |
B |
| Window Switch |
C |
| Window Motor |
D |
| Window Switch Power |
E |
