Diagnostic Circuit Check (Start Diag. Here): Notes

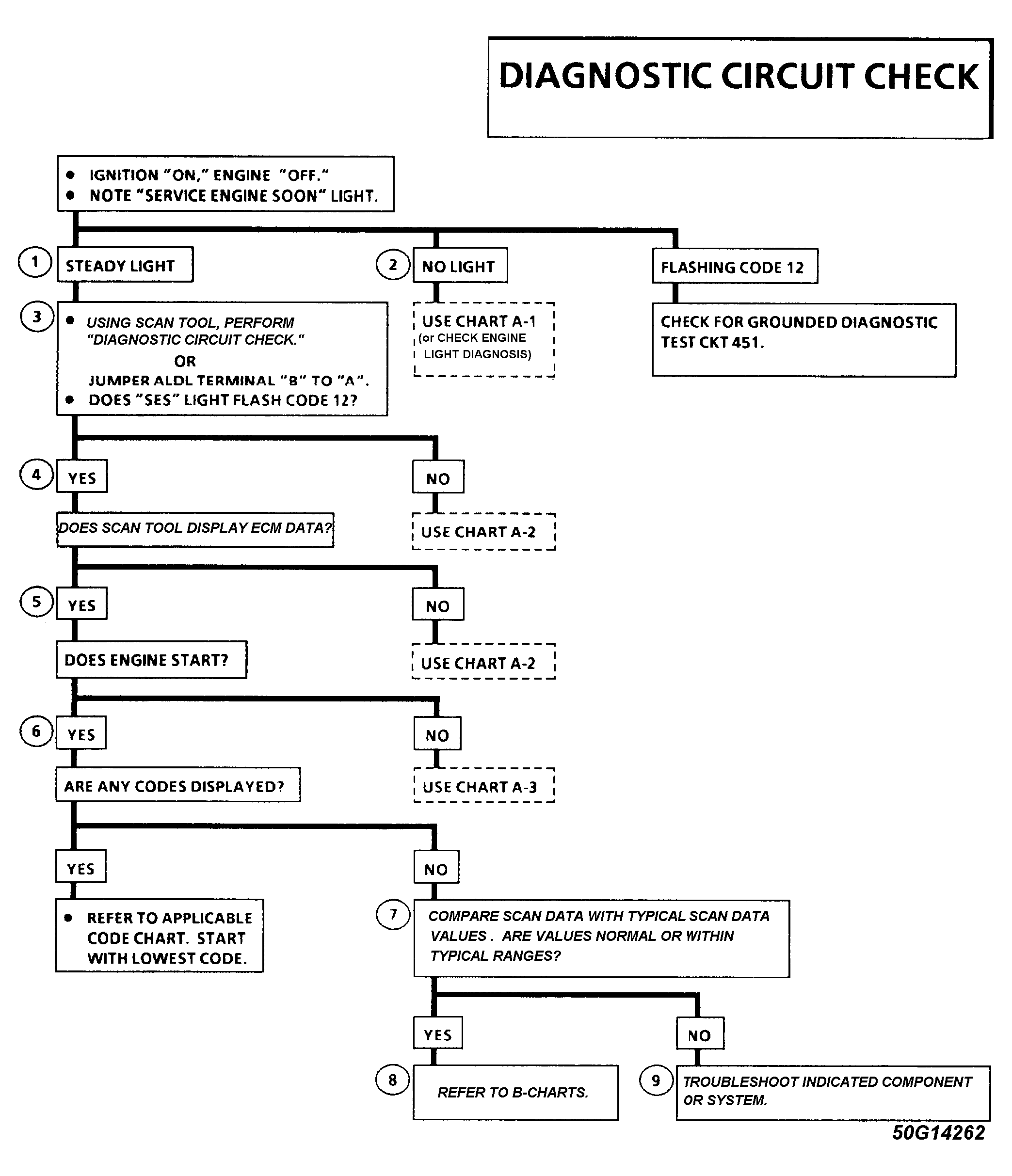

See
Figure
for the Diagnostic Circuit Check (flow chart).

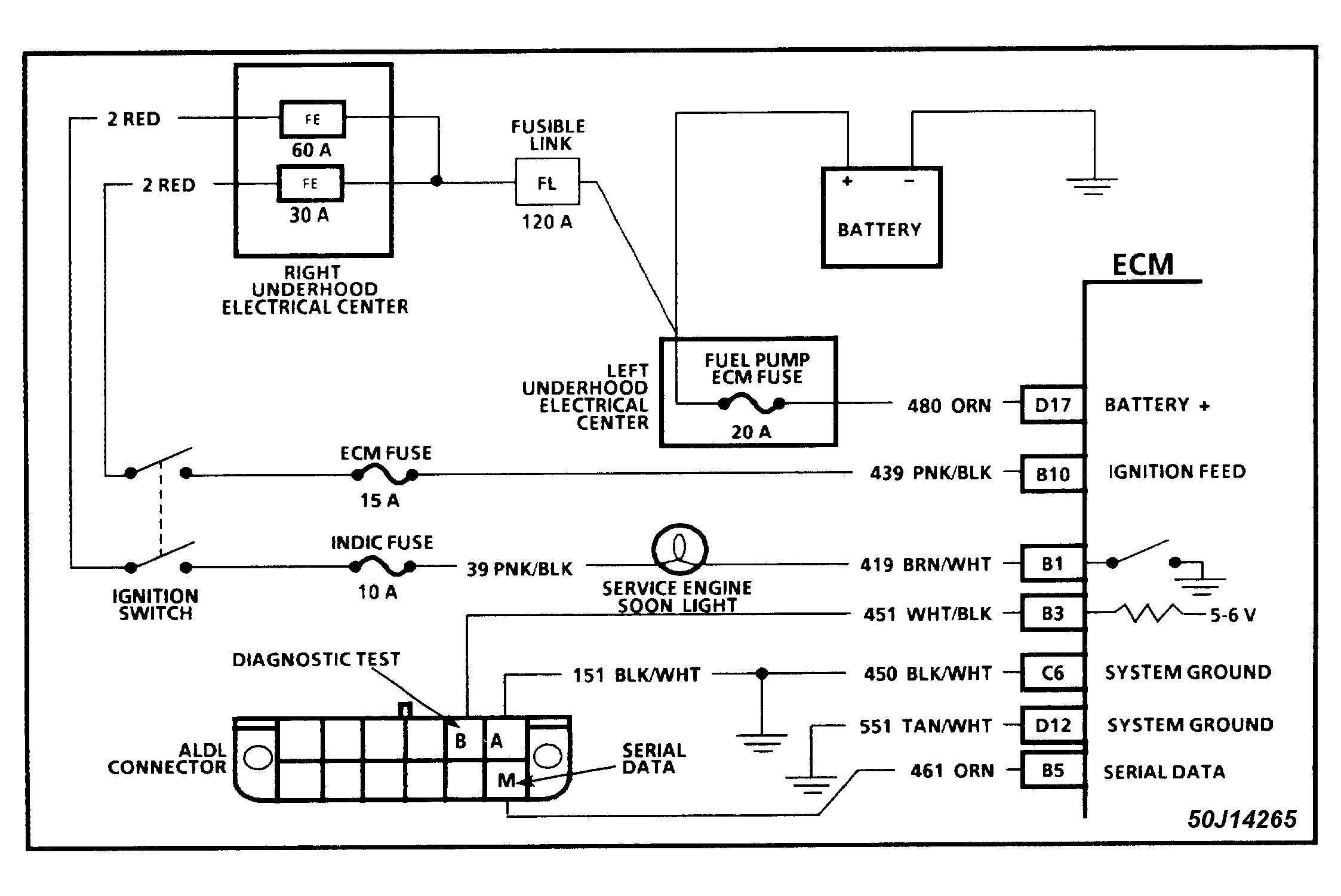

See
Figure
for the accompanying wiring diagram - "A" Body.

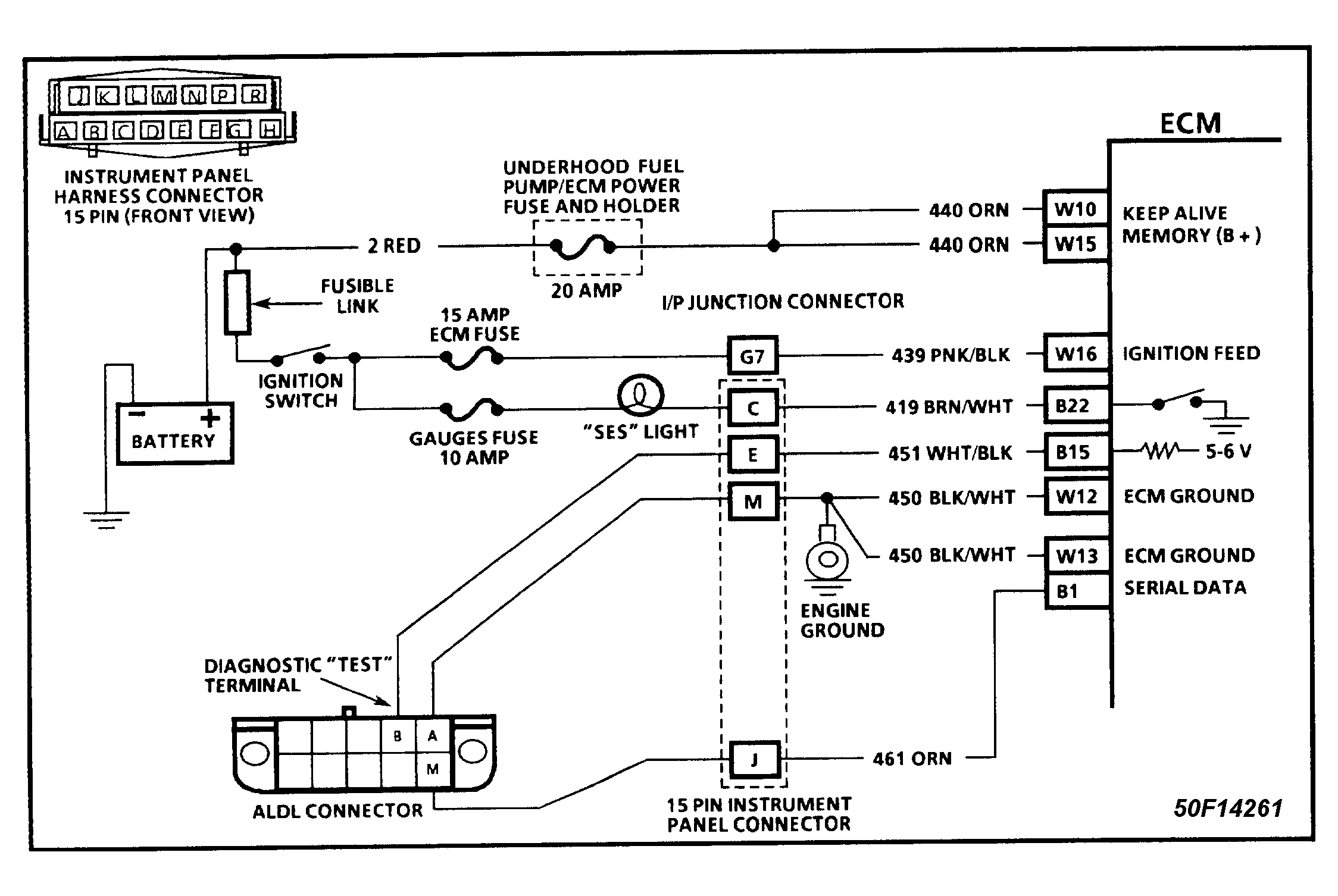

See
Figure
for the accompanying wiring diagram - "W" Body.
