ECM/Pcm Wiring Diagram(S)

NOTE: The 4th character of the VIN will identify the body code.

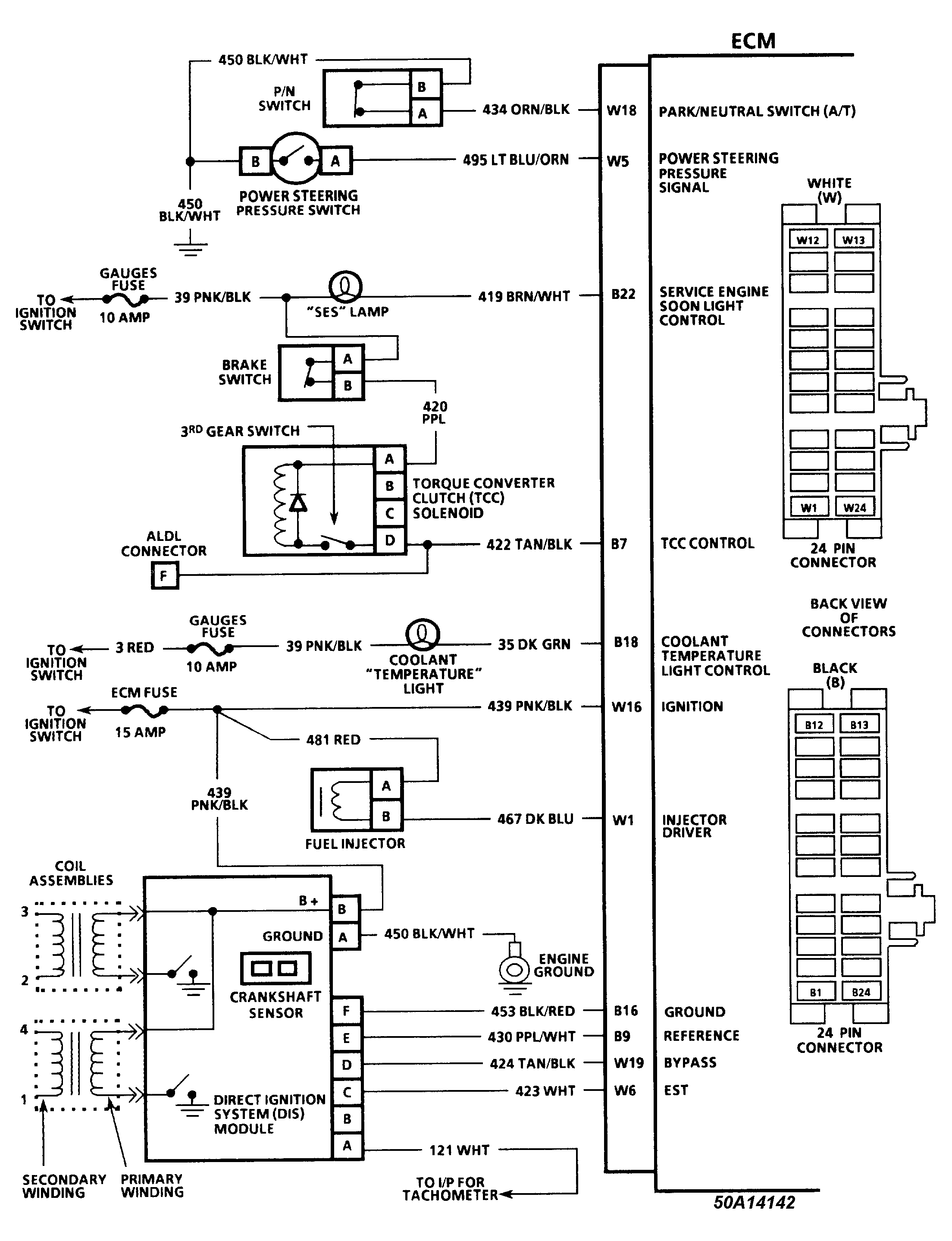

Fig 1: ECM/PCM Wiring Diagram 1/3 - A Body (2.5L VIN R)

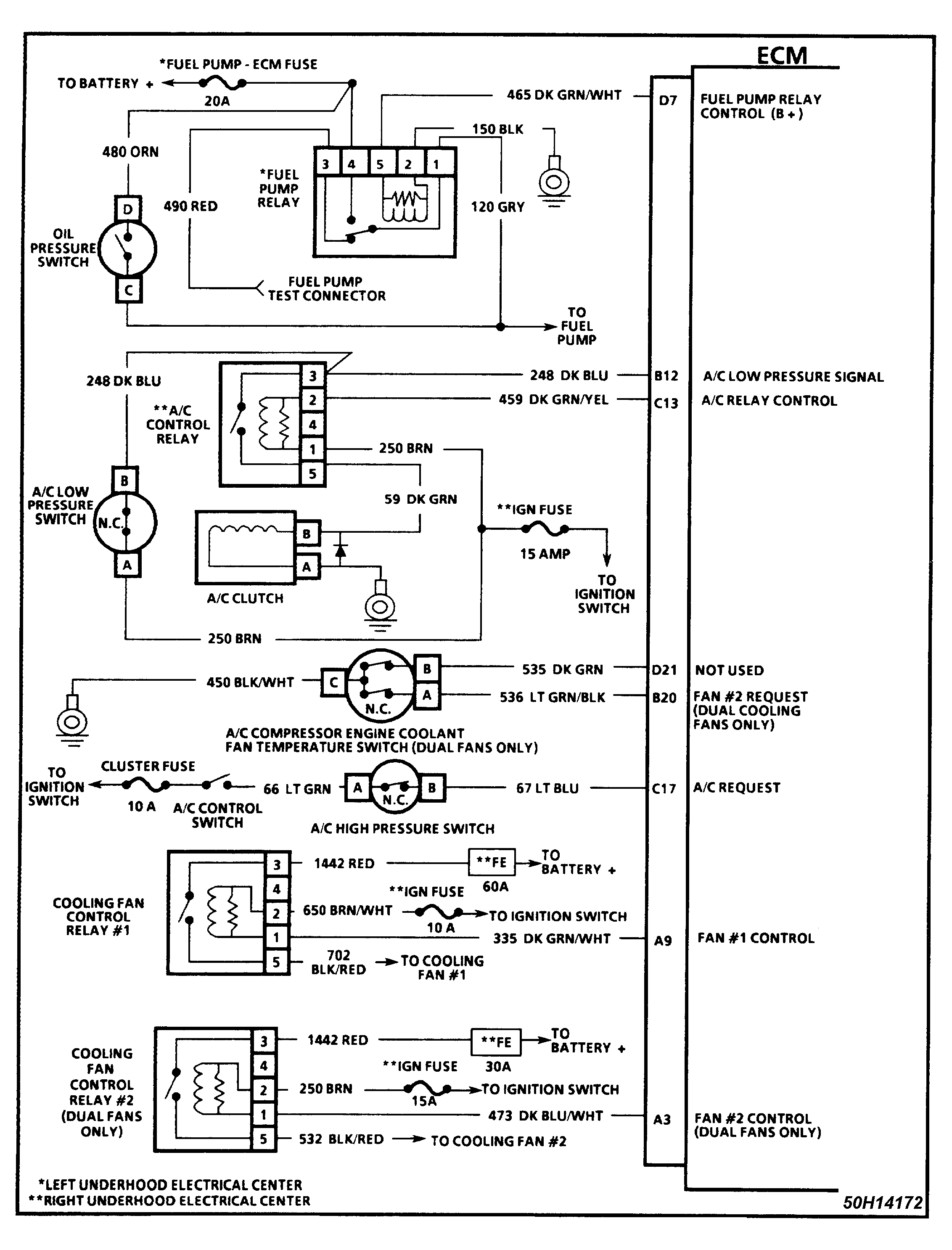

Fig 2: ECM/PCM Wiring Diagram 2/3 - A Body (2.5L VIN R)

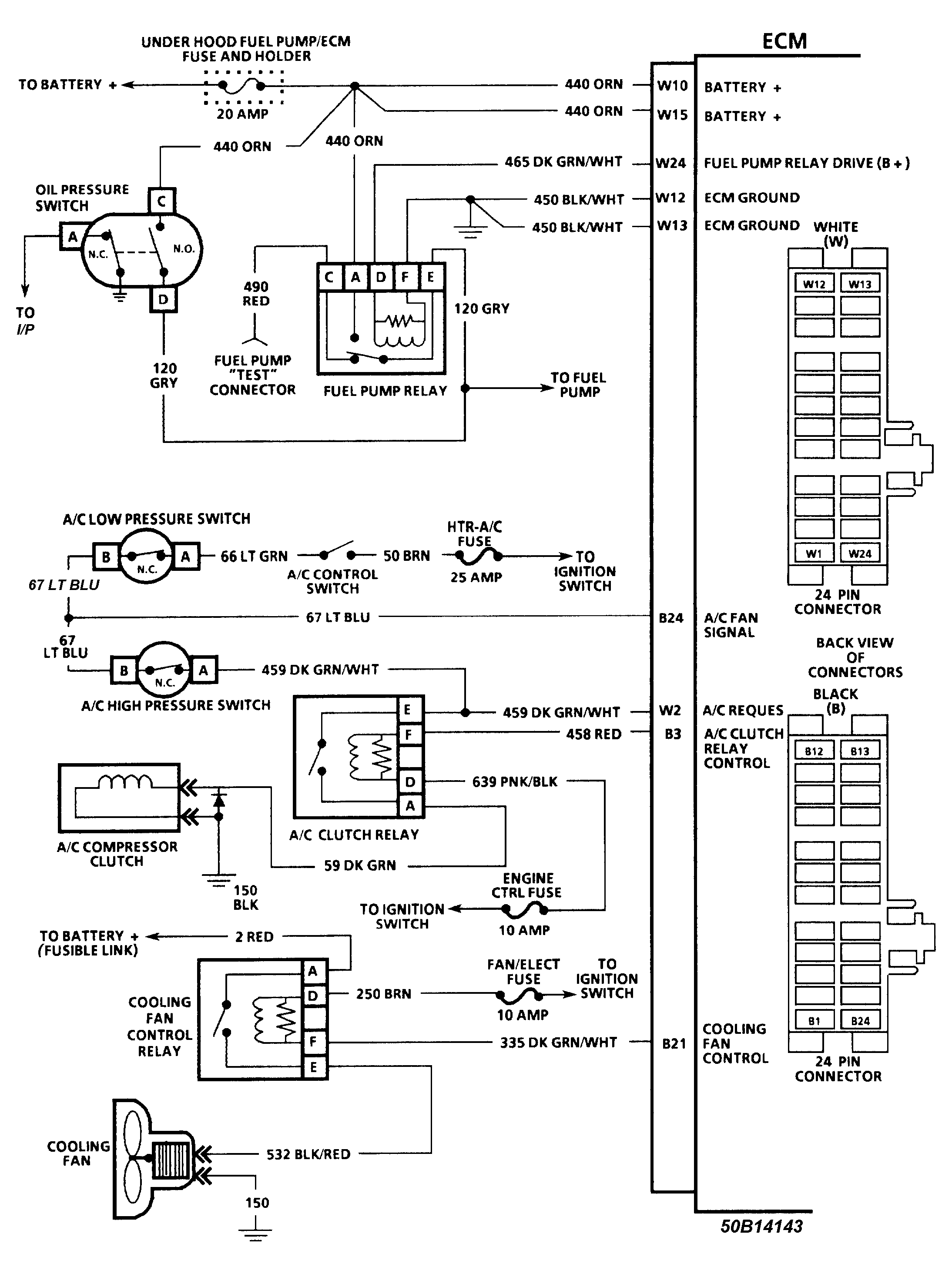

Fig 3: ECM/PCM Wiring Diagram 3/3 - A Body (2.5L VIN R)

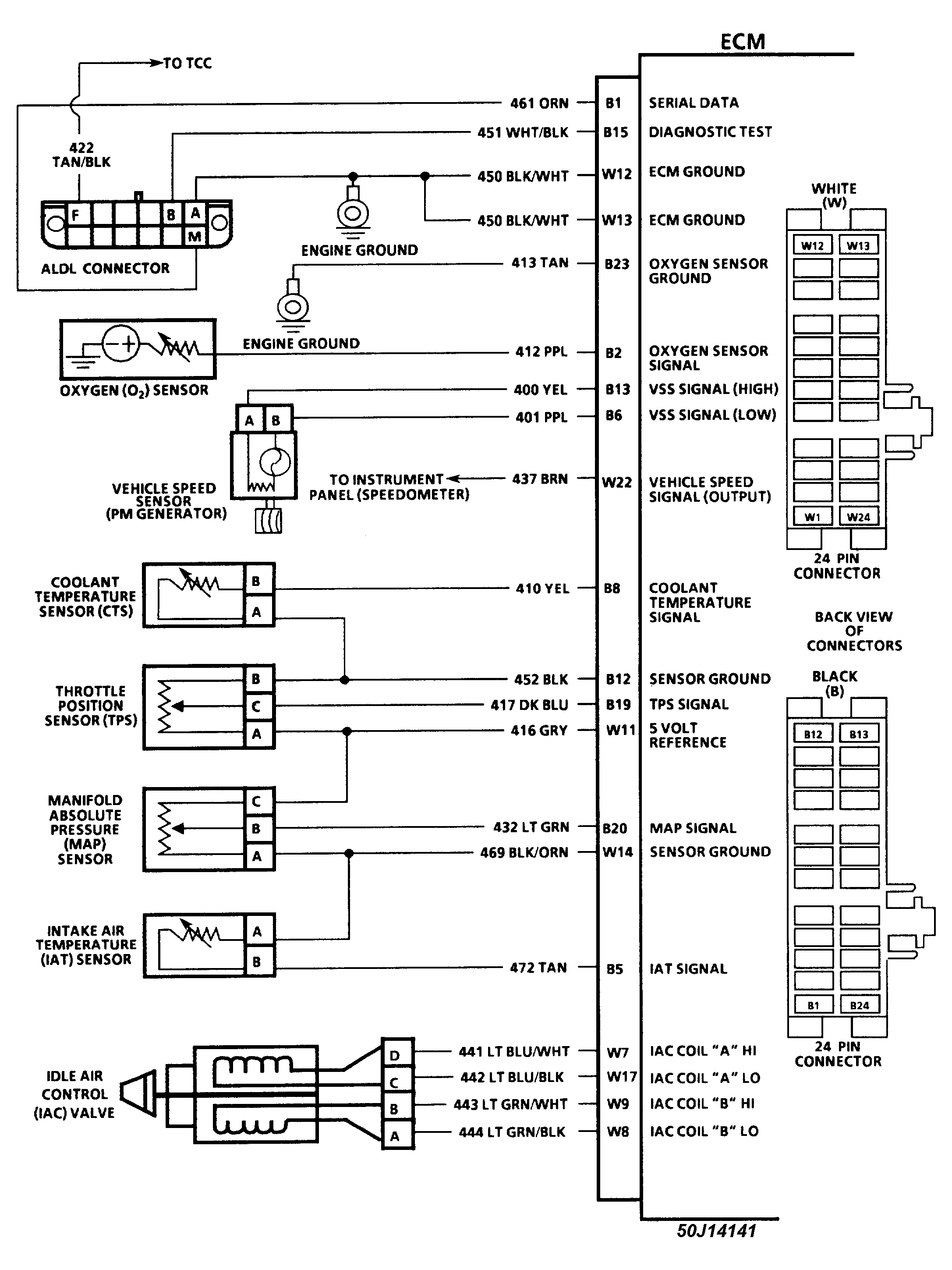

Fig 4: ECM/PCM Wiring Diagram 1/3 - W Body (2.5L VIN R)

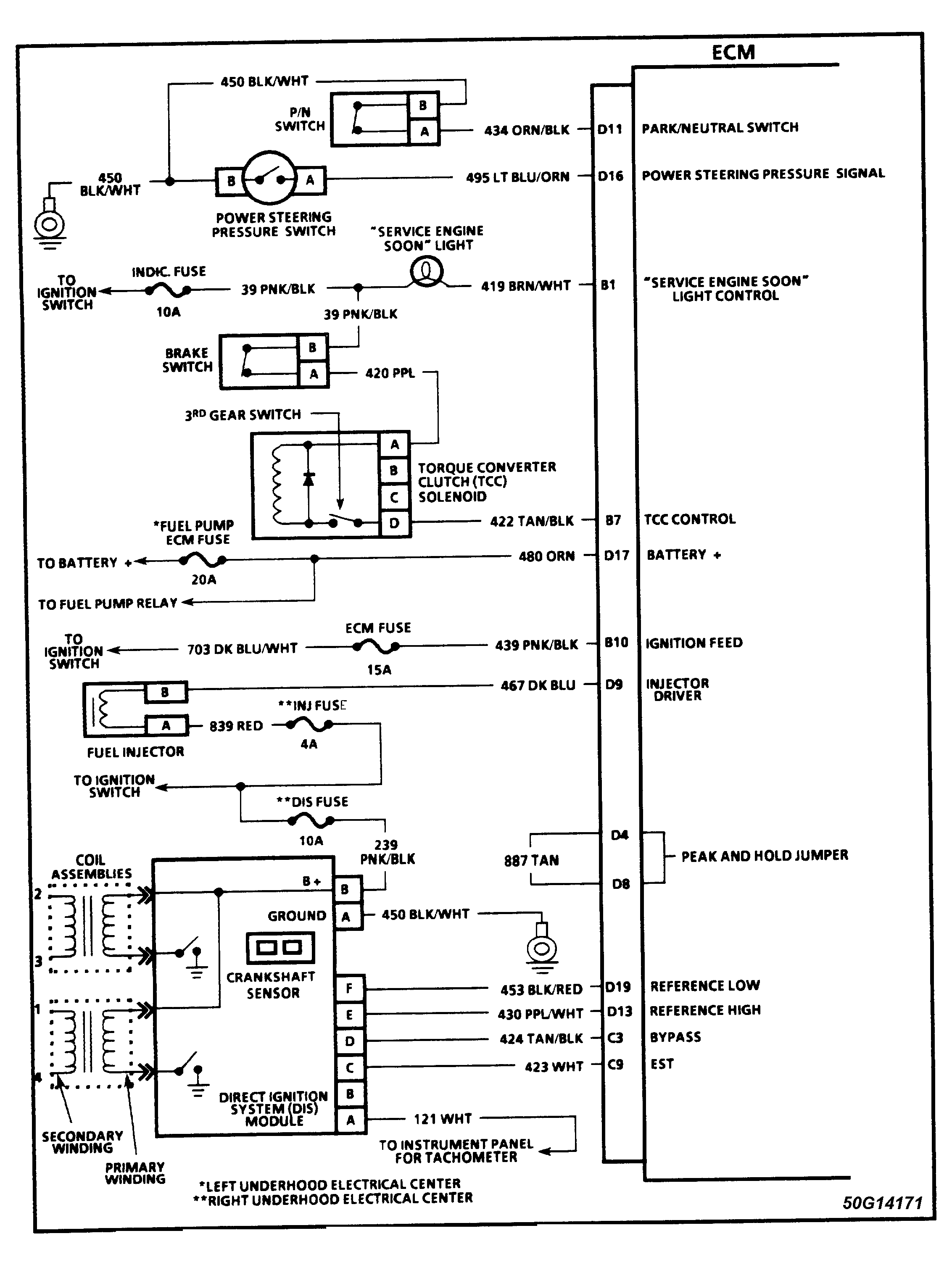

Fig 5: ECM/PCM Wiring Diagram 2/3 - W Body (2.5L VIN R)

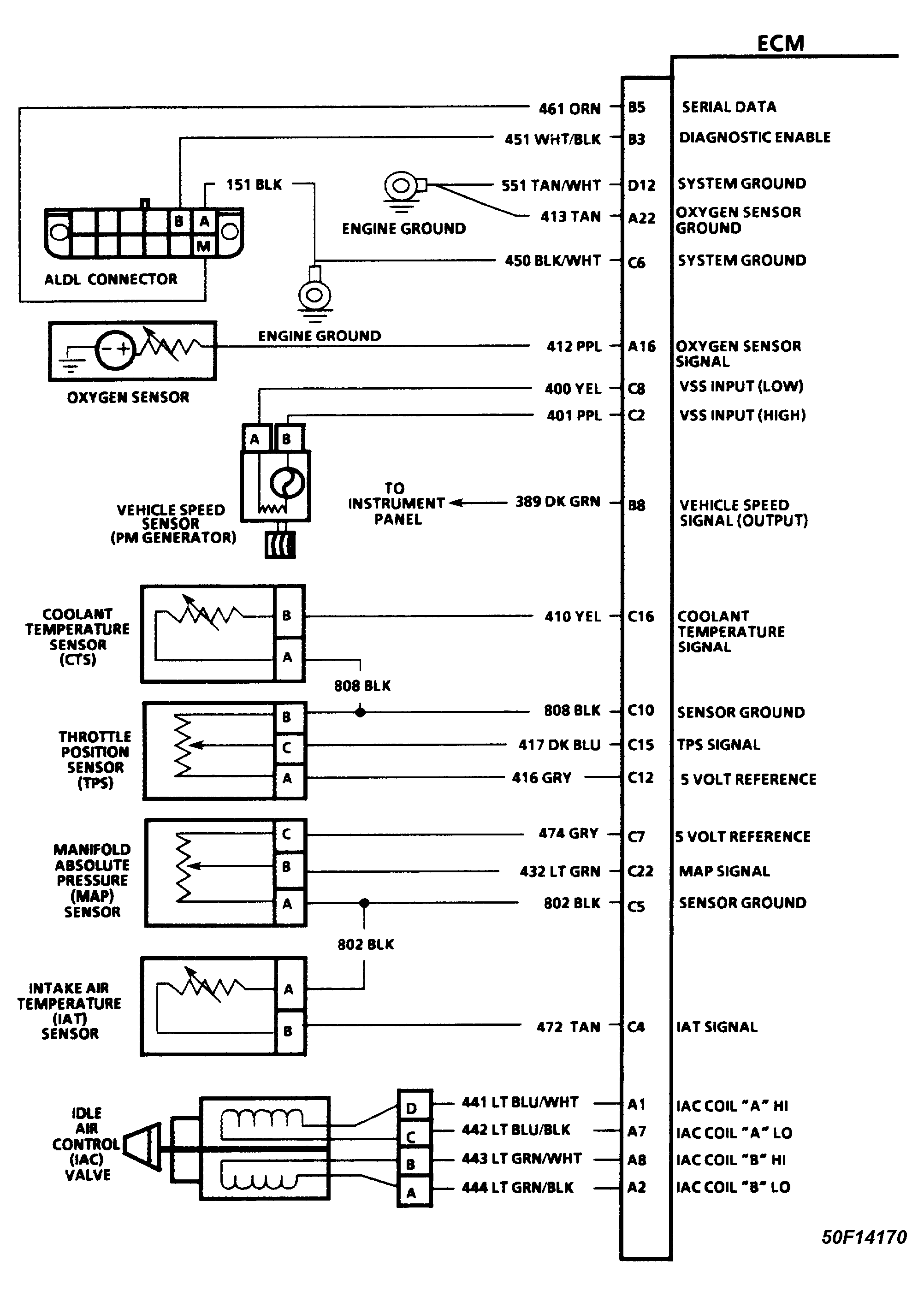

Fig 6: ECM/PCM Wiring Diagram 3/3 - W Body (2.5L VIN R)
