Engine-Related Component Locations

Two types of illustrations are provided here: "regular view" and "actual view". The regular view illustrations are a STANDARDIZED bird's eye perspective of the engine compartment and adjacent areas. Components are represented by symbols. The actual view illustrations show components as they actually appear on the engine (and related assemblies).

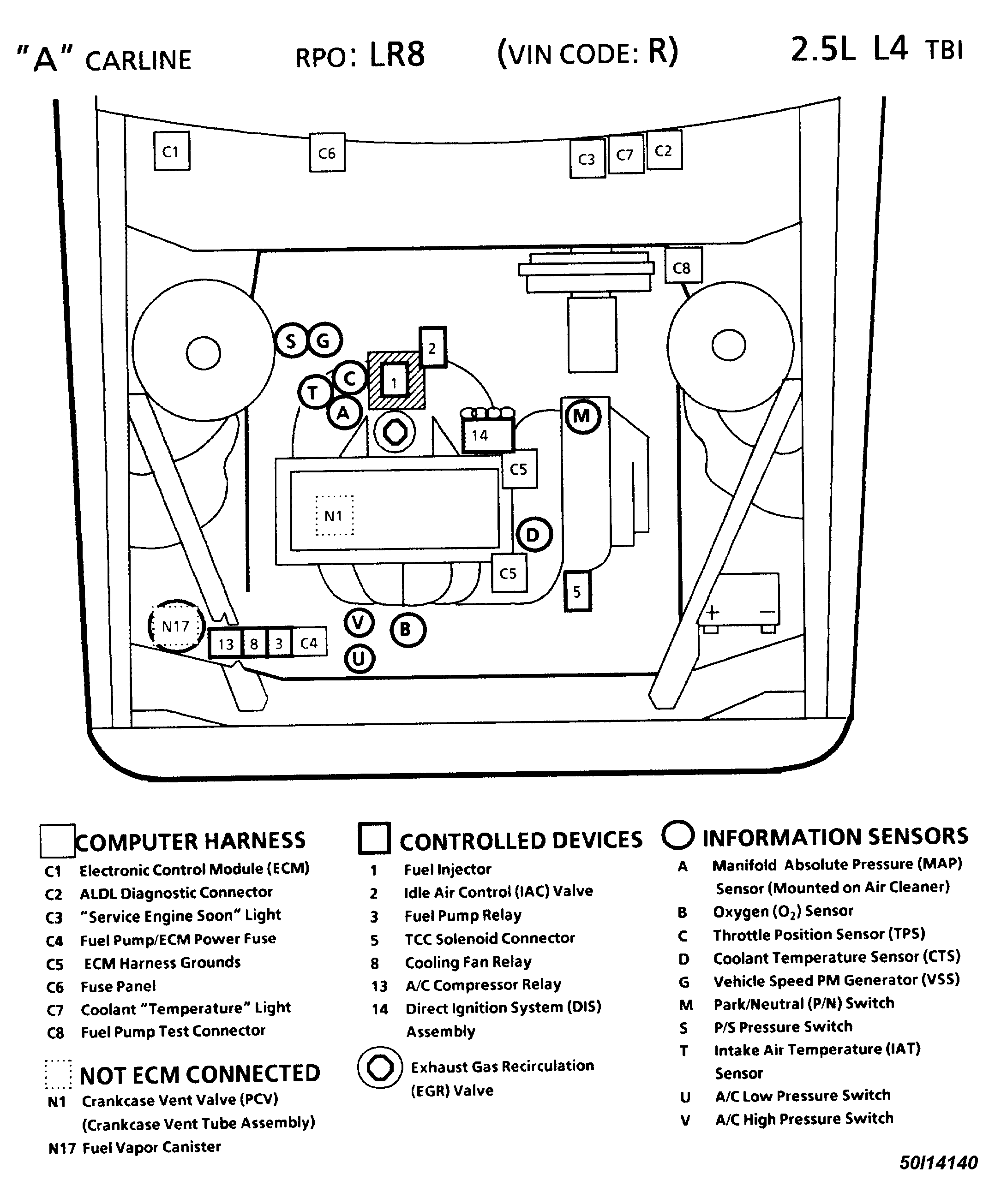

Fig 1: Engine-Related Component Location - A Body

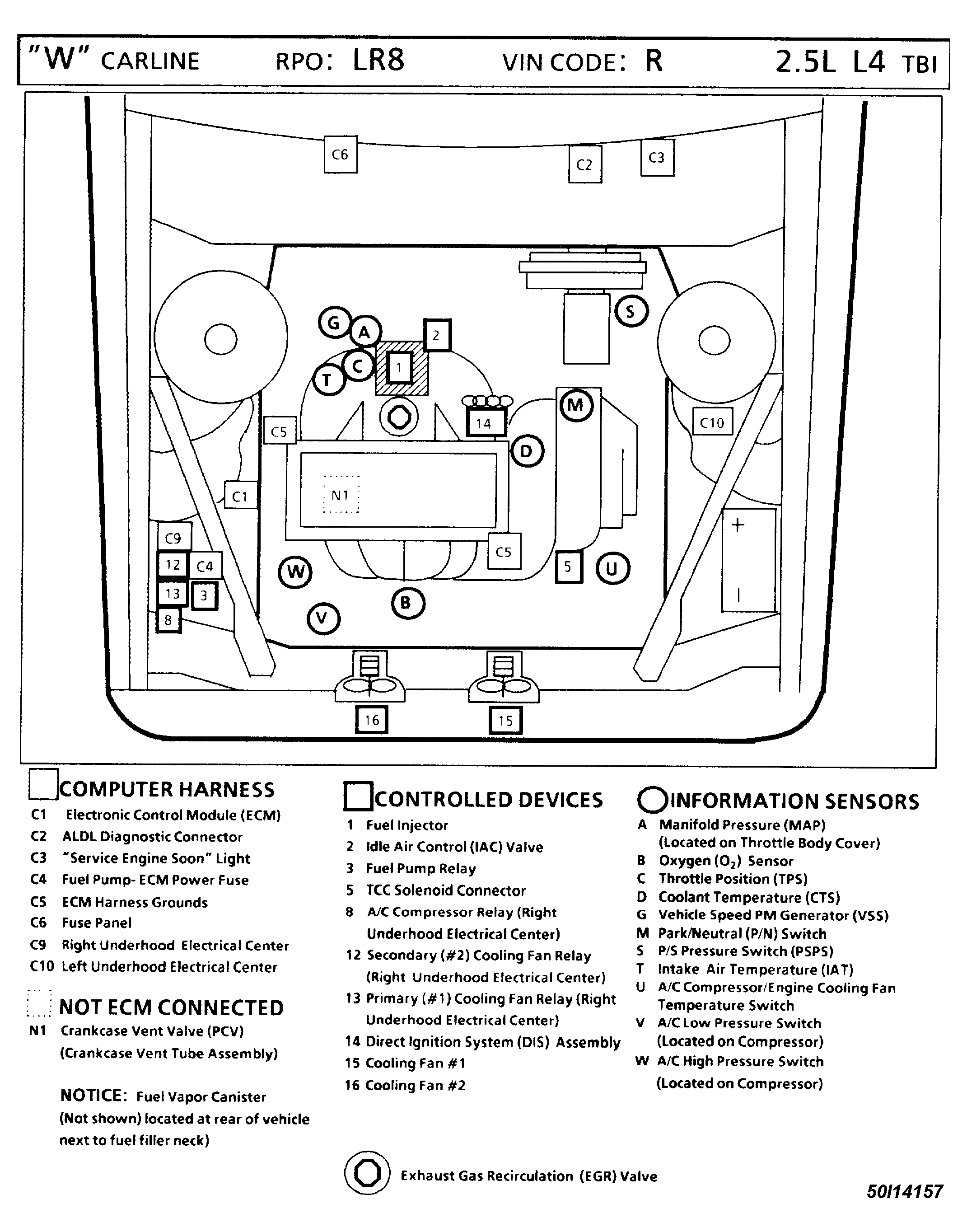

Fig 2: Engine-Related Component Location - W Body

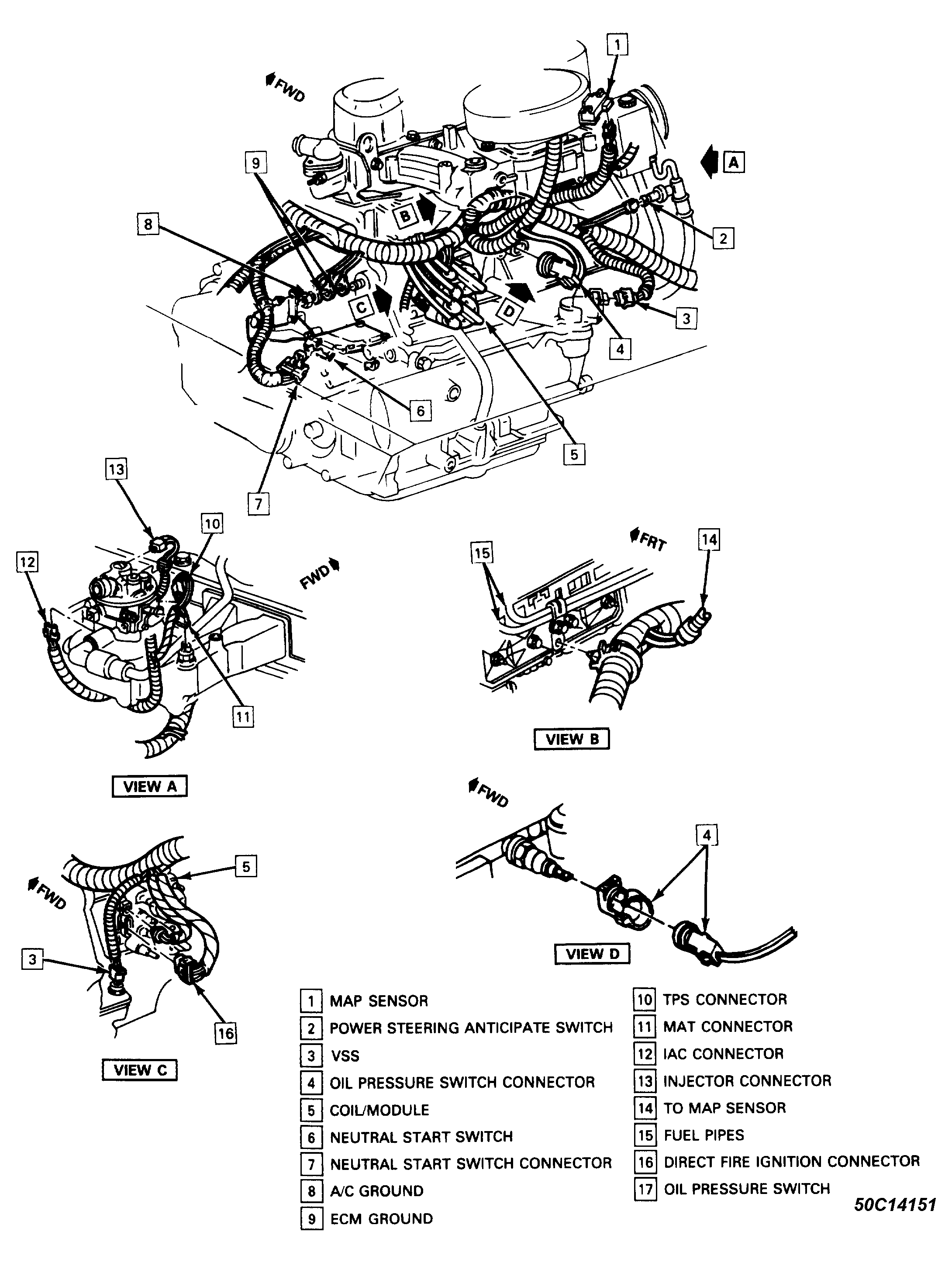

Fig 3: Engine Related Comp. Location - Actual View 1/2 - A & W Body

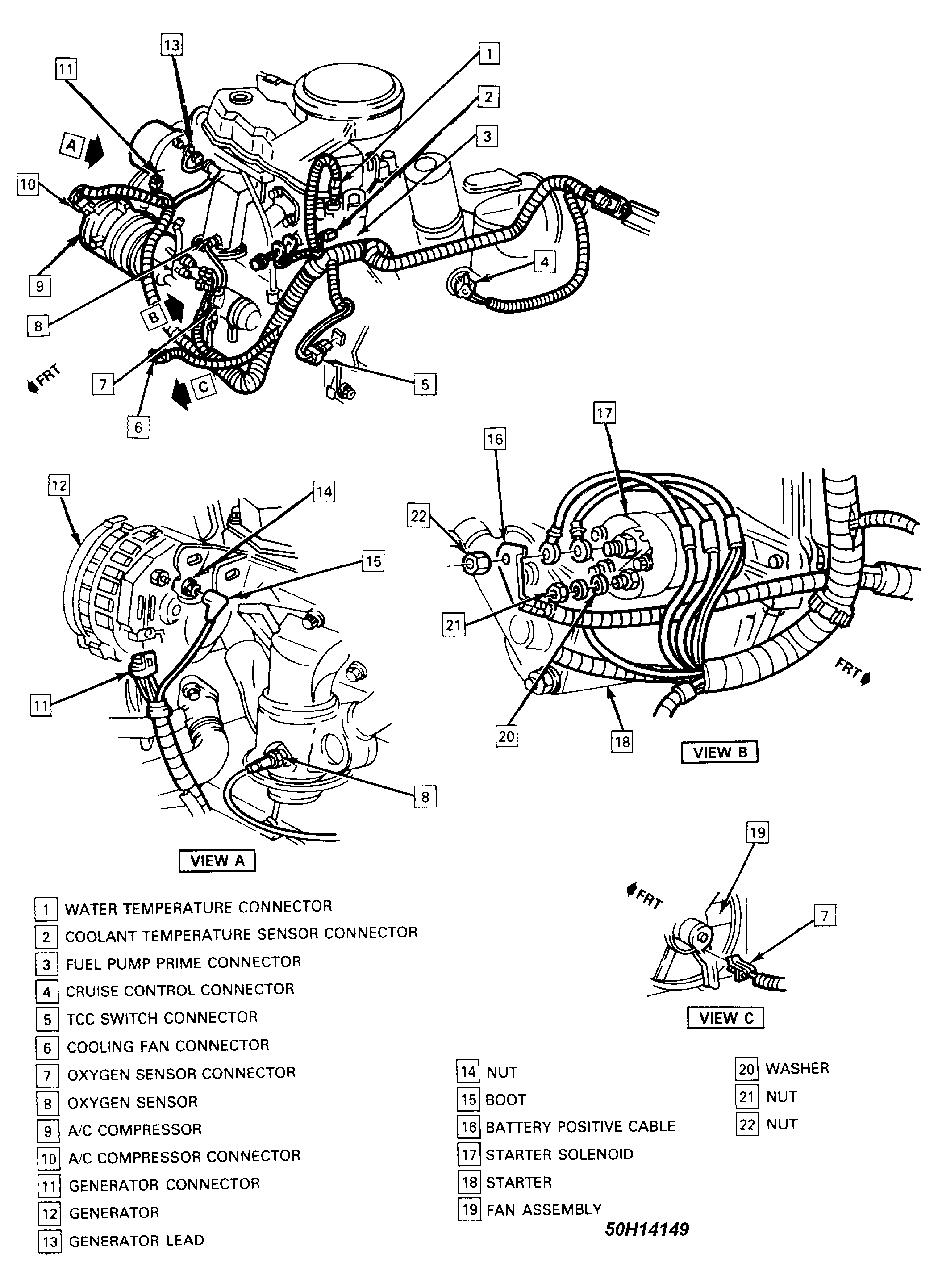

Fig 4: Engine Related Comp. Location - Actual View 2/2 - A & W Body

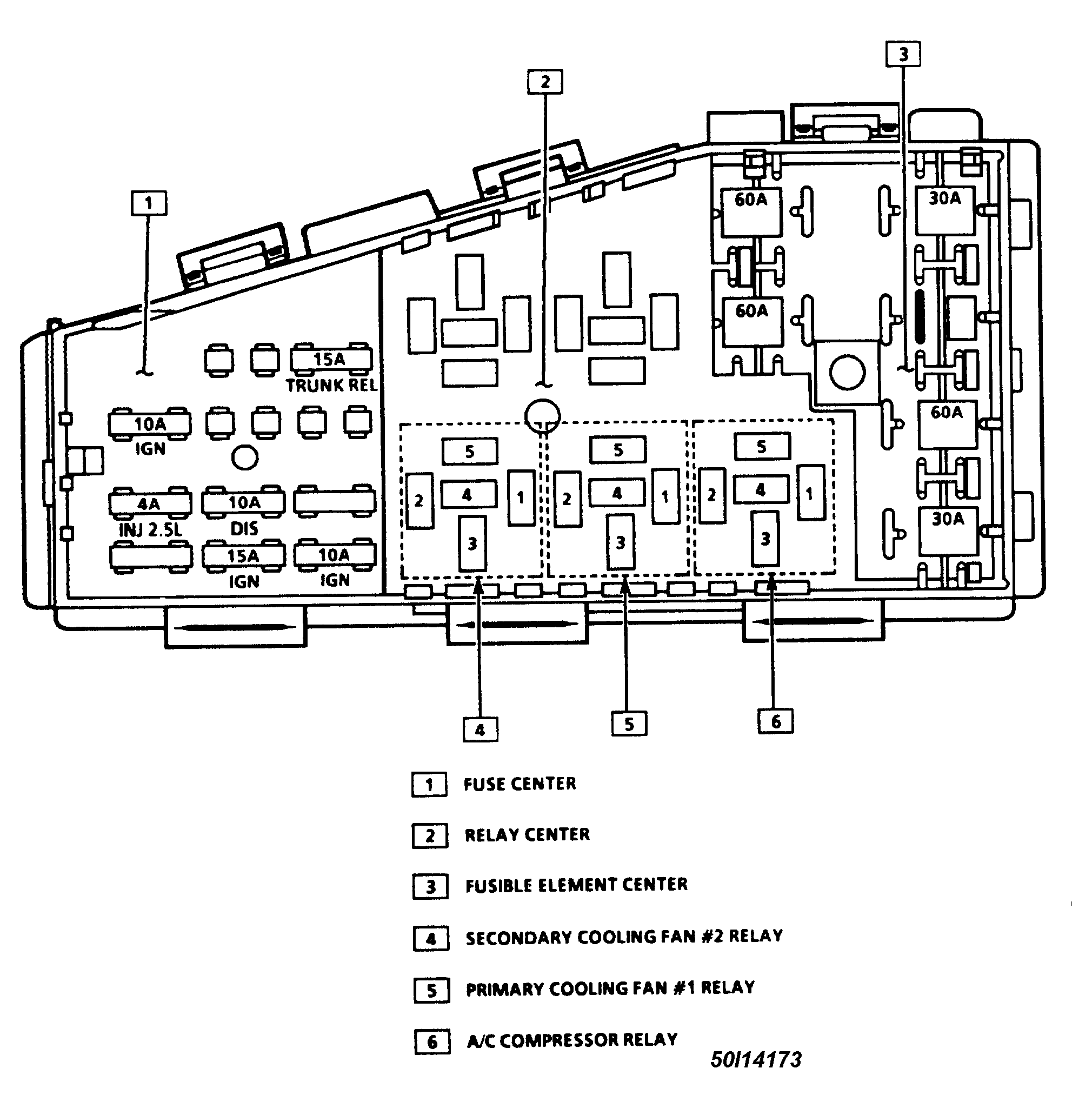

Fig 5: Right Underhood Electrical Center View - W Body Only
