Electronic/Powertrain Control Module (ECM/PCM)

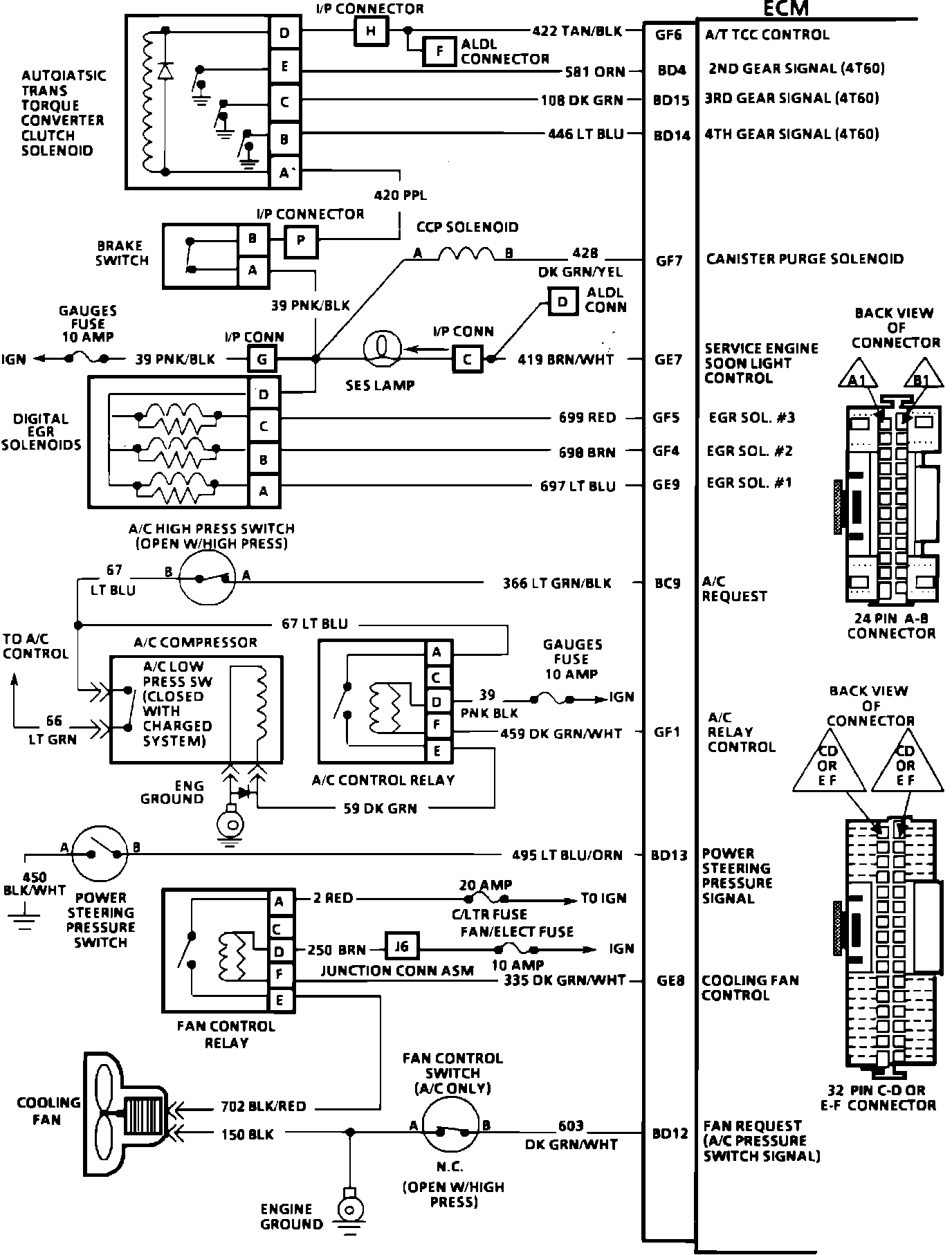

PART 1 OF 3

Engine Controls (ECM):

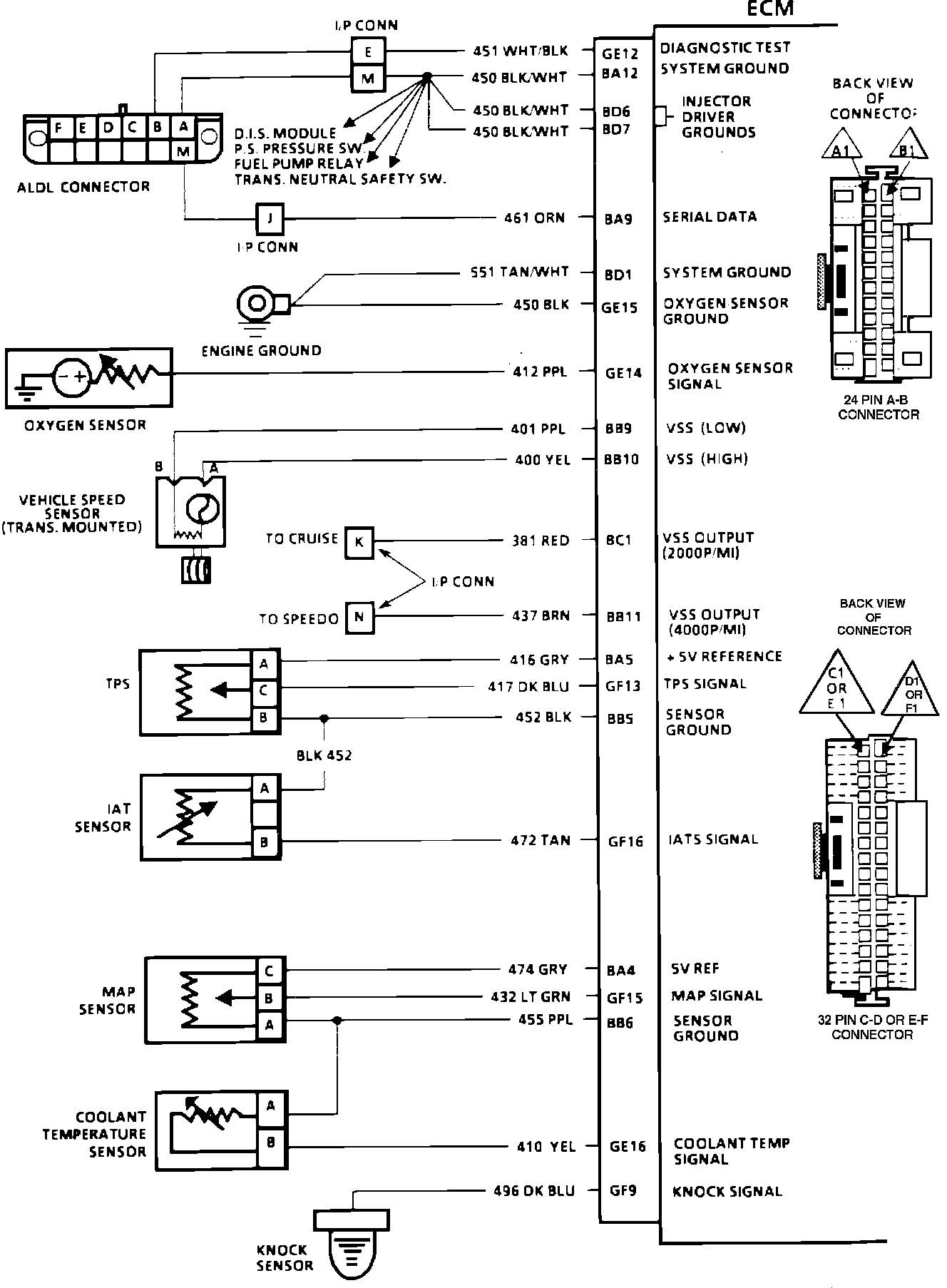

PART 2 of 3

Engine Controls (ECM):

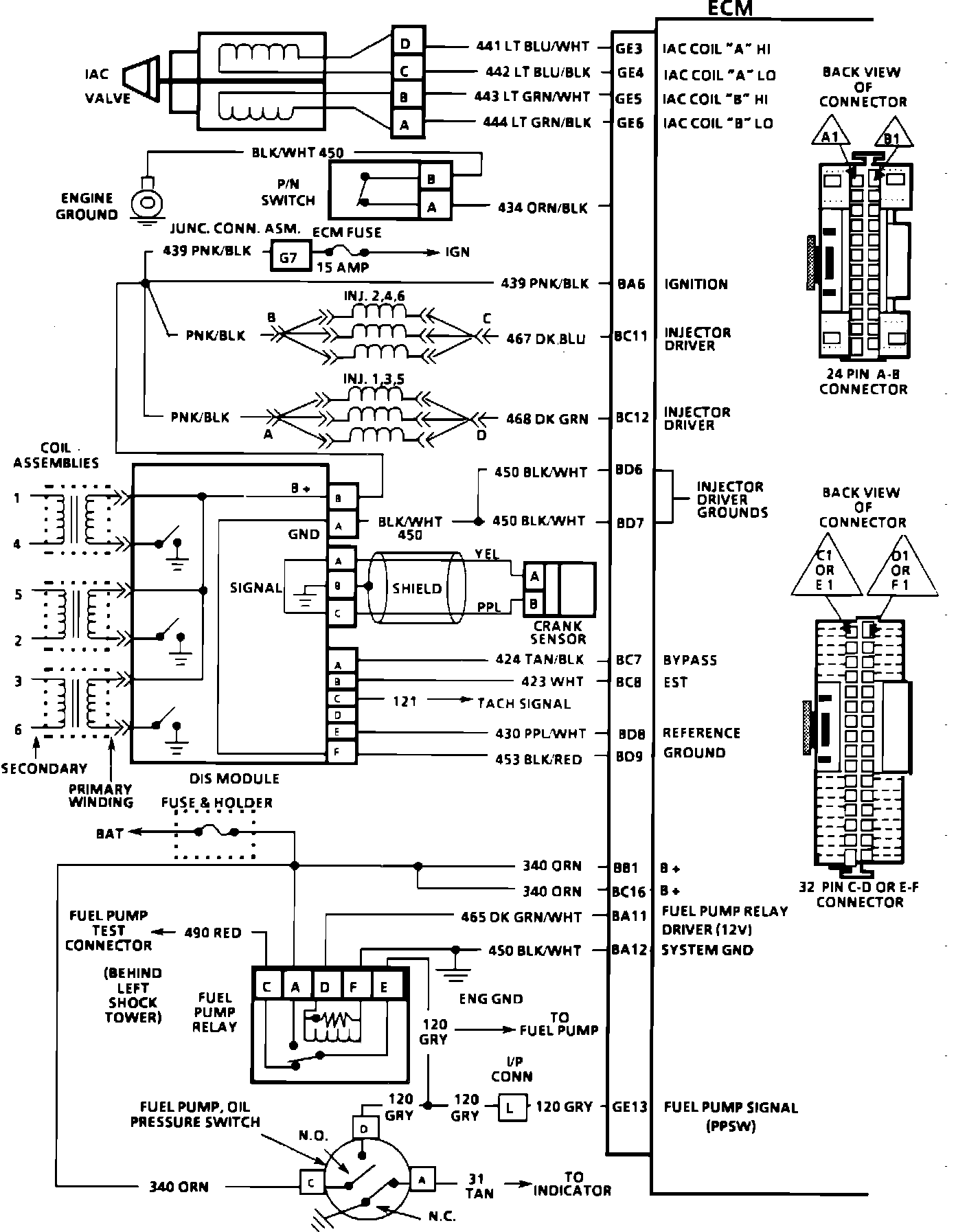

PART 3 of 3

Engine Controls (ECM):
