Engine Control Module: Locations

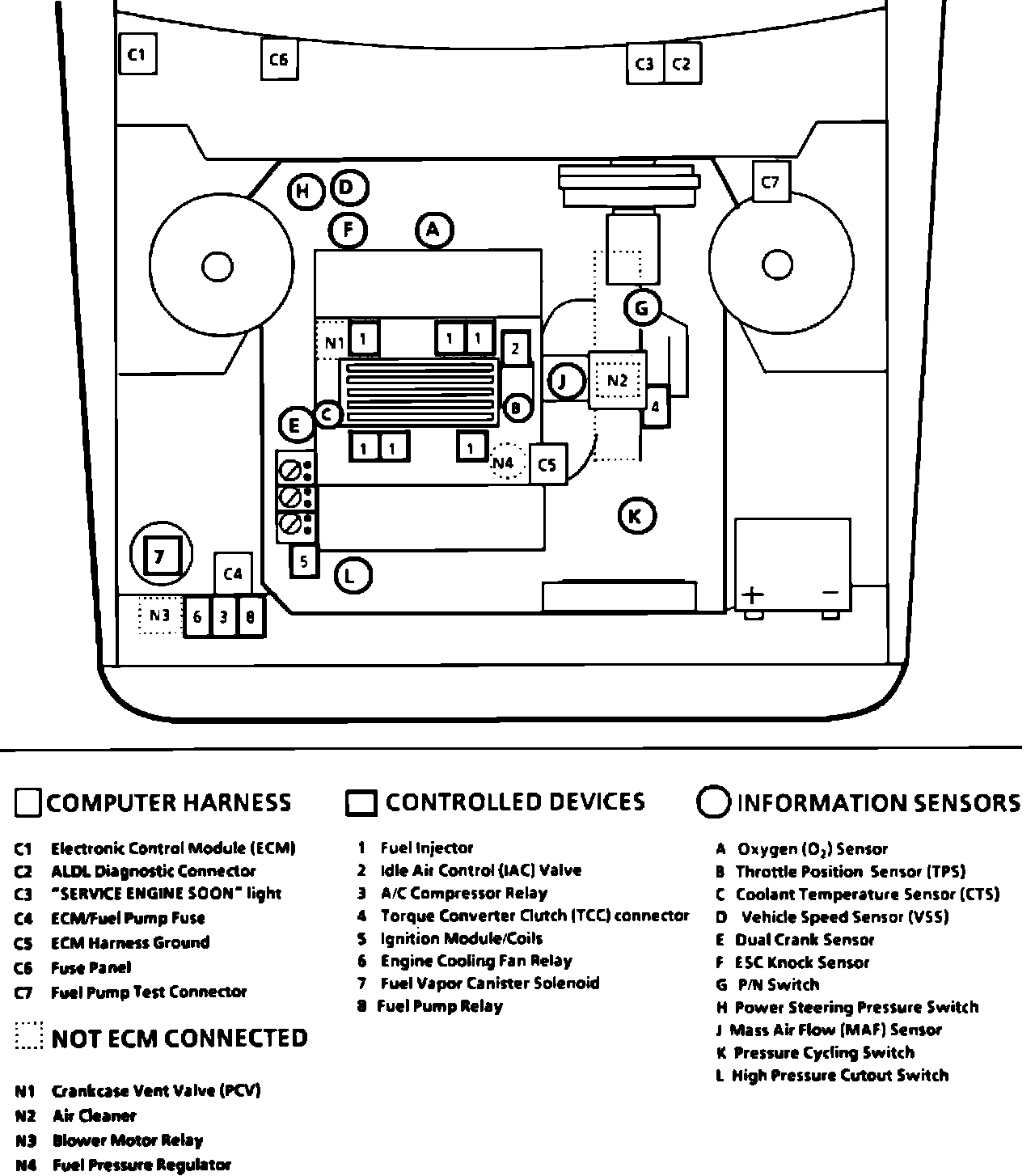

Engine Component Location.:




Behind RH Side Of I/P, Behind I/P Compartment

Applicable to: 6000 w/3.1L/V6-192

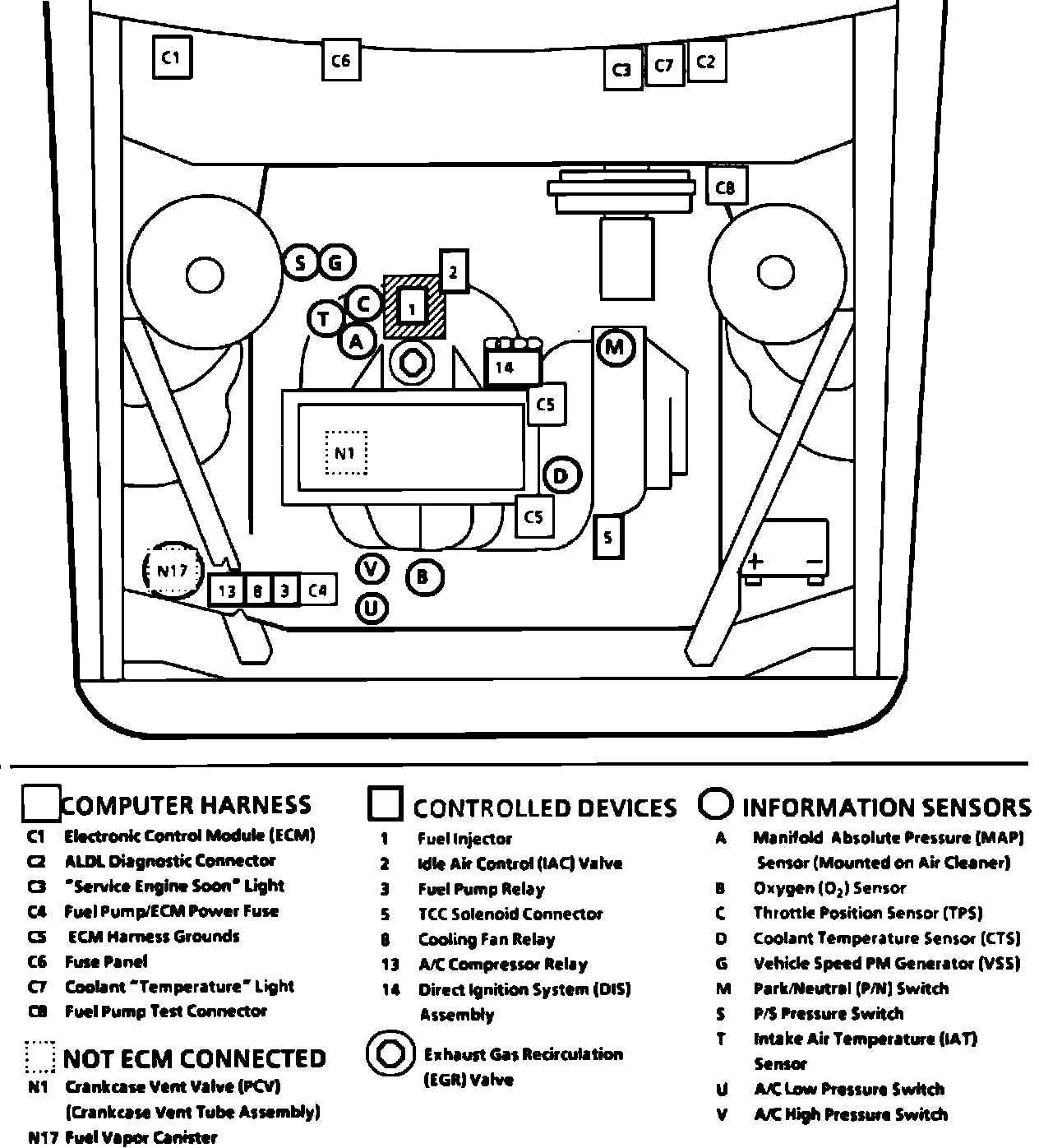

Engine Component Location.:




Behind RH Side Of I/P, Behind I/P Compartment

Applicable to: Cutlass Ciera/Cutlass Cruiser & Century w/2.5L/4-151

Engine Component Location.:




Behind RH Side Of I/P, Behind I/P Compartment

Applicable to: Cutlass Ciera/Cutlass Cruiser & Century w/3.3L/V6-201

Behind RH side Of I/P.:




Behind RH Side Of I/P, Behind I/P Compartment

Applicable to: 3.3L/V6-201

Behind RH Side Of I/P.:




Behind RH Side Of I/P, Behind I/P Compartment

Applicable to: 2.5L/4-151
