Wiring Diagrams

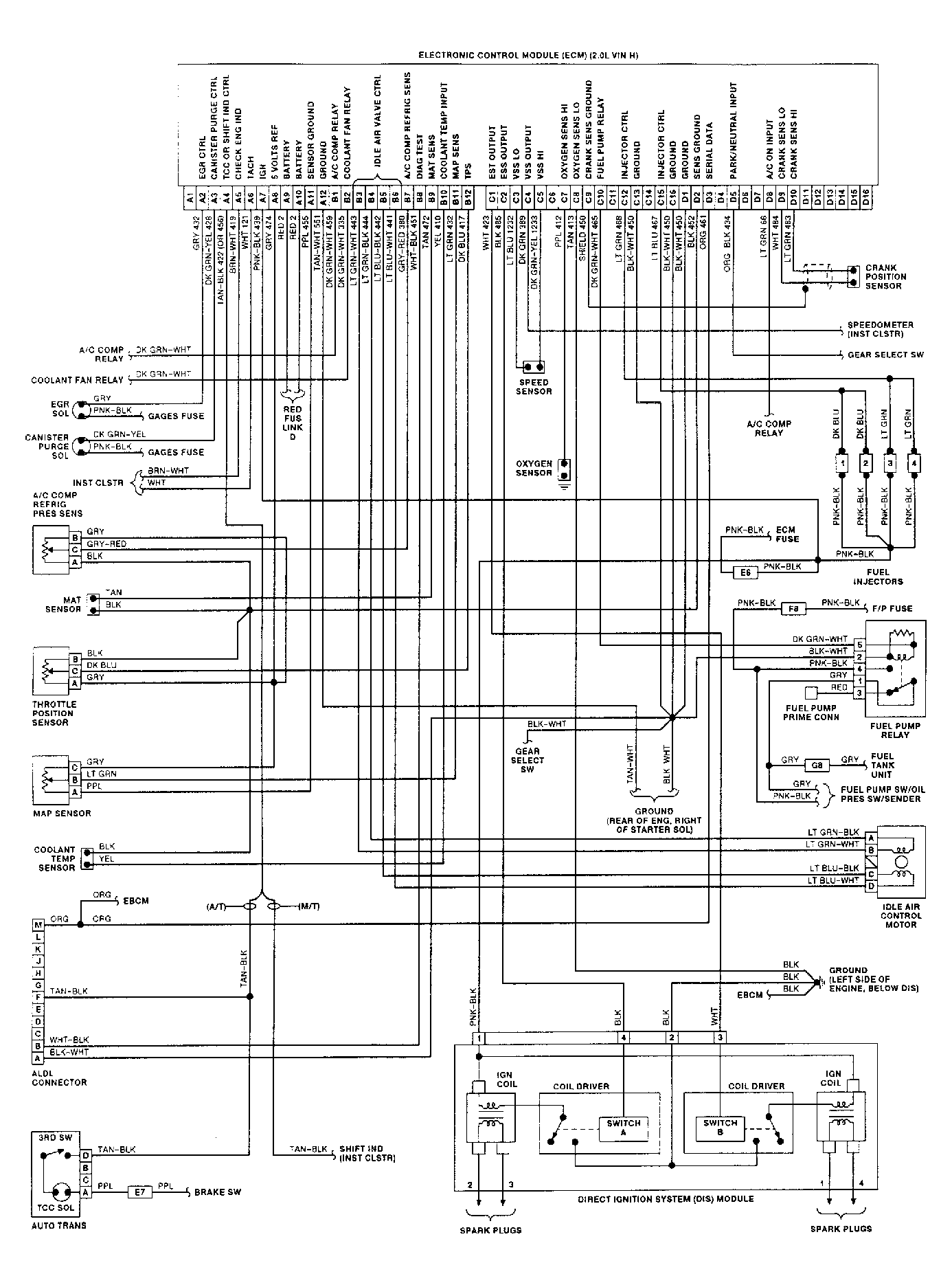

Fig 1: ECM Wiring Diagram, Sunbird (2.0L VIN H)
G92C05819

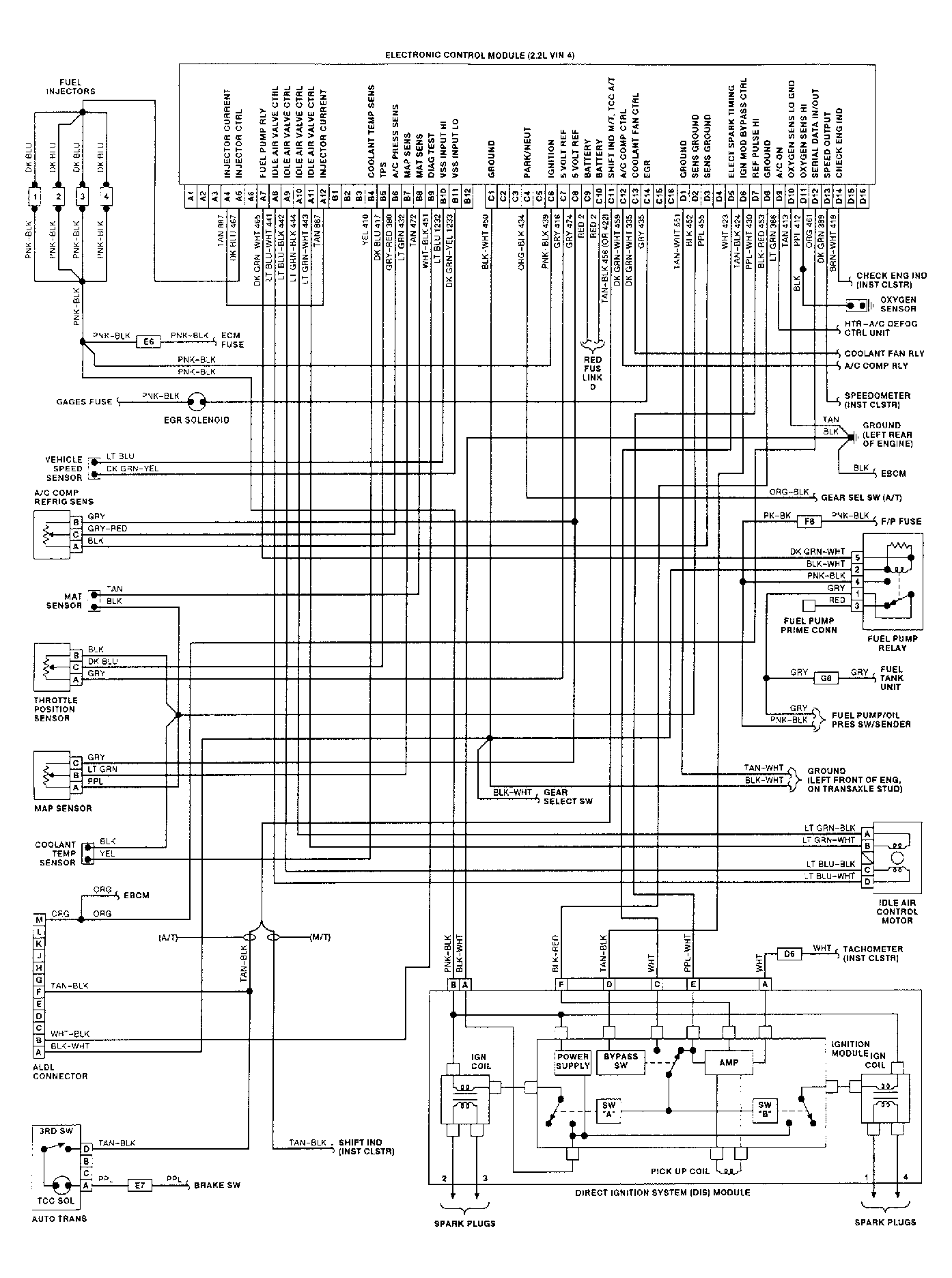

Fig 2: ECM Wiring Diagram, Cavalier (2.2L VIN 4)
G92G05821

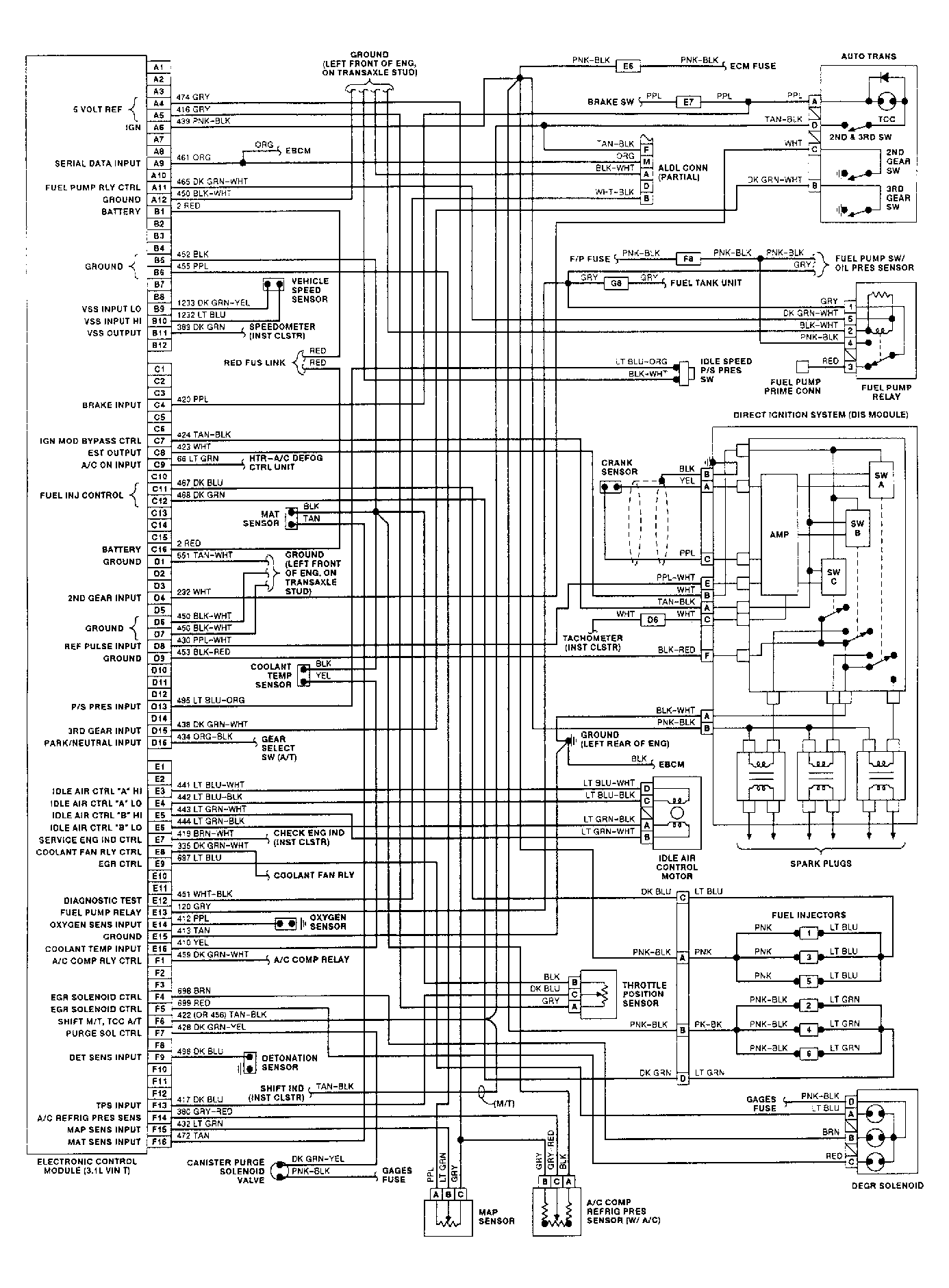

Fig 3: ECM Wiring Diagram, Sunbird & Cavalier (3.1L VIN T)
G92I05855
