Electronic/Powertrain Control Module (ECM/PCM)

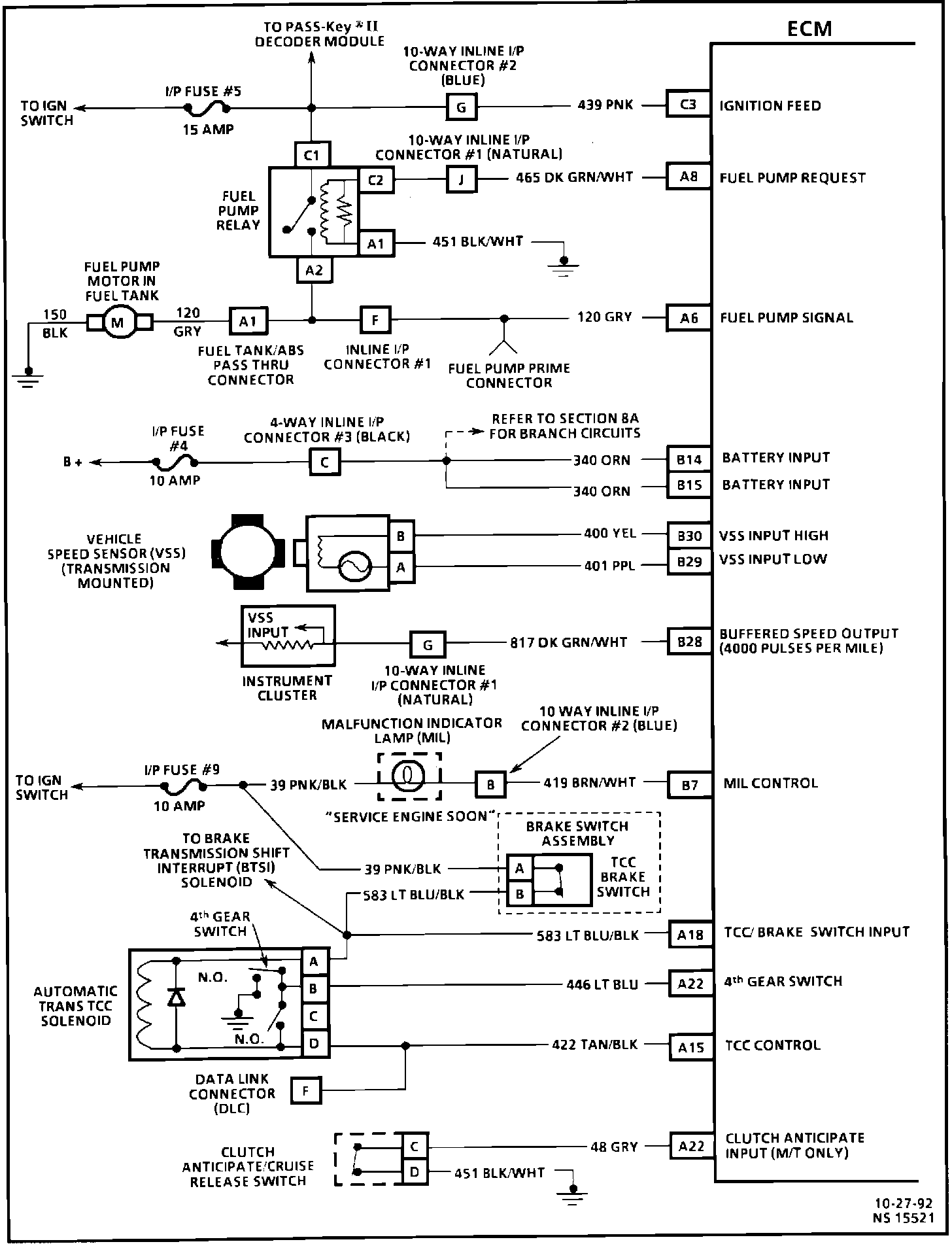

Engine Management Wiring Diagram (1 Of 5):





PART 1 OF 5

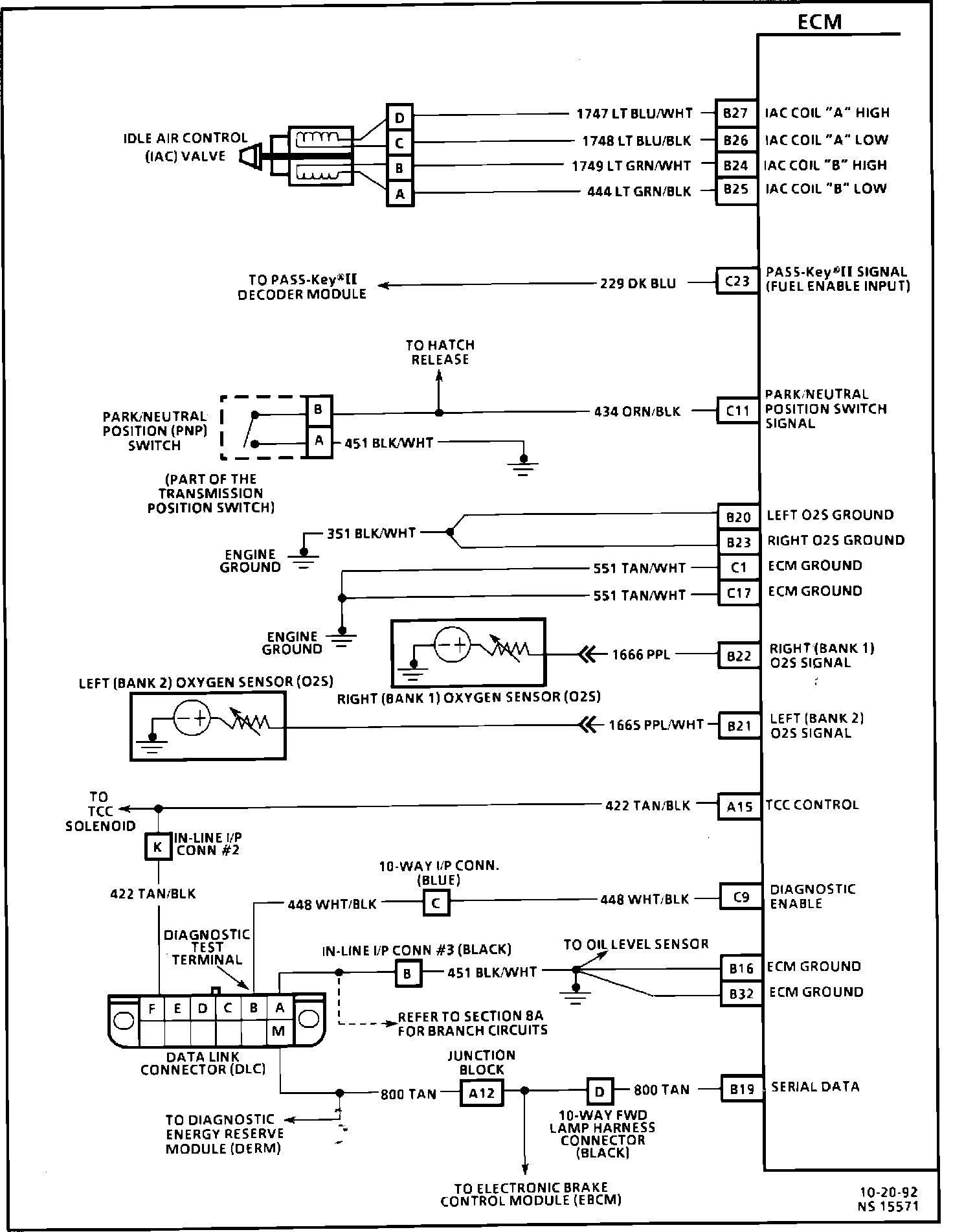

Engine Management Wiring Diagram (2 Of 5):





PART 2 OF 5

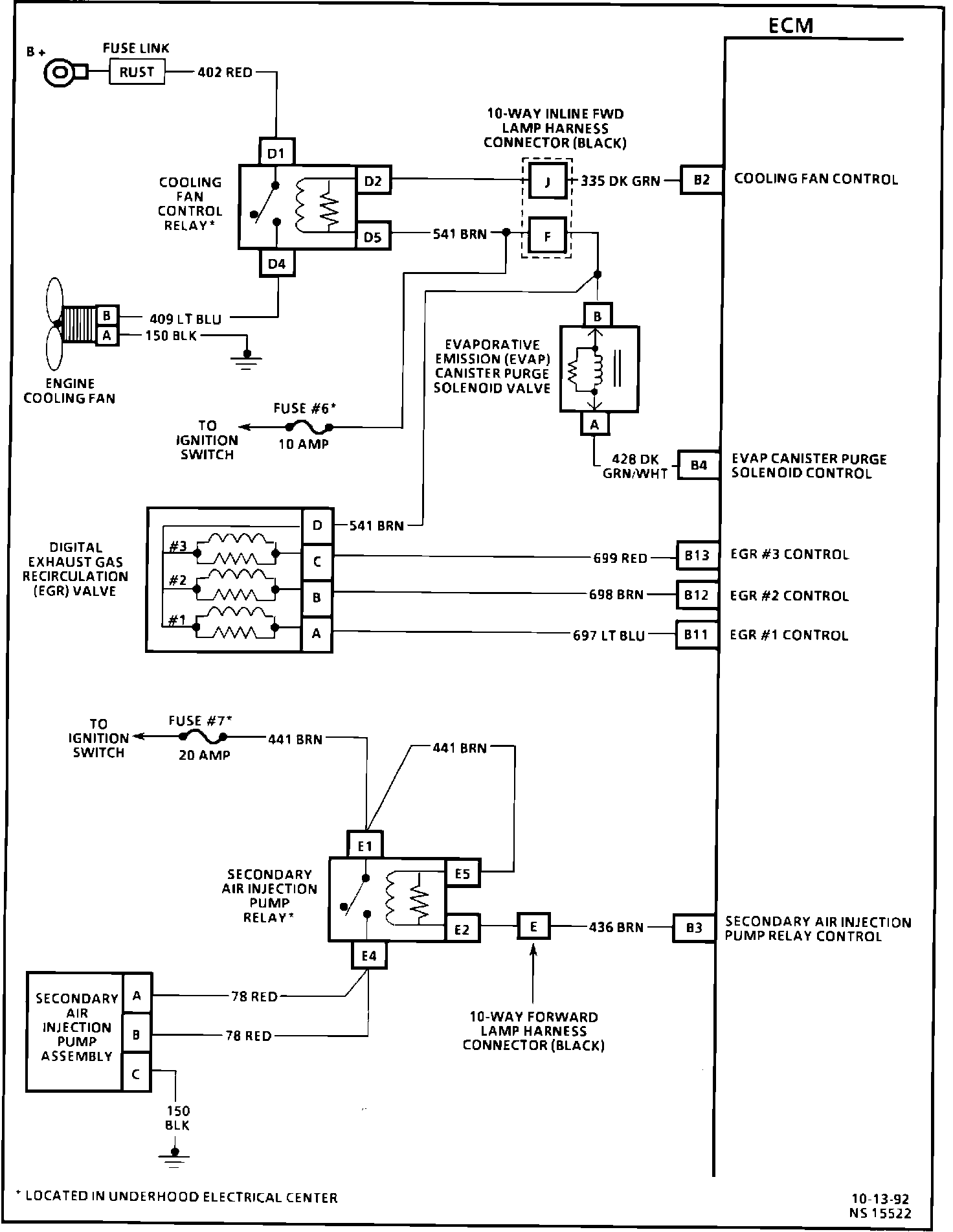

Engine Management Wiring Diagram (3 Of 5):





PART 3 OF 5

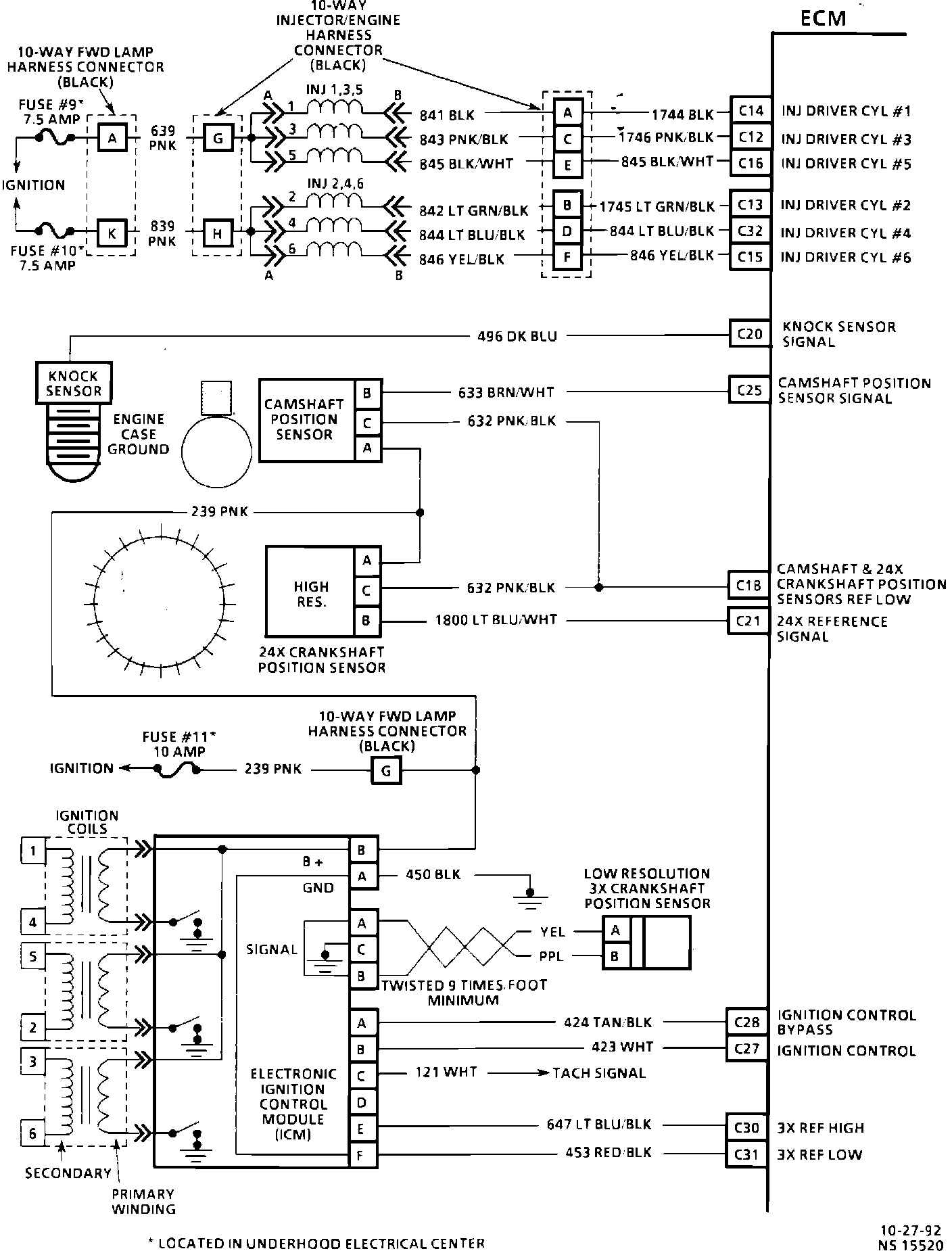

Engine Management Wiring Diagram (4 Of 5):





PART 4 OF 5

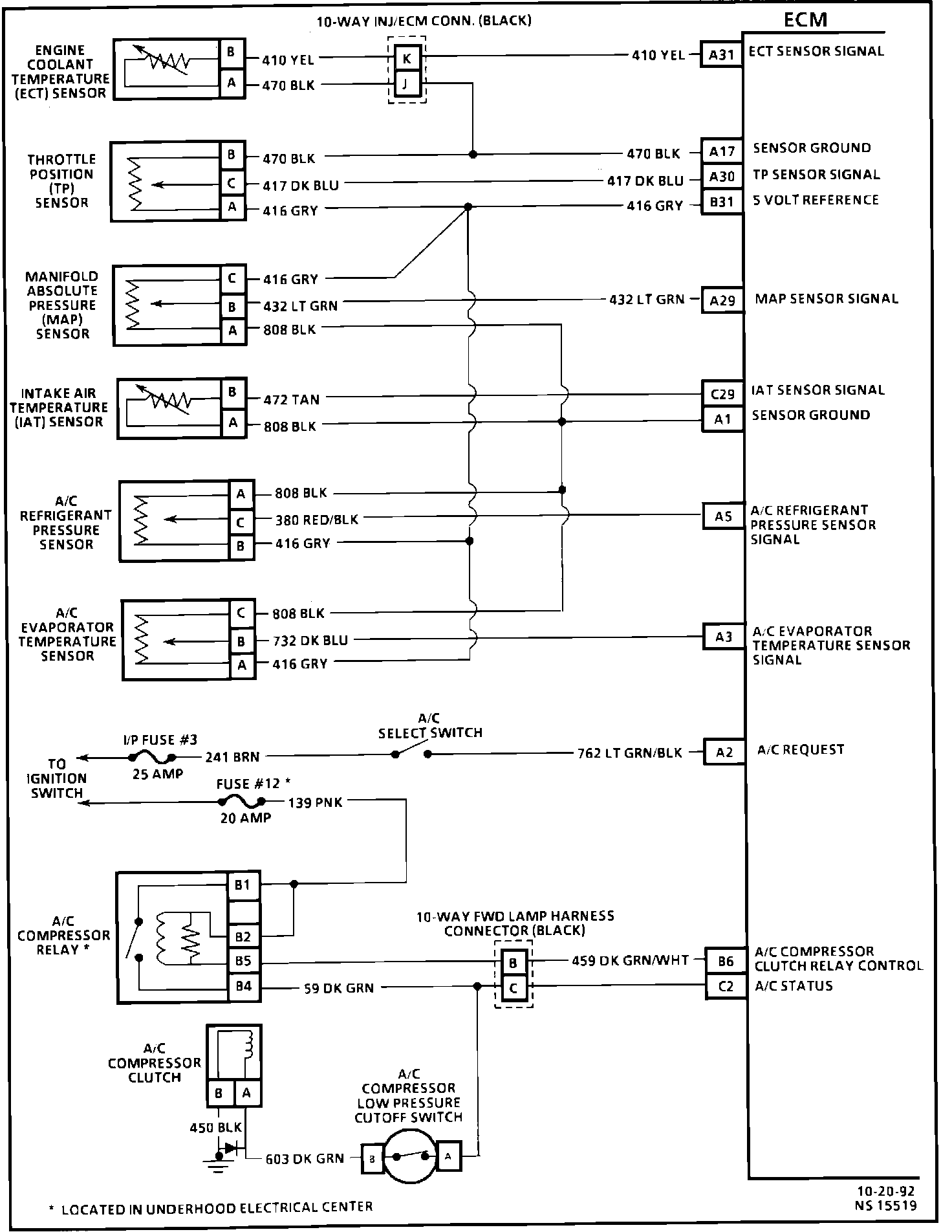

Engine Management Wiring Diagram (5 Of 5):





PART 5 OF 5
