Spring Height Measurement

Measure distance from adapter face and bearing assembly to lower spring retainer. Spring height must equal 1.0" (25.4 mm). See Fig 1 .

Fig 1: Measuring Spring Height

Courtesy of GENERAL MOTORS CORP.

Fig 2: Inspecting Steering Column Capsules For Damage

Courtesy of GENERAL MOTORS CORP.

Fig 3: Inspecting Steering Column Jacket

Courtesy of GENERAL MOTORS CORP.

Fig 4: Inspecting Steering Shaft

Courtesy of GENERAL MOTORS CORP.

COLUMN JACKET COLLAPSE MEASUREMENTS ⁽¹⁾

Application

In. (mm)

Camaro, Firebird

12.73-12.77 (323.44-324.44)

⁽¹⁾	Use with illustration. See Fig 5 .

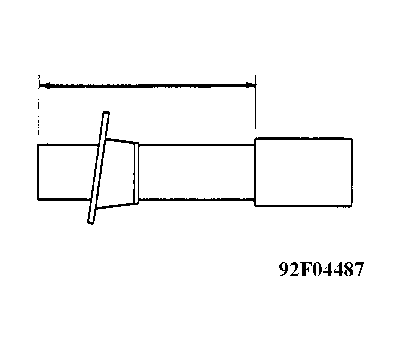

Fig 5: Measuring Column Jacket

Courtesy of GENERAL MOTORS CORP.

Fig 6: Exploded View Of Steering Column Assembly

Courtesy of GENERAL MOTORS CORP.
