Engine Control Module
>>
Diagrams
>>
C1 (Blue)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

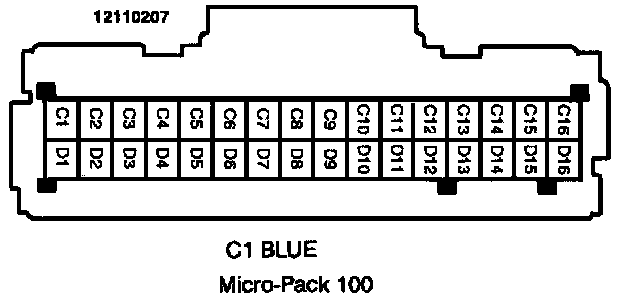

C1 (Blue)

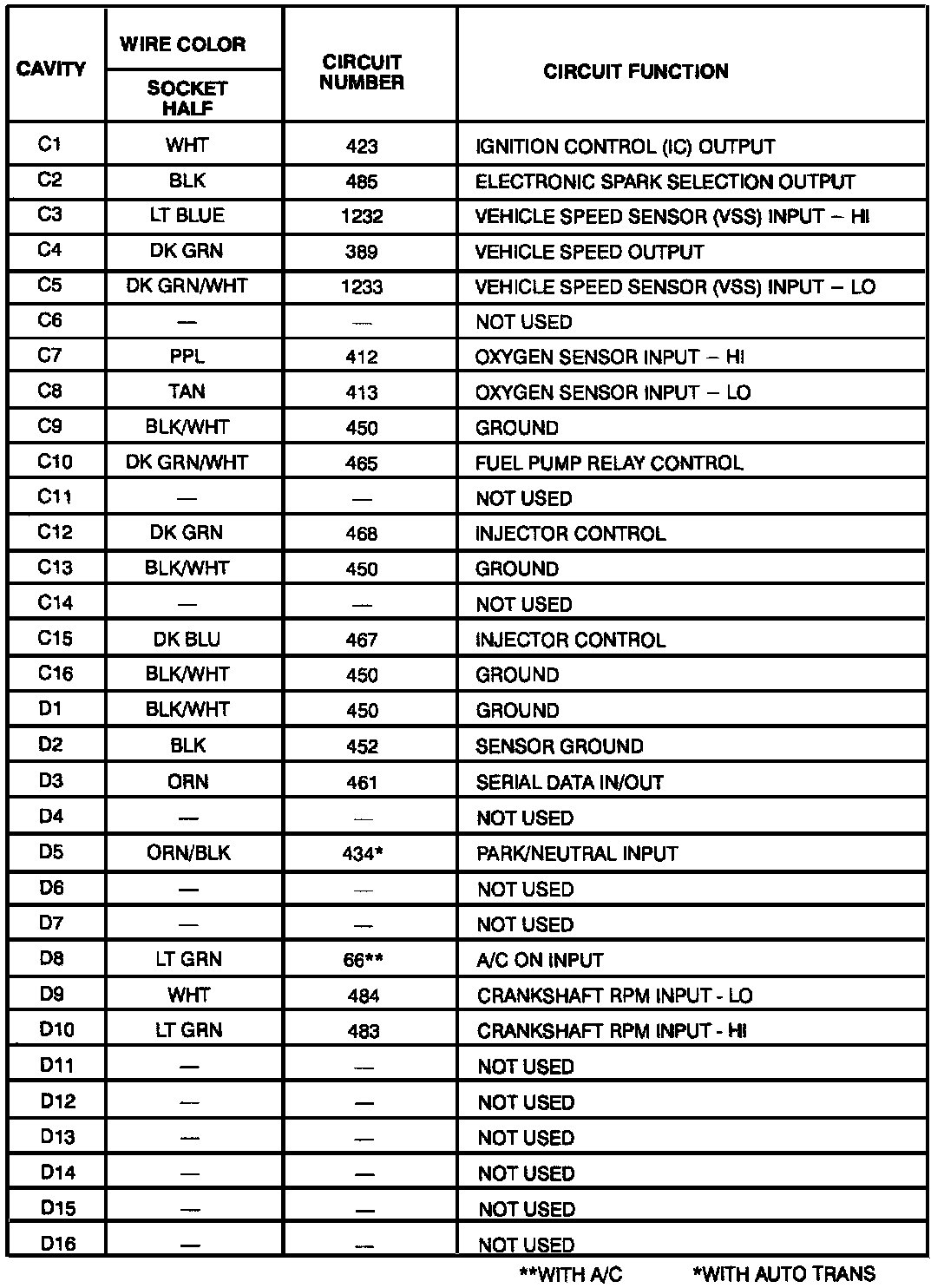

ECM Connector: C1:
ECM Connector: C1:
