A/C System Configuration


A/C System Configuration (L27 With C67):




L27 with C67 A/C System

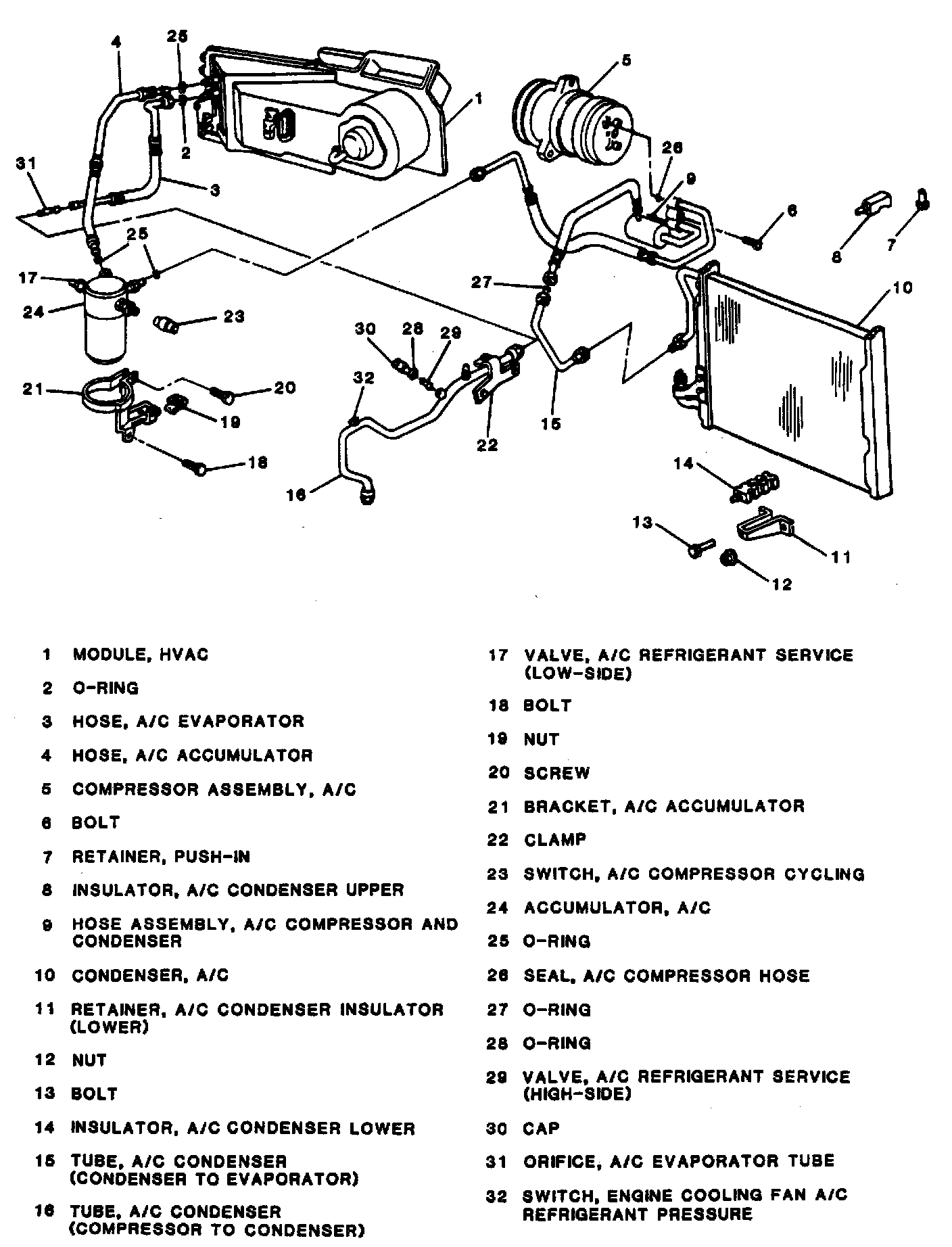

A/C System Configuration (L27 With C34):




L27 with C34 A/C System
