Camshaft Position Sensor: Service and Repair

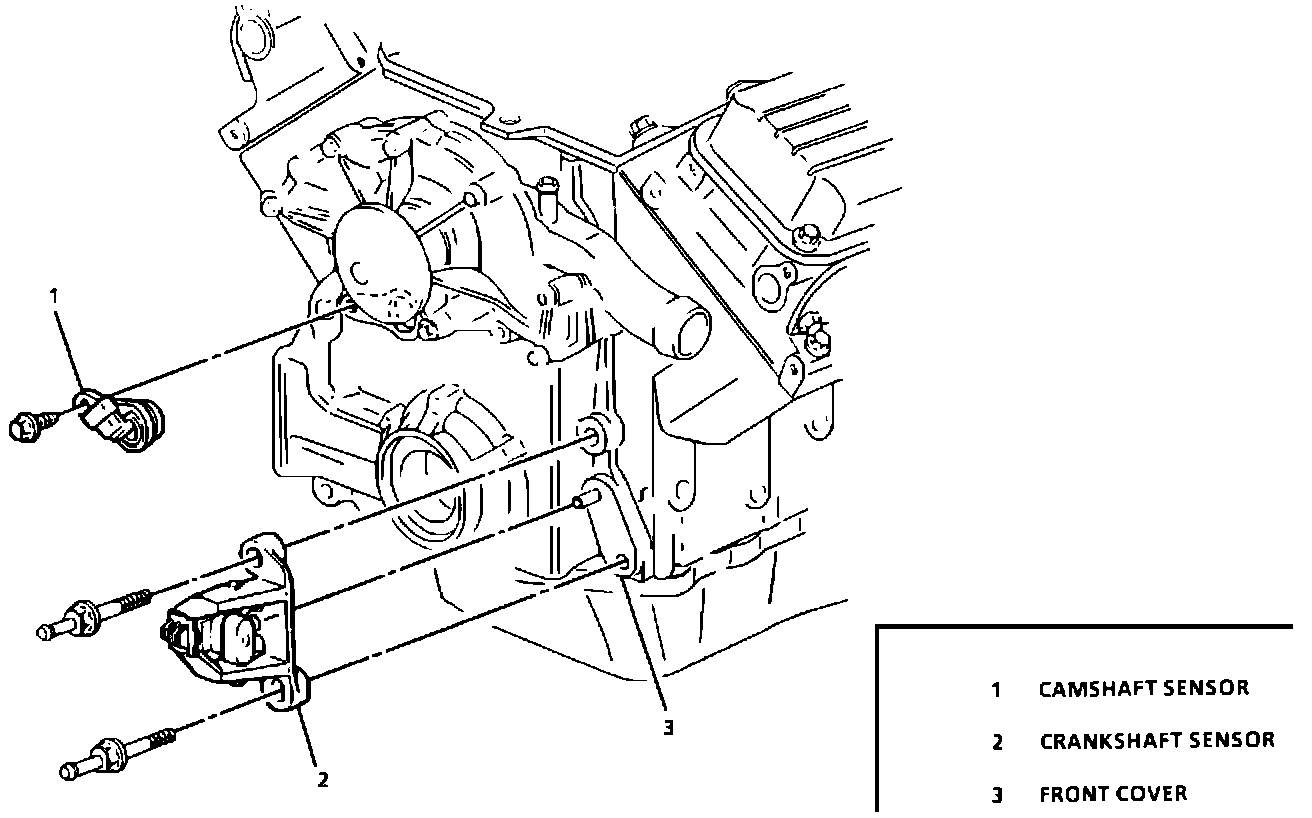

Cam And Crankshaft Sensors:

REMOVE OR DISCONNECT
- Disconnect battery ground cable.
- Remove water pump pulley attaching bolts, then the serpentine belt and water pump pulley.
- Disconnect sensor wiring connector and remove sensor retaining bolt.
- Twist and pull sensor to remove.


INSTALL OR CONNECT
- Install new sensor, lubricate sensor O-ring.
- Sensor retaining bolt.
- Reconnect sensor wiring connector and remove sensor retaining bolt.
- Install the serpentine belt and water pump pulley.
- Reconnect battery ground cable.
