Ignition Control Module: Locations

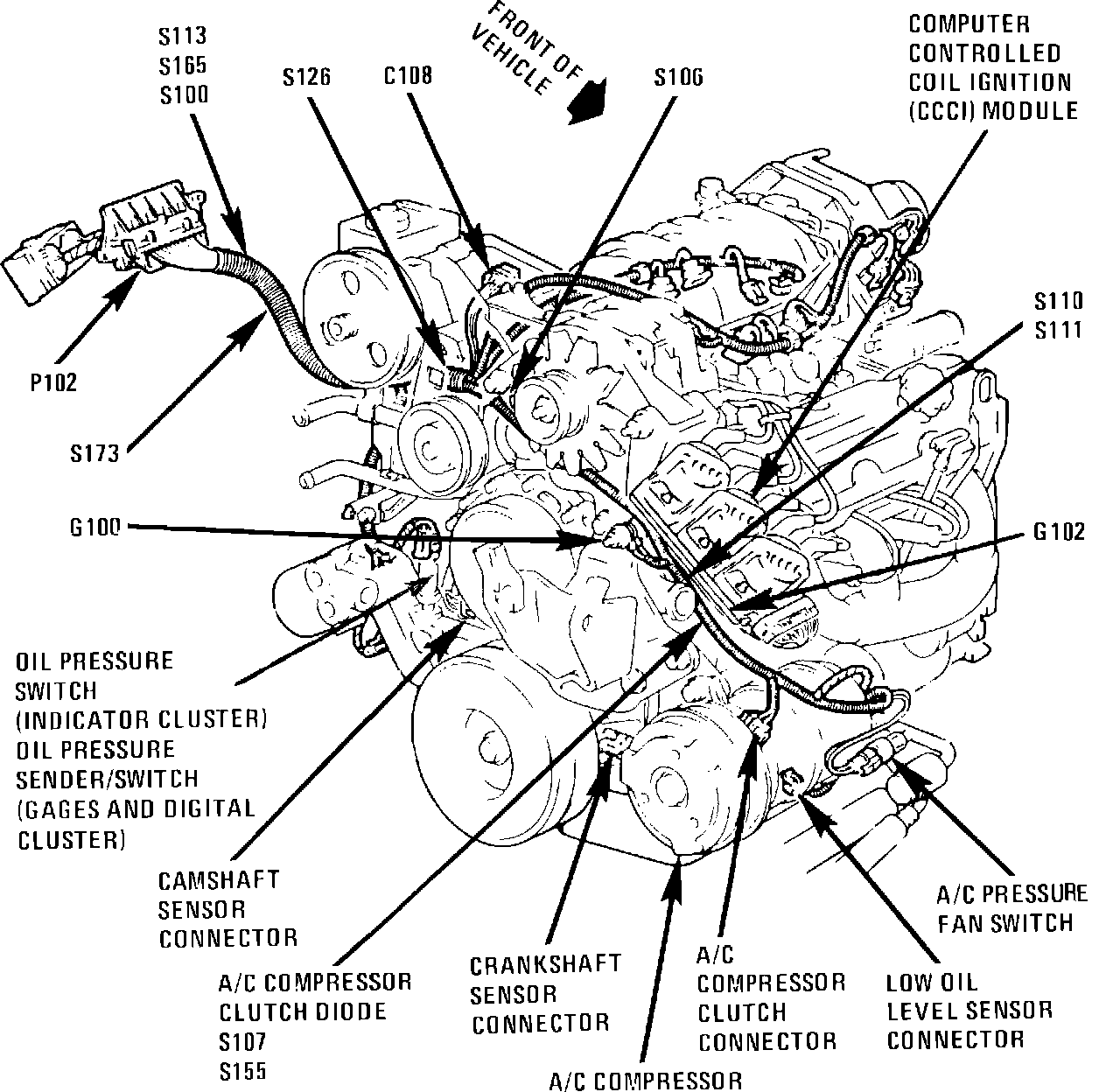

View - Right Front Of Engine:

ENGINE COMPONENTS (RIGHT FRONT VIEW)


CLOCKWISE FROM TOP RIGHT

Ignition Module
A/C Head Pressure Switch (cooling fan switch)
Low Engine Oil Sensor
A/C Compressor Clutch Connector
A/C Compressor
Crankshaft Sensor
A/C compressor Clutch Diode
Camshaft Sensor
Oil Pressure Switch/Sensor
