Code 115 - Adjuster Assembly Thermal Model Temperature Exceeded - (With TCS): Notes
Usually the adjuster assembly will reach its thermal limit after the rotors have reached or are past their thermal limit. In this way, the adjuster assembly can still react even though the rotors are over their specified termperature for shutdown.
NOTE:

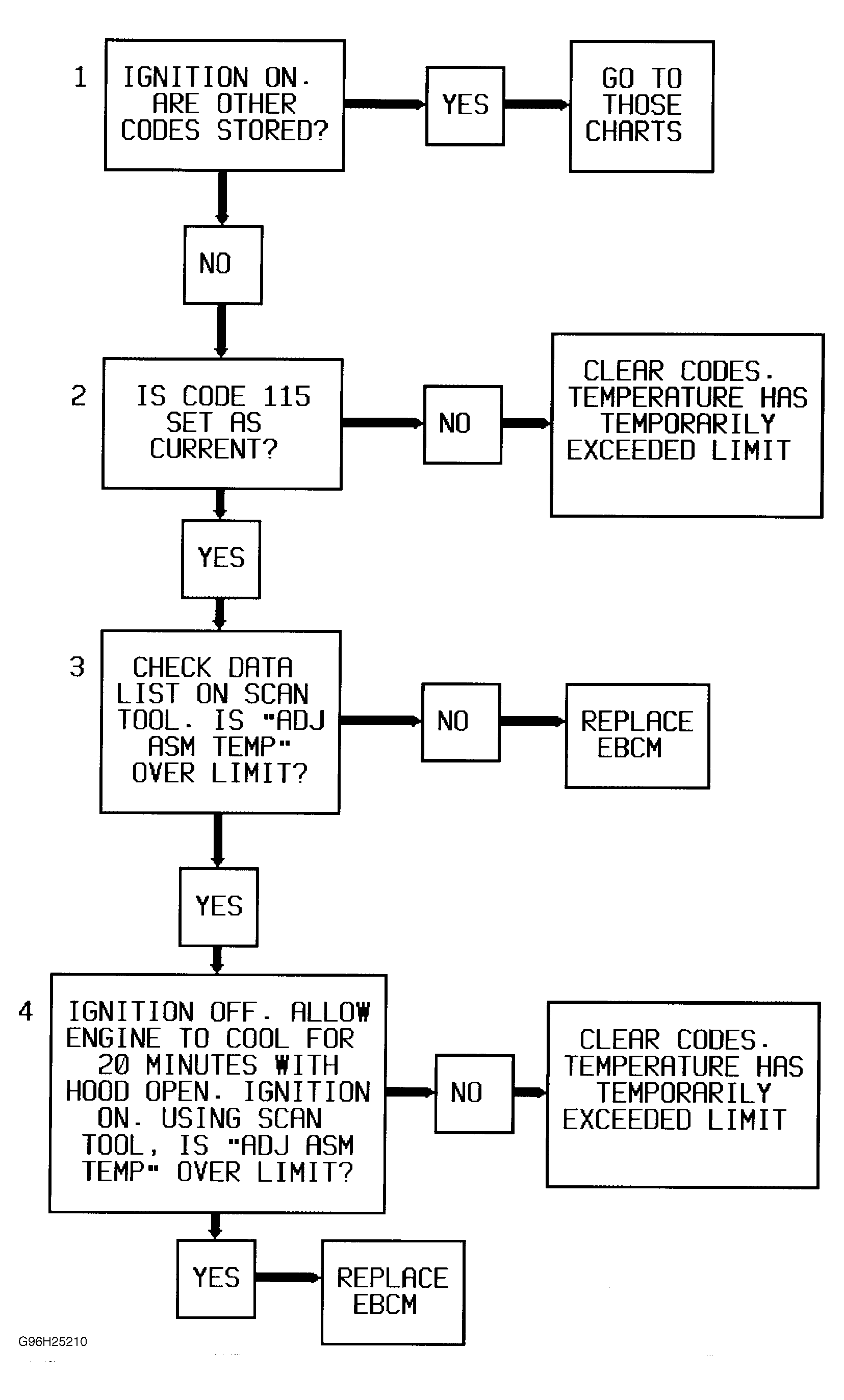

Test numbers refer to numbers on diagnostic chart. Use only 10-megohm (minimum) DVOM for all voltage and resistance tests. For identification of circuits and terminals referenced in charts and text, see WIRING DIAGRAMS .
- Checks to see if any other codes are set.
- Checks to see if code is set current.
- Checks adjuster assembly temperature to see if it is over limit.
- Lets adjuster assembly cool for 20 minutes and then rechecks to see if adjuster assembly temperature remains over temperature limit.
