Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

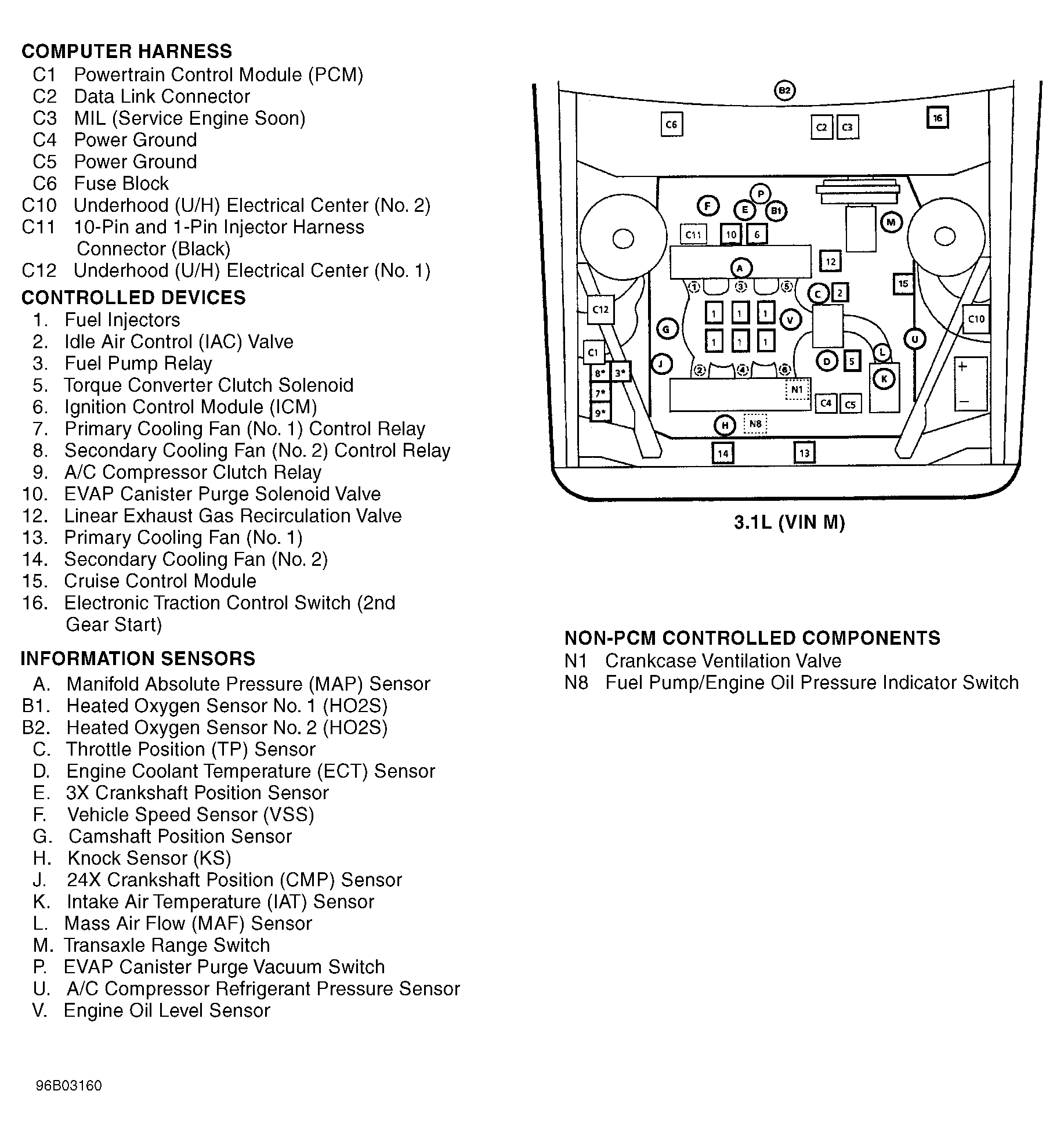

Fuse Block (3.1L VIN M) On right side of dash. See Figure.

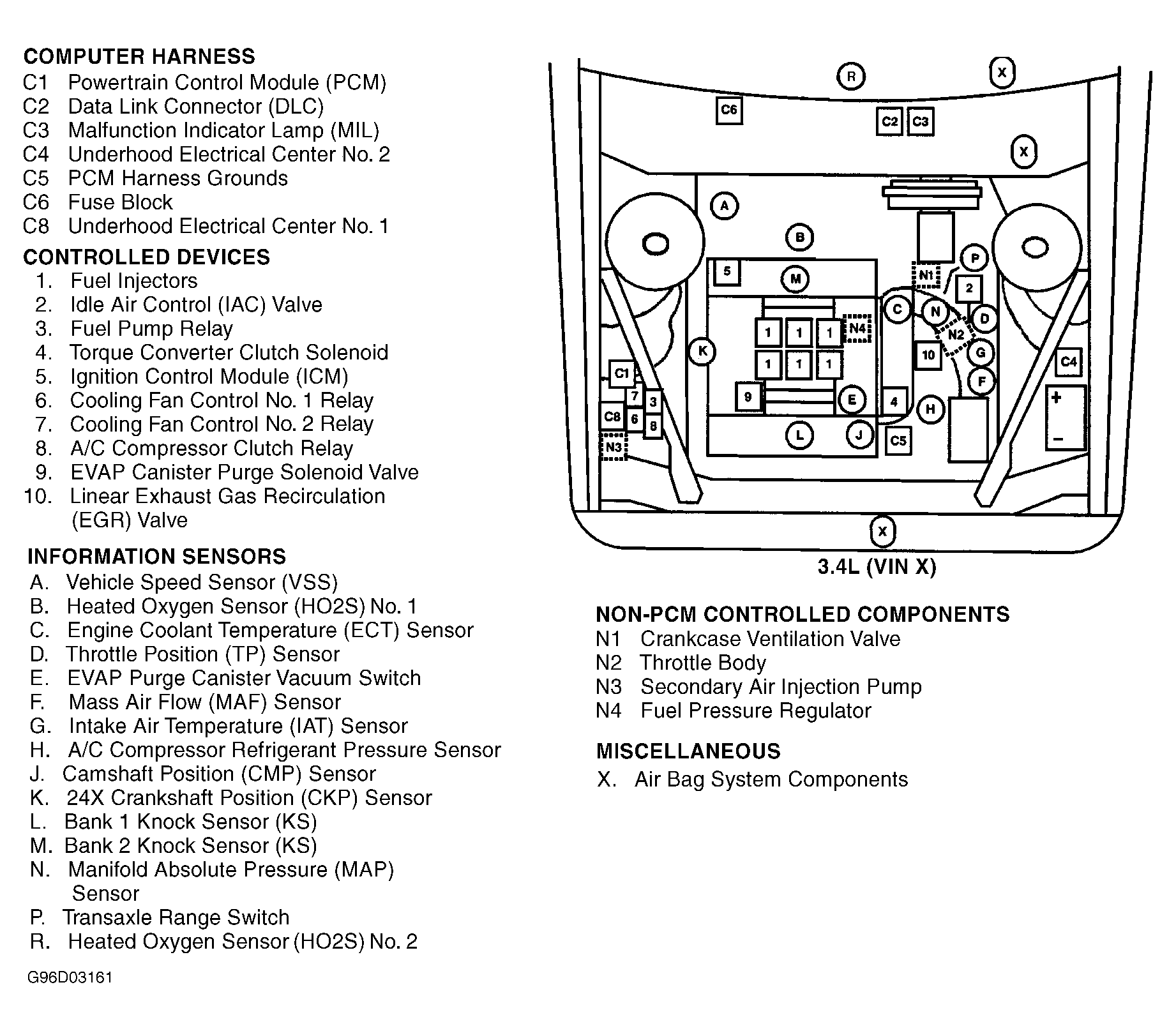

Fuse Block (3.4L VIN X) On right side of dash. See Figure.

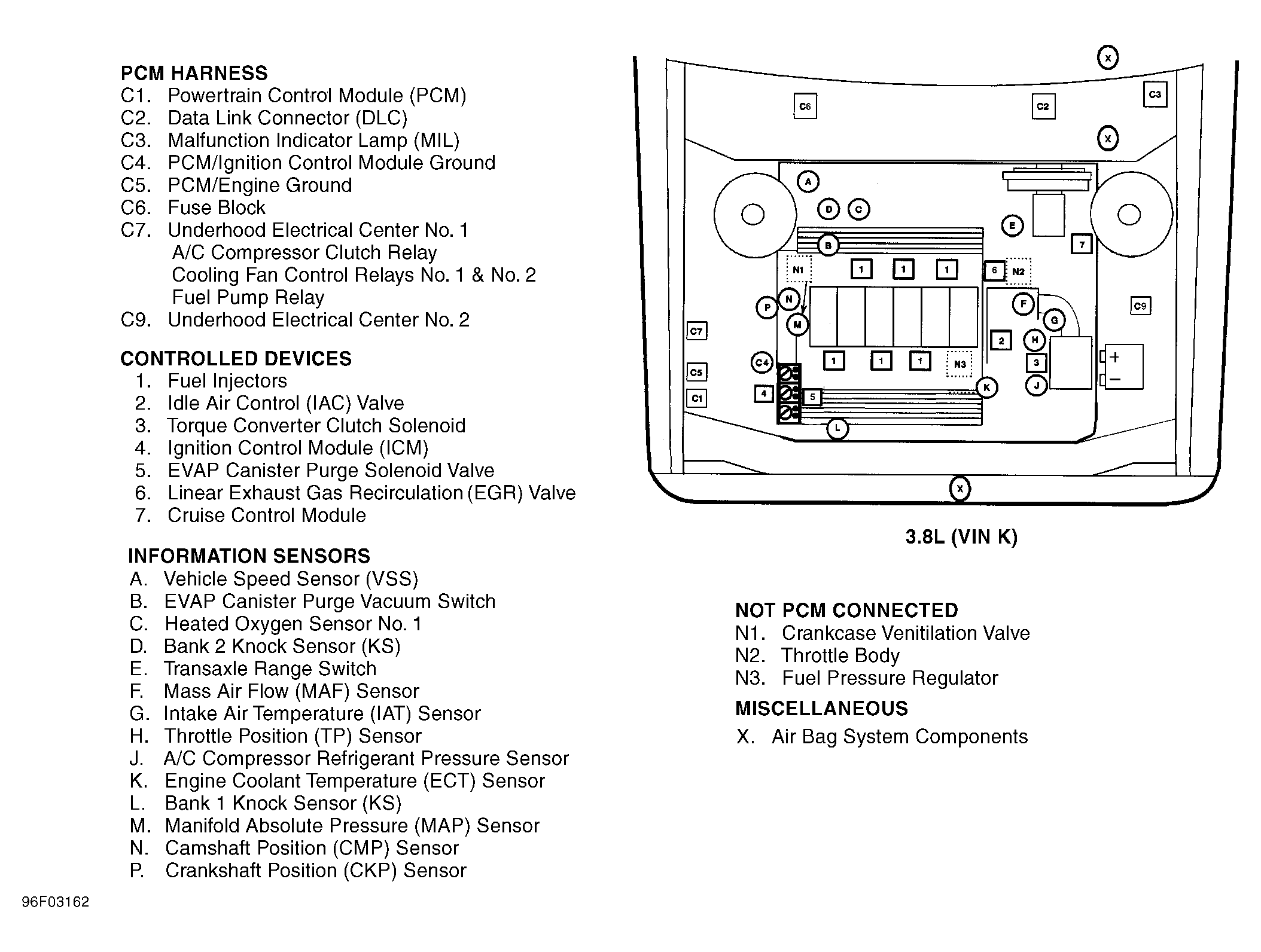

Fuse Block (3.8L VIN K) On right side of dash. See Figure.
Fusible Links At starter solenoid.
Underhood Electrical Center No. 1 (3.1L VIN M) Forward of right front strut tower. See Figure.
Underhood Electrical Center No. 1 (3.4L VIN X) Forward of right front strut tower. See Figure.
Underhood Electrical Center No. 1 (3.8L VIN K) Forward of right front strut tower. See Figure.
Underhood Electrical Center No. 2 (3.1L VIN M) Forward of left front strut tower. See Figure.
Underhood Electrical Center No. 2 (3.4L VIN X) Forward of left front strut tower. See Figure.
Underhood Electrical Center No. 2 (3.8L VIN K) Forward of left front strut tower. See Figure.
