Anti-Lock Brake Power Center Identification: Notes

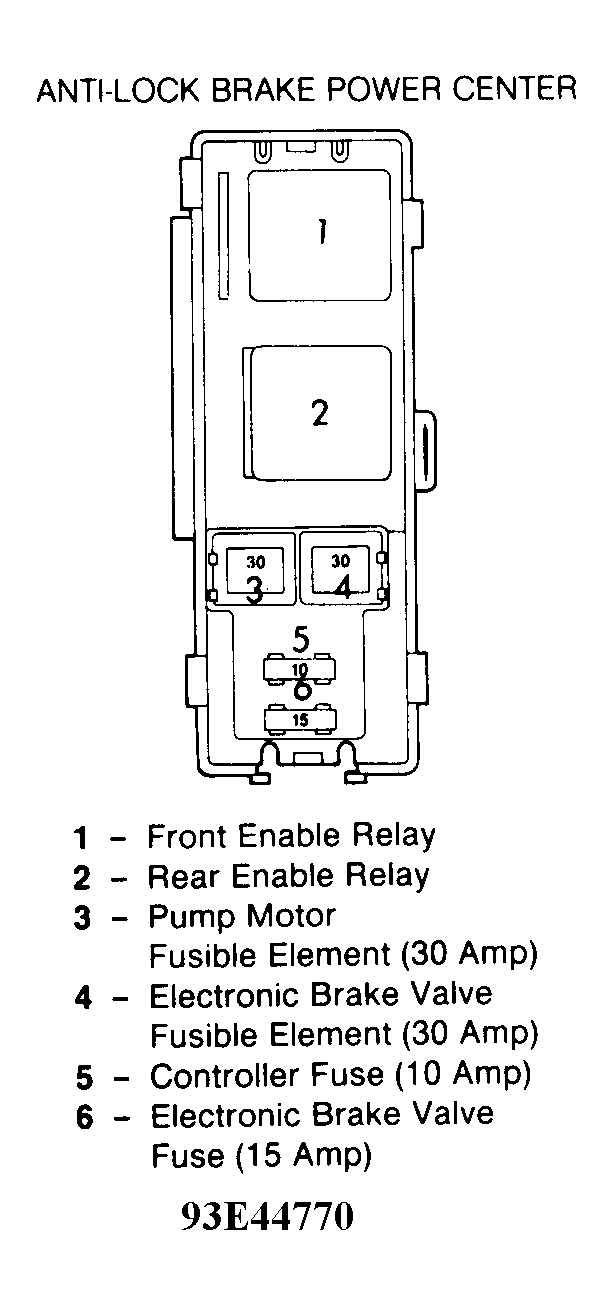

Fig 1: Anti-Lock Brake Power Center Identification
G93E44770Courtesy of GENERAL MOTORS CORP.
