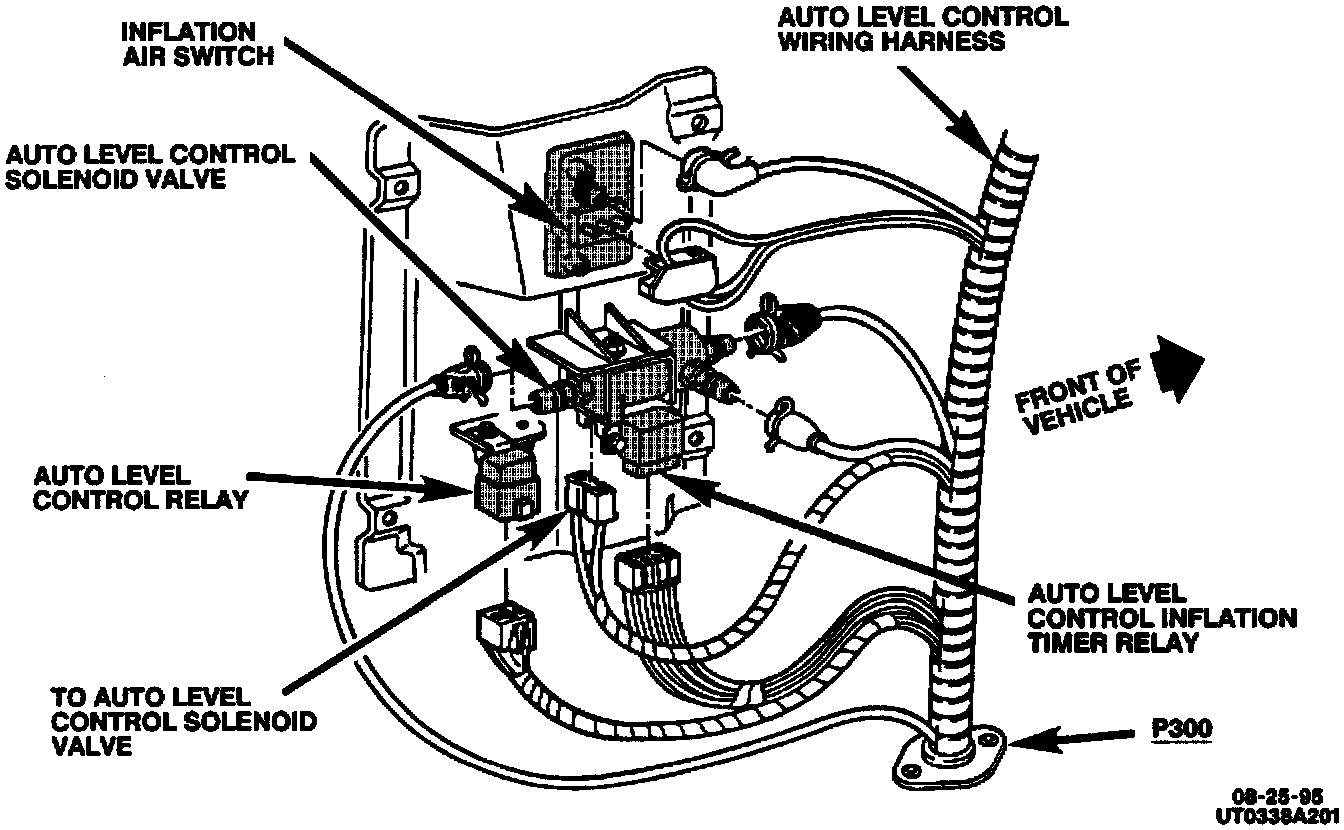

Auto Level Control Inflation Timer Relay

LH Rear Inner Quarter Panel (Behind Wheelhouse):



LH Rear Inner Quarter Panel (Behind Wheelhouse):
