Home >> Pontiac >> 1996 >> Trans Sport V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Brake Control Module (EBCM) >> C1

April 5, 2026: LEMON Manuals is launched! Read the announcement.

C1

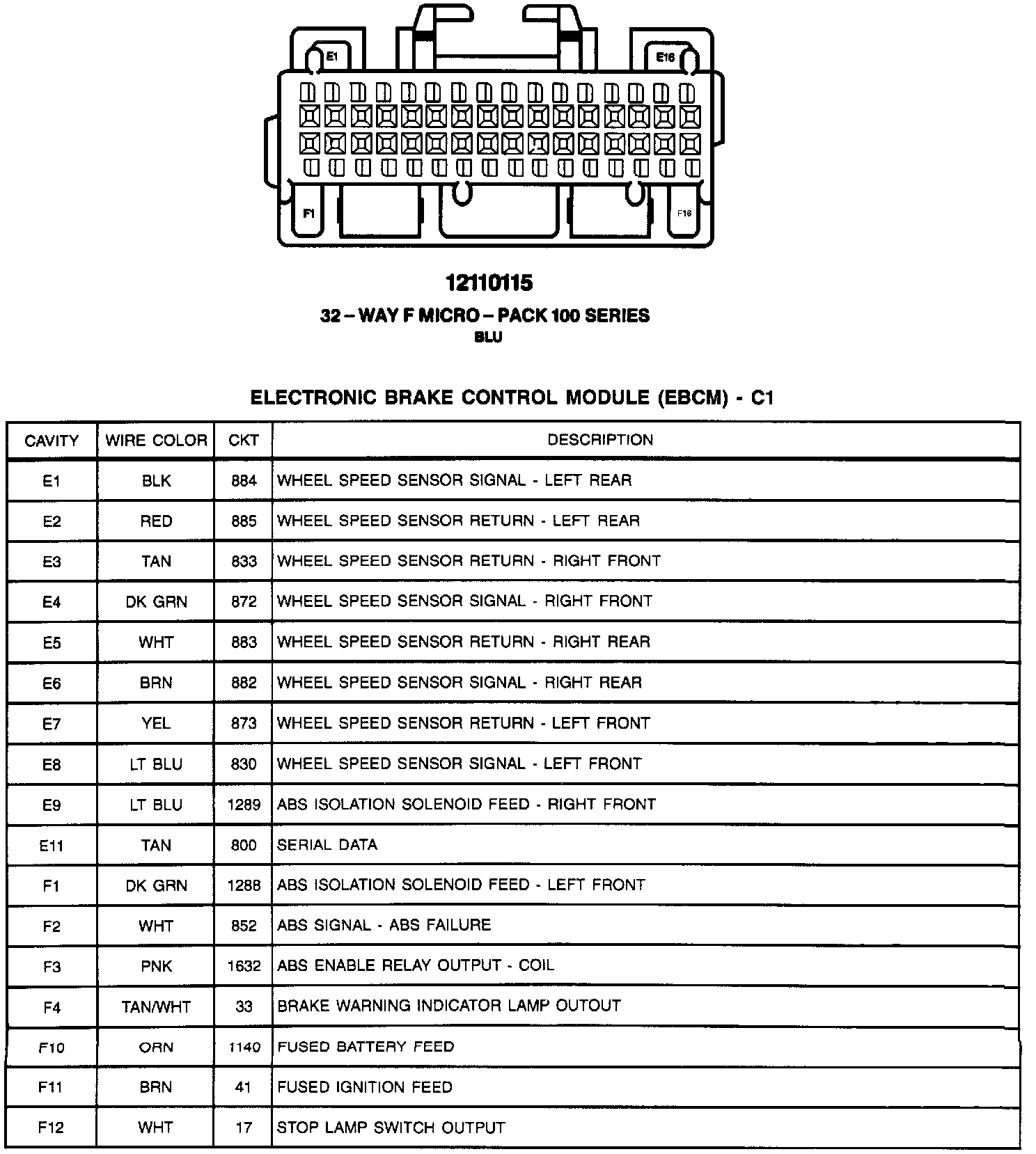

Electronic Brake Control Module (EBCM) - C1:
