Test D: Lock Function Inoperative (One Switch Only)
For test procedure, refer to illustration. See
Fig 1
.

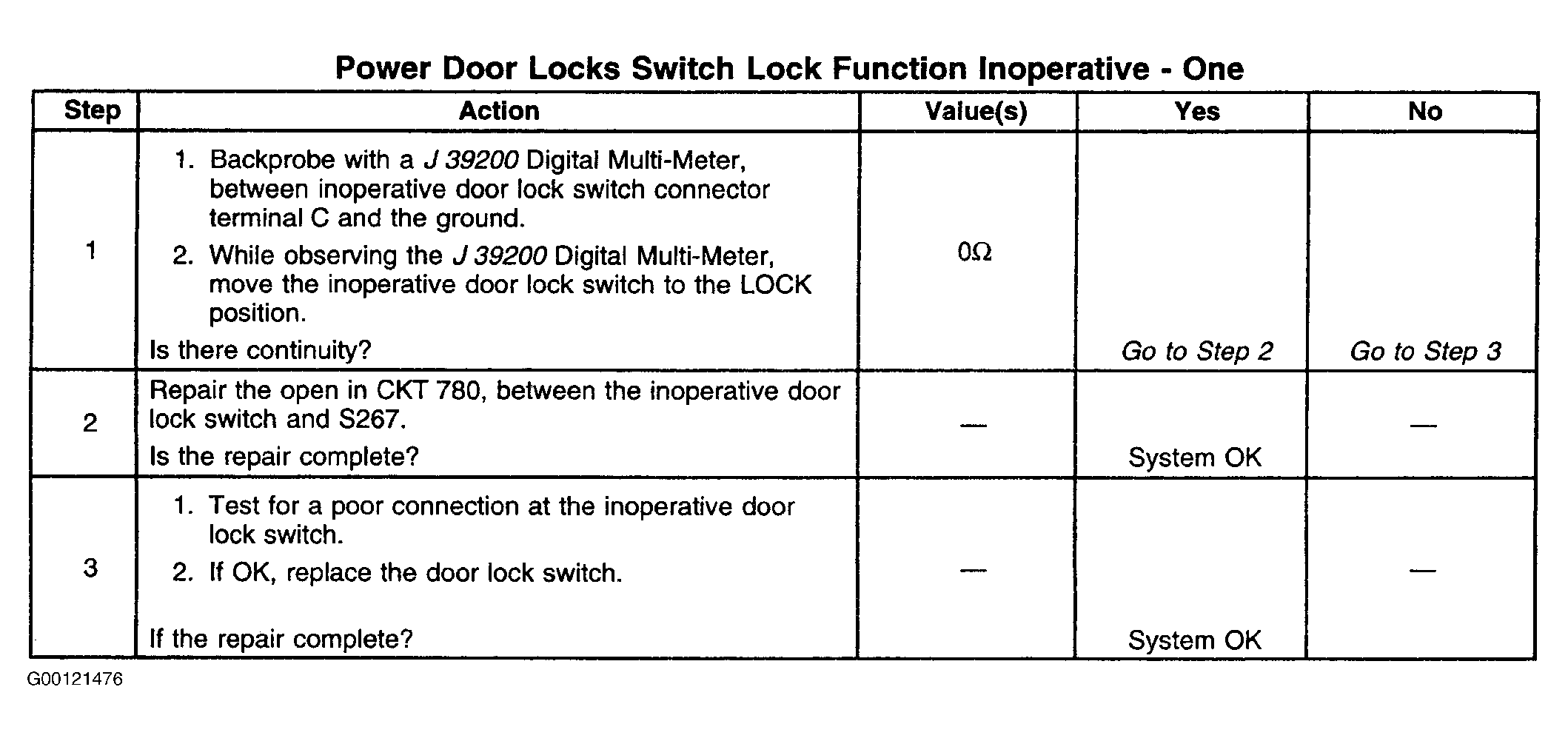

Fig 1: Test D: Lock Function Inoperative (One Switch Only)
Courtesy of GENERAL MOTORS CORP.
