Component Locations

COMPONENT LOCATIONS

Component Location
Express Down Module Included As Part Of Left Front Window Switch. See Fig 1 .
Front Window Regulator Motor (2-Door) In Center Of Front Door. See Fig 2 .
Front Window Regulator Motor (4-Door) In Center Of Front Door. See Fig 3 .
Fuse Block On Right Side Of Instrument Panel, In Instrument Panel Opening. See Fig 4 .
Left Front Window Switch In Center Of Left Front Door Panel. See Fig 1 .
Right Front Window Switch In Center Of Left Front Door Panel. See Fig 5 .
Rear Window Regulator Motor In Center Of Rear Door. See Fig 6 .
Rear Window Switch In Center Of Rear Door Panel. See Fig 7 .
C200 (56 Cavities) In Instrument Panel Wiring Harness To Body Wiring Harness, Behind Right Side Of Instrument Panel Near Shroud. See Fig 8 .
C301 (16 Cavities) In Body Wiring Harness To Left Front Door Wiring Harness, Behind Trim At Base Of A-Pillar. See Fig 9 .
C302 (16 Cavities) In Body Wiring Harness To Right Front Door Wiring Harness, Behind Trim At Base Of A-Pillar. See Fig 10 .
C355 (8 Cavities) In Body Wiring Harness To Left Rear Door Wiring Harness, Behind Trim At Base Of B-Pillar. See Fig 9 .
G301 Inside Left Door Sill, Forward Of Left Front Seat. See Fig 9 .
G302 In Right Door Sill, Forward Of Right Front Seat. See Fig 9 .
P500 At Left A-Pillar. See Fig 11 .
P600 At Right A-Pillar. See Fig 11 .
P700 At Left B-Pillar. See Fig 12 .
P800 At Right B-Pillar. See Fig 12 .
S307 In Body Wiring Harness, On Floor Near Center Of Vehicle, Approx. 8" From C325 In-Line To Floor Console Wiring Harness.
S310 Body Wiring Harness, Under Right Front Door Sill, Approx. 6" From C302 Breakout.
S406 Body Wiring Harness, Below Rear Window Panel, Approx. 4" From C405 (Inline Connector To Fuel Tank Harness) Breakout.
S504 Left Front Door Wiring Harness, Approx. 2" From Left Door Lock Switch Breakout.
S604 Left Front Door Wiring Harness, Approx. 2" From Right Door Lock Switch Breakout.

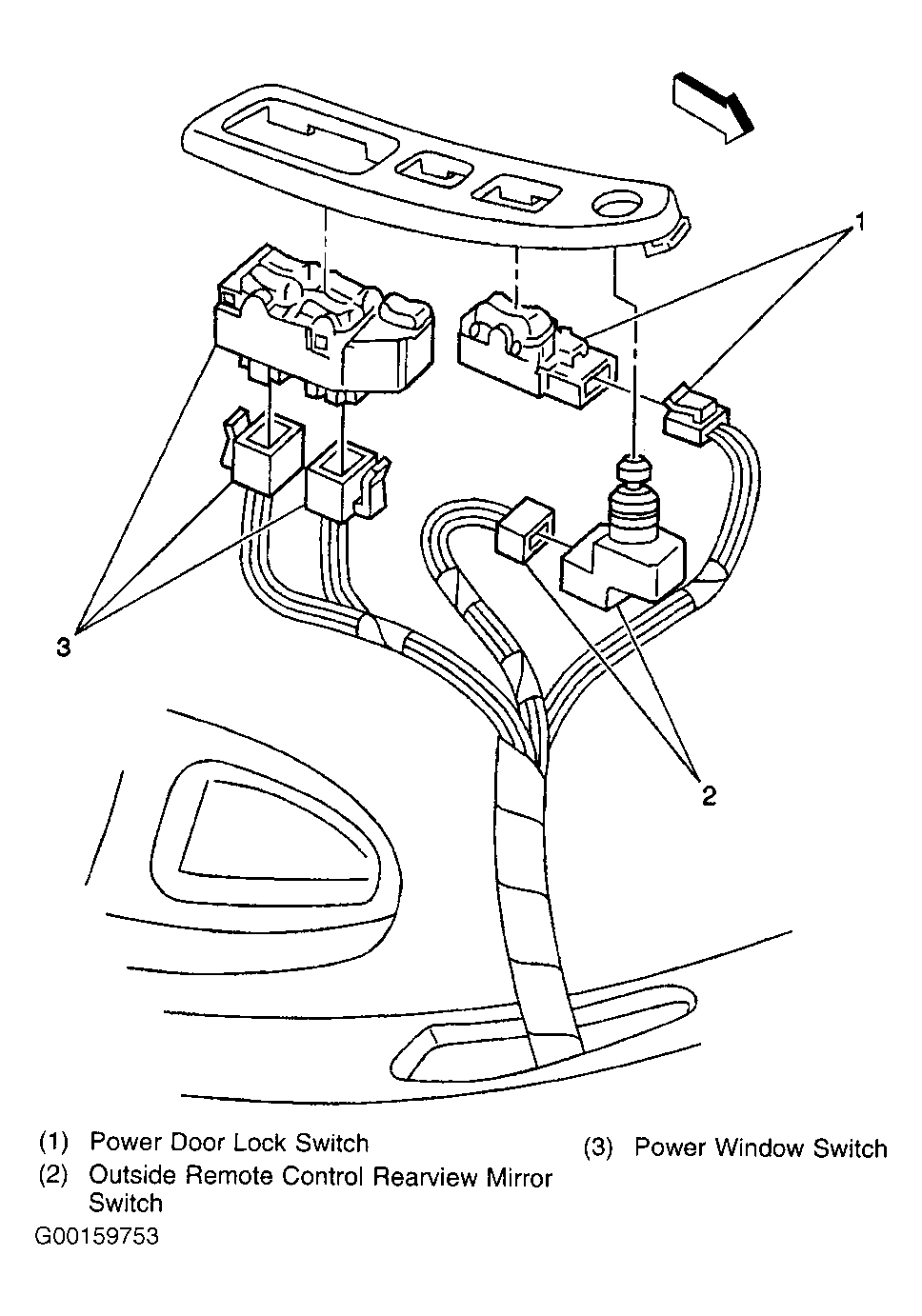

Fig 1: Locating Left Front Window Switch
G00159753Courtesy of GENERAL MOTORS CORP.

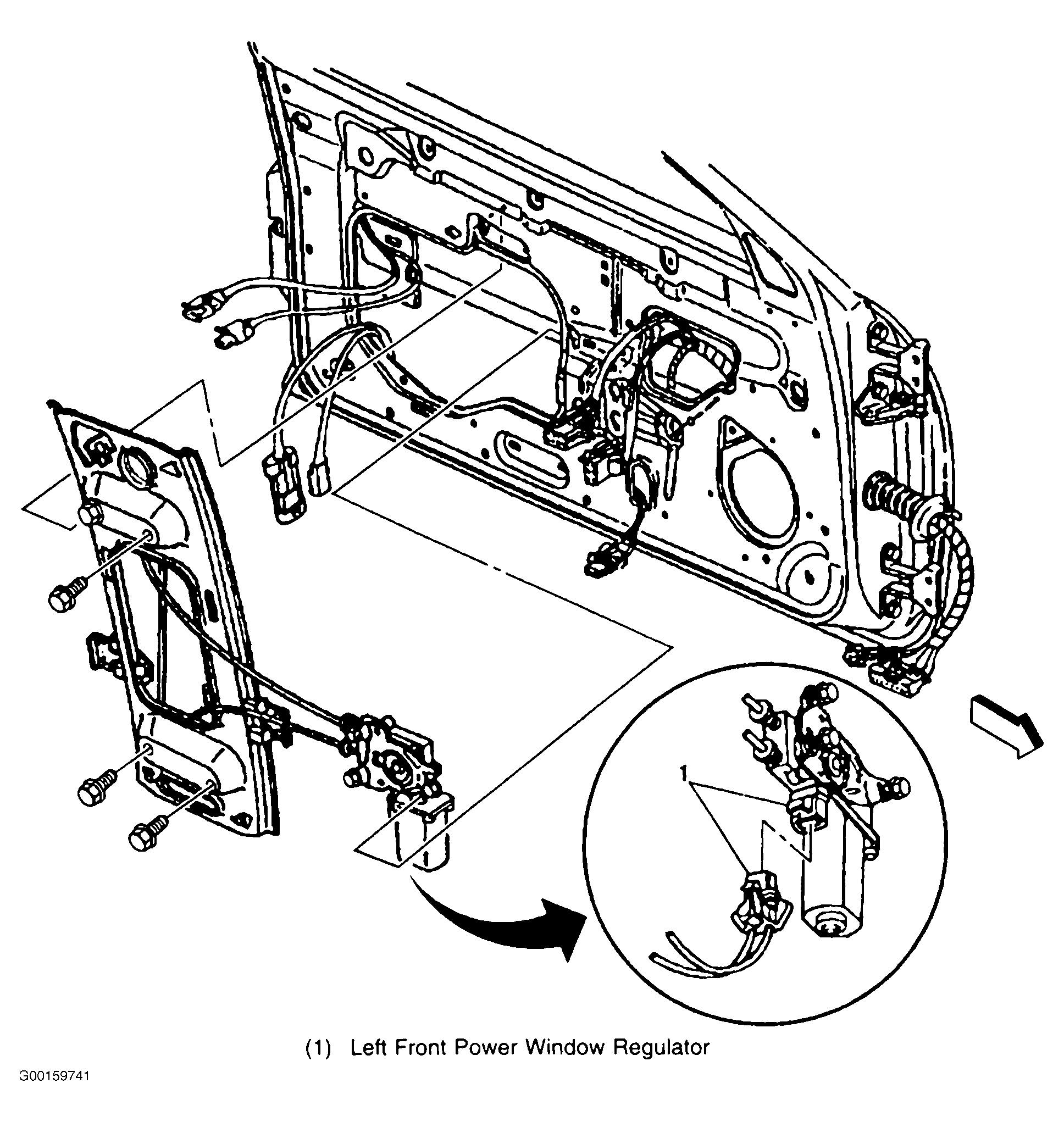

Fig 2: Locating Front Door Power Window Motor (2-Door)
G00159741Courtesy of GENERAL MOTORS CORP.

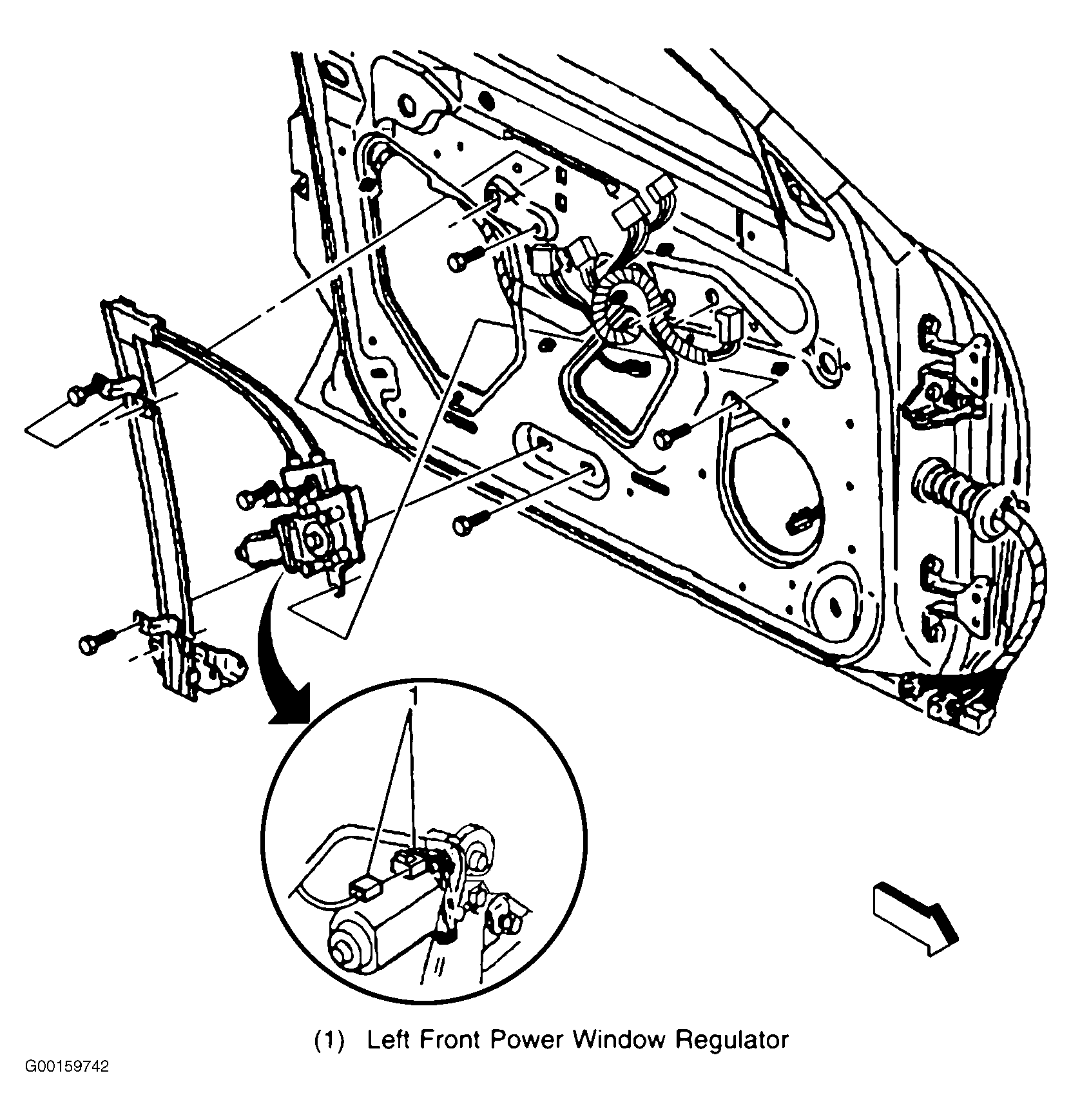

Fig 3: Locating Front Power Window Motor (4-Door)
G00159742Courtesy of GENERAL MOTORS CORP.

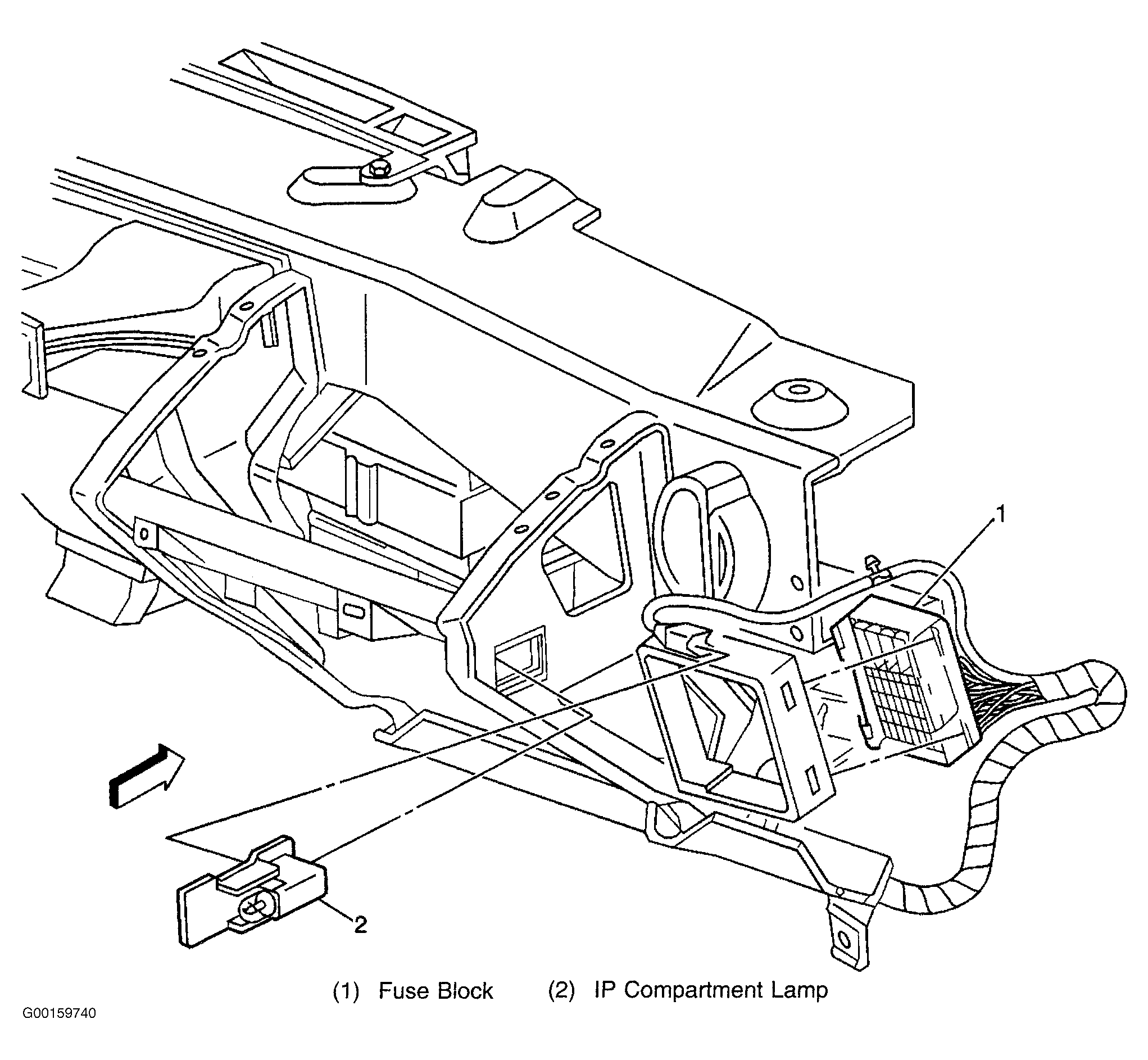

Fig 4: Locating Instrument Panel Fuse Block
G00159740Courtesy of GENERAL MOTORS CORP.

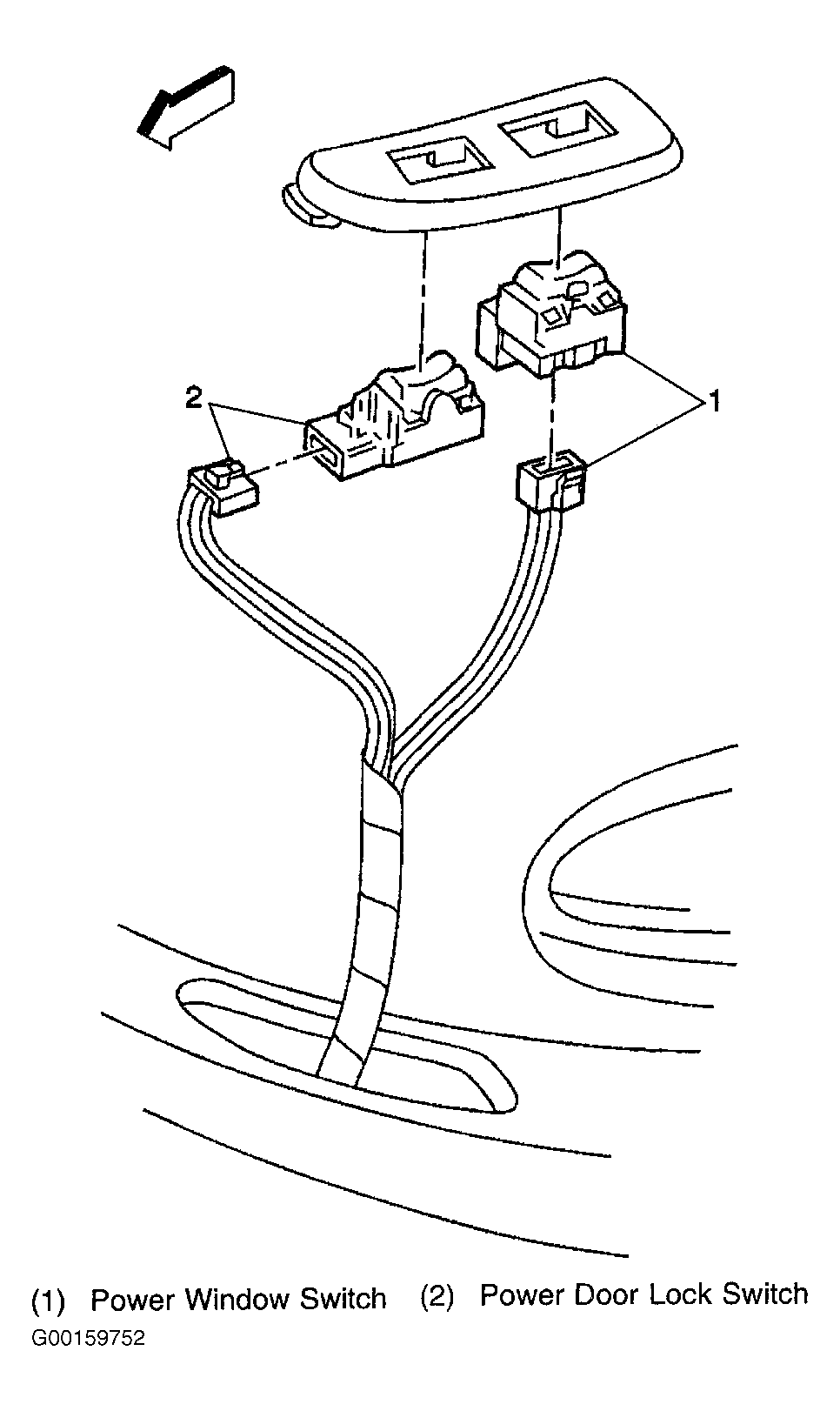

Fig 5: Locating Right Front Window Switch
G00159752Courtesy of GENERAL MOTORS CORP.

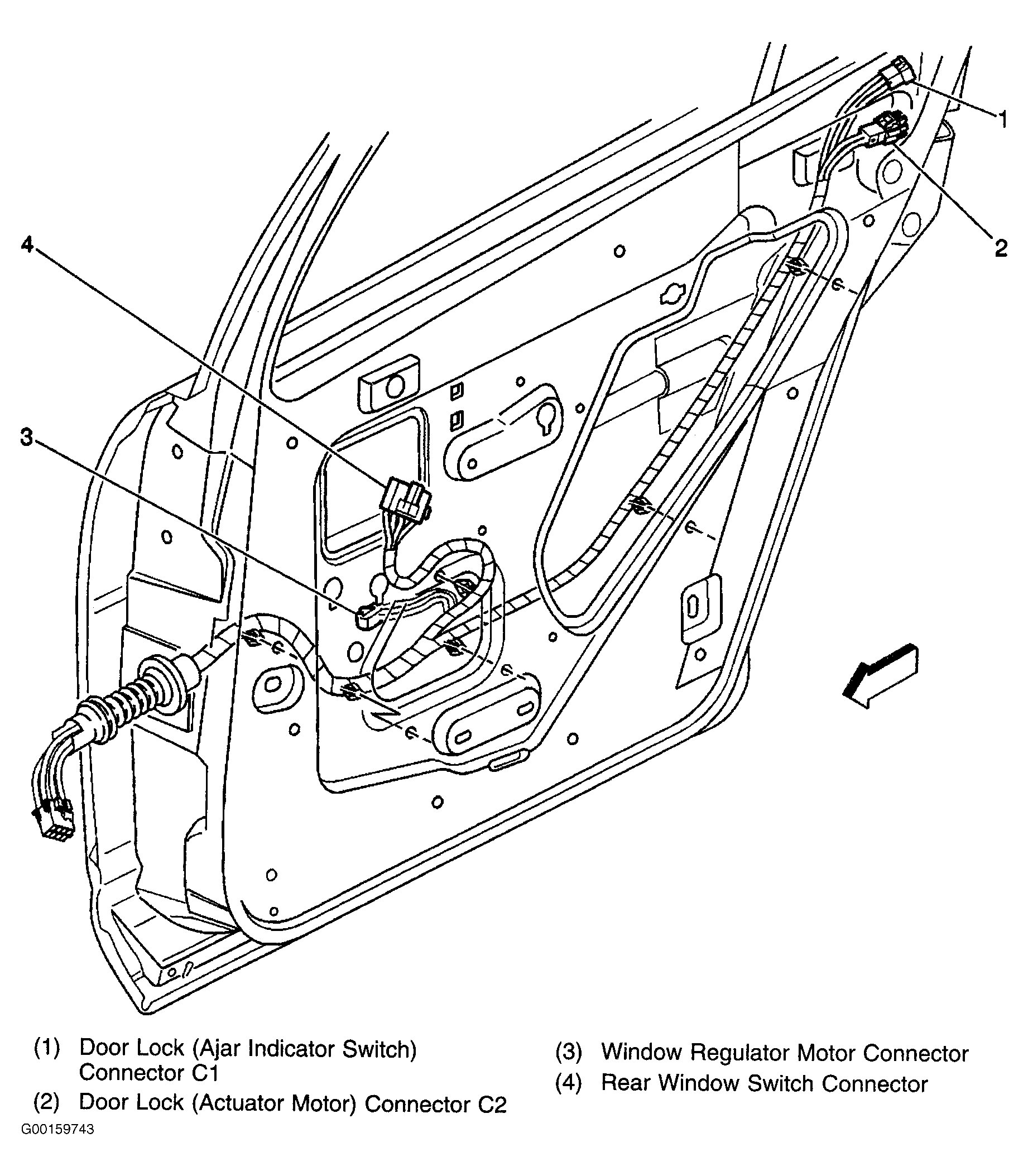

Fig 6: Locating Rear Window Motor
G00159743Courtesy of GENERAL MOTORS CORP.

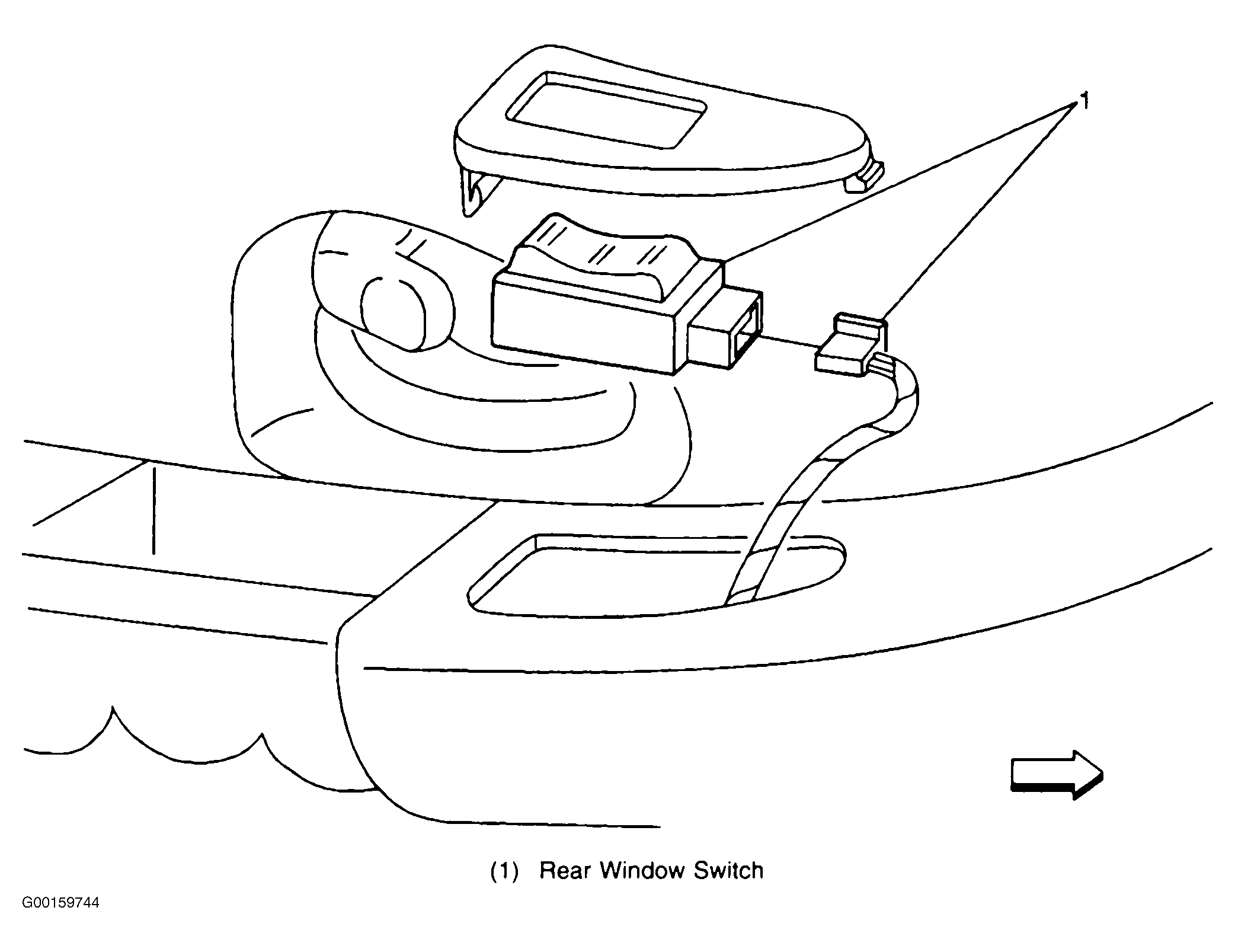

Fig 7: Locating Rear Window Switch
G00159744Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating Connector C200
G00159745Courtesy of GENERAL MOTORS CORP.

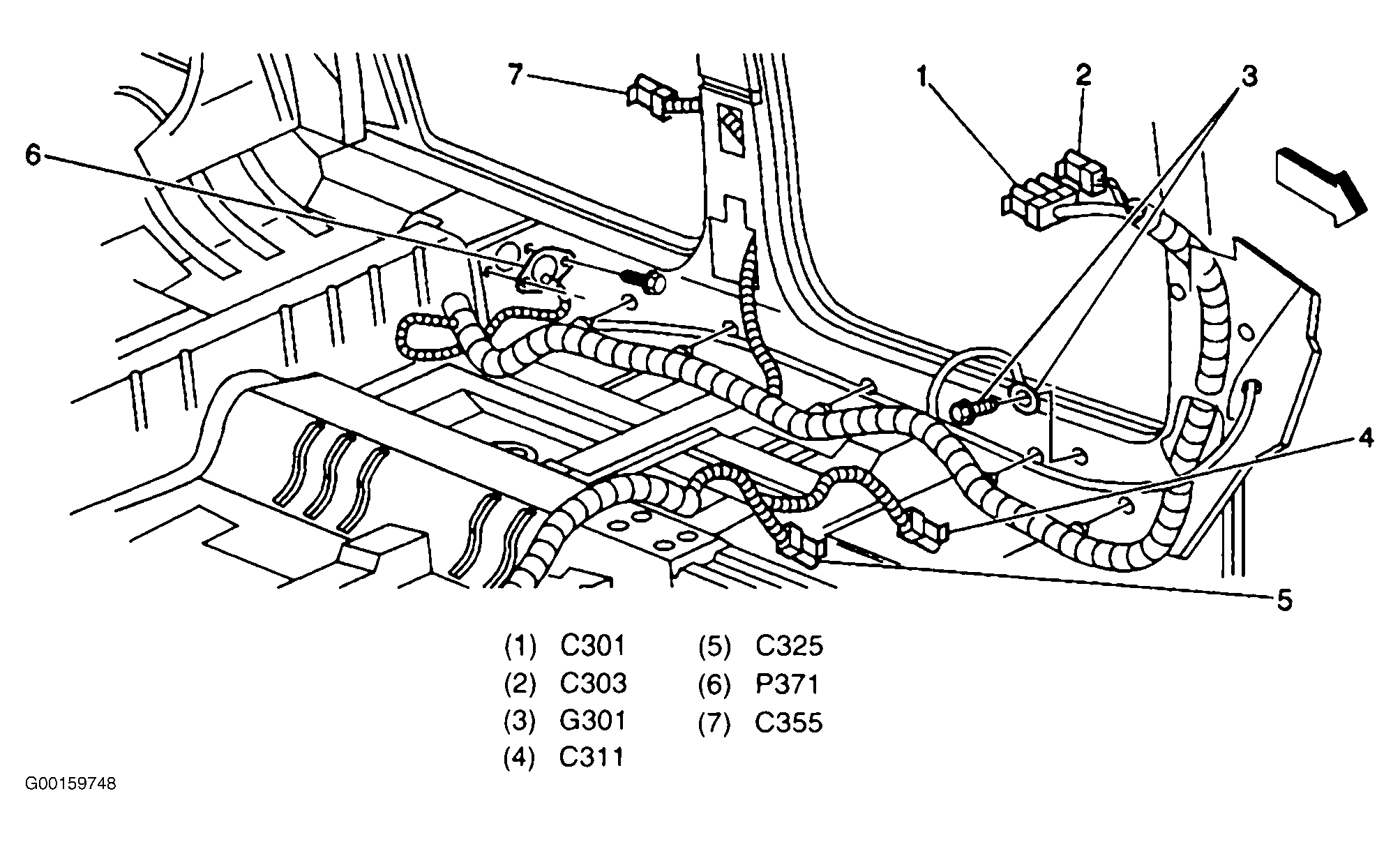

Fig 9: Locating Connectors C301 & C355, & Ground G301
G00159748Courtesy of GENERAL MOTORS CORP.

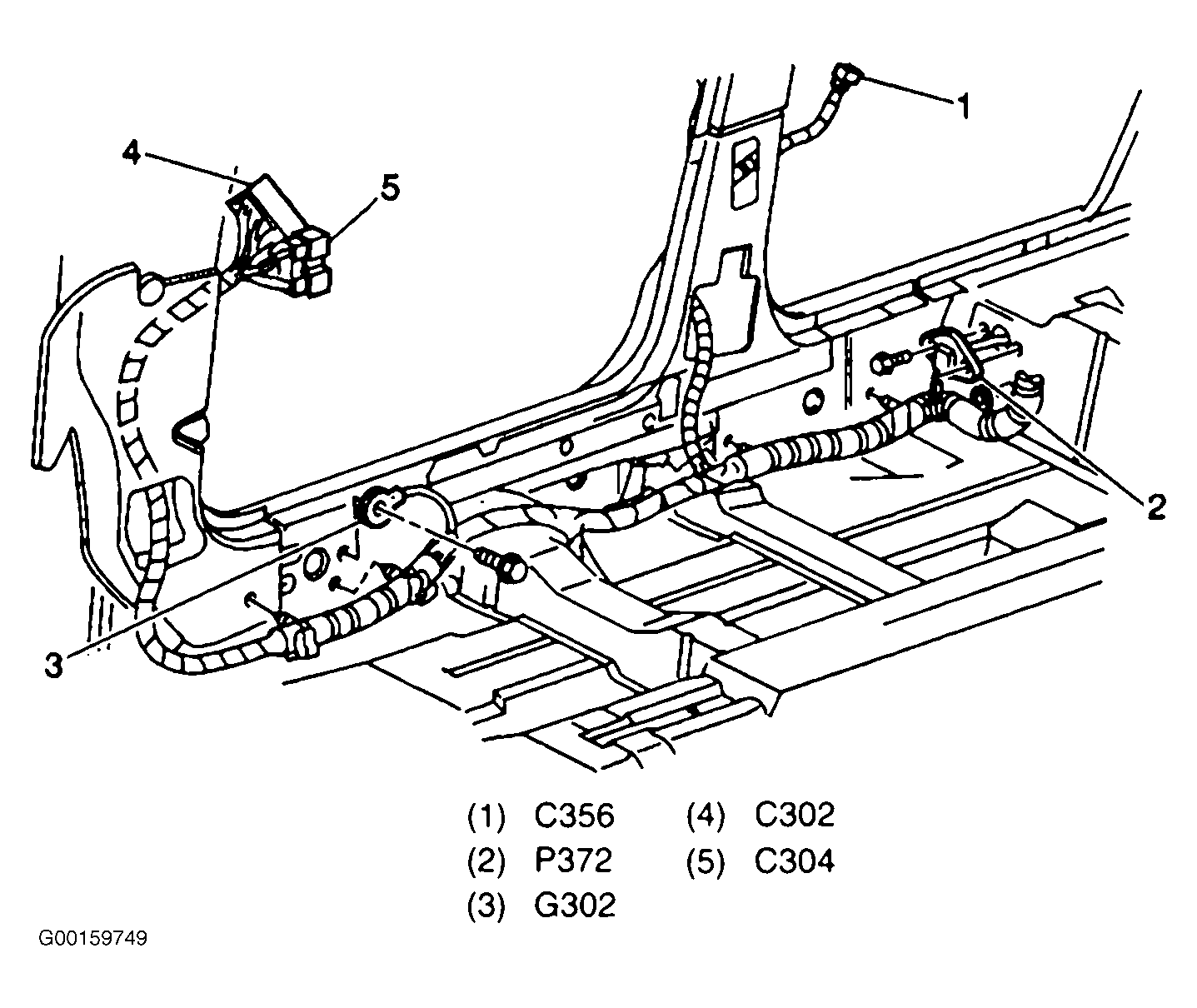

Fig 10: Locating Connector C302 & Ground G302
G00159749Courtesy of GENERAL MOTORS CORP.

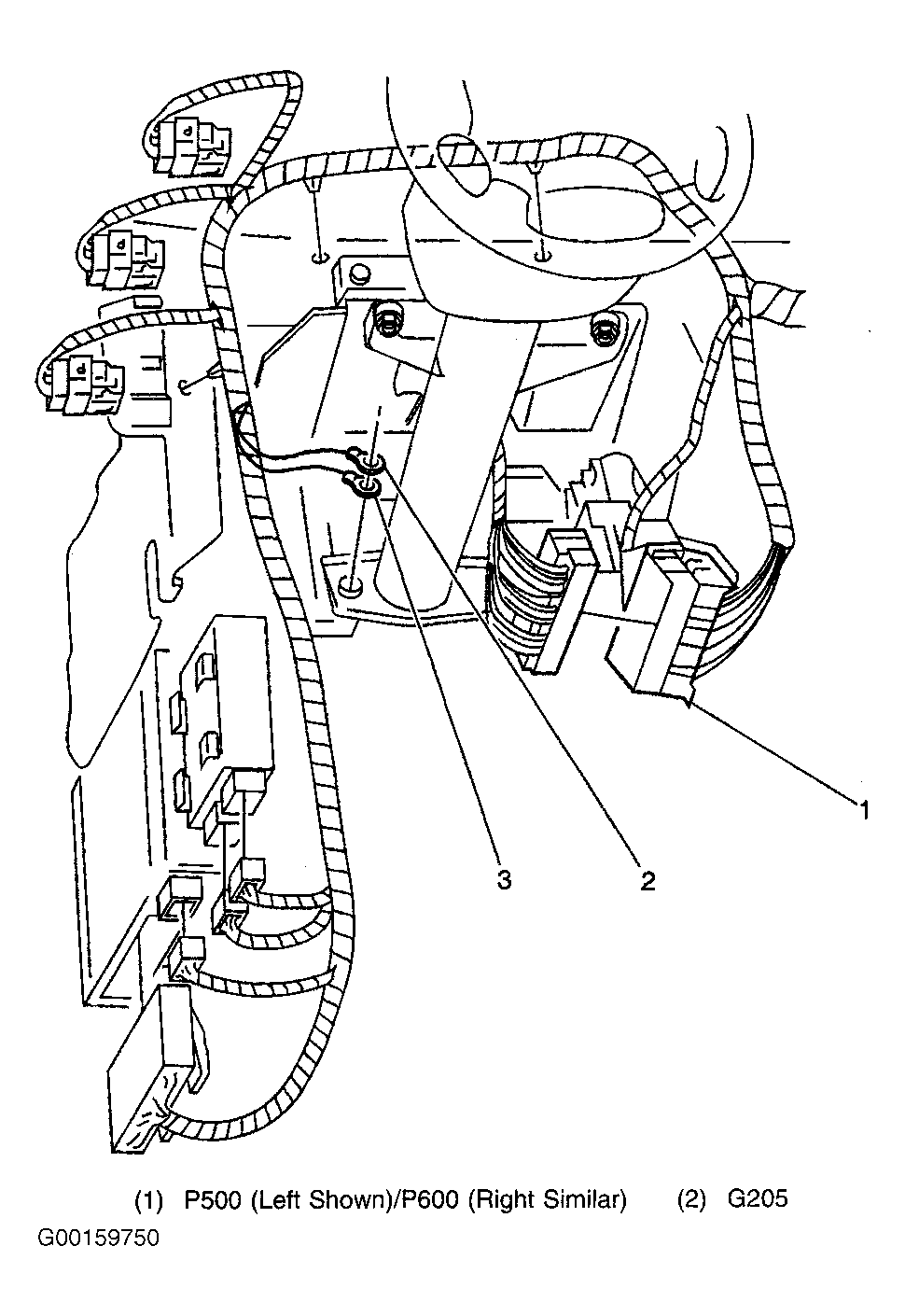

Fig 11: Locating Grommets P500 & P600
G00159750Courtesy of GENERAL MOTORS CORP.

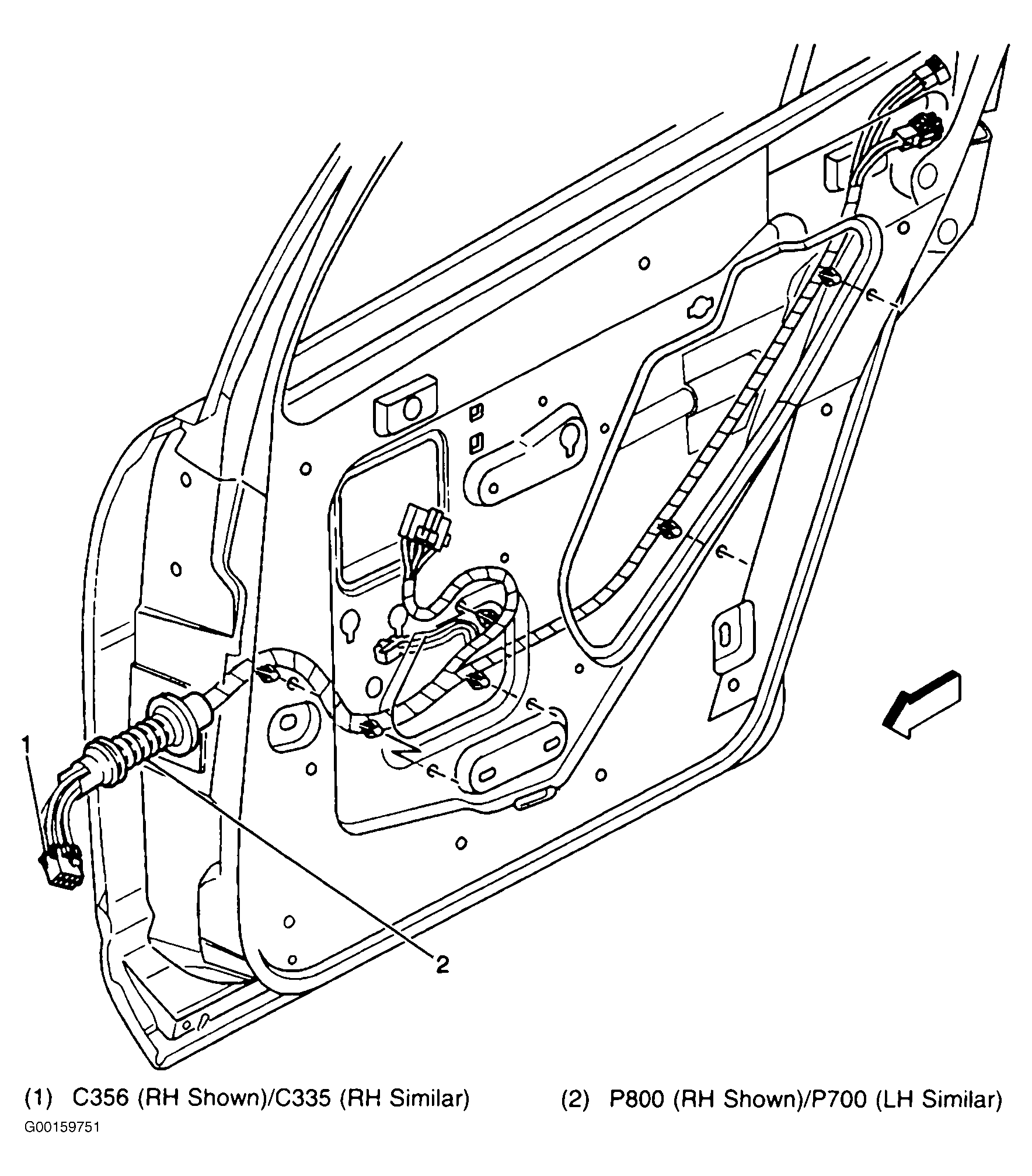

Fig 12: Locating Grommets P700 & P800
G00159751Courtesy of GENERAL MOTORS CORP.
