Body Control Module (BCM) Power and Ground
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

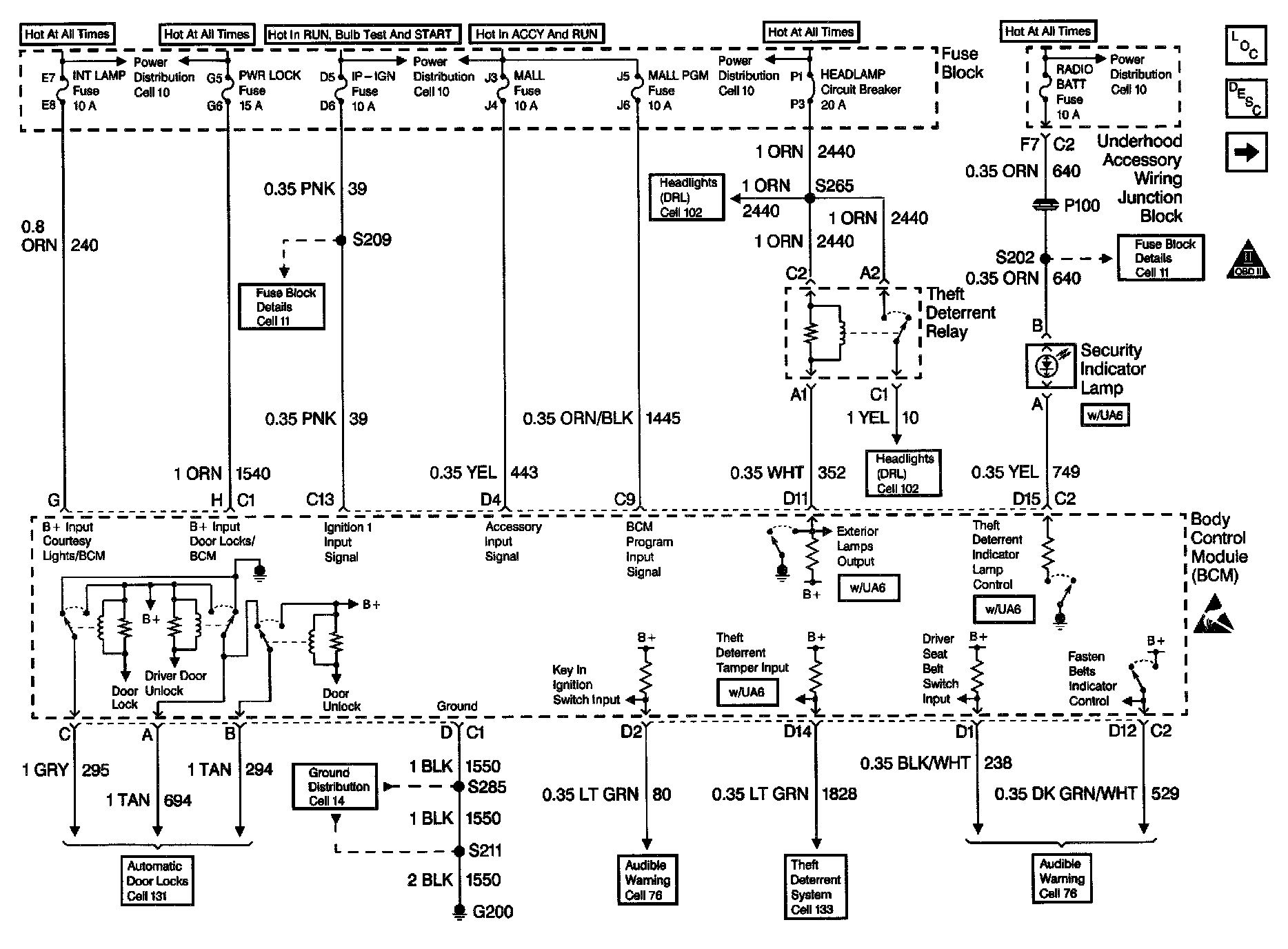

Body Control Module (BCM) Power and Ground
Body Control Module Schematics: Fuse Block:
