Connector End Views

RH Horn A Note:

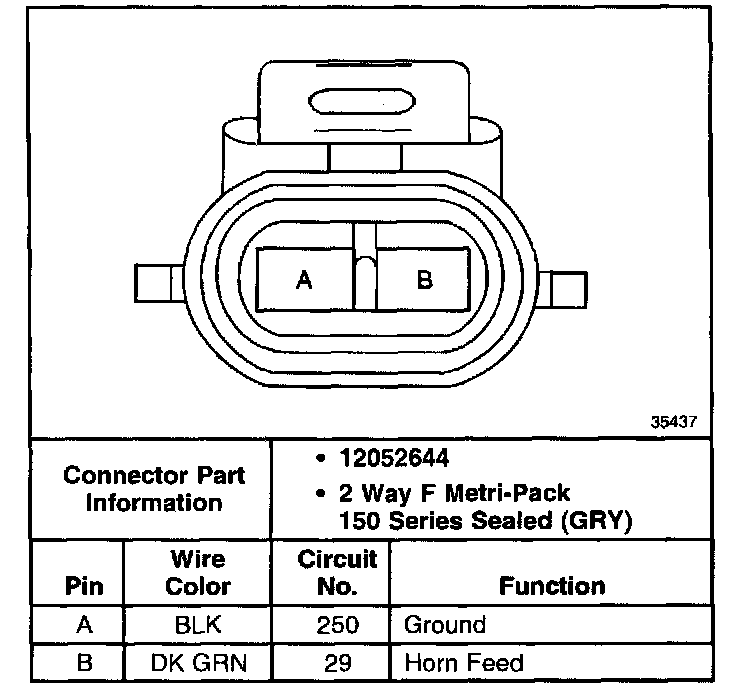

Connector end views show the cavity or terminal locations for all the related 2-pin or larger connectors shown in the system schematic(s). The drawings show the connector's face as seen after the harness connector has been disconnected from a component or mating connector. Unused cavities are left blank in the table.

In addition, the color and pan number of the connector body is provided along with the family/series name. Below is an example of a typical connector end view.
