Function Test - HVAC System - Manual

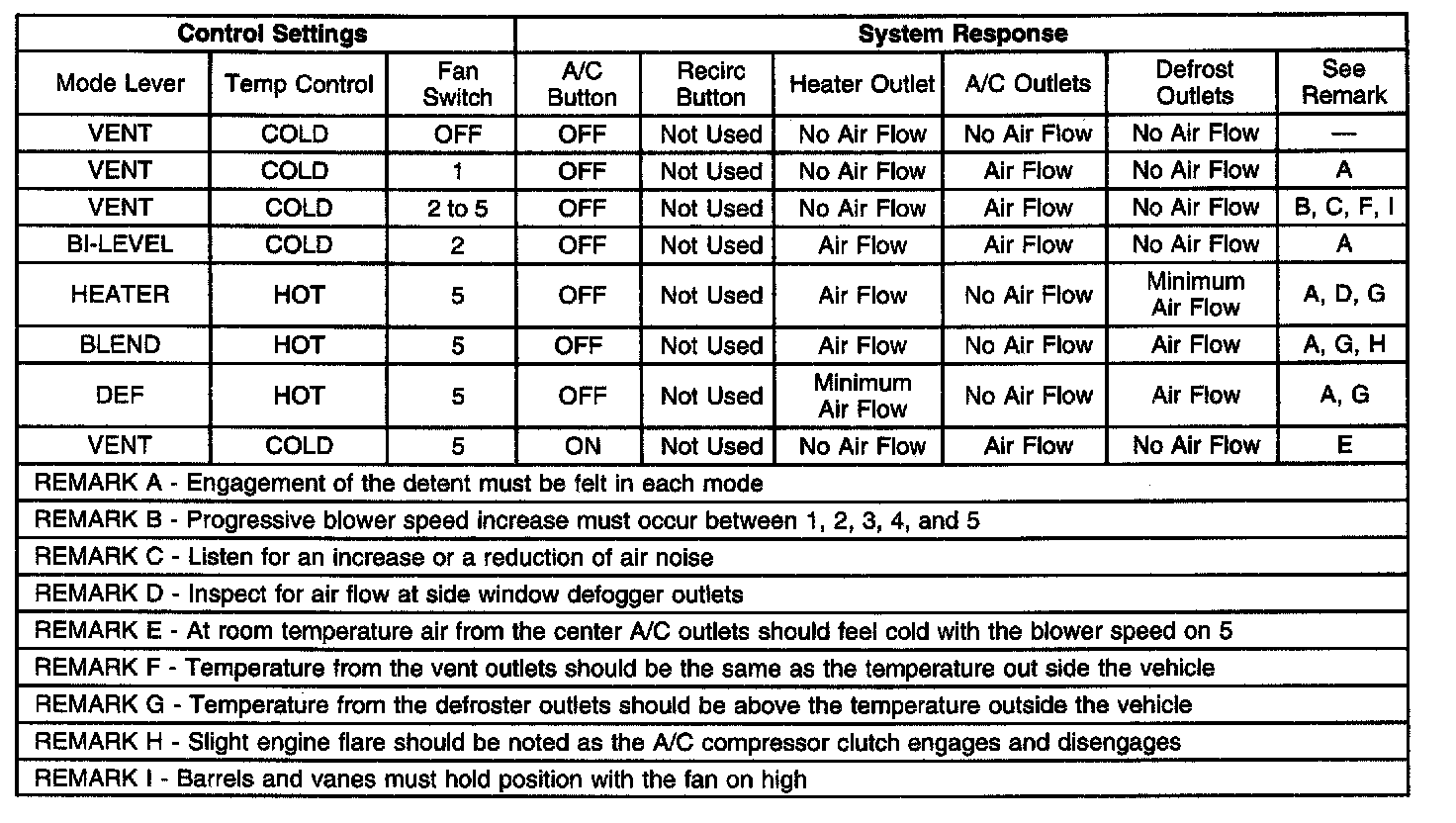

Function Test (Pontiac):




The vehicle A/C must be on for a minimum of 90 seconds prior to performing the tests.
Perform each step of the functional tests with the following conditions in place:
^ The windows are up
^ The doors are closed
