Air Bag Control Module

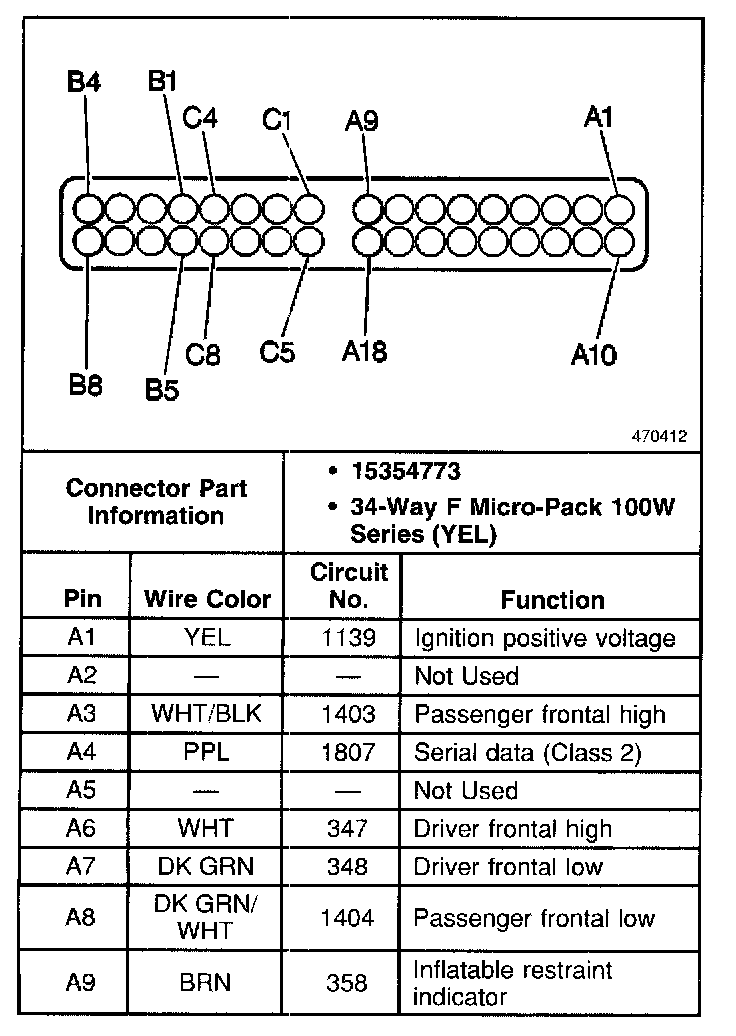

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 1 Of 2:



Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 2 Of 2:
