V5 - Conventional Mount
REMOVAL PROCEDURETOOLS REQUIRED
J 5403 Snap Ring Pliers
1. Remove the control valve retaining ring using the J 5403

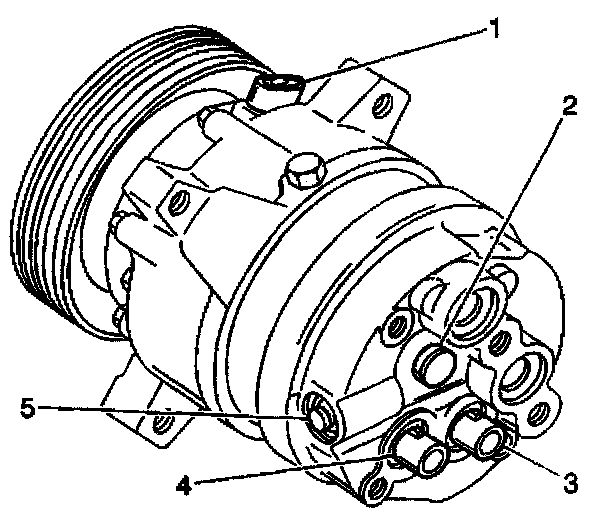

2. Remove the control valve assembly (5).
INSTALLATION PROCEDURE
TOOLS REQUIRED
J 5403 Snap Ring Pliers
1. Coat the O-Rings with 525 viscosity refrigeration oil.
2. Using thumb pressure, push the O-Rings in place.
3. Install the valve into the case.
IMPORTANT: Ensure that the retaining ring is properly seated in the ring groove.
4. Using the J 5403, install the valve retaining ring (5) with the high point of the curved sides against the valve housing.
5. Evacuate the system. Recharge the system.
6. Perform a leak test. Refer to Compressor Leak Testing (V5 - Conventional Mount).
