Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL PROCEDURE

NOTE: Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

1. Turn OFF the ignition.
2. Drain the coolant system. Refer to Draining and Filling Cooling System in Cooling System.

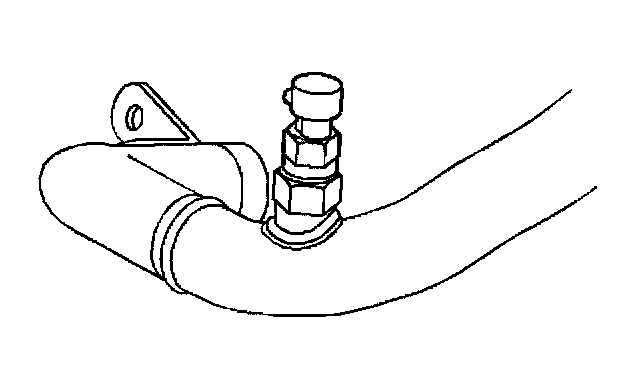

3. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.
4. Carefully back out the ECT sensor.

INSTALLATION PROCEDURE
1. Coat the threads only with sealer P/N 9985253 or an equivalent.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the ECT sensor.

Tighten
Tighten the ECT sensor to 25 N.m (18.5 lb ft).

3. Connect the ECT sensor electrical connector.
4. Refill the engine coolant system. Refer to Draining and Filling Cooling System in Cooling System.
