C1 (Blue)

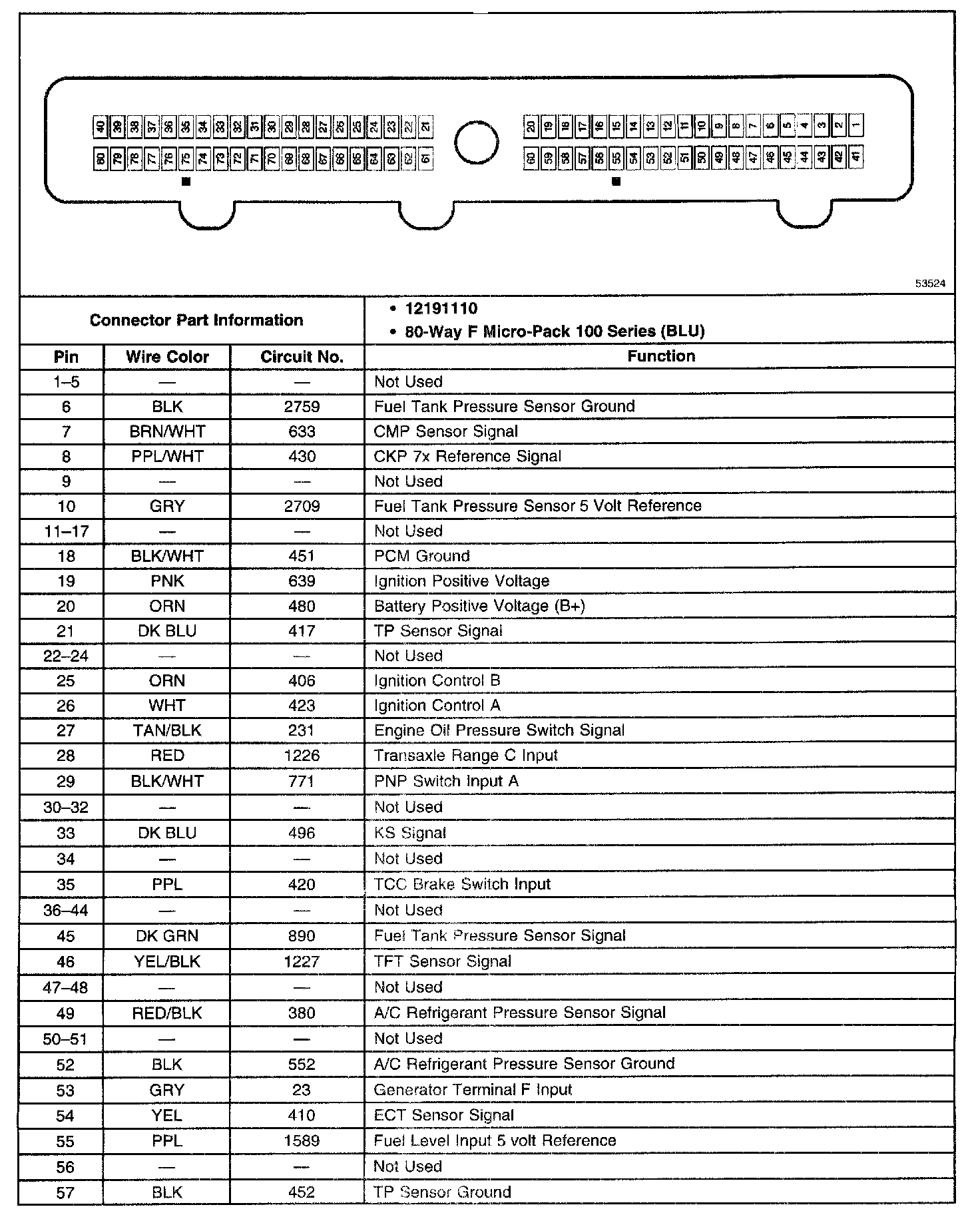

Powertrain Control Module (PCM) Connector C1 Blue (Part 1 Of 2):

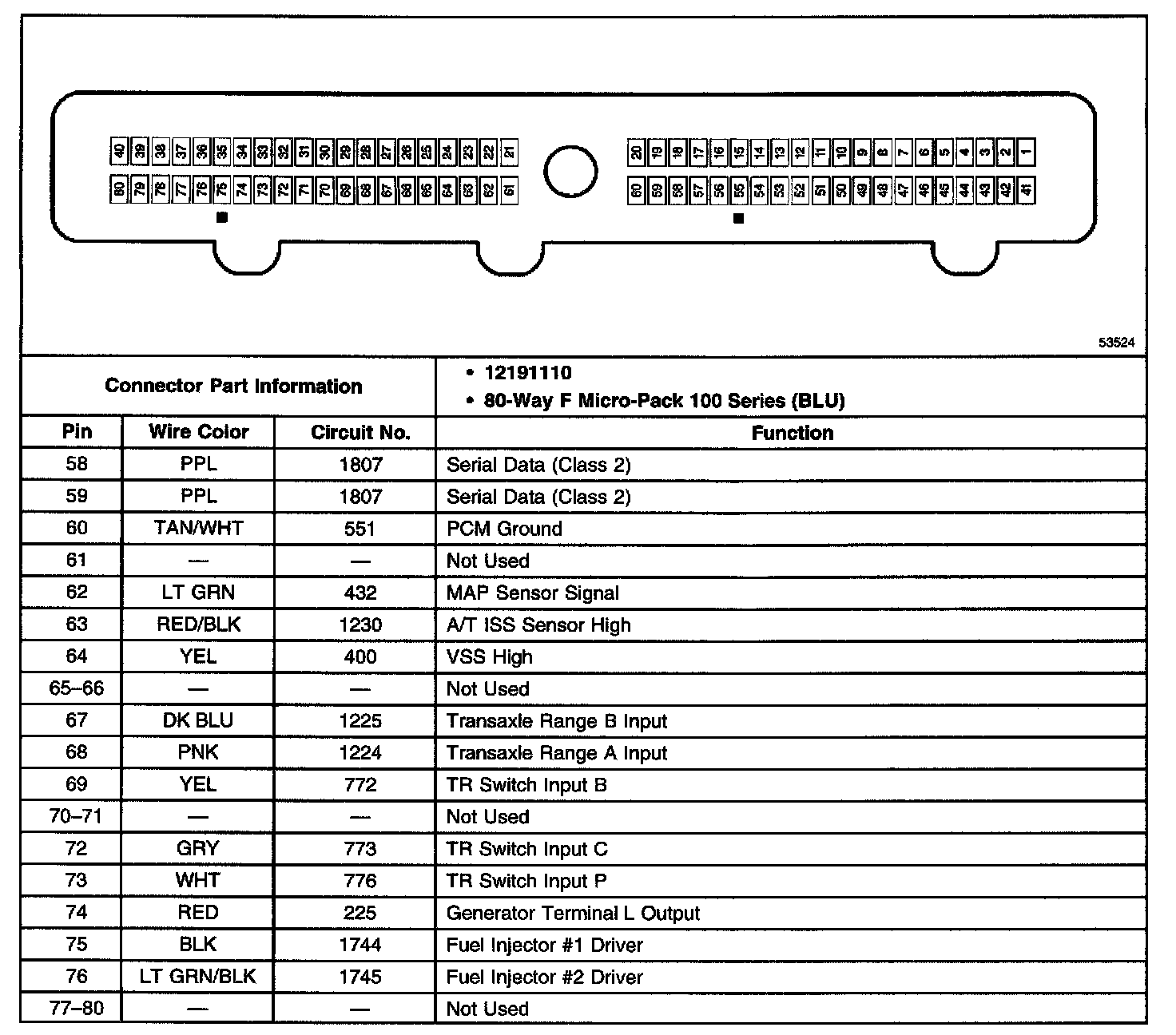

Powertrain Control Module (PCM) Connector C1 (Part 2 Of 2):
