Cruise Control Module: Installation

  1. Install CCM to mounting bracket. See Fig 2 .
  2. Install mounting bracket bolt to CCM. Tighten bolt to 53 INCH lbs. (6 N.m).
  3. Connect harness connector to module. See Fig 1 .
  4. Install cruise control cable to module.
  5. Adjust cruise control cable. See CRUISE CONTROL CABLE  under ADJUSTMENTS.

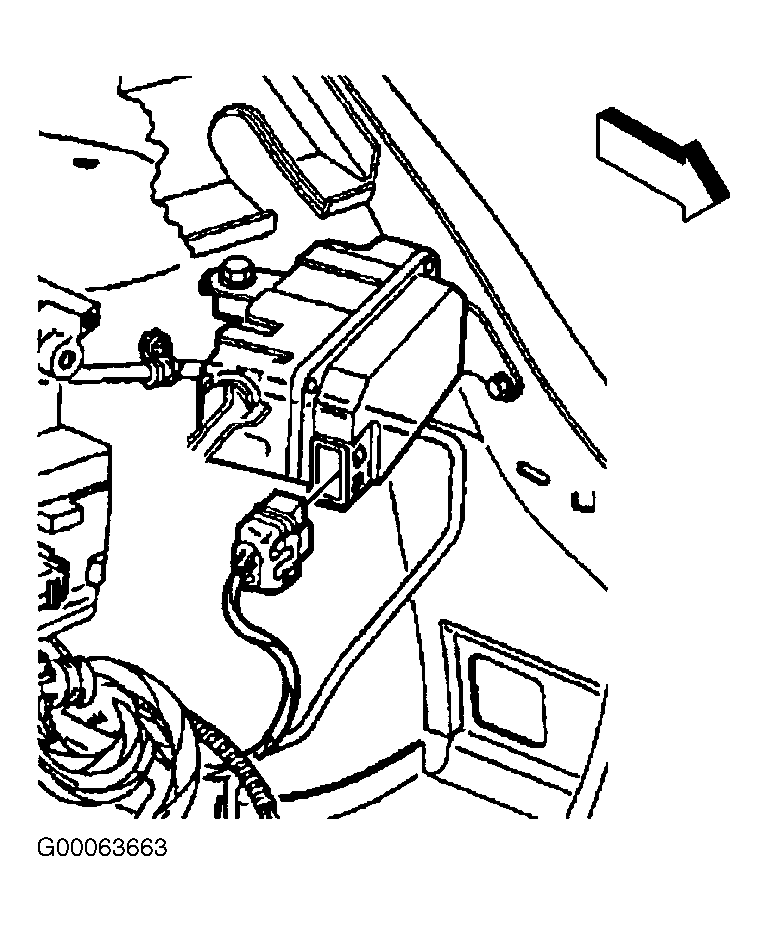

Fig 1: Removing & Installing Cruise Control Module Harness Connector
G00063663Courtesy of GENERAL MOTORS CORP.

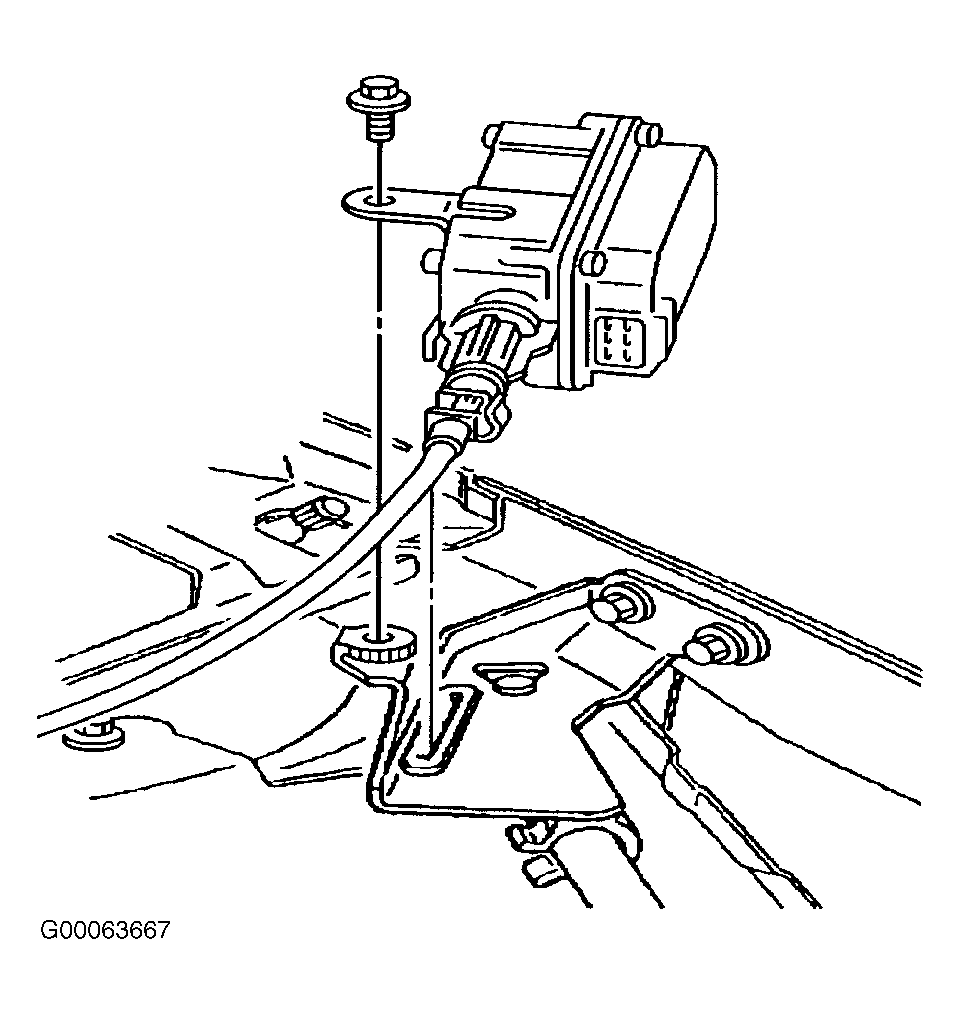

Fig 2: Removing & Installing Cruise Control Module
G00063667Courtesy of GENERAL MOTORS CORP.
