Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Ensure that the module strap is not twisted during the installation of the cable.

Install the cable to the module band.

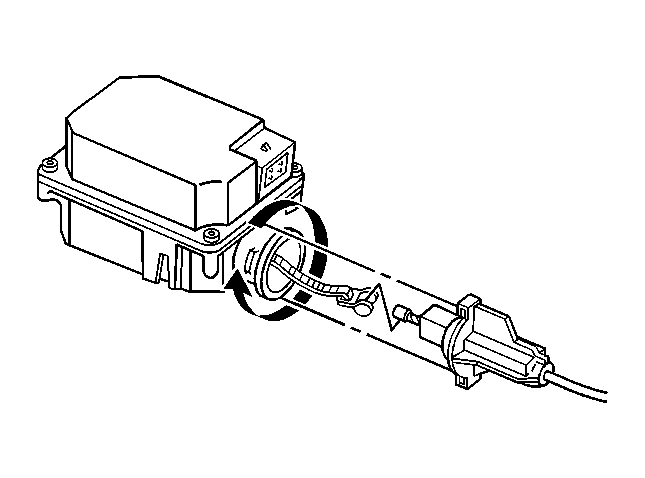

Fig 1: Rotating Cruise Control Cable To Engage/Release From Module
Courtesy of GENERAL MOTORS CORP.
Install the cable to the module.
Install the cable to the throttle lever and accelerator control cable bracket.

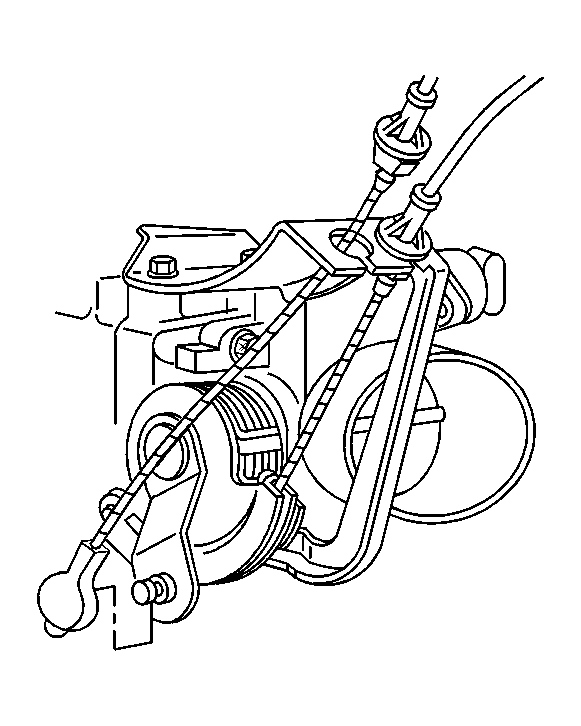

Fig 2: View Of Throttle Lever & Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
