Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine splash shield front tab to the front fender liner.
  2. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
  3. Insert the push-in retainers to the engine splash shield.

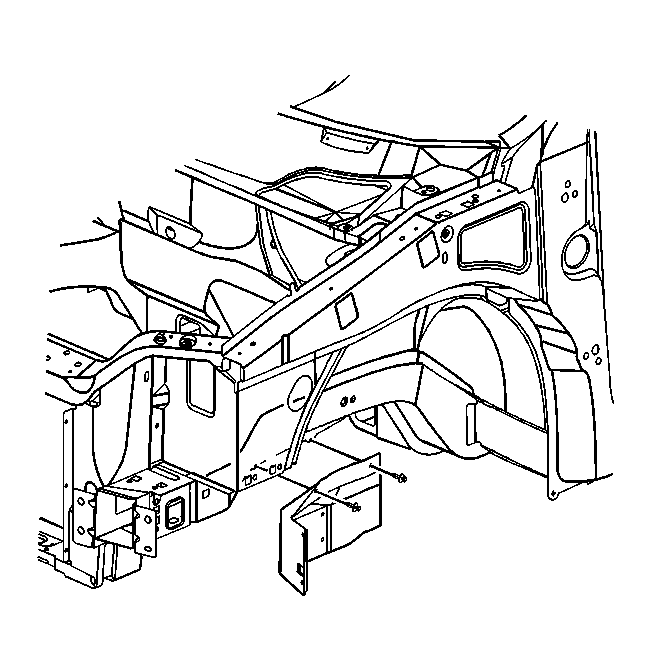

    Fig 1: View Of Engine Splash Shield Push-In Retainers
    GM622012Courtesy of GENERAL MOTORS CORP.
