Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the mass air flow sensor electrical connector.
Remove the engine wiring harness from the clip on the radiator support.

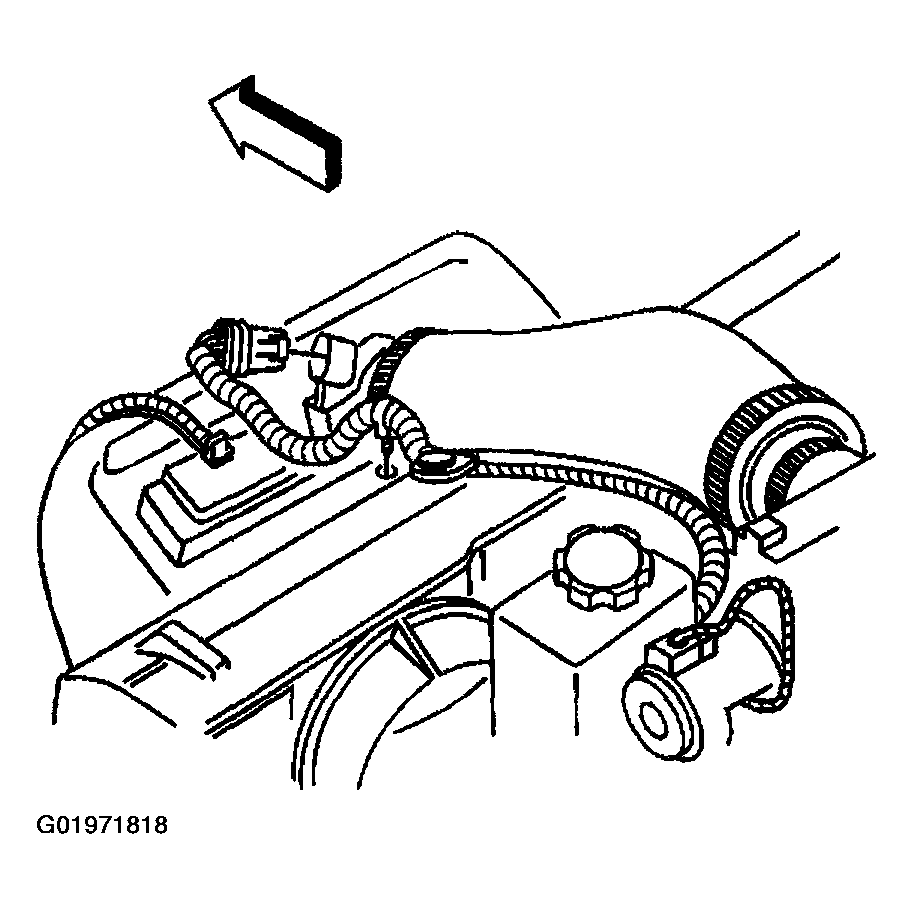

Fig 1: Disconnecting Mass Air Flow Sensor Electrical Connector (Radiator Support Replacement)
Courtesy of GENERAL MOTORS CORP.
Remove the air cleaner intake duct.

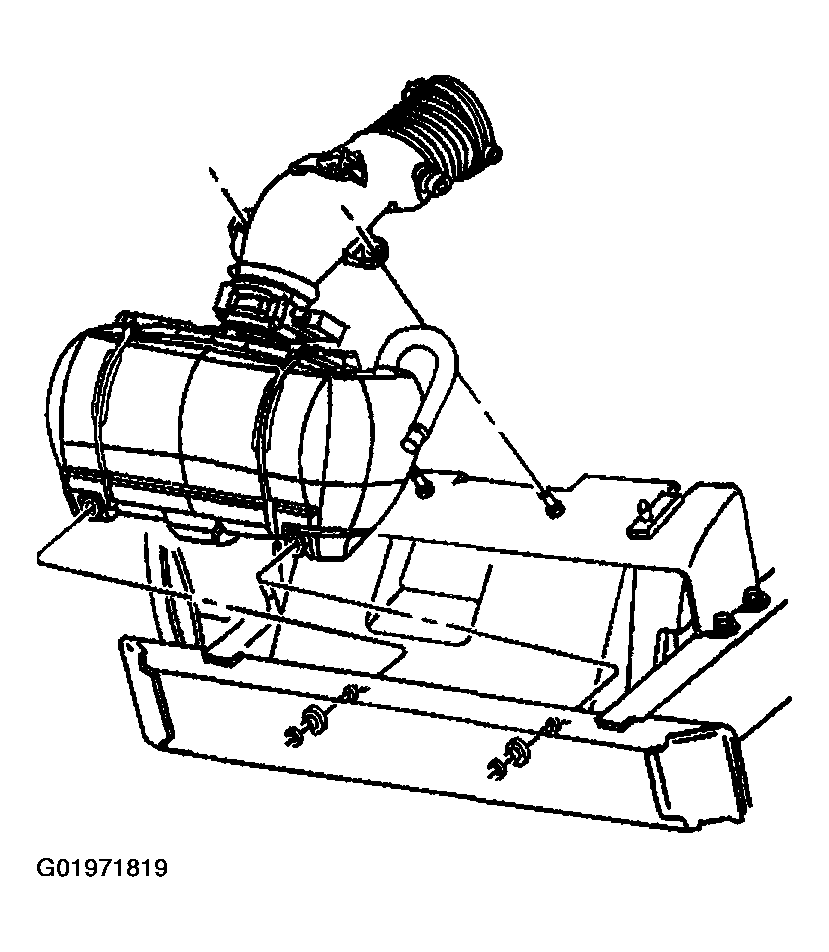

Fig 2: Air Cleaner Intake Duct
Courtesy of GENERAL MOTORS CORP.

Important: Note the position of the radiator upper support in relationship to the fan shroud. This must be reassembled correctly in order to retain the fan shroud.
Remove the radiator support bolts.
Remove the radiator support.

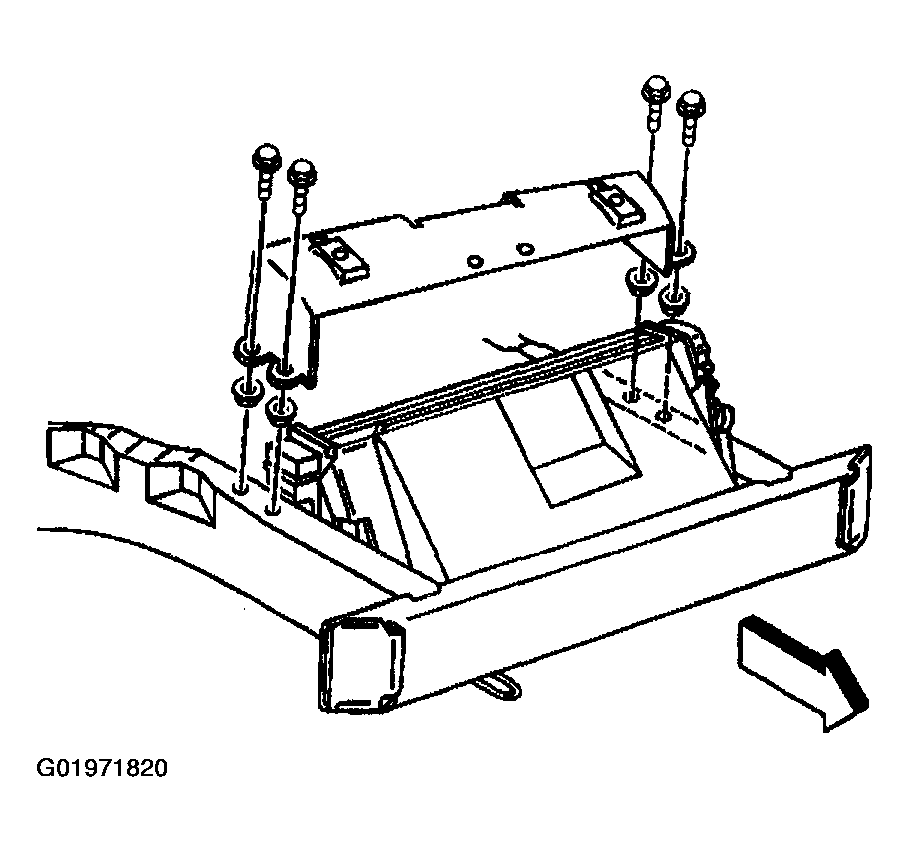

Fig 3: Radiator Support
Courtesy of GENERAL MOTORS CORP.
