Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install and route the fuse block cable through the front of dash.
  2. Install the battery positive fuse block cable to the stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the IP wiring harness junction block nut.

    Tighten

    Tighten the IP wiring harness junction block nut to 10 N.m (89 lb in).

  4. Reposition the junction block nut boot.
  5. Snap the junction block to the bracket.

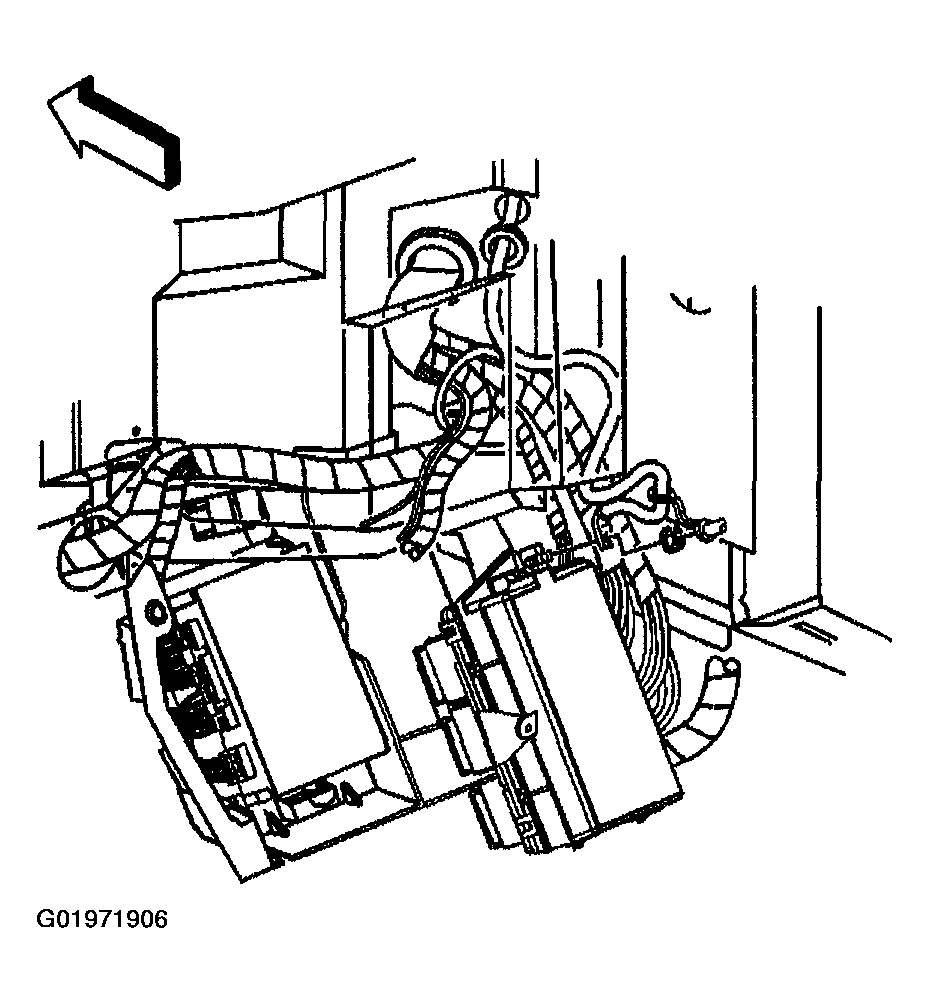

    Fig 1: Installing Instrument Panel (IP) Wiring Harness Junction Block With Nut
    G01971906Courtesy of GENERAL MOTORS CORP.
  6. Ensure the latches on the kick-up panel are open.
  7. Insert the kick-up panel lower tabs into the slots in the bracket.
  8. Close the panel and push the latches into the holes.

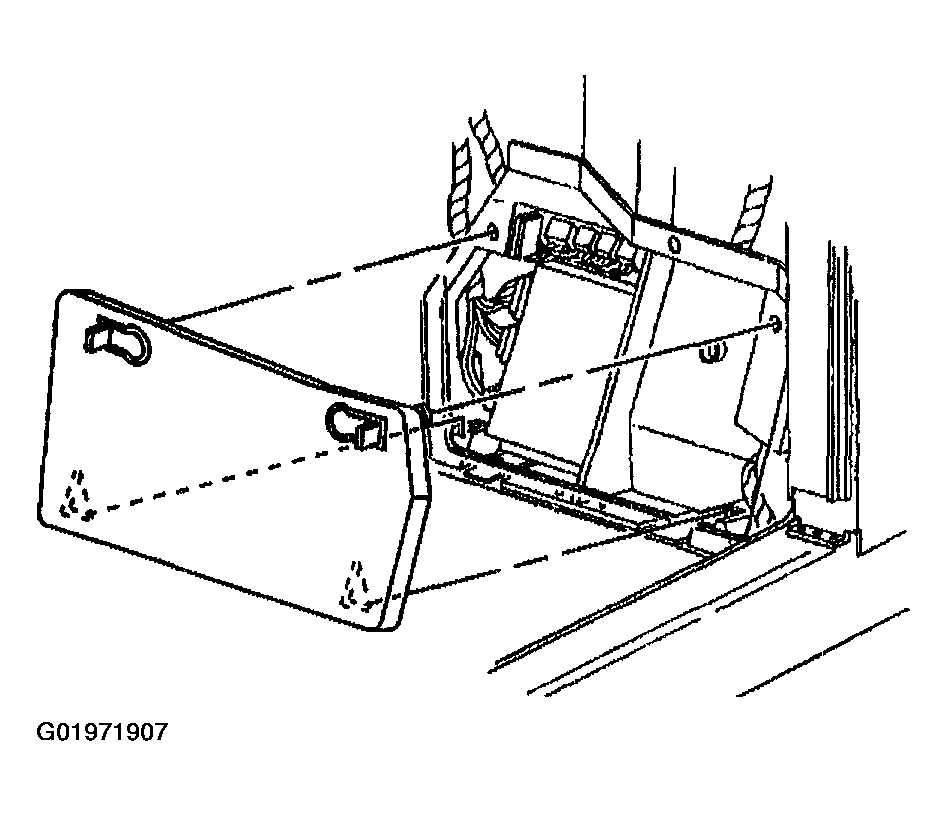

    Fig 2: Kick-Up Panel
    G01971907Courtesy of GENERAL MOTORS CORP.
  9. Install the battery positive fuse block cable to the stud.
  10. Install the positive battery cable lead to the stud.
  11. Install the positive battery cable nut (1).

    Tighten

    Tighten the positive battery cable nut to 10 N.m (89 lb in).

  12. Close the stud cover on the fuse/relay center cover.
  13. Install the battery tray. Refer to BATTERY TRAY REPLACEMENT .

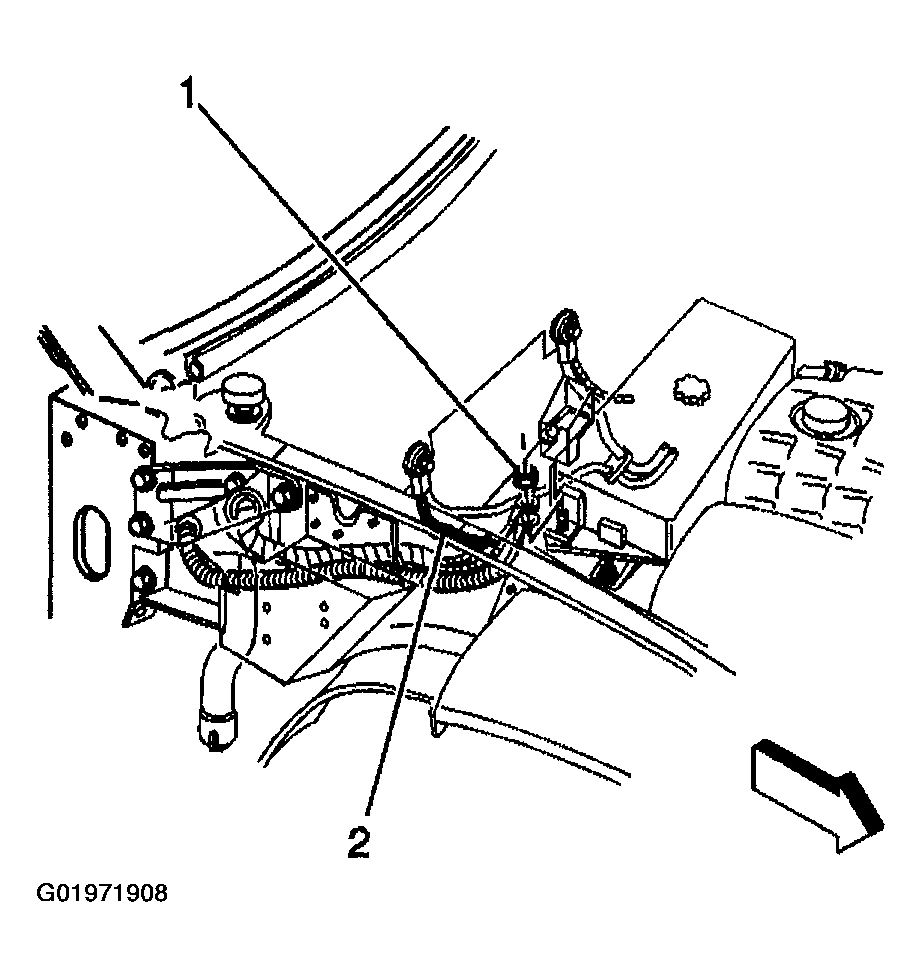

    Fig 3: Installing Battery Positive Cable Lead To Stud
    G01971908Courtesy of GENERAL MOTORS CORP.
