Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery hold down retainer and bolt.

    Tighten

    Tighten the battery hold down retainer bolt to 18 N.m (13 lb ft).

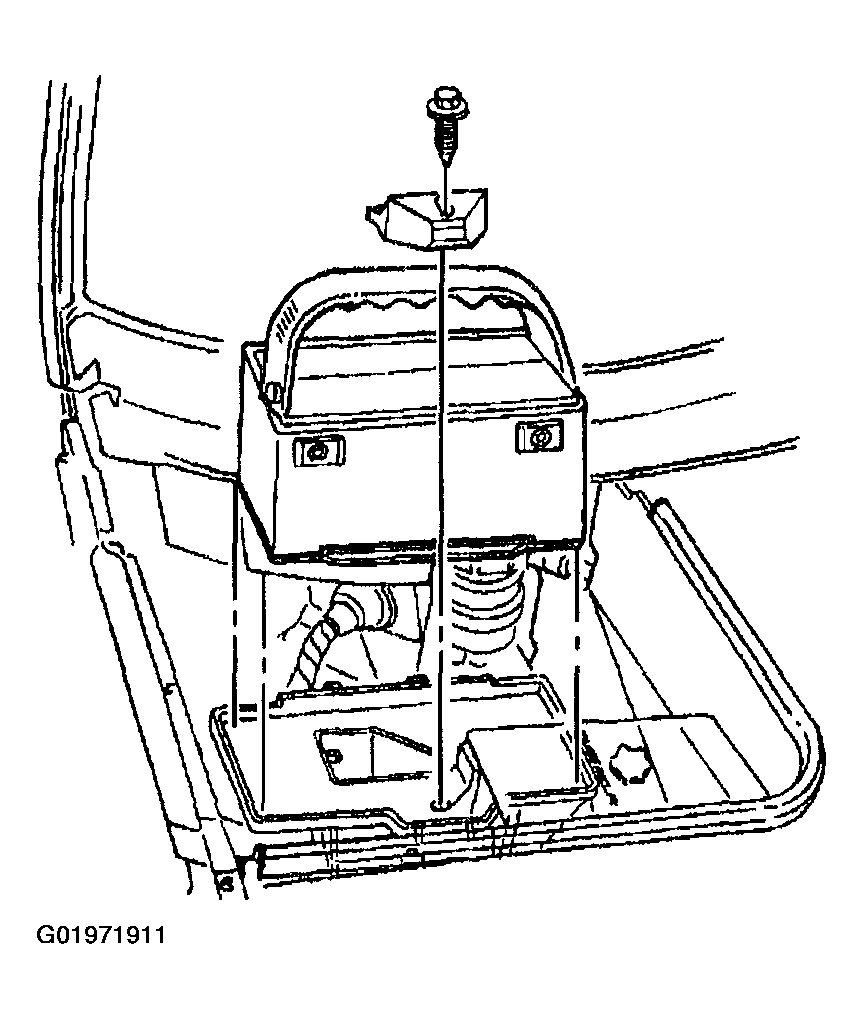

    Fig 1: Battery Hold Down Retainer & Bolt
    G01971911Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable.

    Tighten

    Tighten the positive battery cable bolt to 15 N.m (11 lb ft).

  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

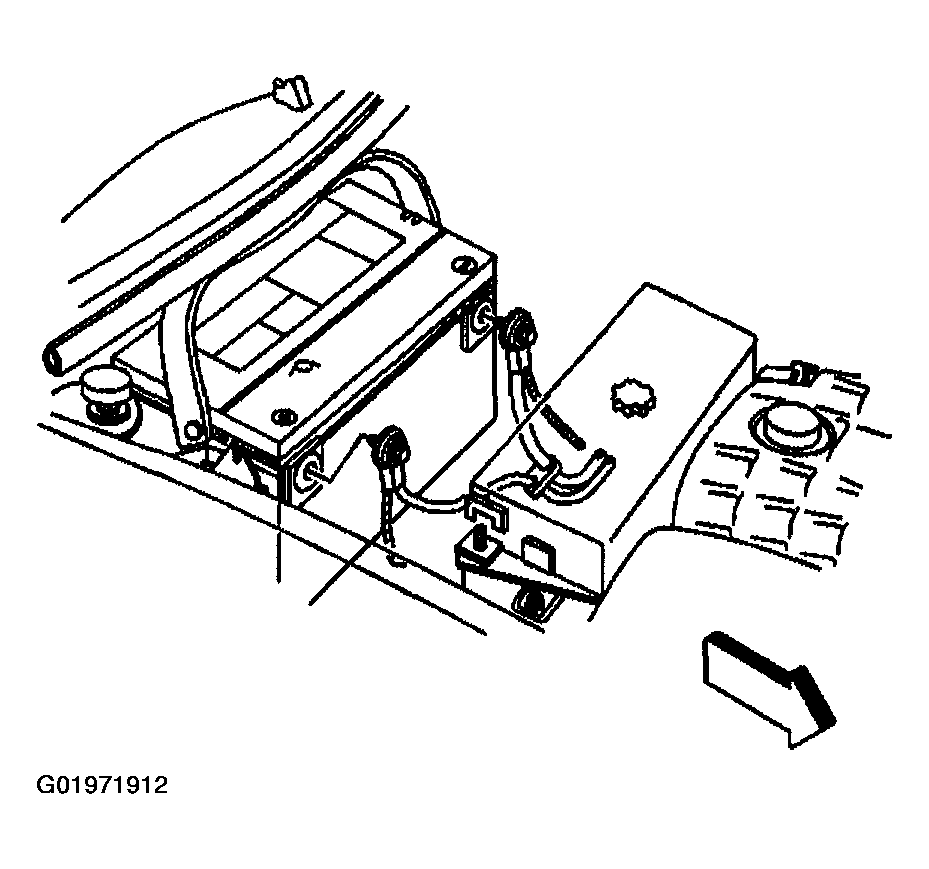

    Fig 2: Connecting Battery Positive & Negative Cable
    G01971912Courtesy of GENERAL MOTORS CORP.
