Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer hose to the bottom of the air inlet grille panel.
  2. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  3. Connect the washer hose to the washer pump.
  4. Install the washer solvent container. Refer to WASHER SOLVENT CONTAINER REPLACEMENT  .

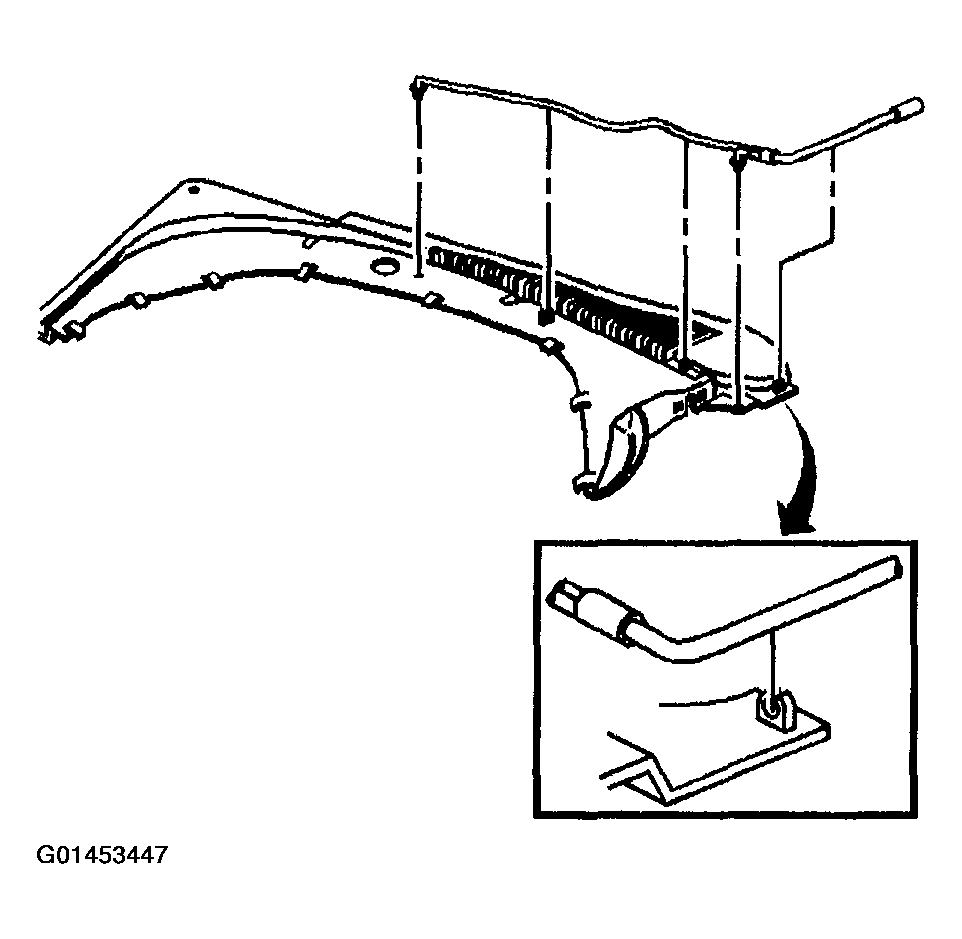

    Fig 1: Connecting Washer Hose To Washer Pump
    G01453447Courtesy of GENERAL MOTORS CORP.
