Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper drive system module to the vehicle.
  2. Connect the wiper motor electrical connector.
  3. Install the wiper drive system module into the cowl area.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the wiper drive system module screws.

    Tighten  Tighten the screws to 10 N.m (89 lb in).

  5. Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.

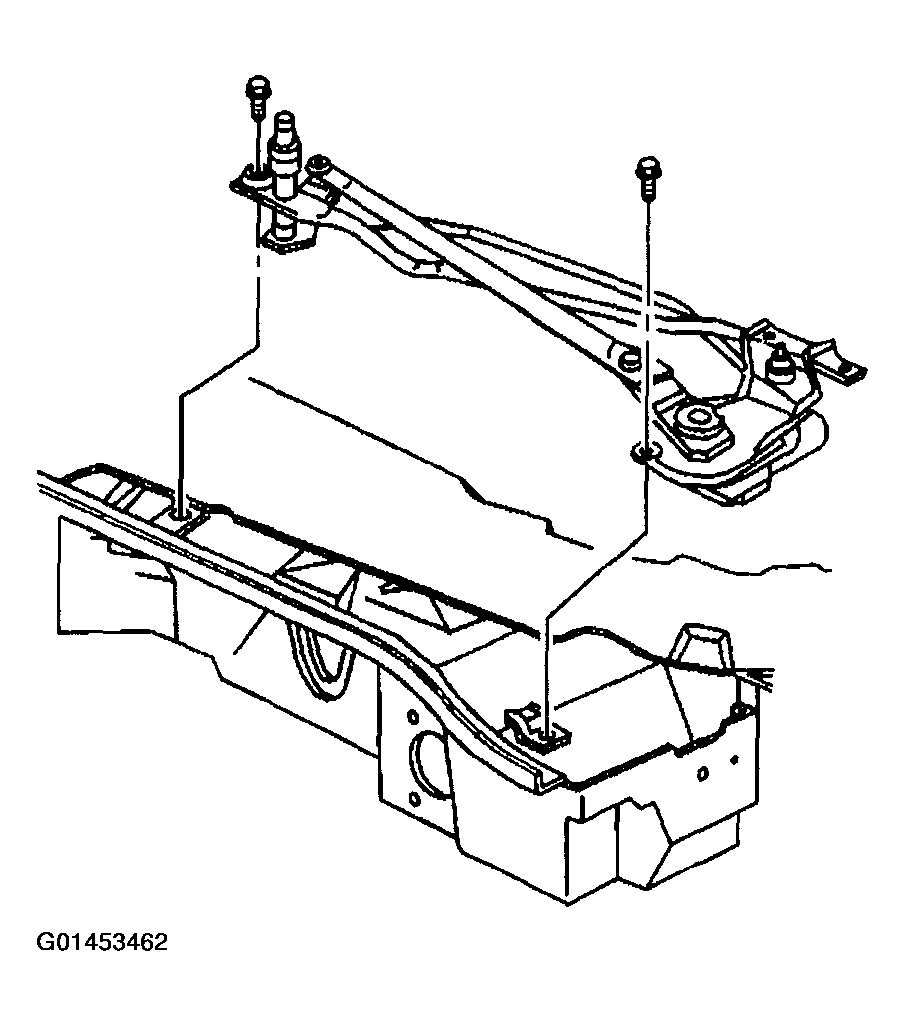

    Fig 1: Wiper Drive System Module Screws
    G01453462Courtesy of GENERAL MOTORS CORP.
  7. Inspect the wipers for proper operation.

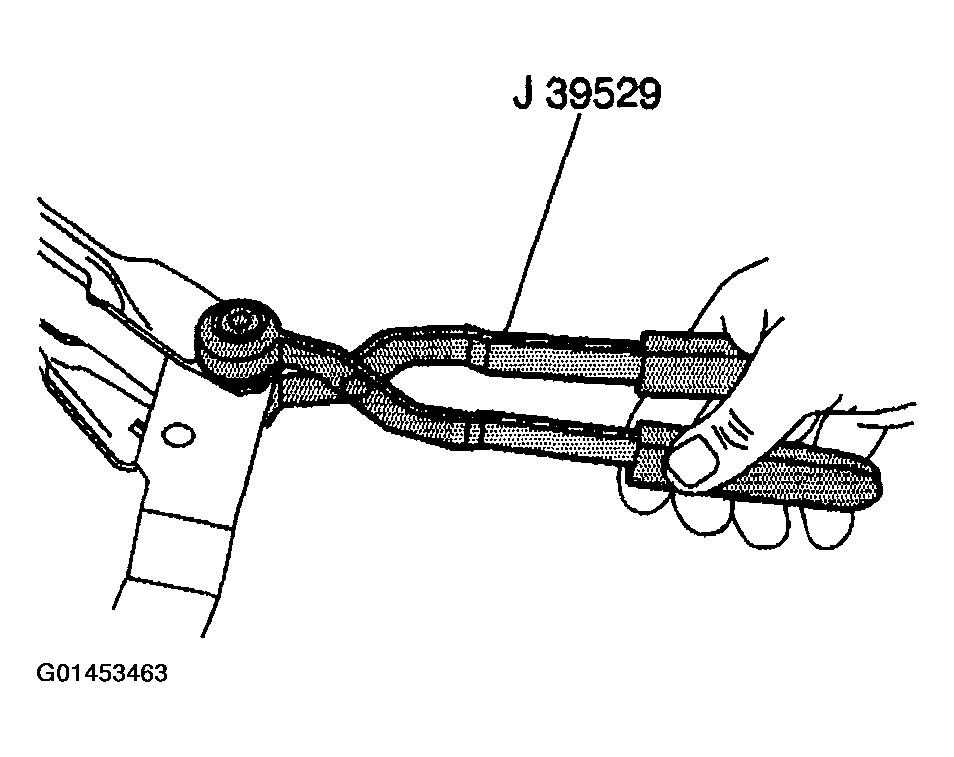

    Fig 2: Connecting Wiper Transmission To Wiper Motor Crank Arm Using Wiper Linkage Installer
    G01453463Courtesy of GENERAL MOTORS CORP.
