Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm to aid in the removal of the wiper drive system module.
  3. Remove the wiper drive system module screws.
  4. Remove the wiper drive system module from the cowl area to gain access to the wiper motor electrical connector.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper drive system module from the vehicle.

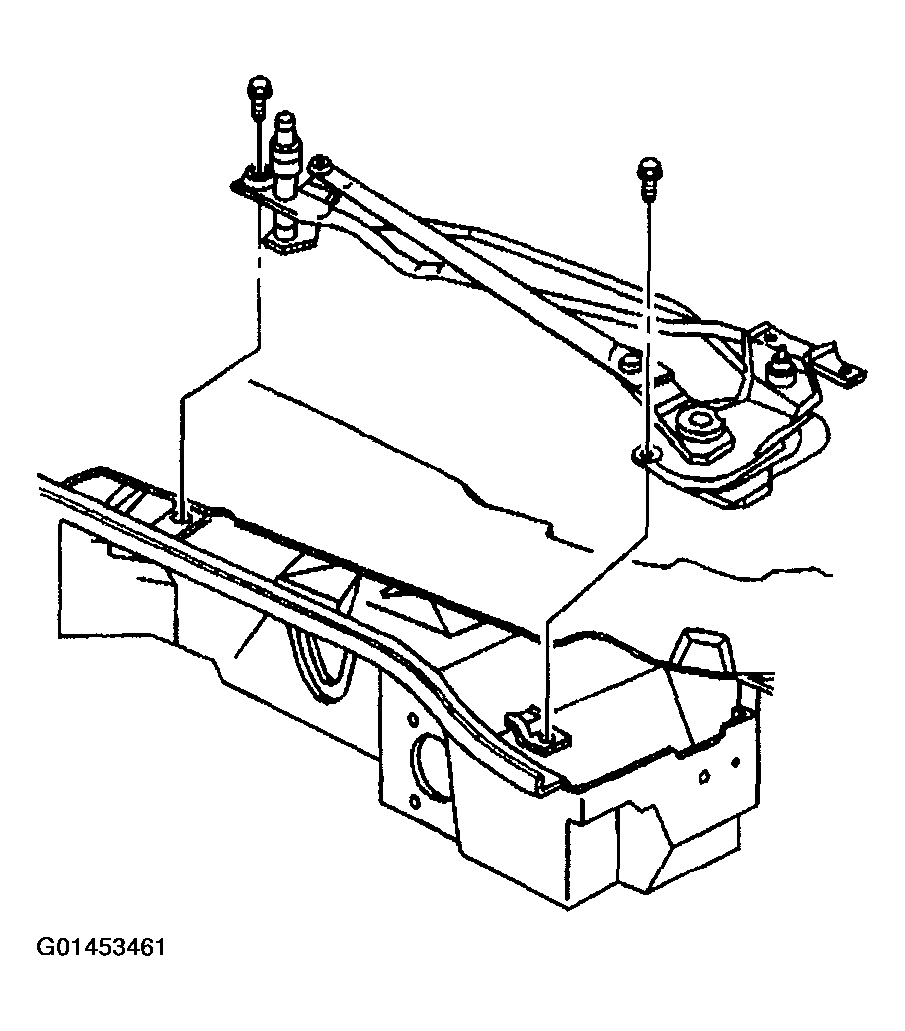

    Fig 1: Wiper Drive System Module Screws
    G01453461Courtesy of GENERAL MOTORS CORP.
