Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the data link connector into position.
    NOTE: Refer to FASTENER NOTICE
  2. Install the bolts/screws to the data link connector.

    Tighten

    Tighten the bolts/screws to 2 N.m (18 lb in).

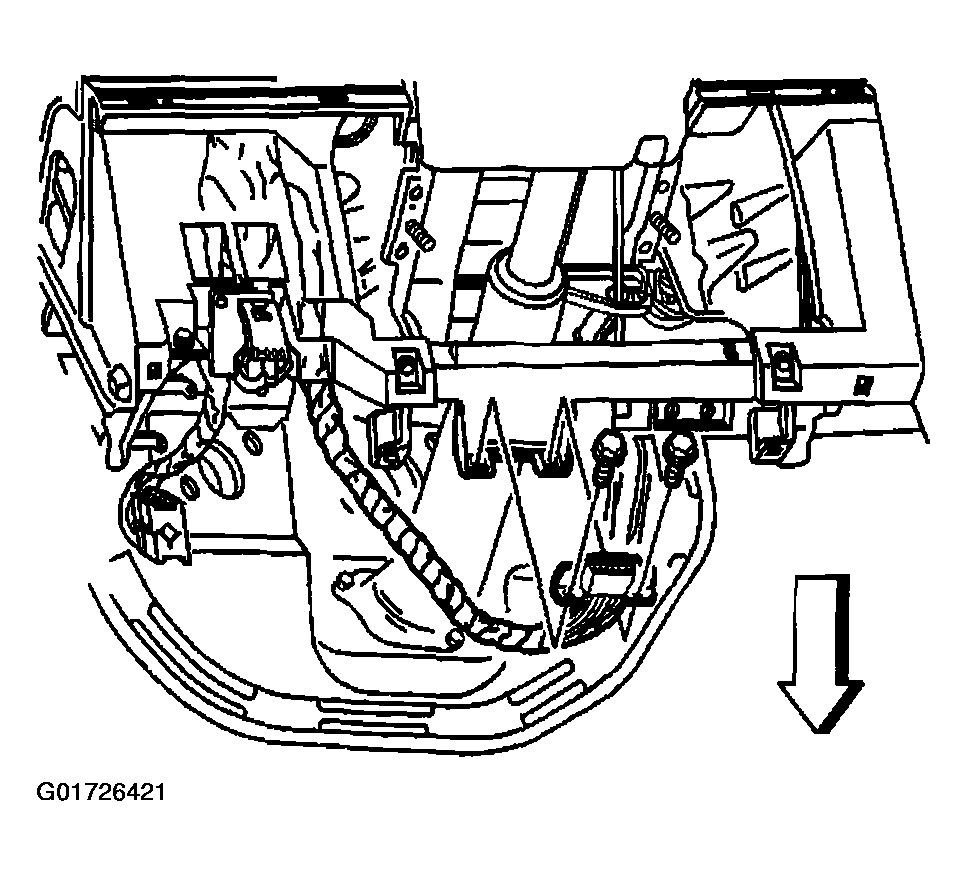

    Fig 1: Installing Data Link Connector And Screws
    G01726421Courtesy of GENERAL MOTORS CORP.
