Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the HVAC control module.
  2. Connect the vacuum connectors to the HVAC control module.

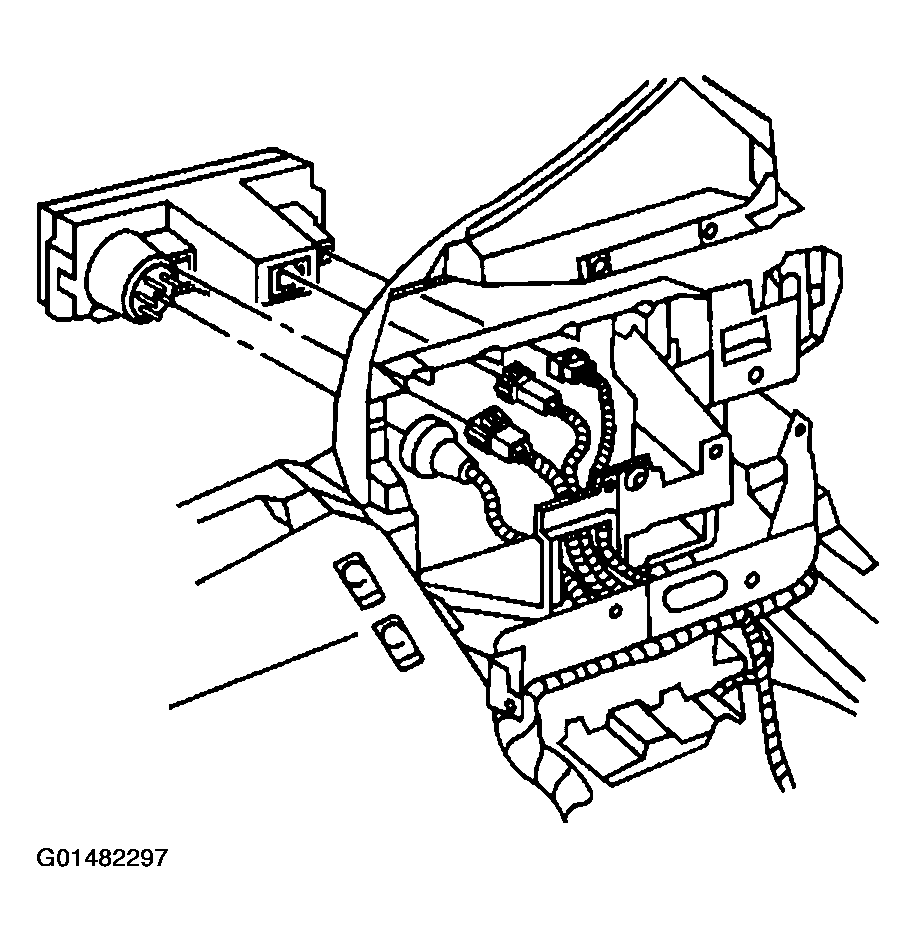

    Fig 1: Connecting Vacuum Connectors To HVAC Control Module
    G01482297Courtesy of GENERAL MOTORS CORP.
  3. Install the HVAC control module into the instrument panel.
    NOTE: Refer to FASTENER NOTICE
  4. Install the retaining screws to secure the HVAC control module.

    Tighten

    Tighten the HVAC control module screw to 2 N.m (18 lb in).

  5. Install the instrument panel accessory trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .

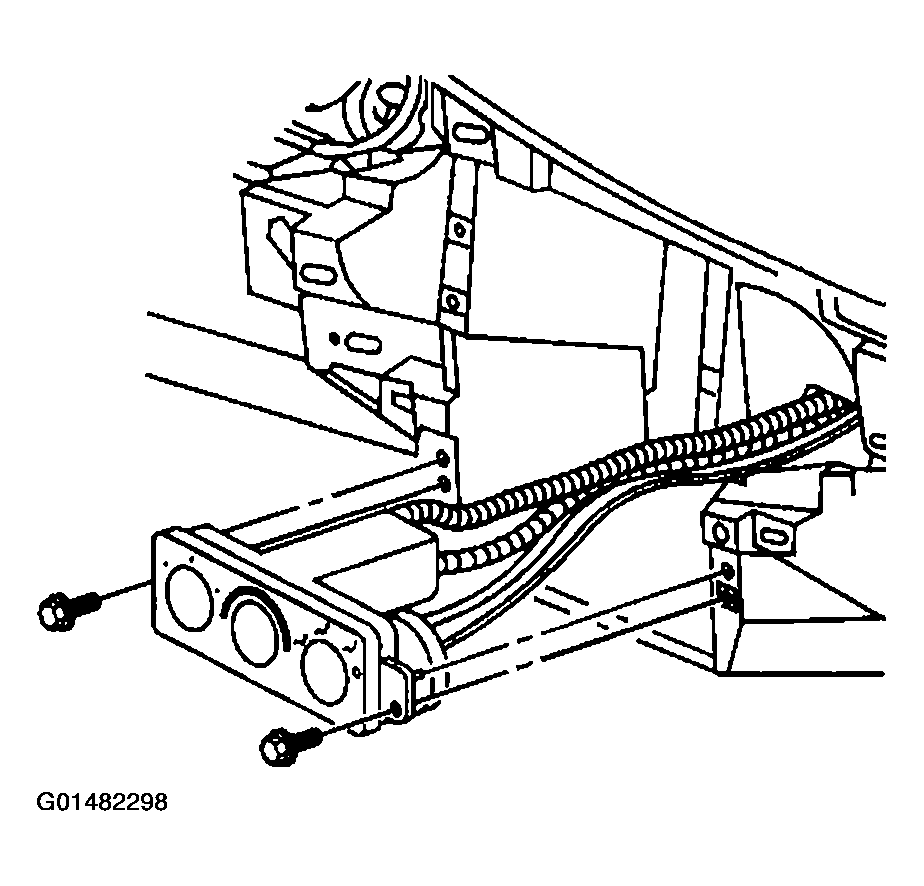

    Fig 2: Installing HVAC Control Module & Retaining Screws
    G01482298Courtesy of GENERAL MOTORS CORP.
