Assembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coil spring and upper strut mount to the J 45400.
  2. Turn the spring compressor forcing screw (1) until the coil spring is compressed.
  3. Install the strut to the coil spring and upper strut mount.

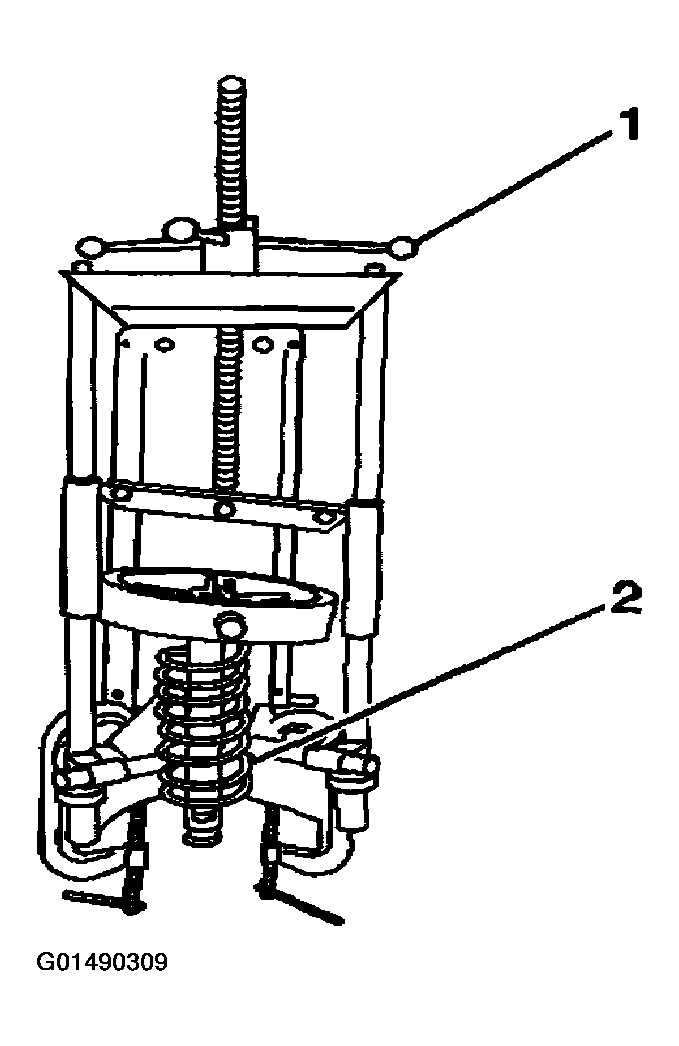

    Fig 1: Compressor Forcing Screw
    G01490309Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the strut retaining nut.

    Using the J 42991  and a 45 TORX® socket, install the strut mount nut.

    Tighten

    Tighten the strut mount nut to 85 N.m (63 lb ft).

  5. Remove the strut from the J 45400.
  6. Install the strut to the vehicle. Refer to STRUT ASSEMBLY for rear.

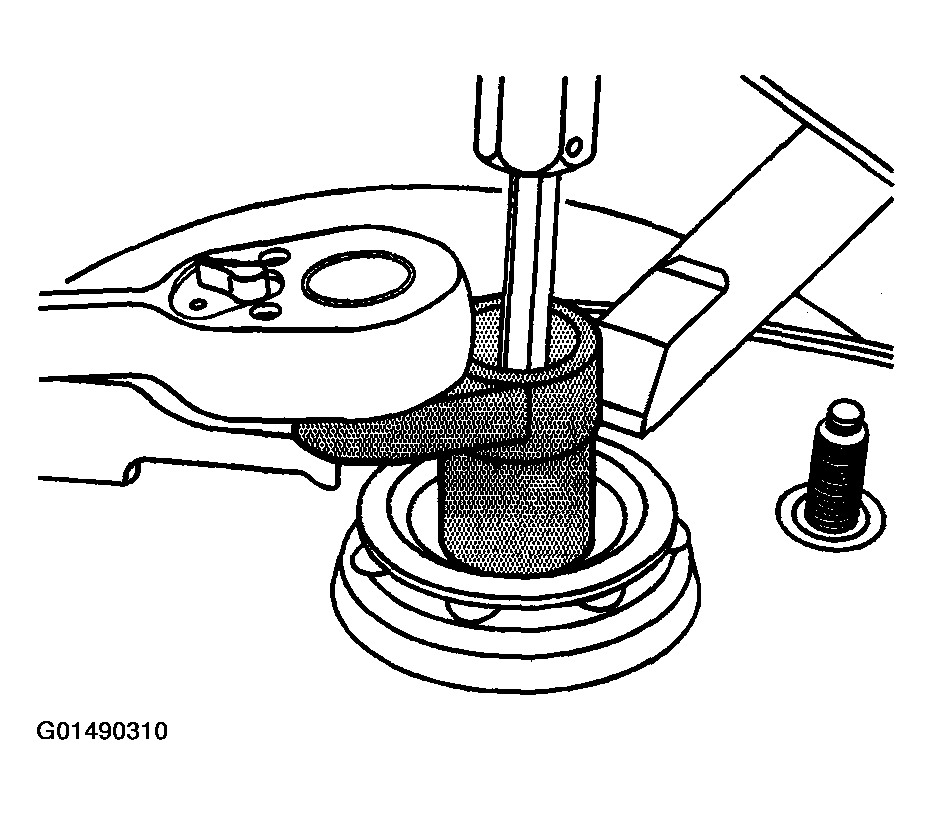

    Fig 2: Installing Strut Mounting Nut
    G01490310Courtesy of GENERAL MOTORS CORP.
