Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the strut from the vehicle. Refer to STRUT ASSEMBLY for rear.
Install the strut (2) in the J 45400 (1).

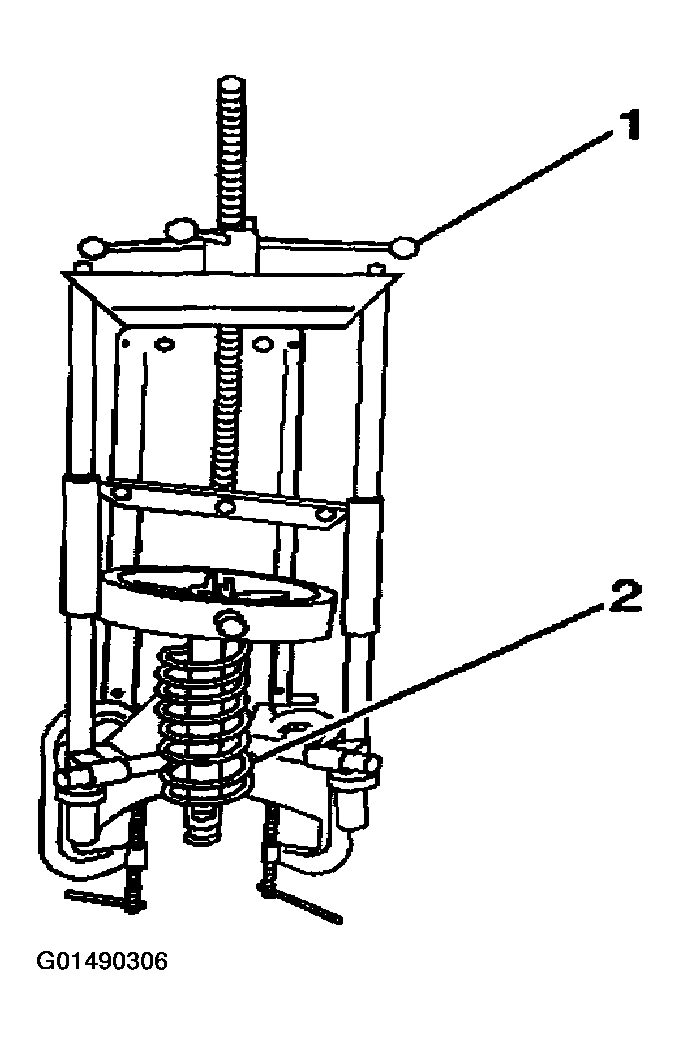

Fig 1: Installing Strut In Strut Spring Compressor
Courtesy of GENERAL MOTORS CORP.

Important: The spring is compressed when the strut moves freely.
Turn the spring compressor forcing screw (1) until the coil spring (2) is compressed.

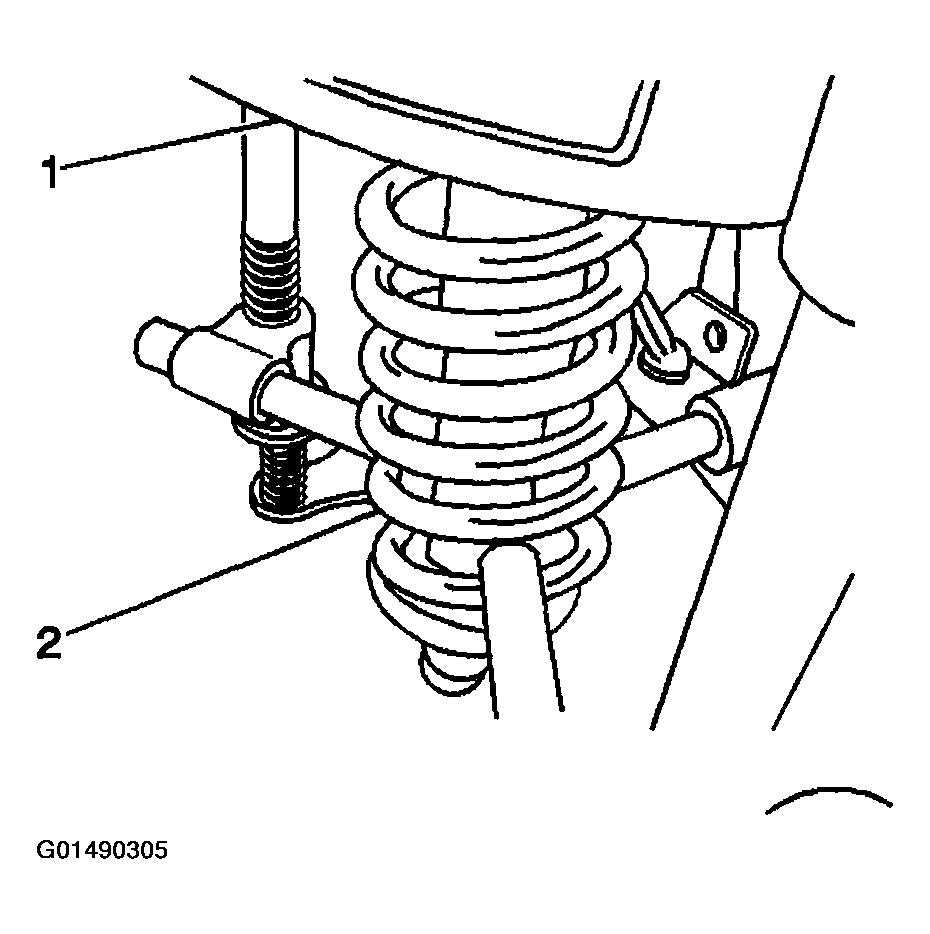

Fig 2: Turning Spring Compressor Forcing Screw Until Coil Spring Is Compressed
Courtesy of GENERAL MOTORS CORP.

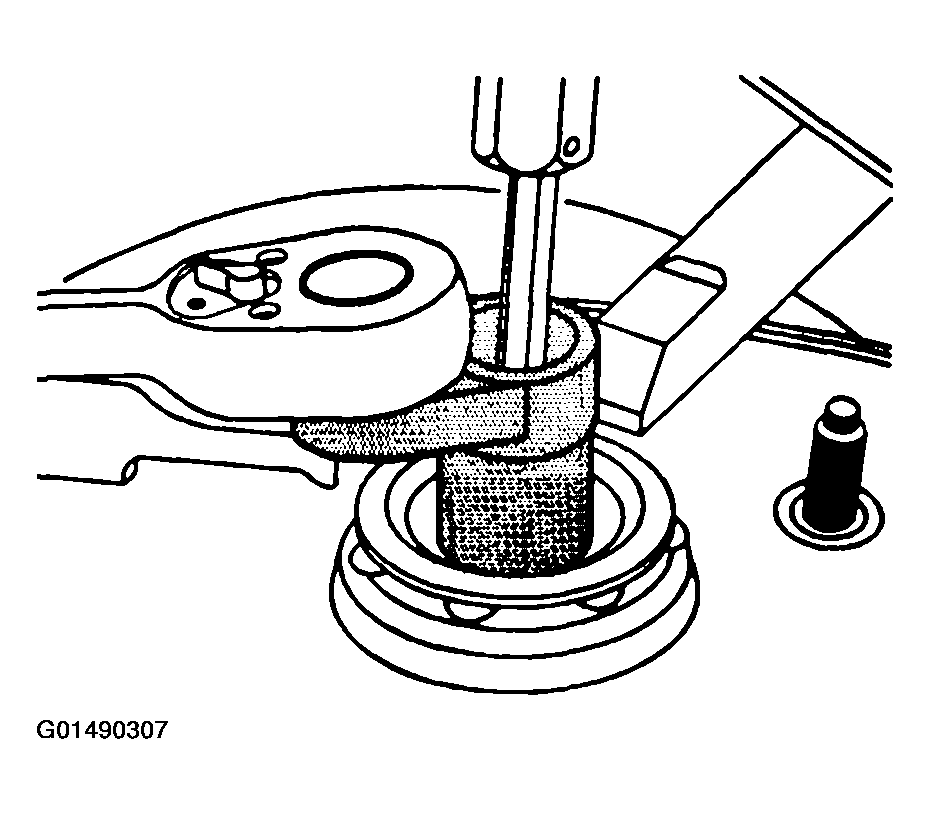

Use a 45 TORX® socket in order to hold the strut shaft. Remove the upper strut mount nut by turning with J 42991.
Remove the strut from the J 45400.

Fig 3: Removing Strut From Strut Spring Compressor
Courtesy of GENERAL MOTORS CORP.
Loosen the compressor forcing screw (1) until the upper strut mount and coil spring (2) may be removed.
Remove the upper strut mount and the coil spring from the J 45400.

Fig 4: Compressor Forcing Screw
Courtesy of GENERAL MOTORS CORP.
