Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

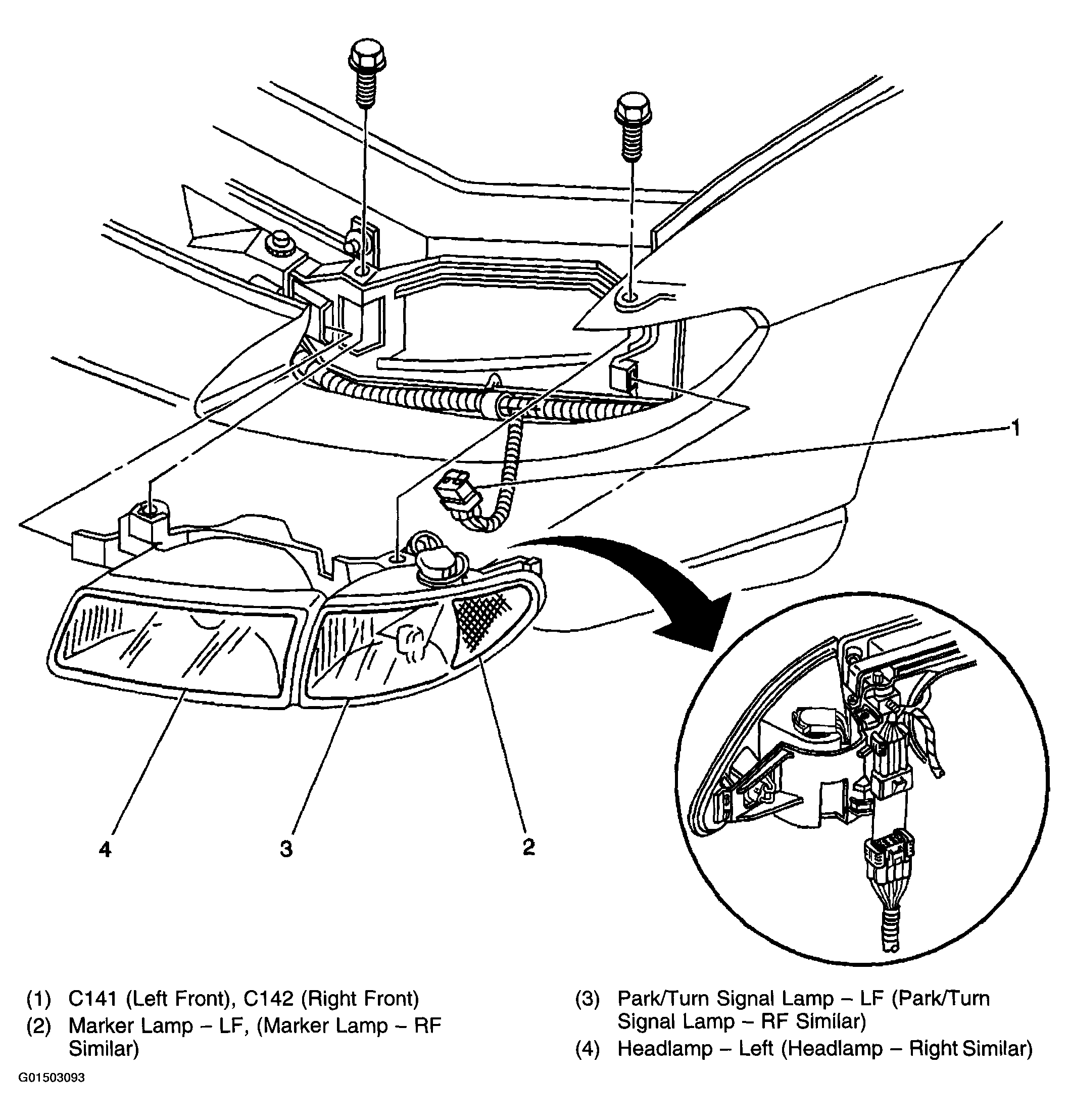

Fig 1: Front LH Side Of Vehicle (Right Front Similar) Component View
G01503093Courtesy of GENERAL MOTORS CORP.

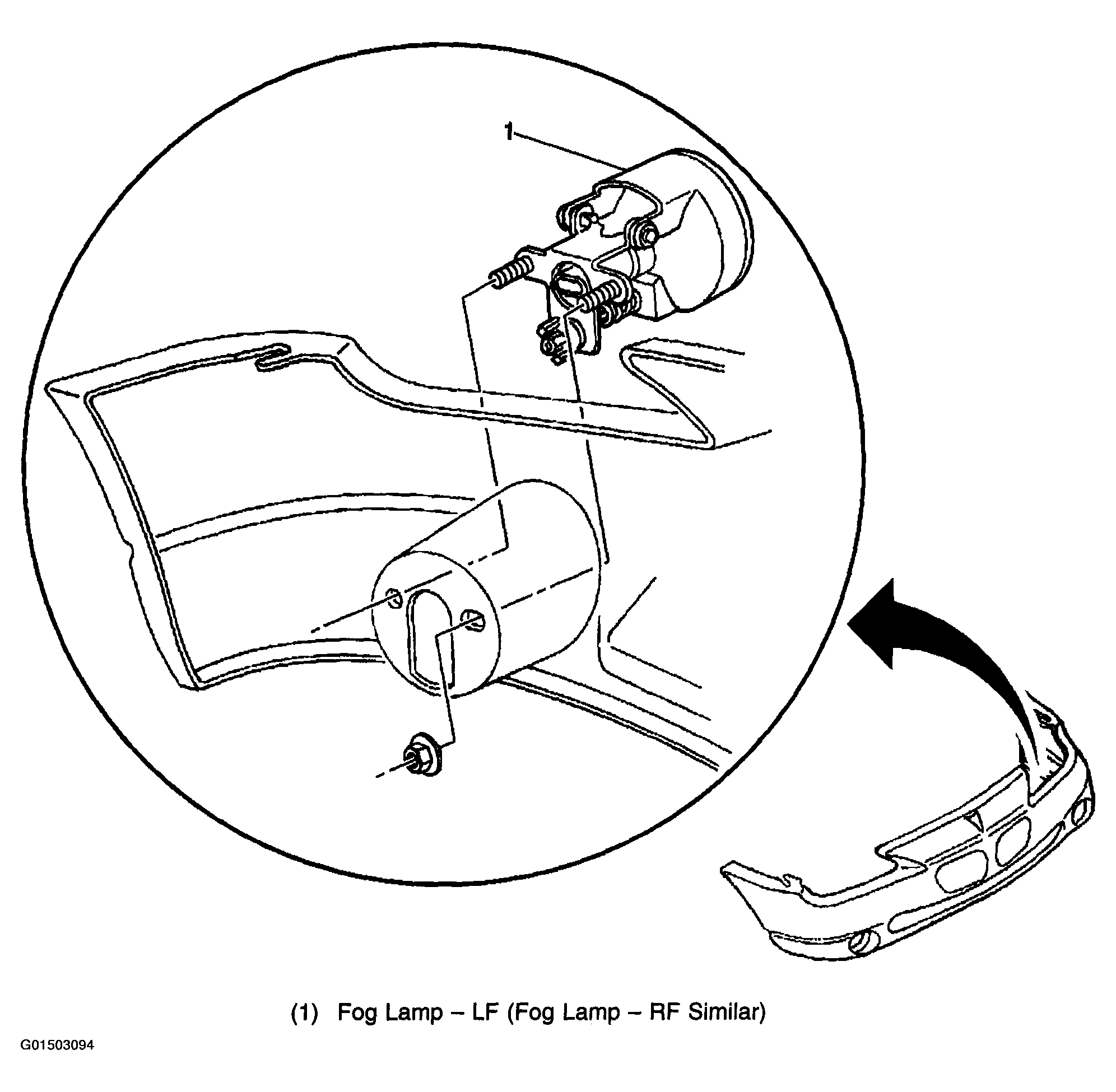

Fig 2: Front Fascia Component View
G01503094Courtesy of GENERAL MOTORS CORP.

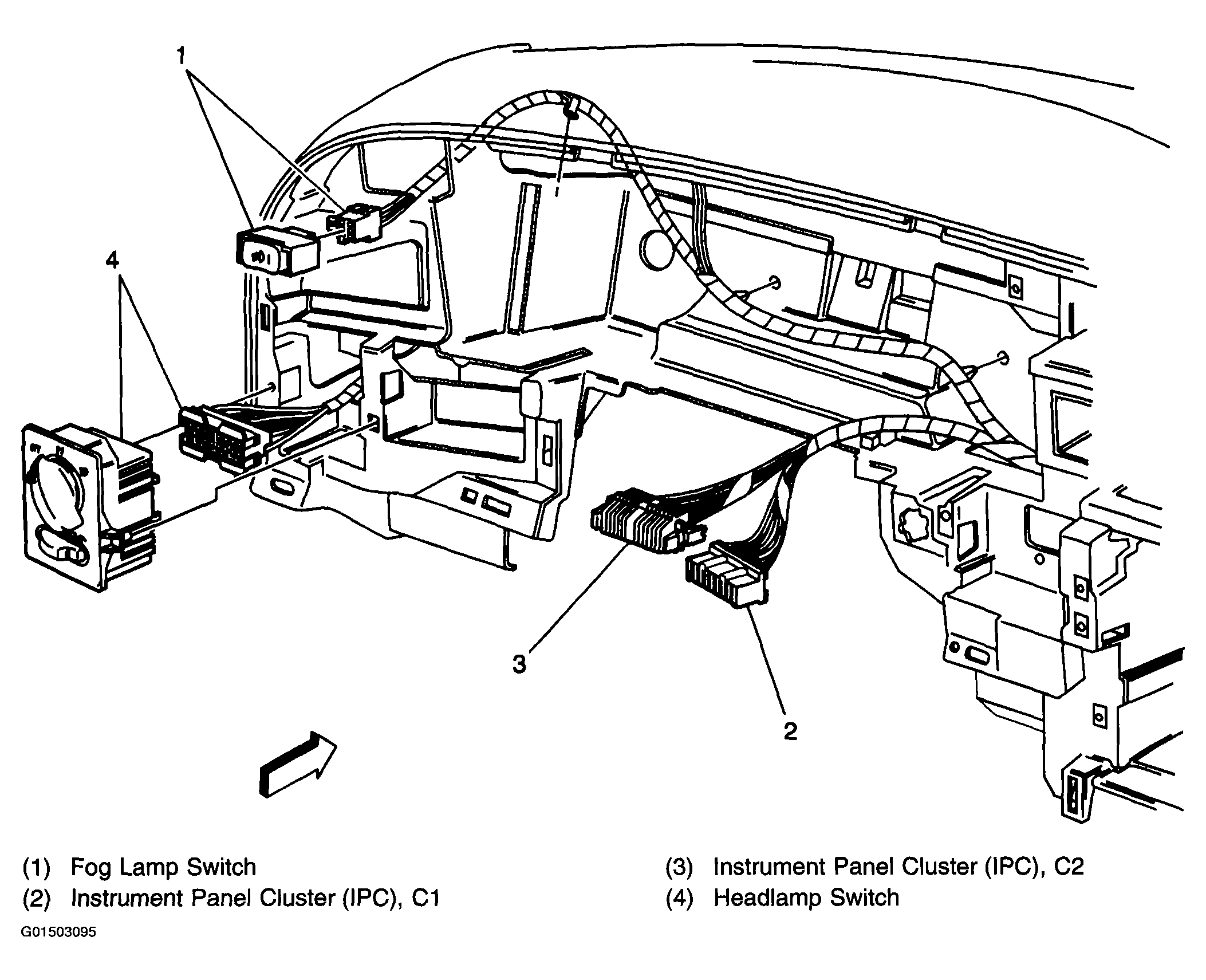

Fig 3: LH Upper Side Of Instrument Panel Component View
G01503095Courtesy of GENERAL MOTORS CORP.

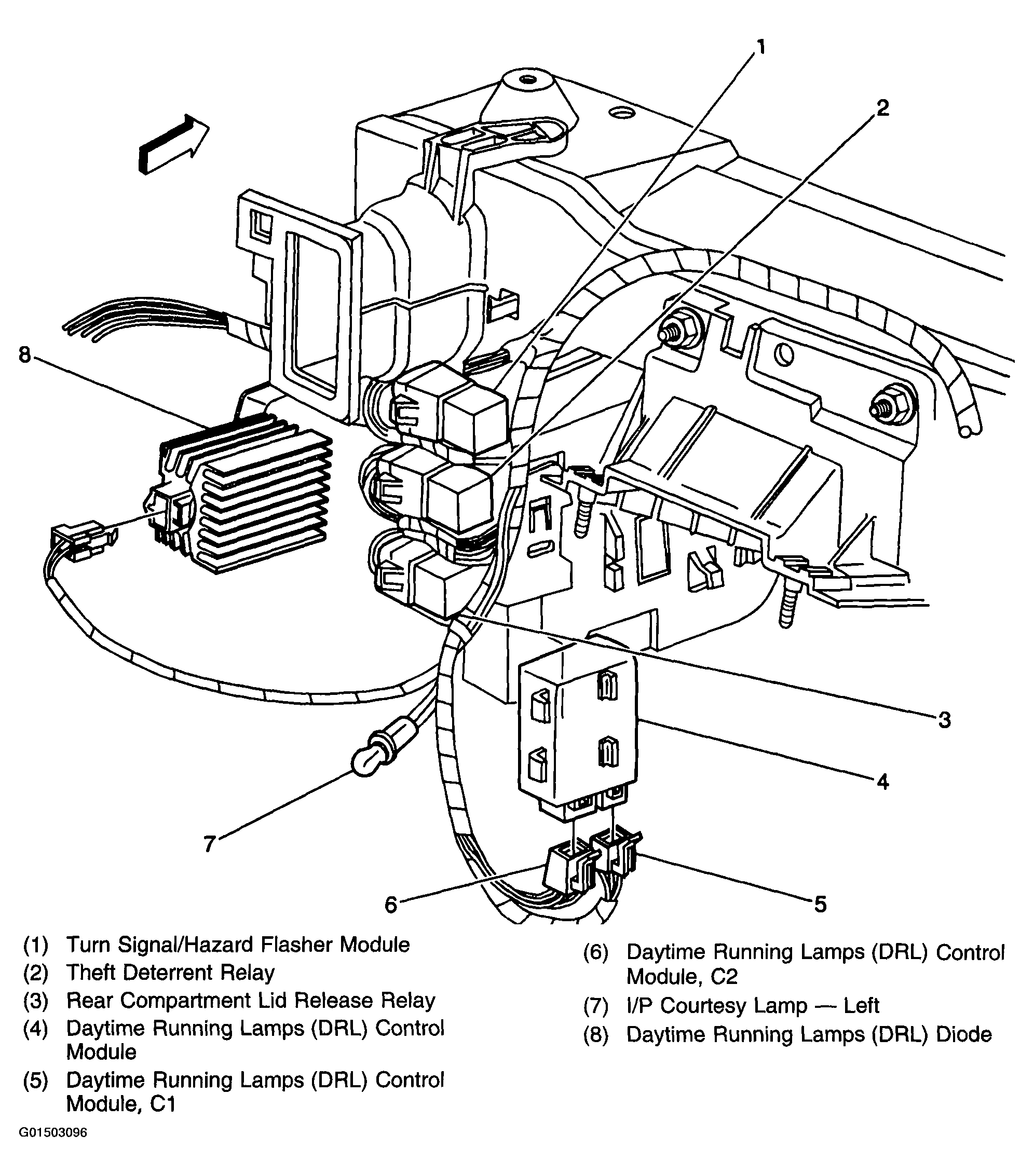

Fig 4: LH Lower Side Of Instrument Panel Component View
G01503096Courtesy of GENERAL MOTORS CORP.

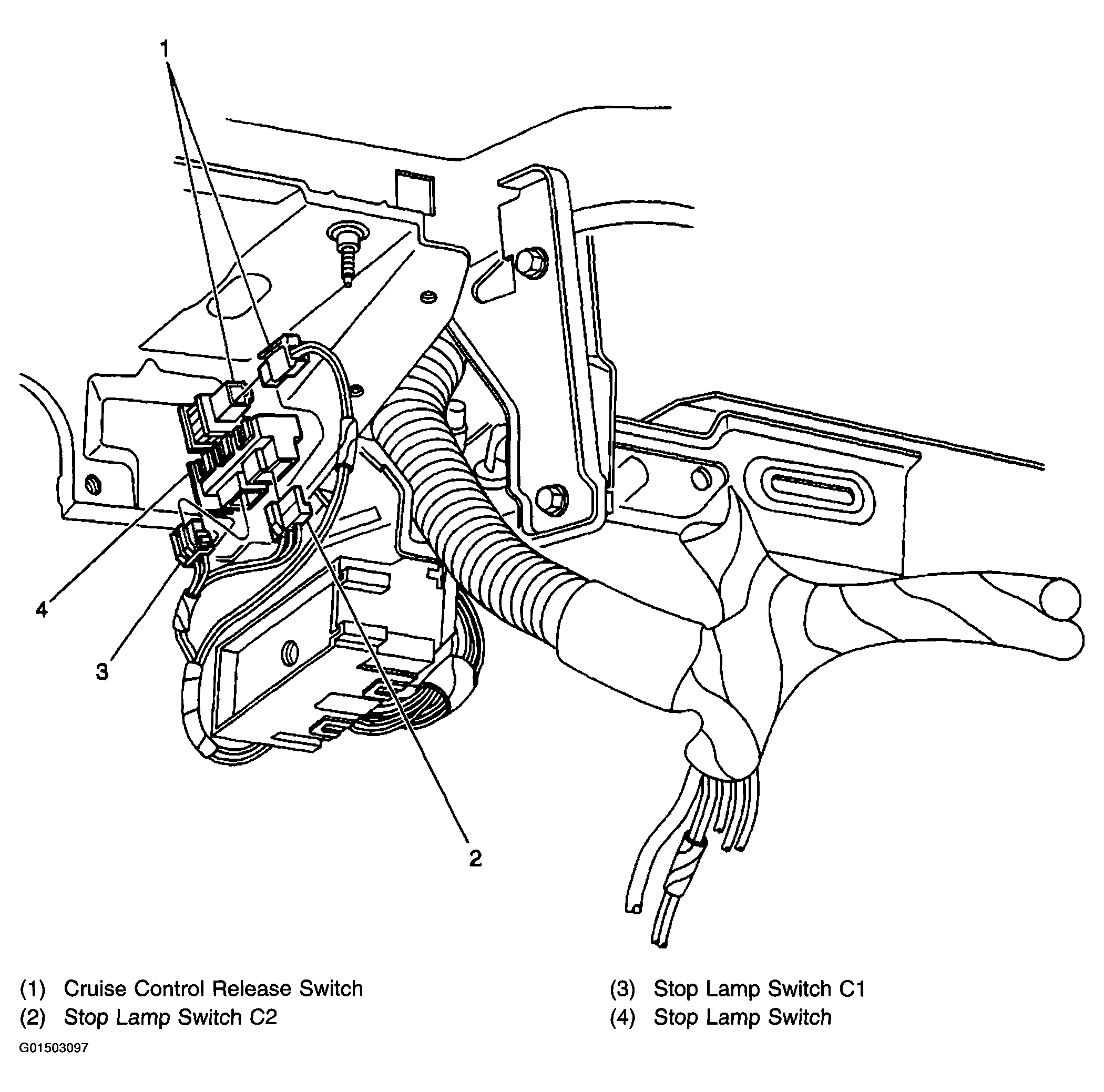

Fig 5: Above Brake Pedal Component View
G01503097Courtesy of GENERAL MOTORS CORP.

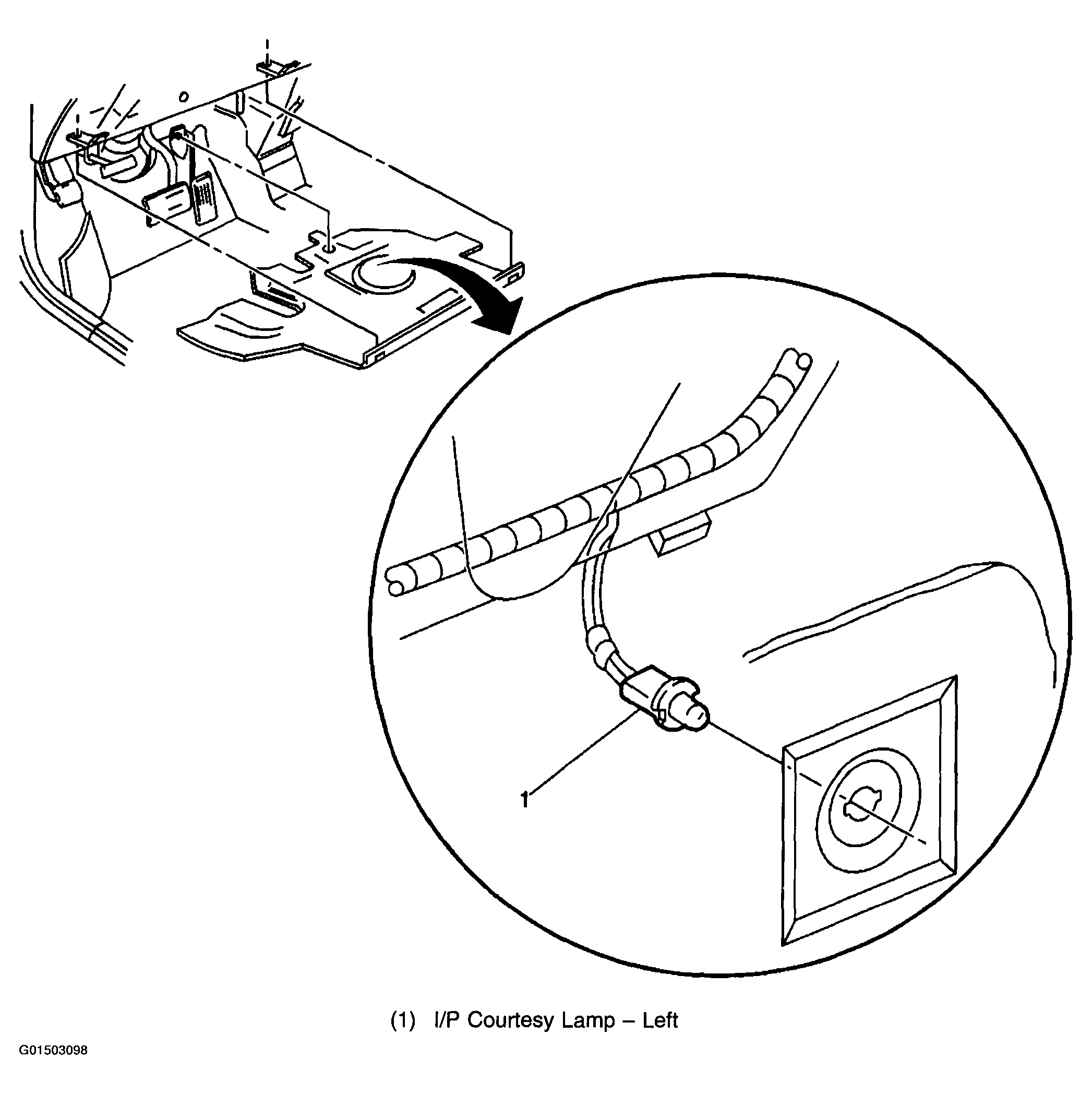

Fig 6: Below Steering Column Component View
G01503098Courtesy of GENERAL MOTORS CORP.

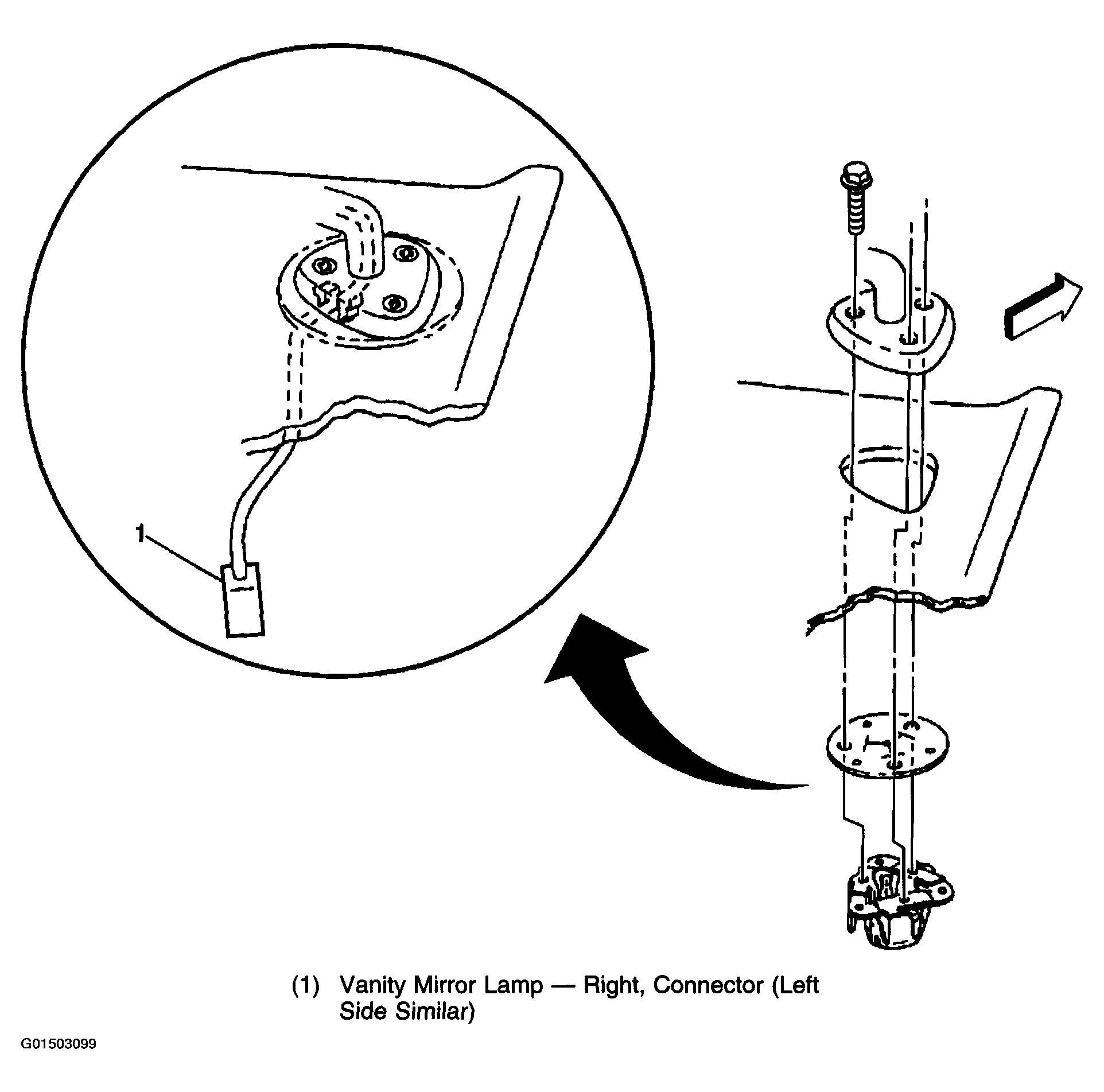

Fig 7: Interior Roof Component View
G01503099Courtesy of GENERAL MOTORS CORP.

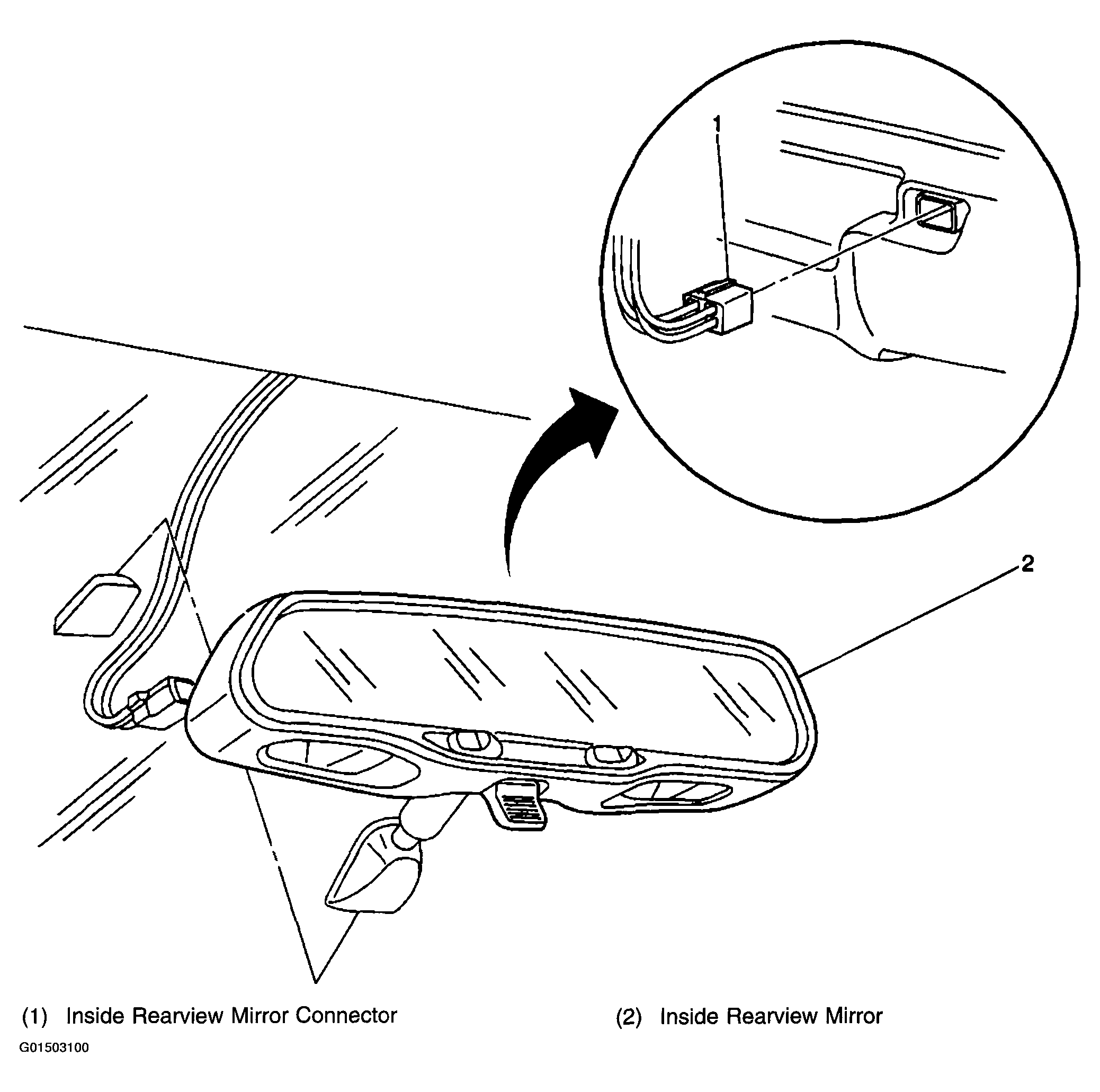

Fig 8: Forward Center Of Interior Compartment Component View
G01503100Courtesy of GENERAL MOTORS CORP.

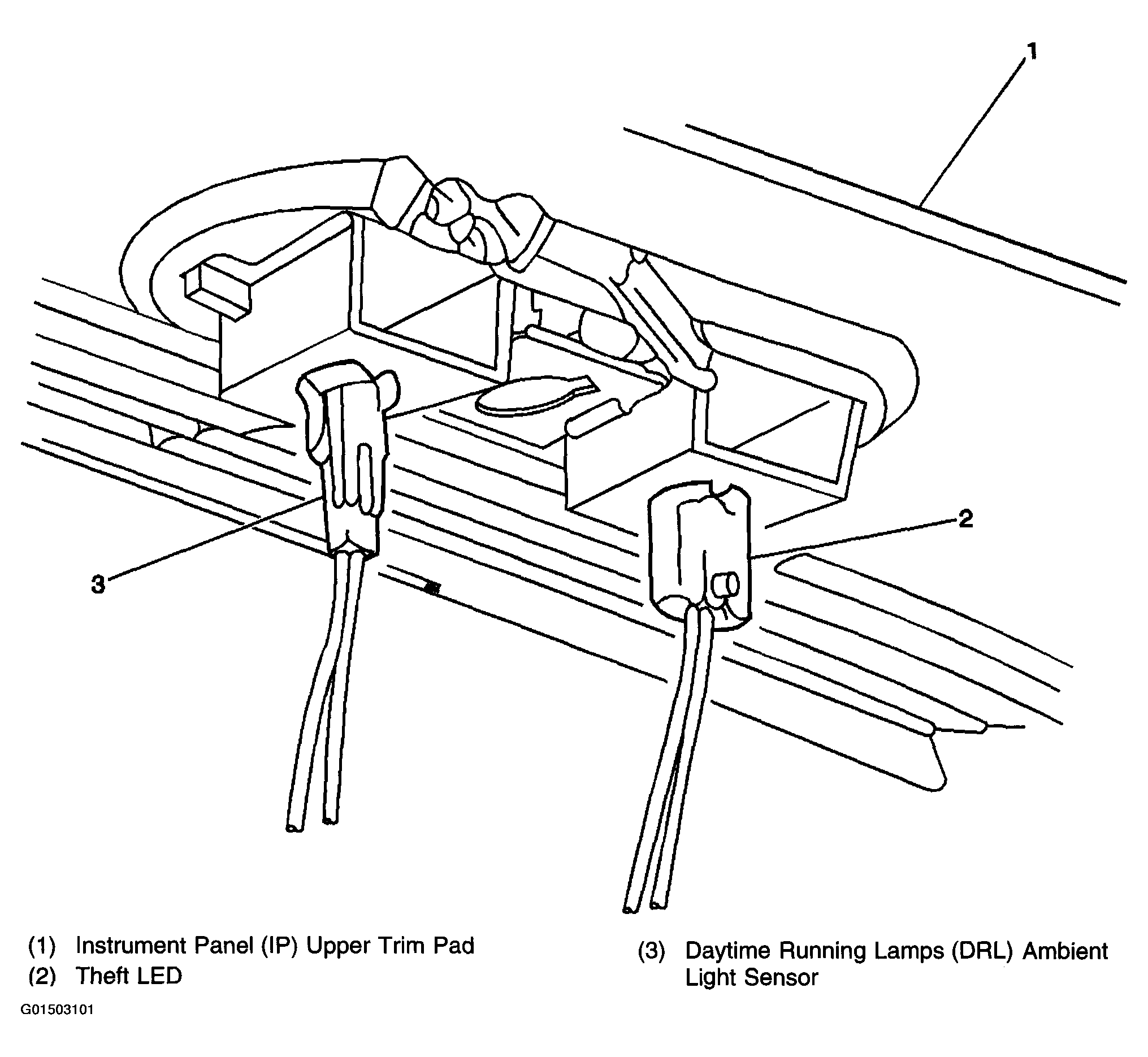

Fig 9: Top Center Of Instrument Panel Component View
G01503101Courtesy of GENERAL MOTORS CORP.

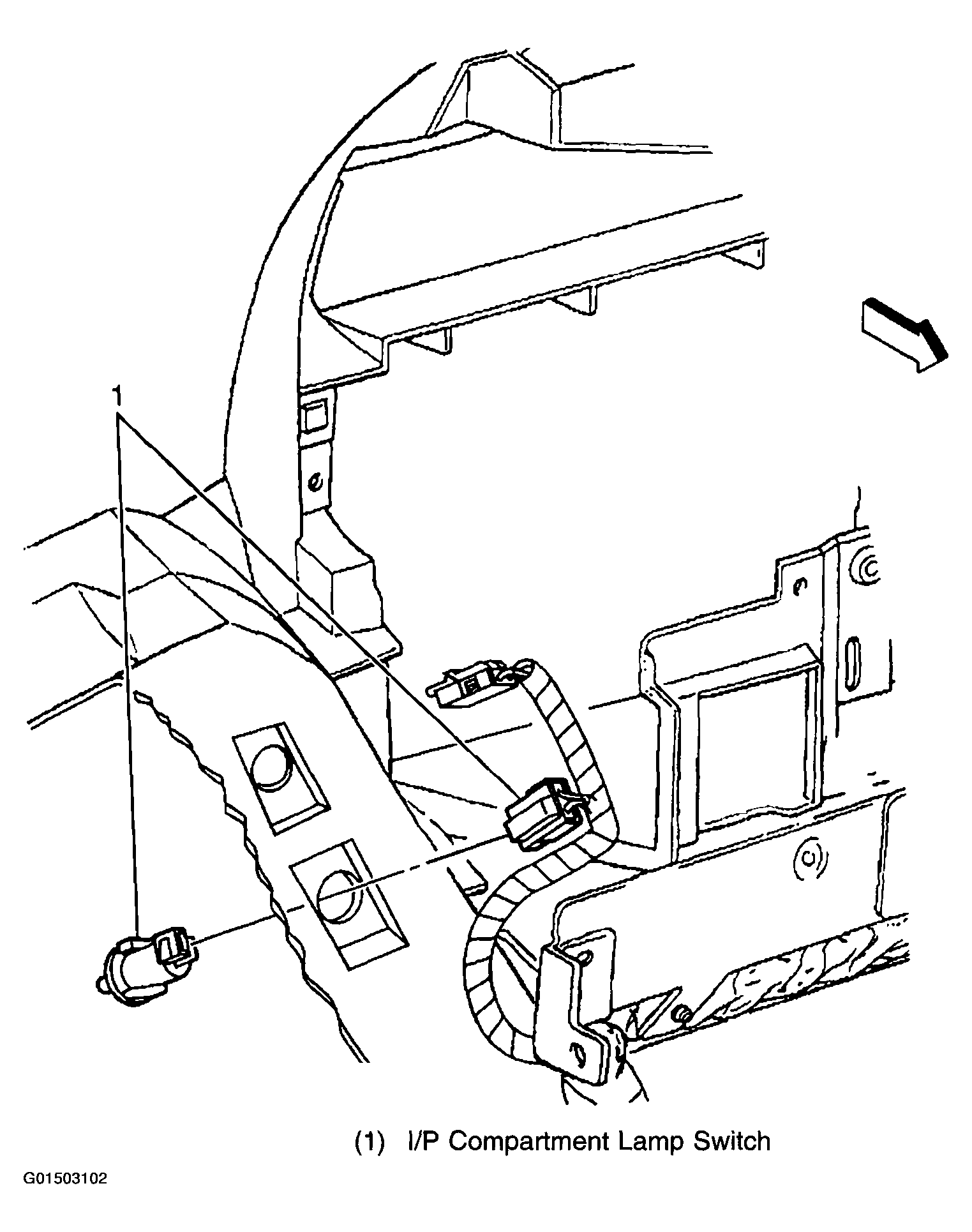

Fig 10: Inside Instrument Panel Compartment Component View
G01503102Courtesy of GENERAL MOTORS CORP.

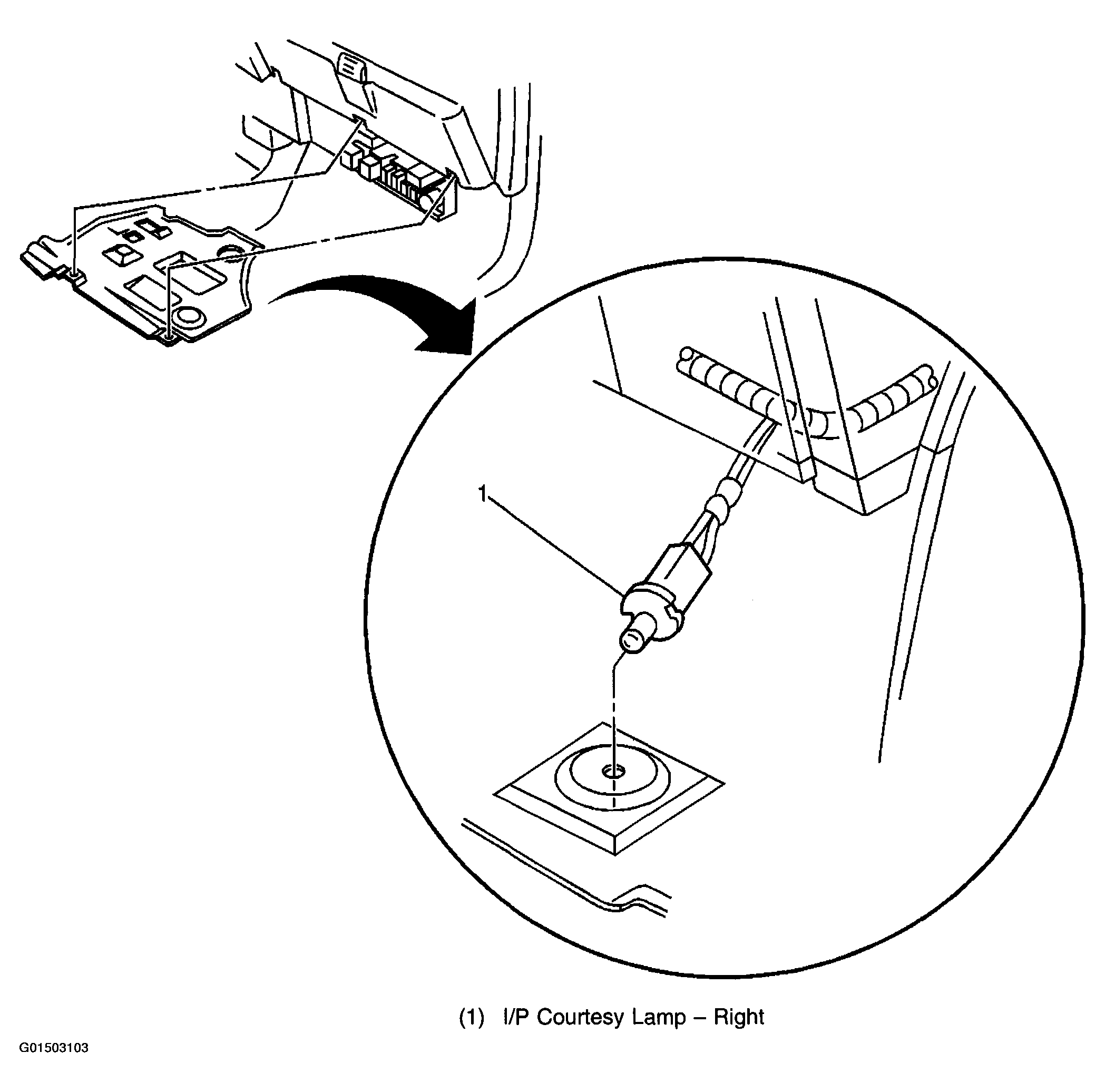

Fig 11: Below Instrument Panel Compartment Component View
G01503103Courtesy of GENERAL MOTORS CORP.

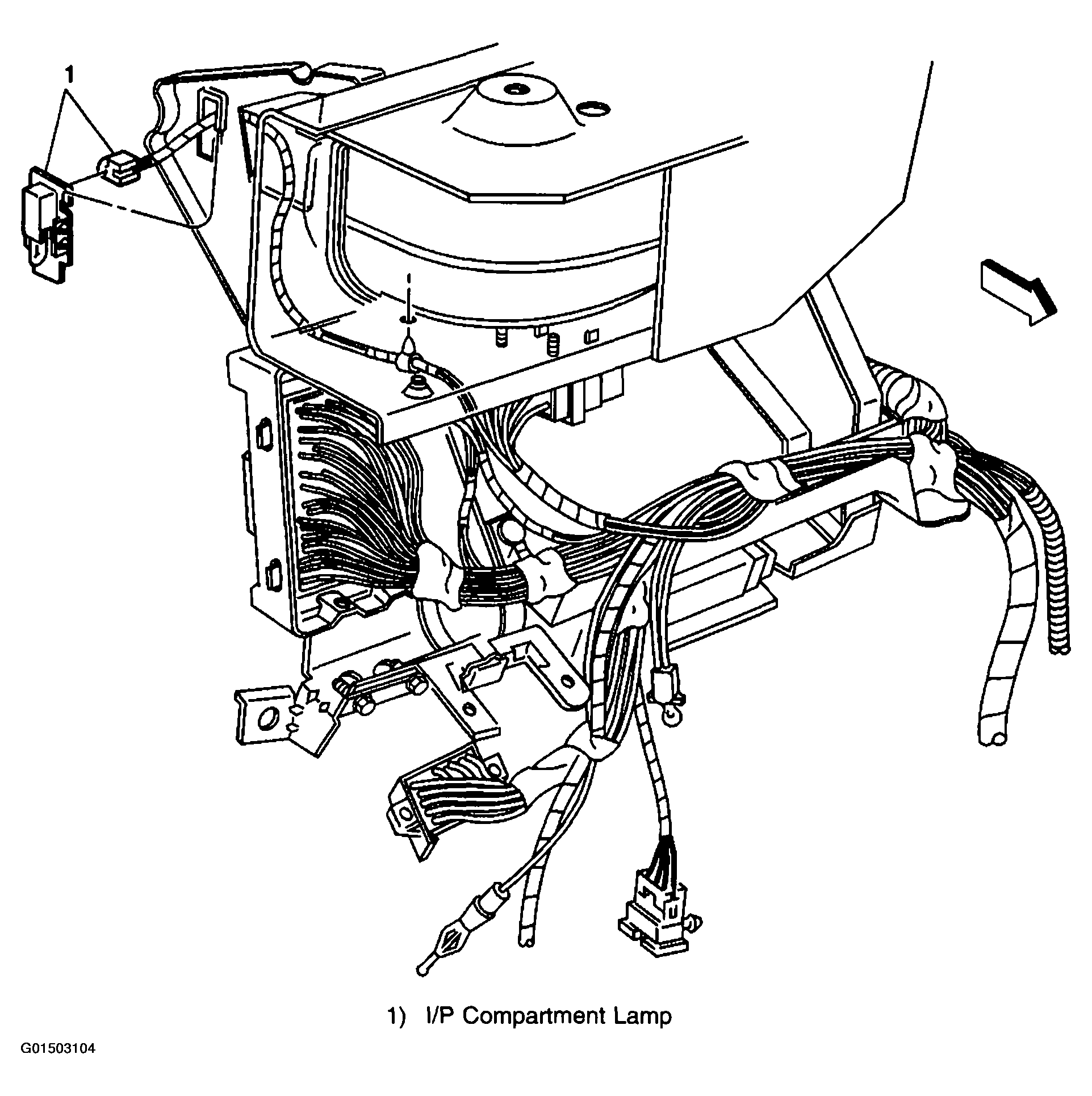

Fig 12: RH Side Of Instrument Panel Component View
G01503104Courtesy of GENERAL MOTORS CORP.

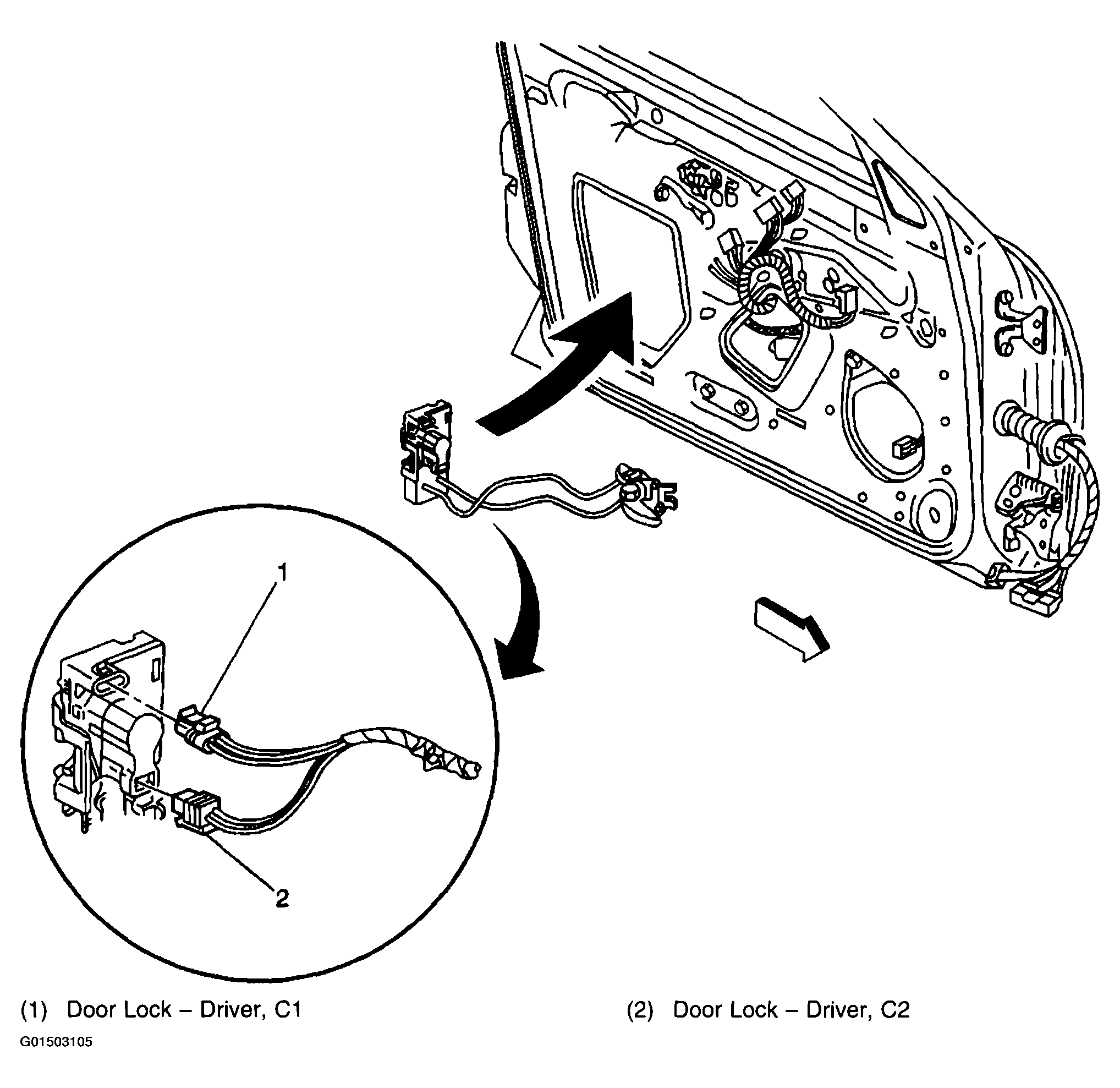

Fig 13: Inside Left Front Door, Right Similar Component View
G01503105Courtesy of GENERAL MOTORS CORP.

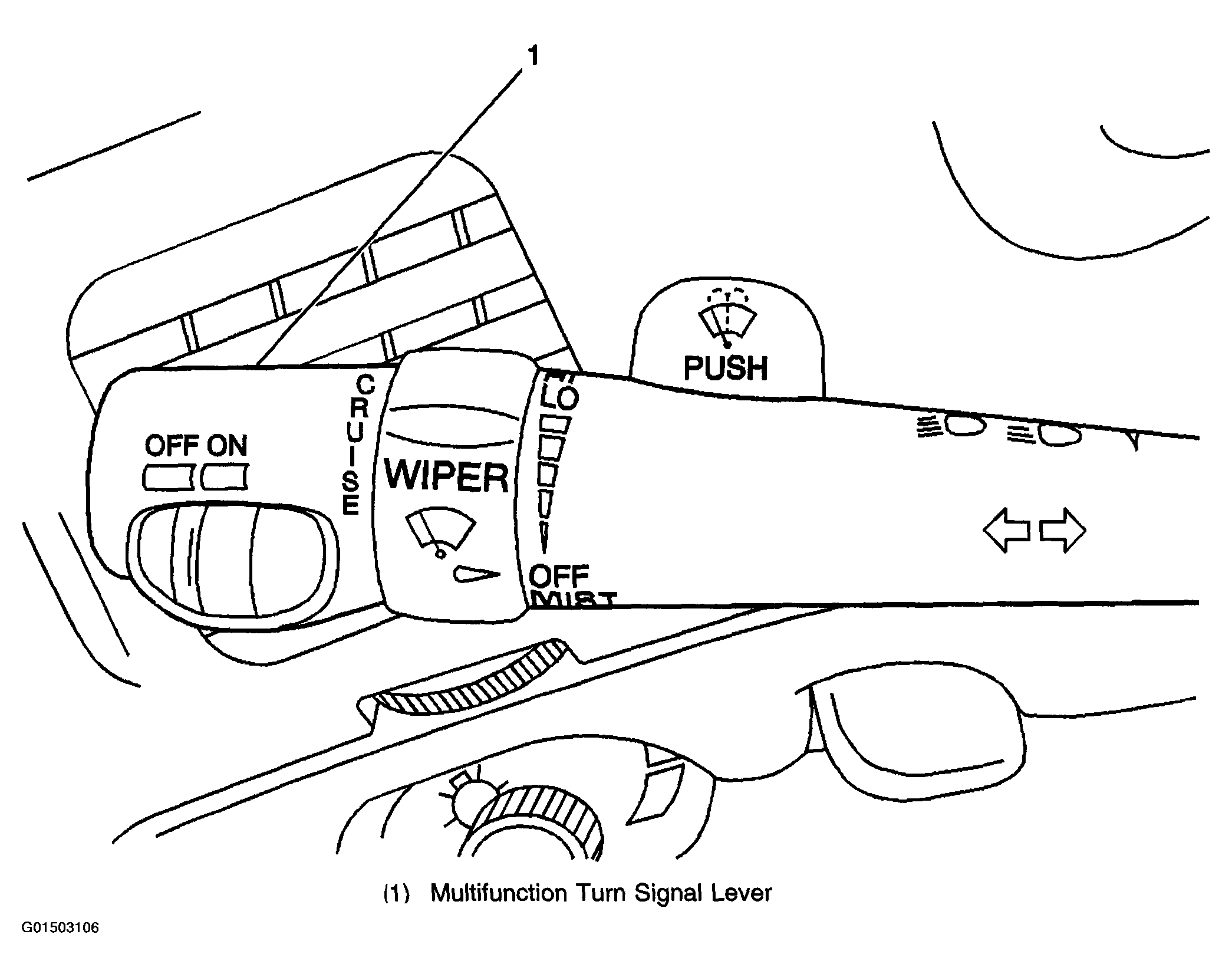

Fig 14: Multifunction Turn Signal Lever Component View
G01503106Courtesy of GENERAL MOTORS CORP.

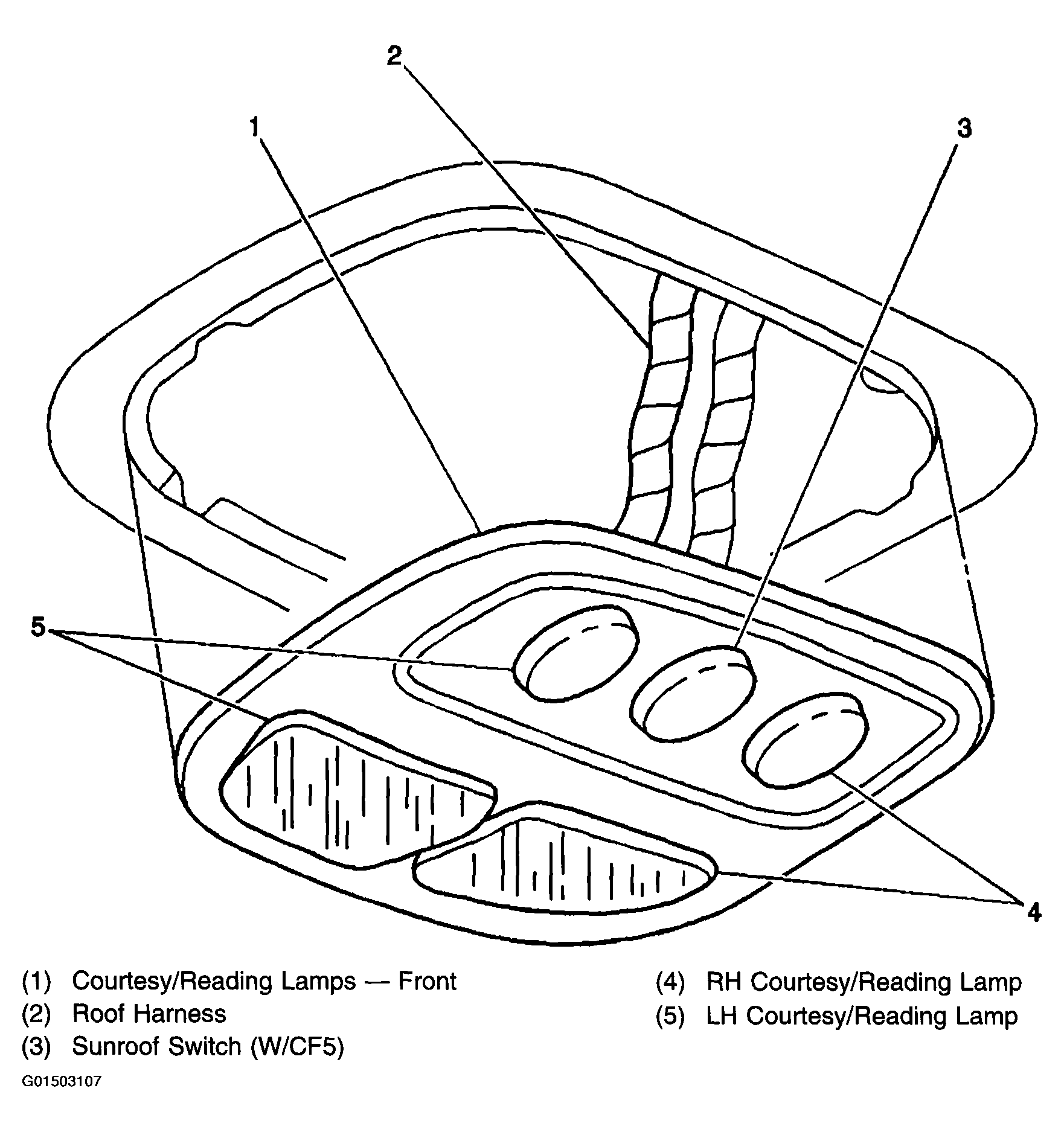

Fig 15: Front Center Of Roof Component View
G01503107Courtesy of GENERAL MOTORS CORP.

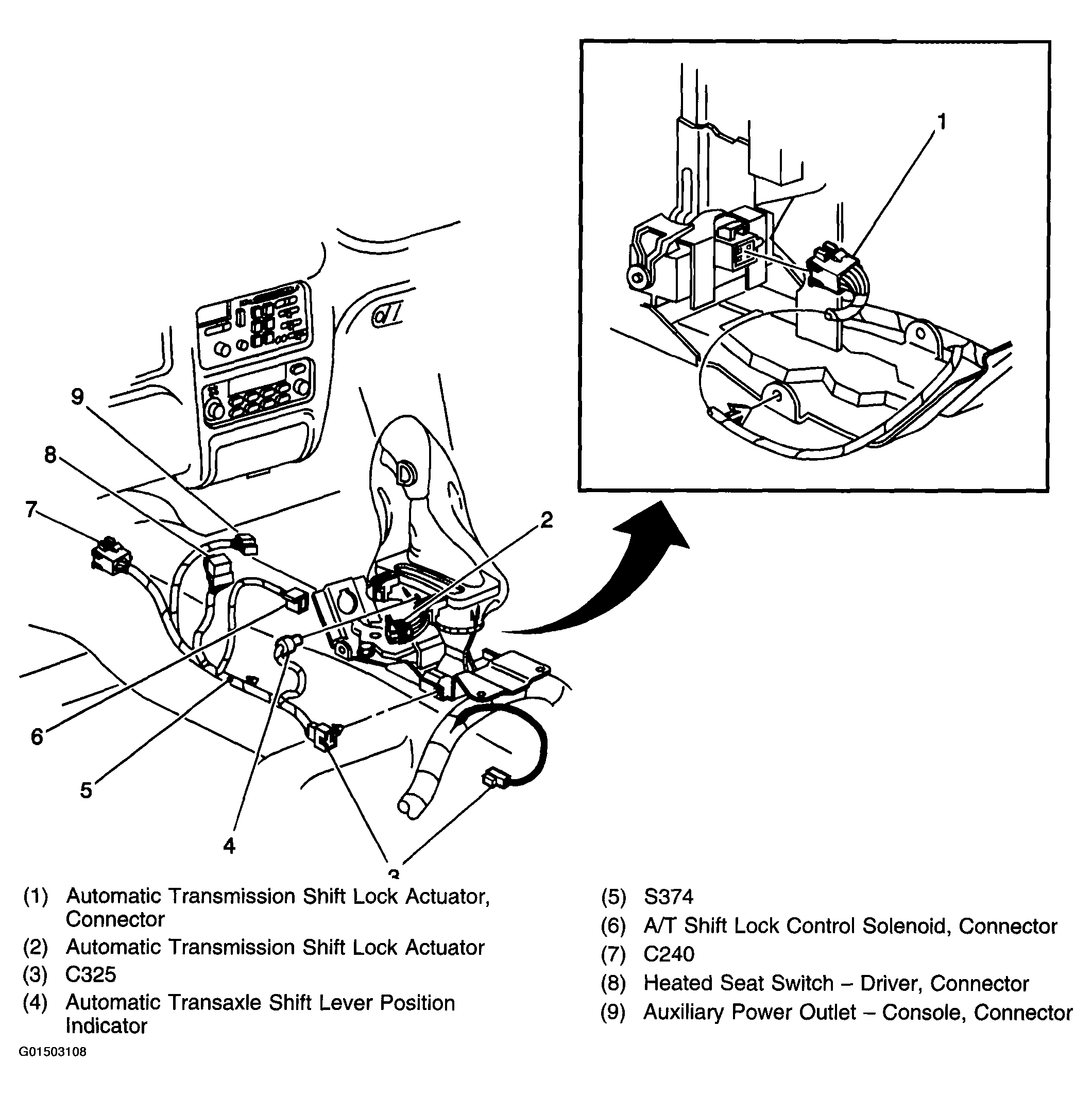

Fig 16: Floor Console Component View
G01503108Courtesy of GENERAL MOTORS CORP.

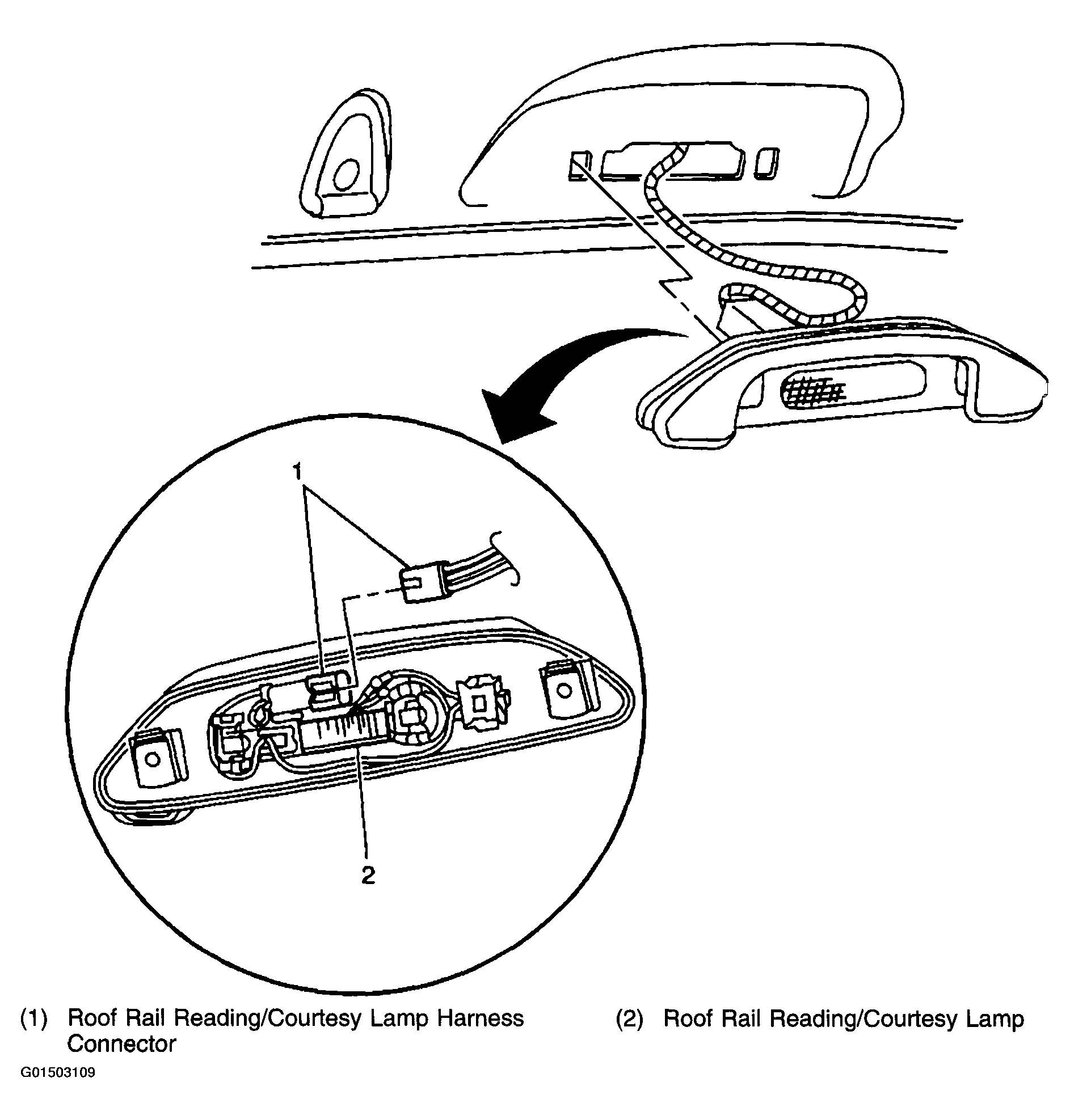

Fig 17: RH Side Of Headliner Component View
G01503109Courtesy of GENERAL MOTORS CORP.

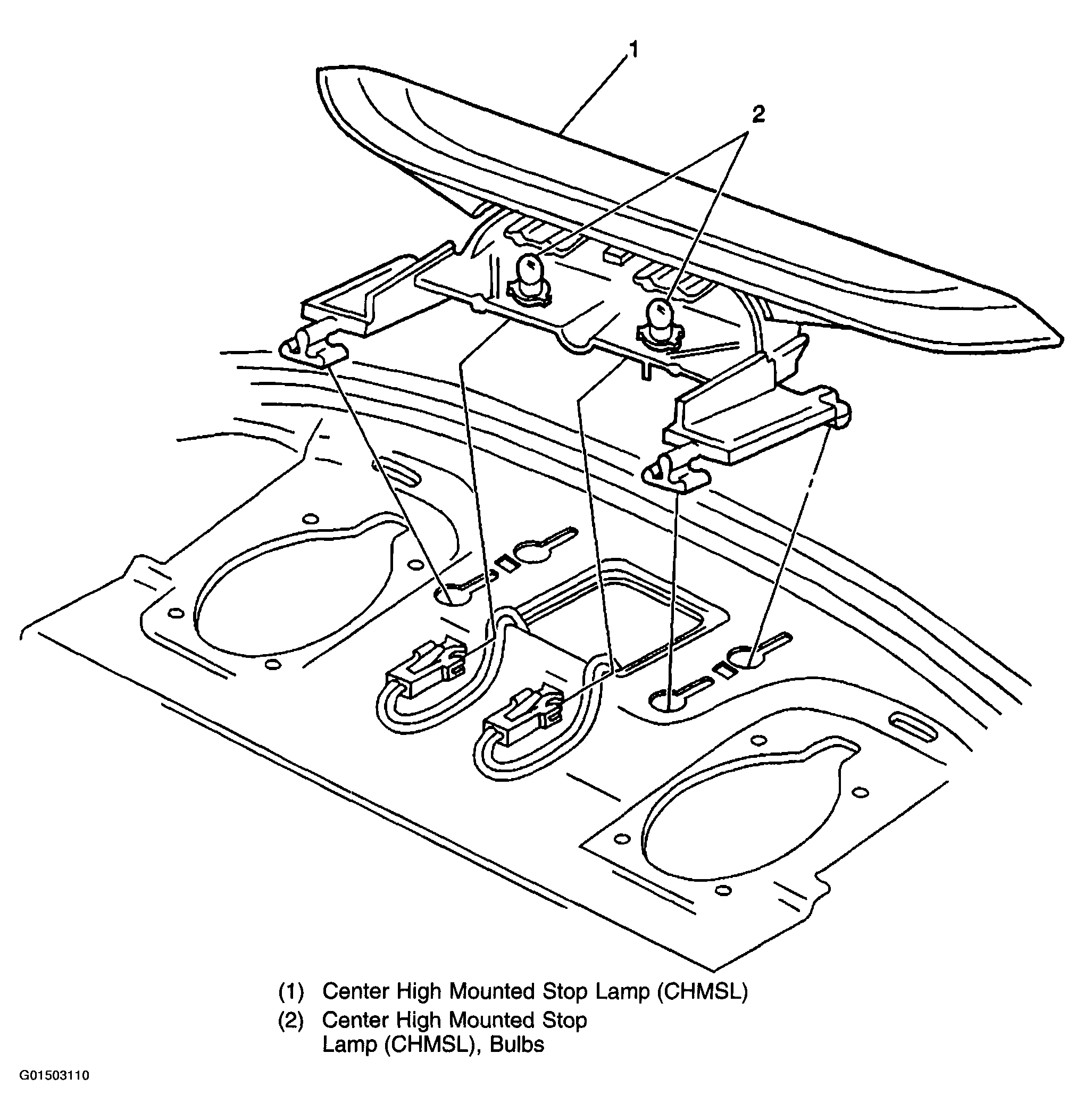

Fig 18: Top Of Rear Window Deck Component View
G01503110Courtesy of GENERAL MOTORS CORP.

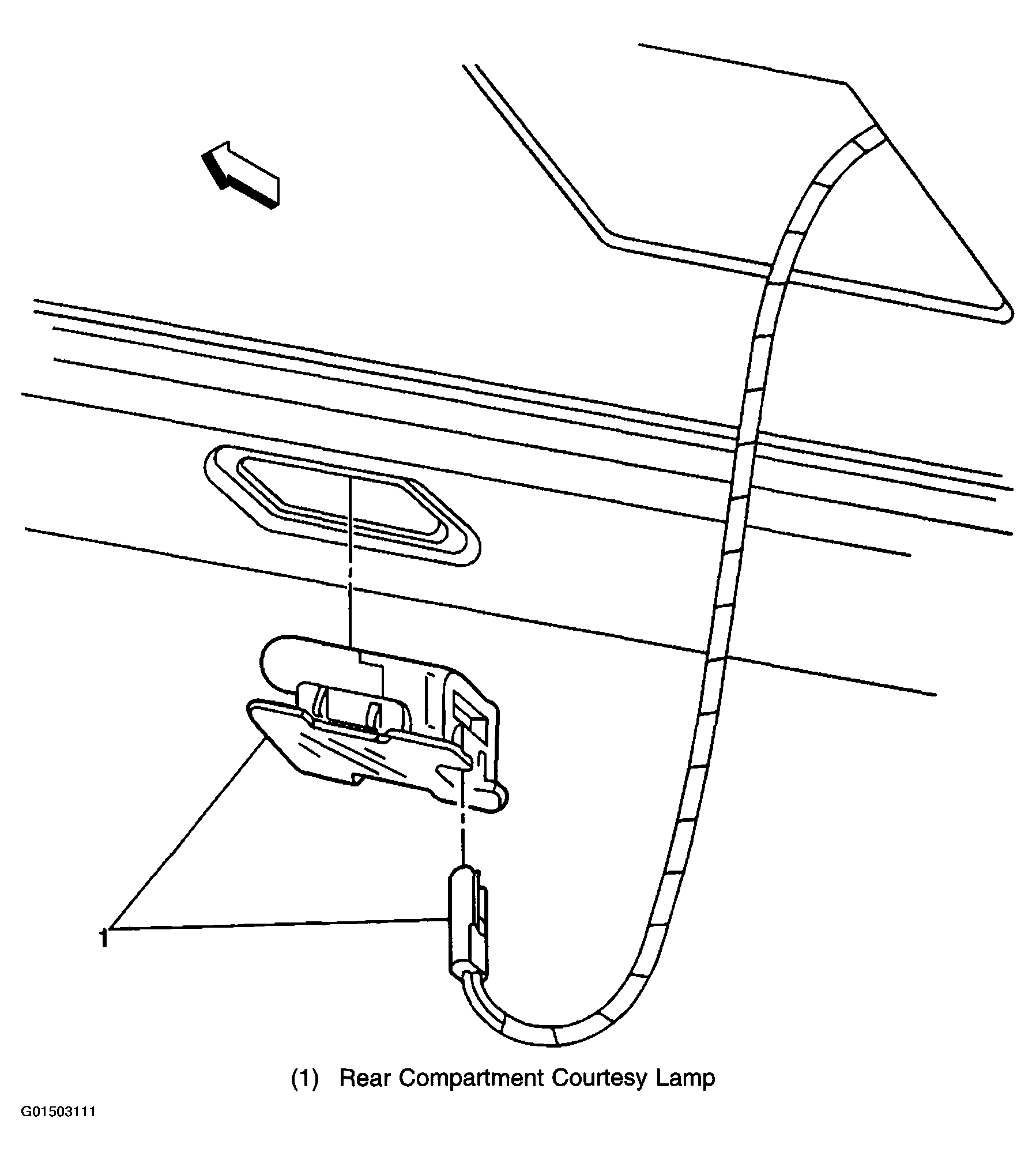

Fig 19: Inside Rear Compartment, Under Package Shelf Component View
G01503111Courtesy of GENERAL MOTORS CORP.

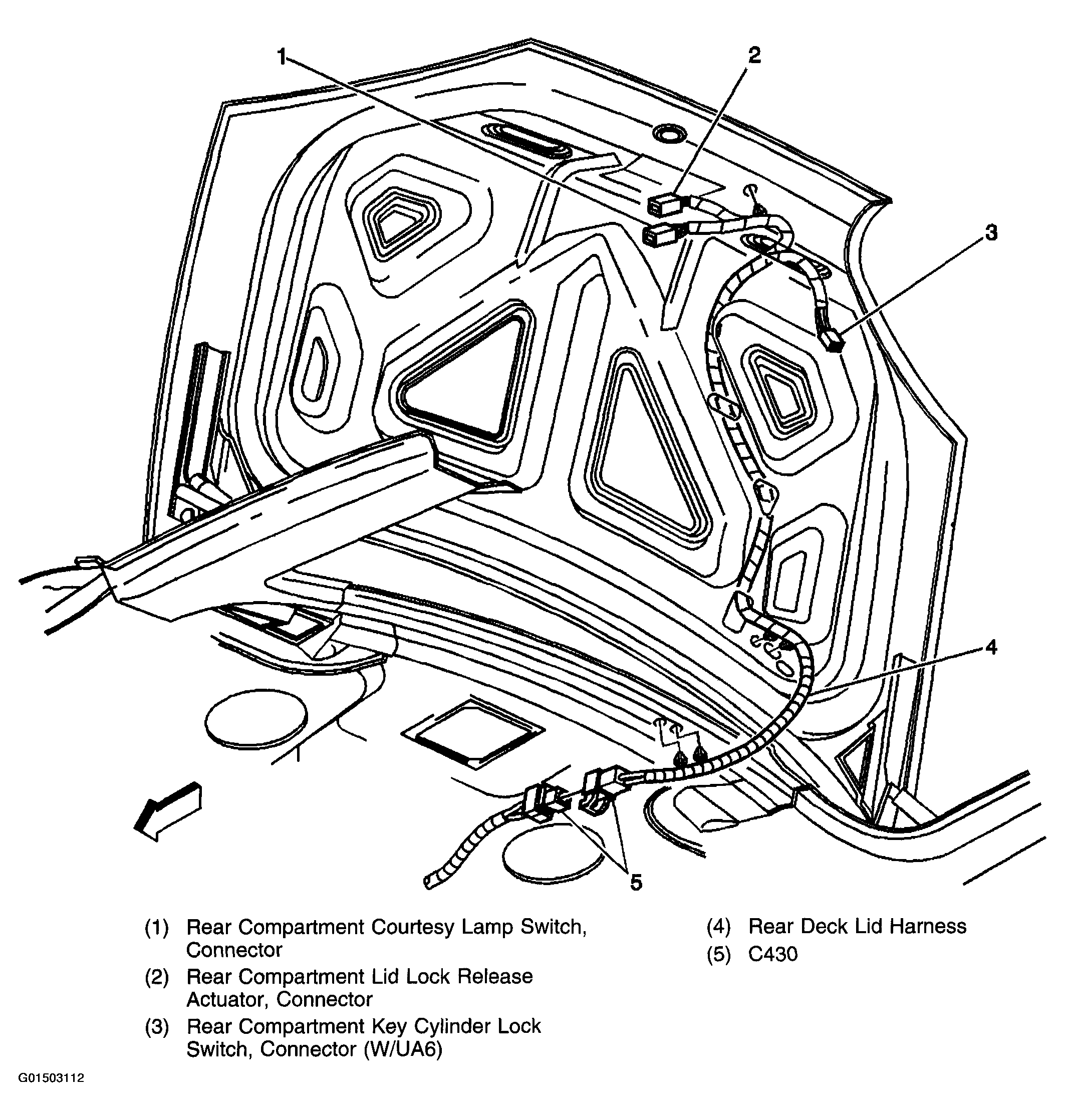

Fig 20: Inside Rear Compartment Lid Component View
G01503112Courtesy of GENERAL MOTORS CORP.

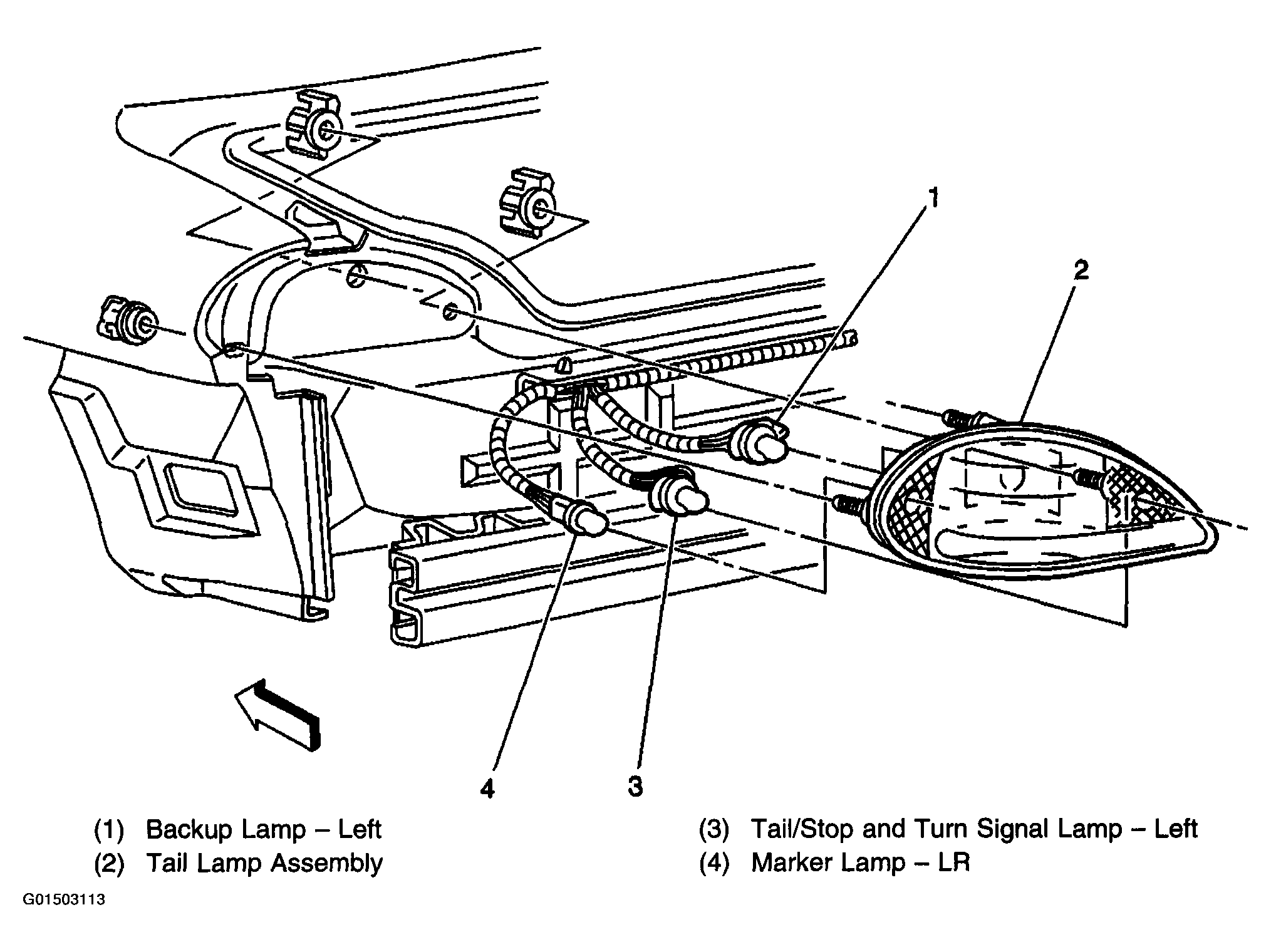

Fig 21: Tail Lamp Assembly Component View
G01503113Courtesy of GENERAL MOTORS CORP.

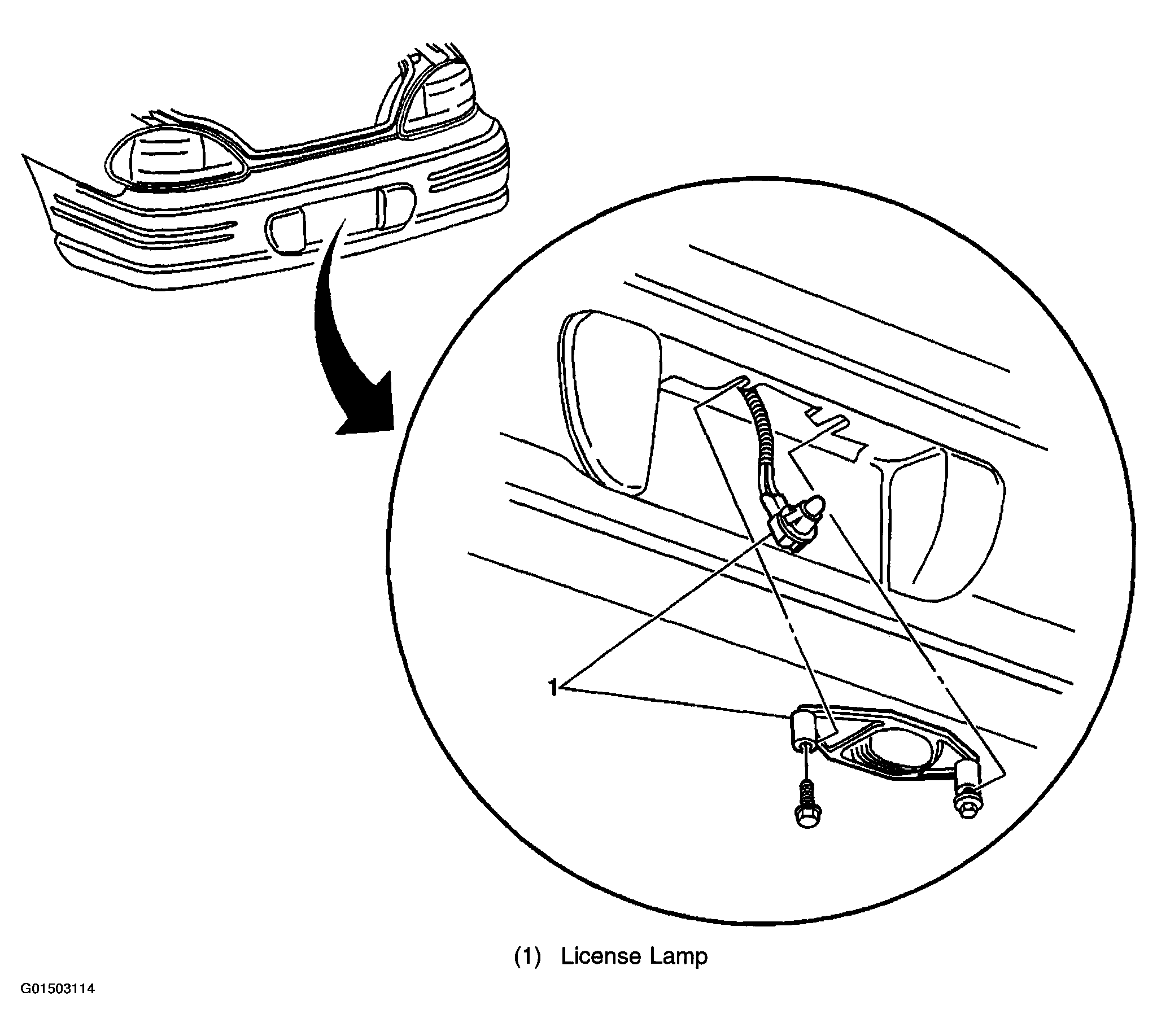

Fig 22: Rear Fascia Component View
G01503114Courtesy of GENERAL MOTORS CORP.
