Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

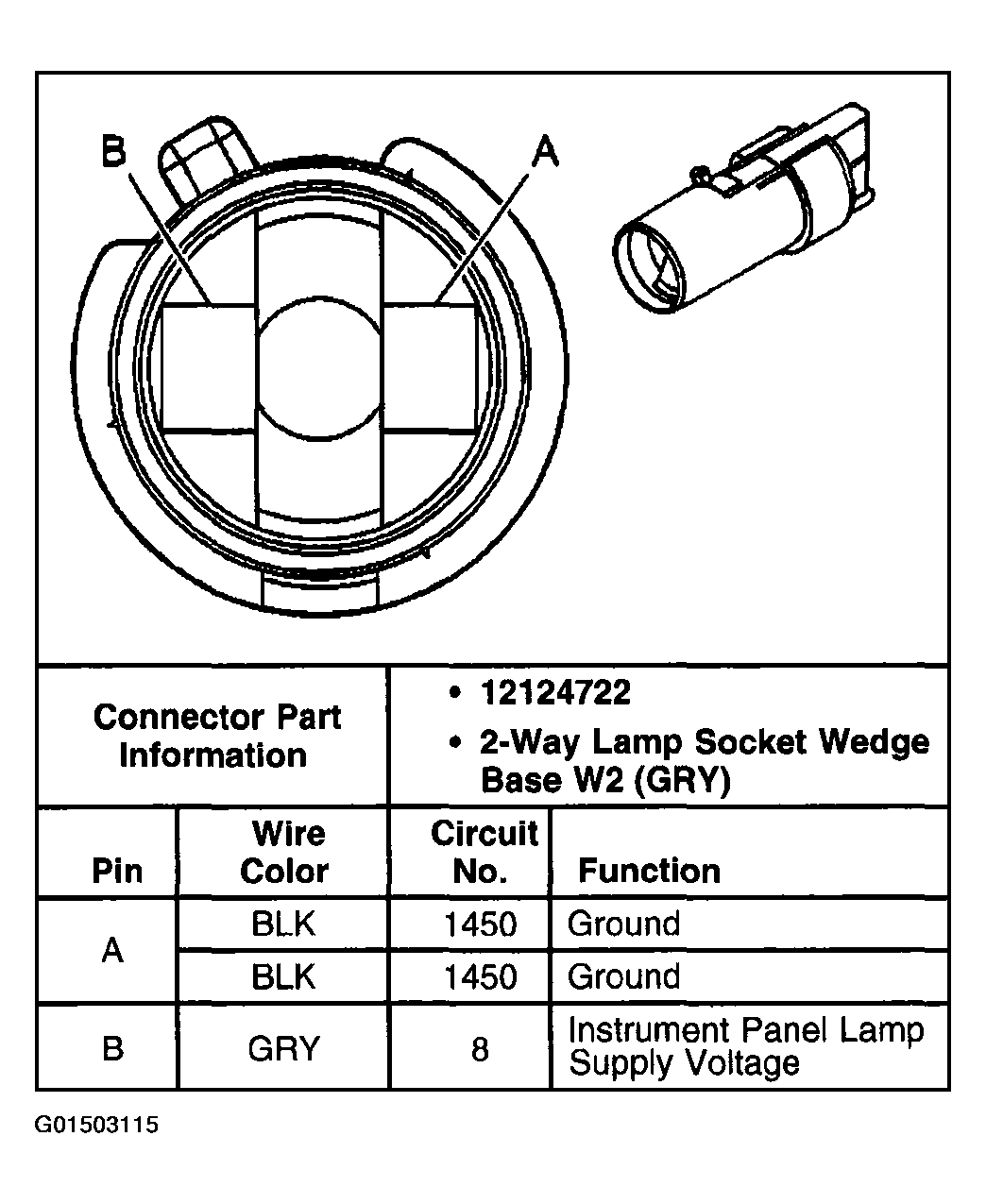

Fig 1: Ashtray Lamp Connector End View
G01503115Courtesy of GENERAL MOTORS CORP.

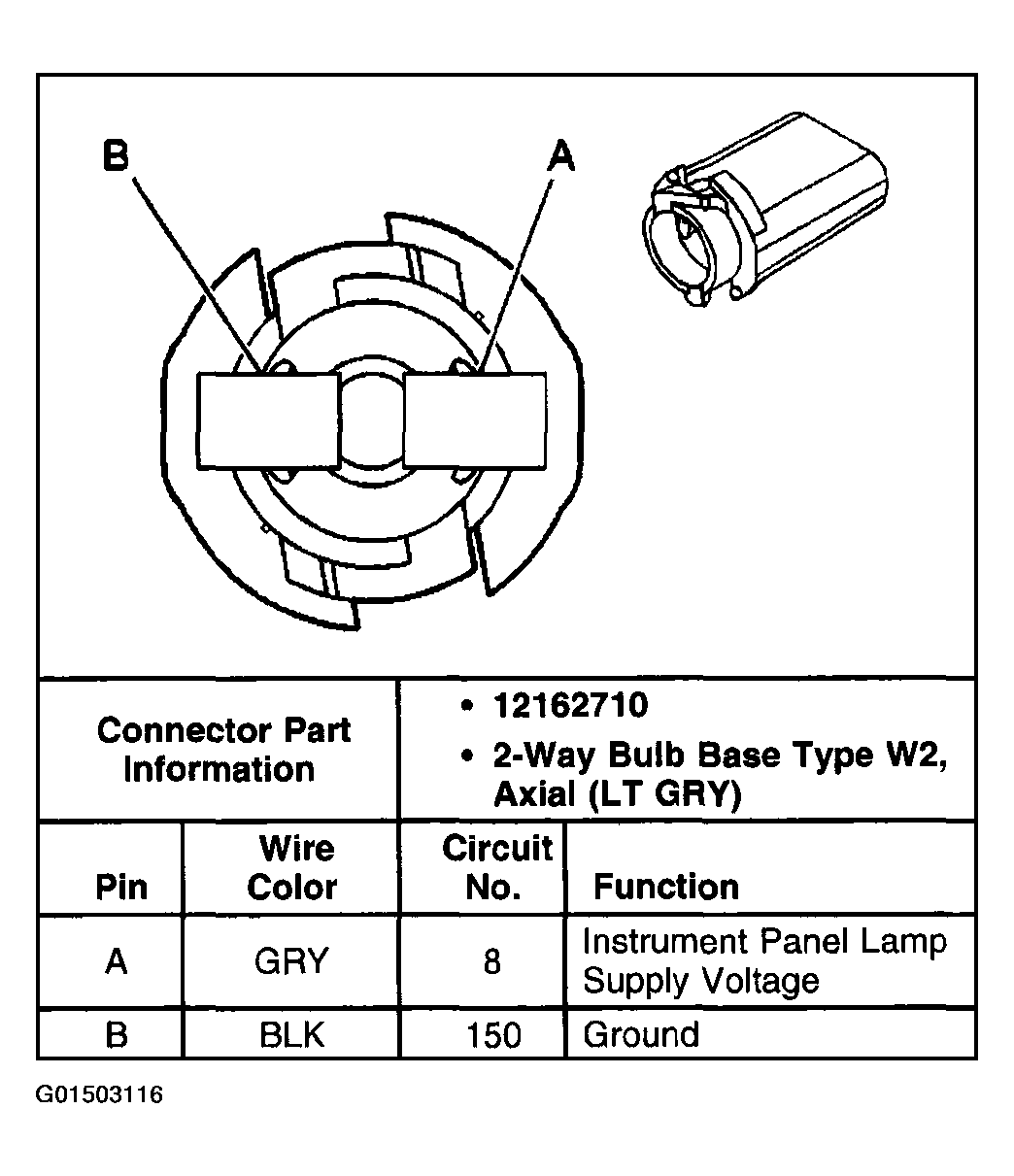

Fig 2: Automatic Transaxle Shift Lever Position Indicator Connector End View
G01503116Courtesy of GENERAL MOTORS CORP.

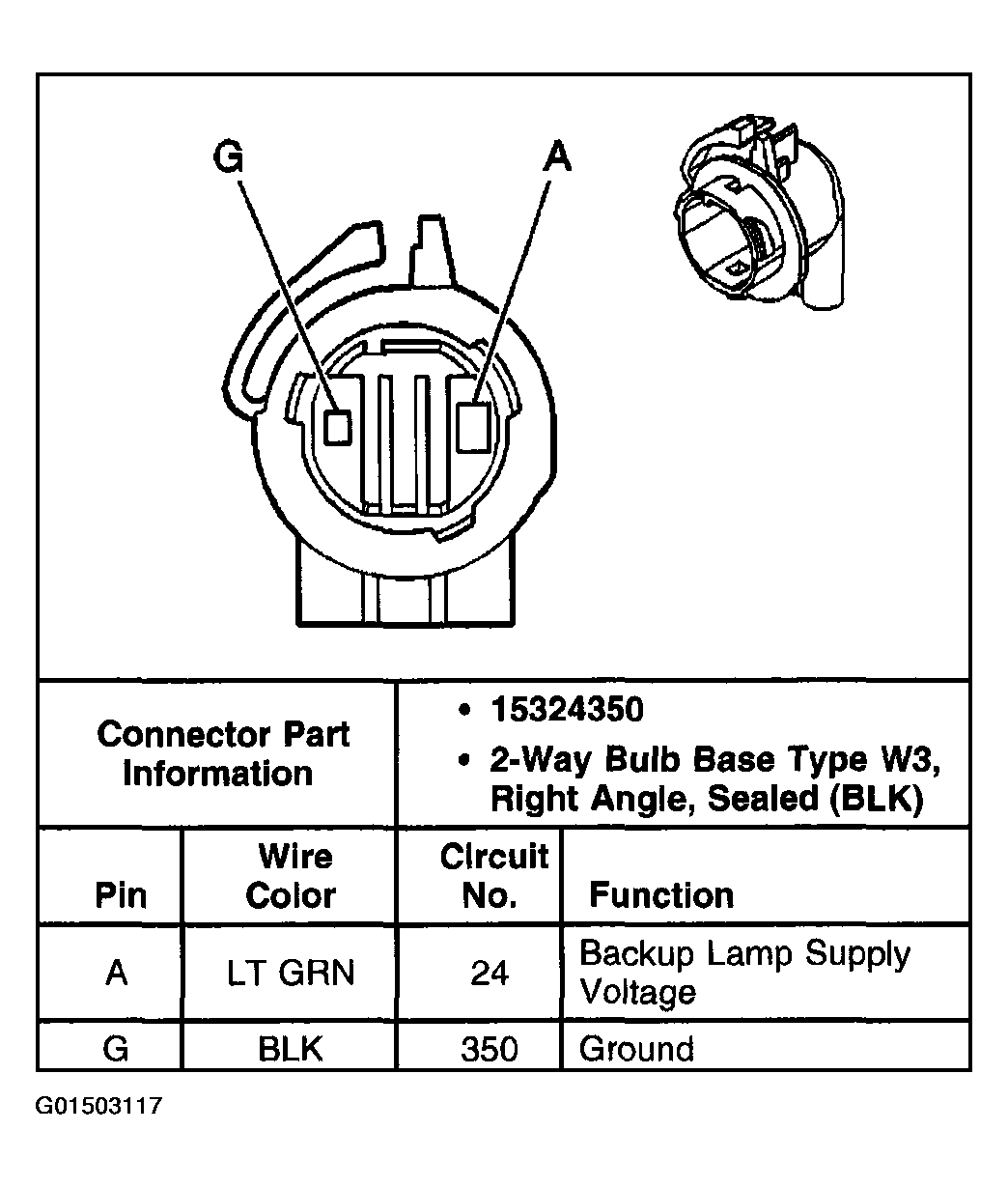

Fig 3: Left Backup Lamp Connector End View
G01503117Courtesy of GENERAL MOTORS CORP.

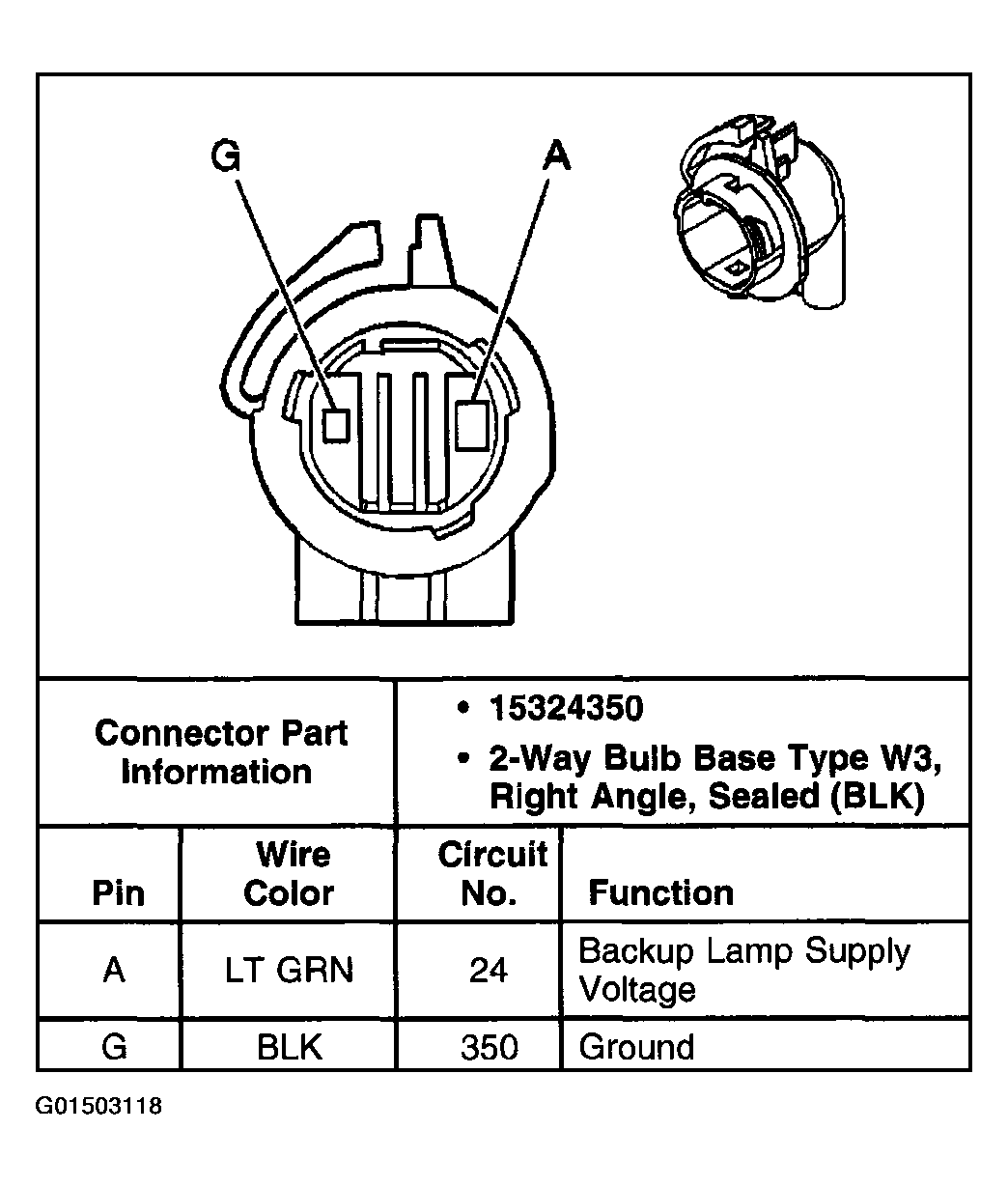

Fig 4: Right Backup Lamp Connector End View
G01503118Courtesy of GENERAL MOTORS CORP.

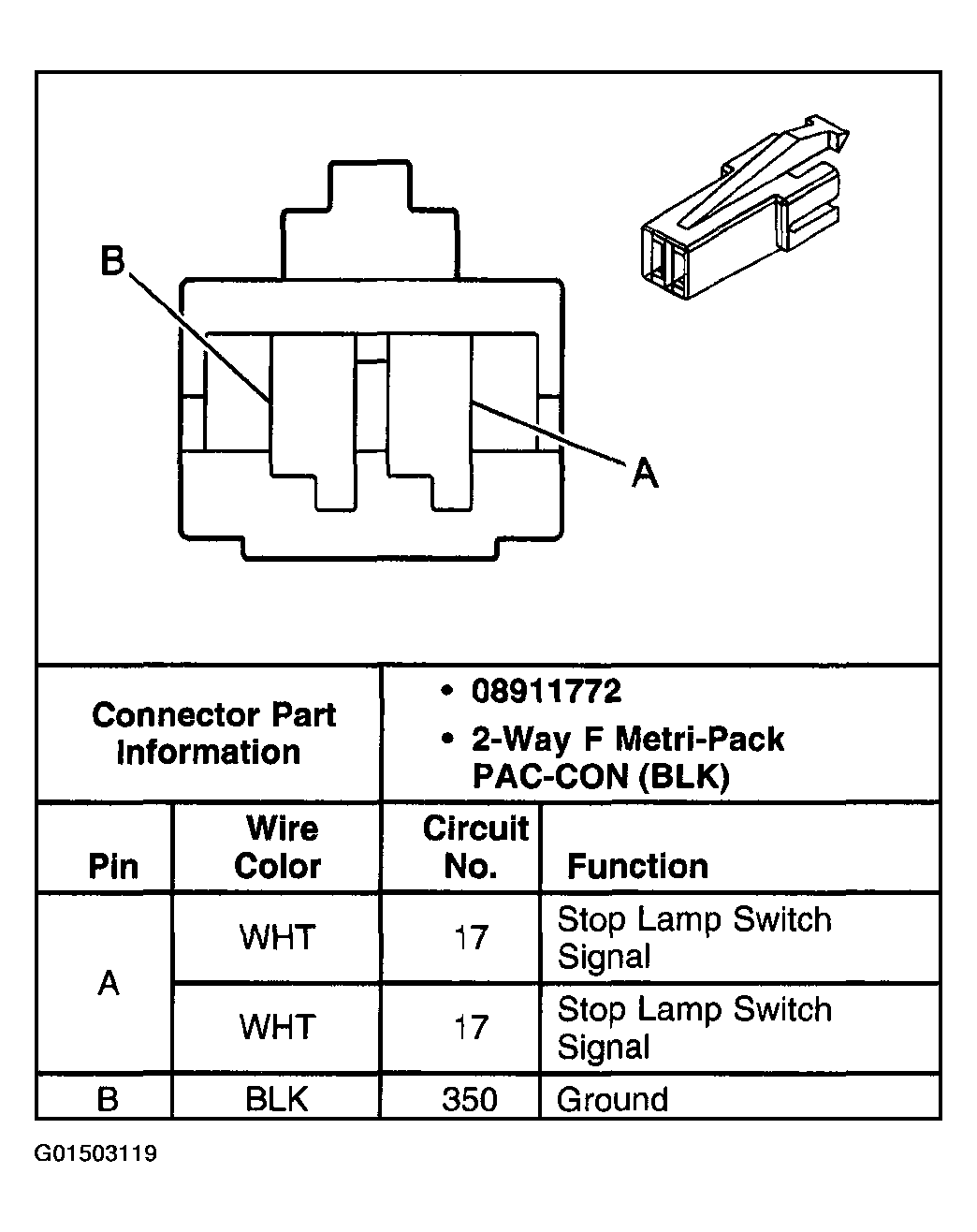

Fig 5: Center High Mounted Stop Lamp, C1 Connector End View
G01503119Courtesy of GENERAL MOTORS CORP.

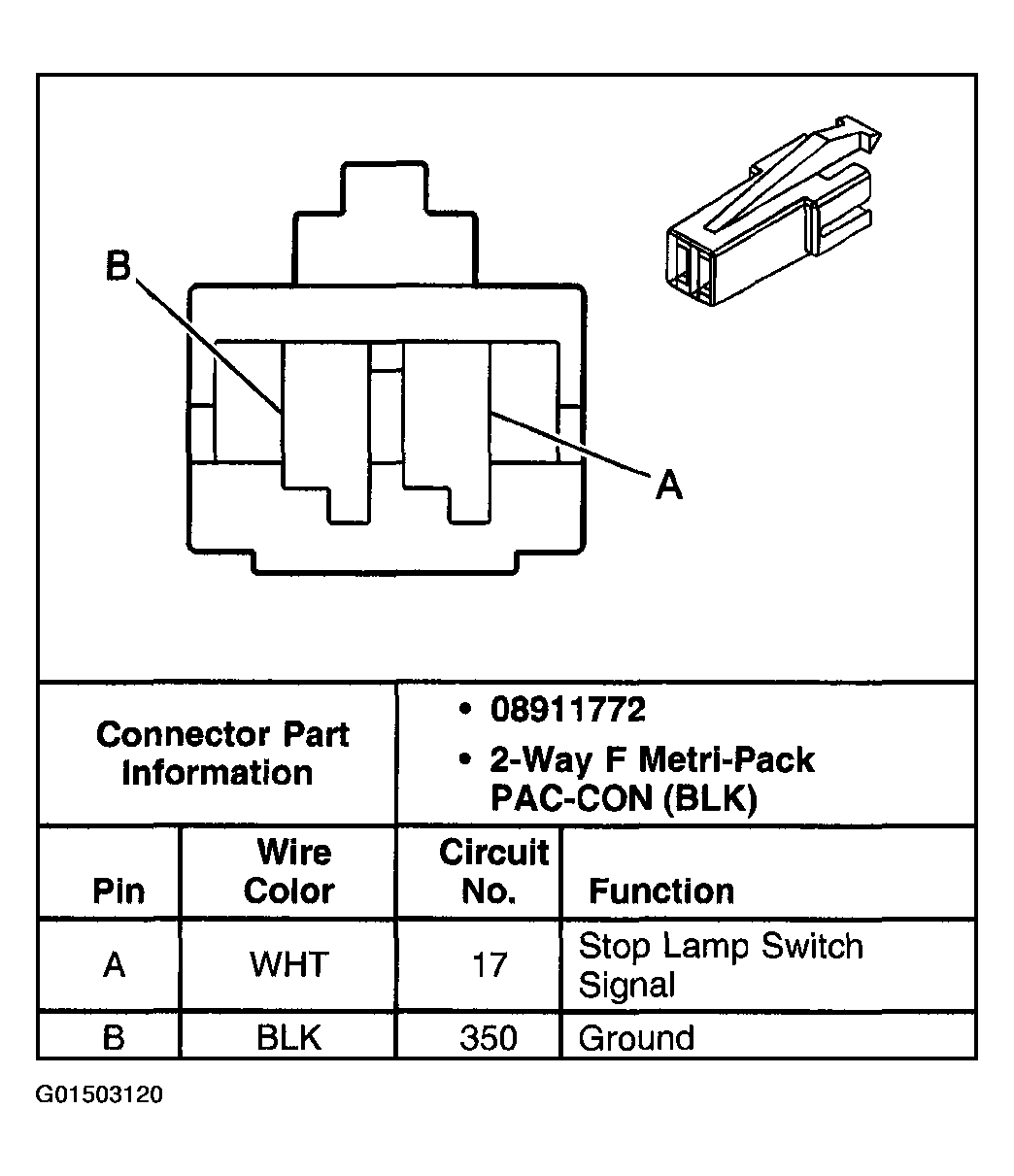

Fig 6: Center High Mounted Stop Lamp, C2 Connector End View
G01503120Courtesy of GENERAL MOTORS CORP.

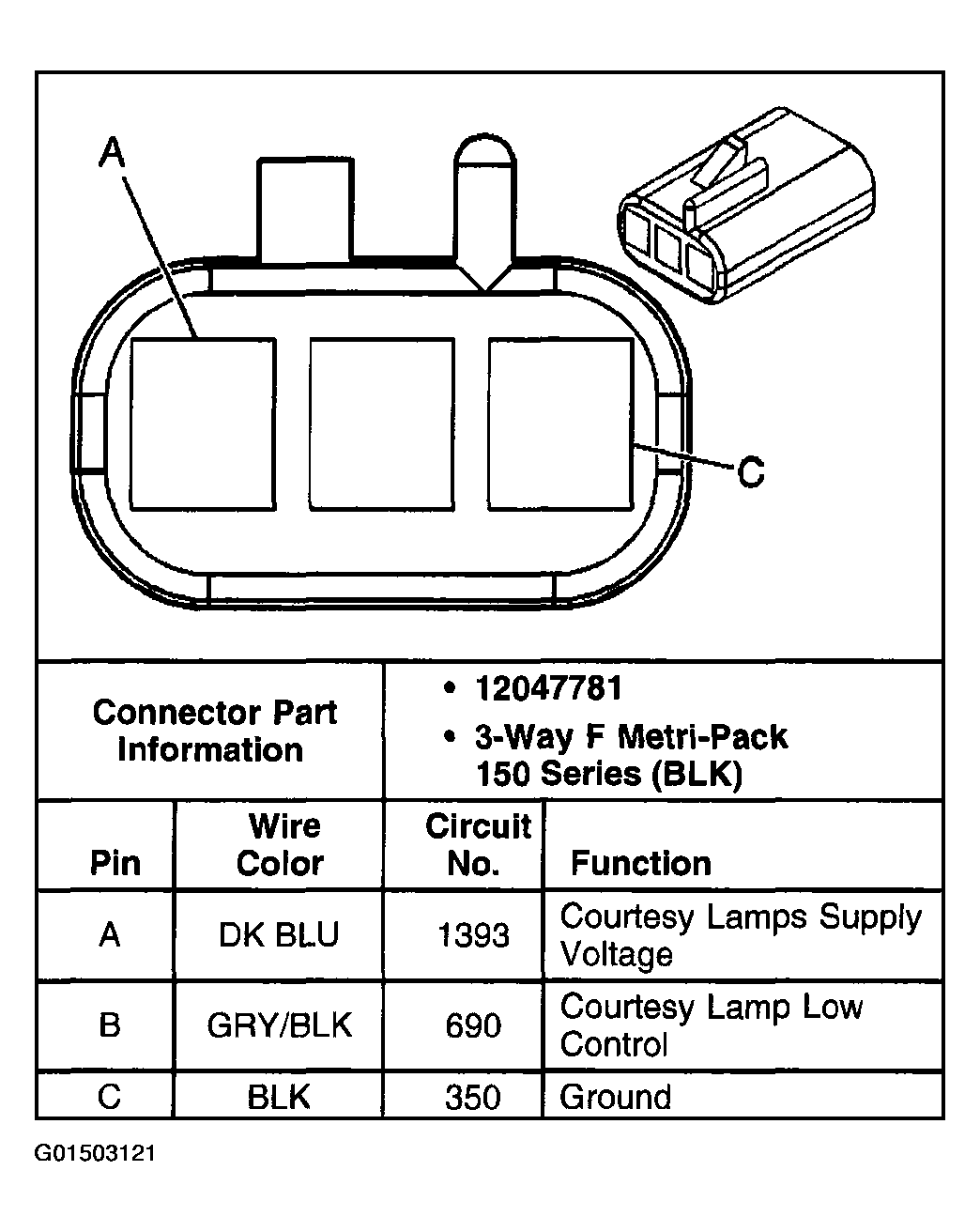

Fig 7: Front Courtesy/Reading Lamps Connector End View
G01503121Courtesy of GENERAL MOTORS CORP.
Fig 8: Daytime Running Lamps Ambient Light Sensor Connector End View
G01503122Courtesy of GENERAL MOTORS CORP.

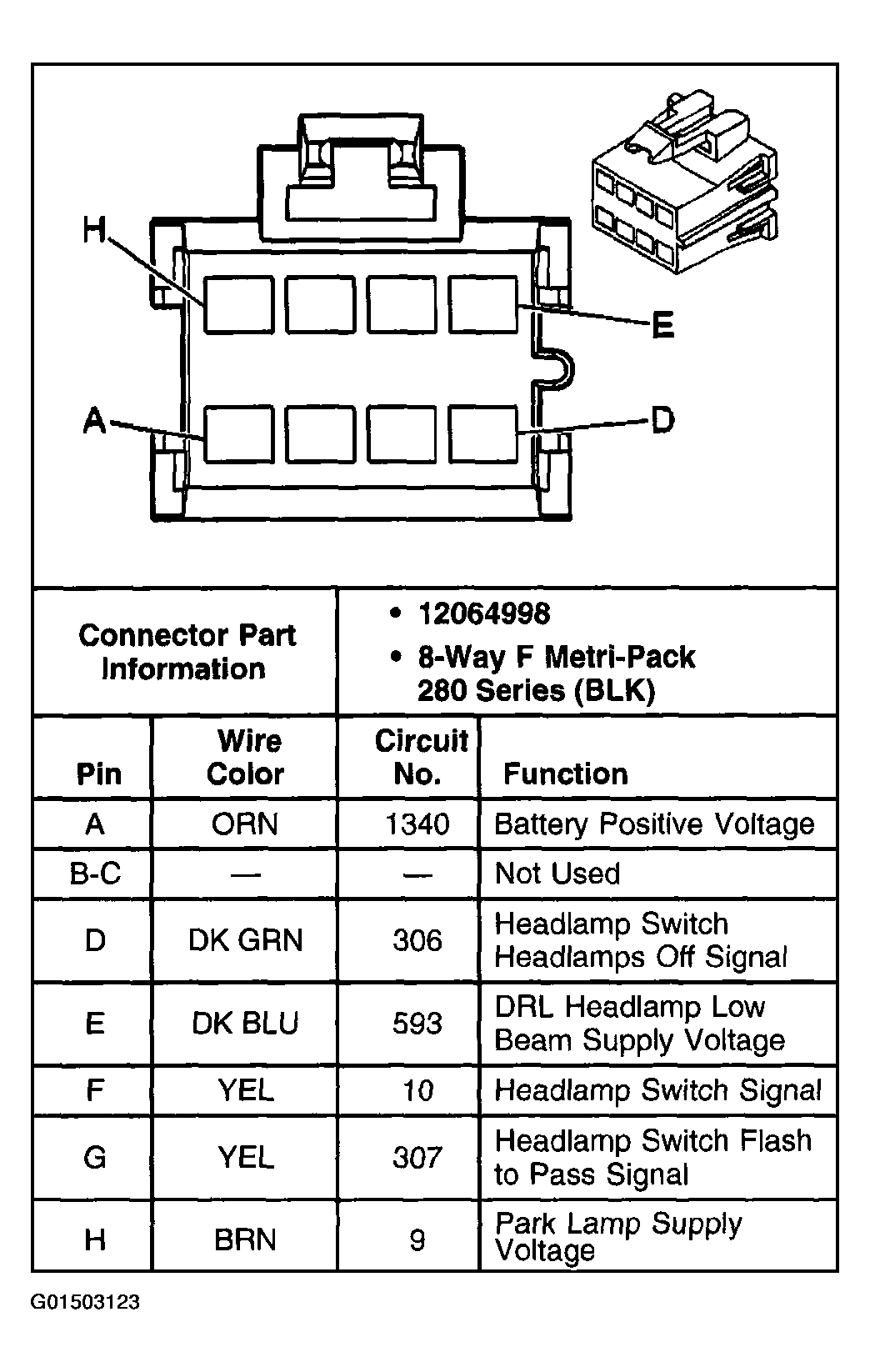

Fig 9: Daytime Running Lamps Control Module, C1 Connector End View
G01503123Courtesy of GENERAL MOTORS CORP.

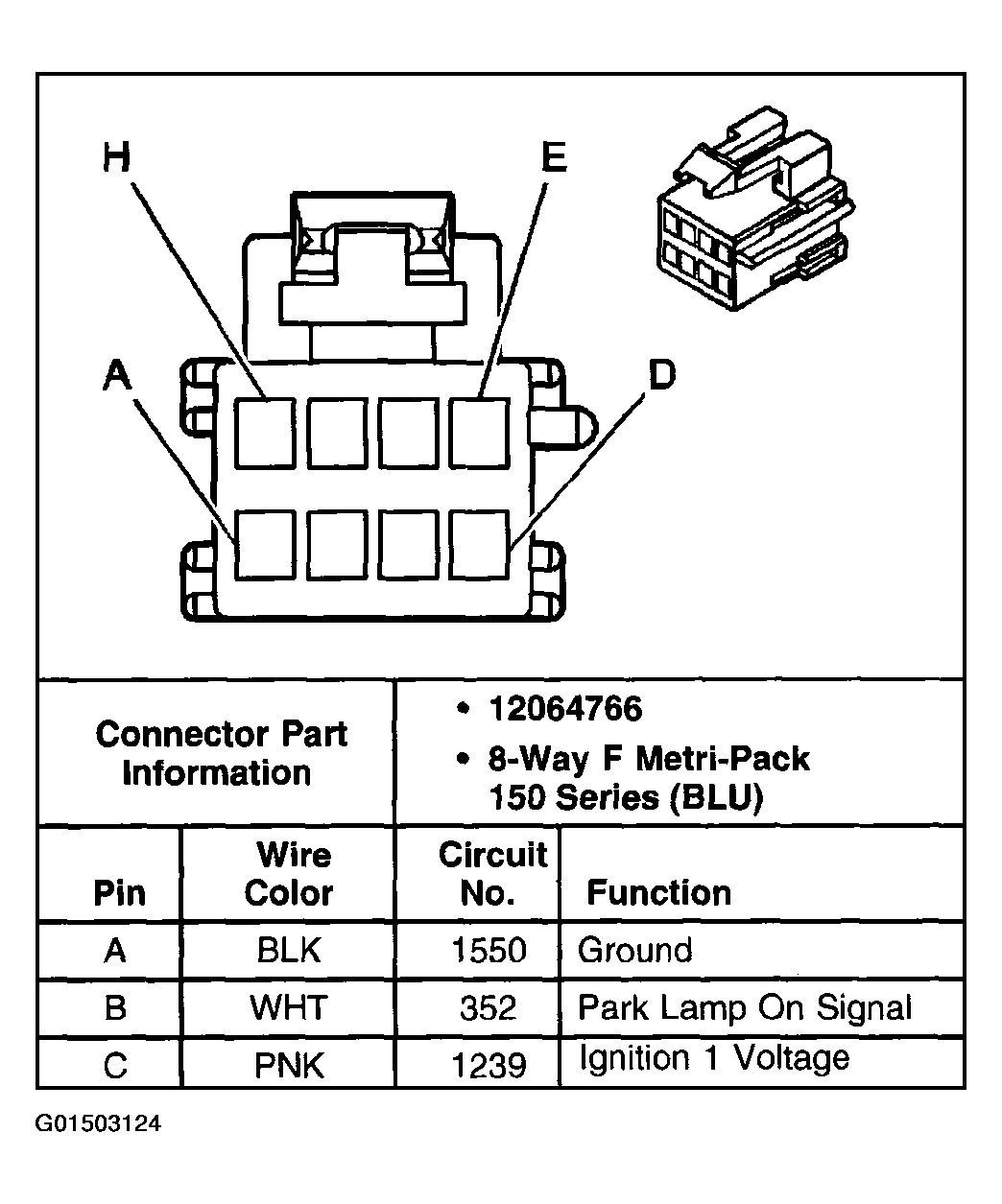

Fig 10: Daytime Running Lamps Control Module, C2 Connector End View (1 Of 2)
G01503124Courtesy of GENERAL MOTORS CORP.

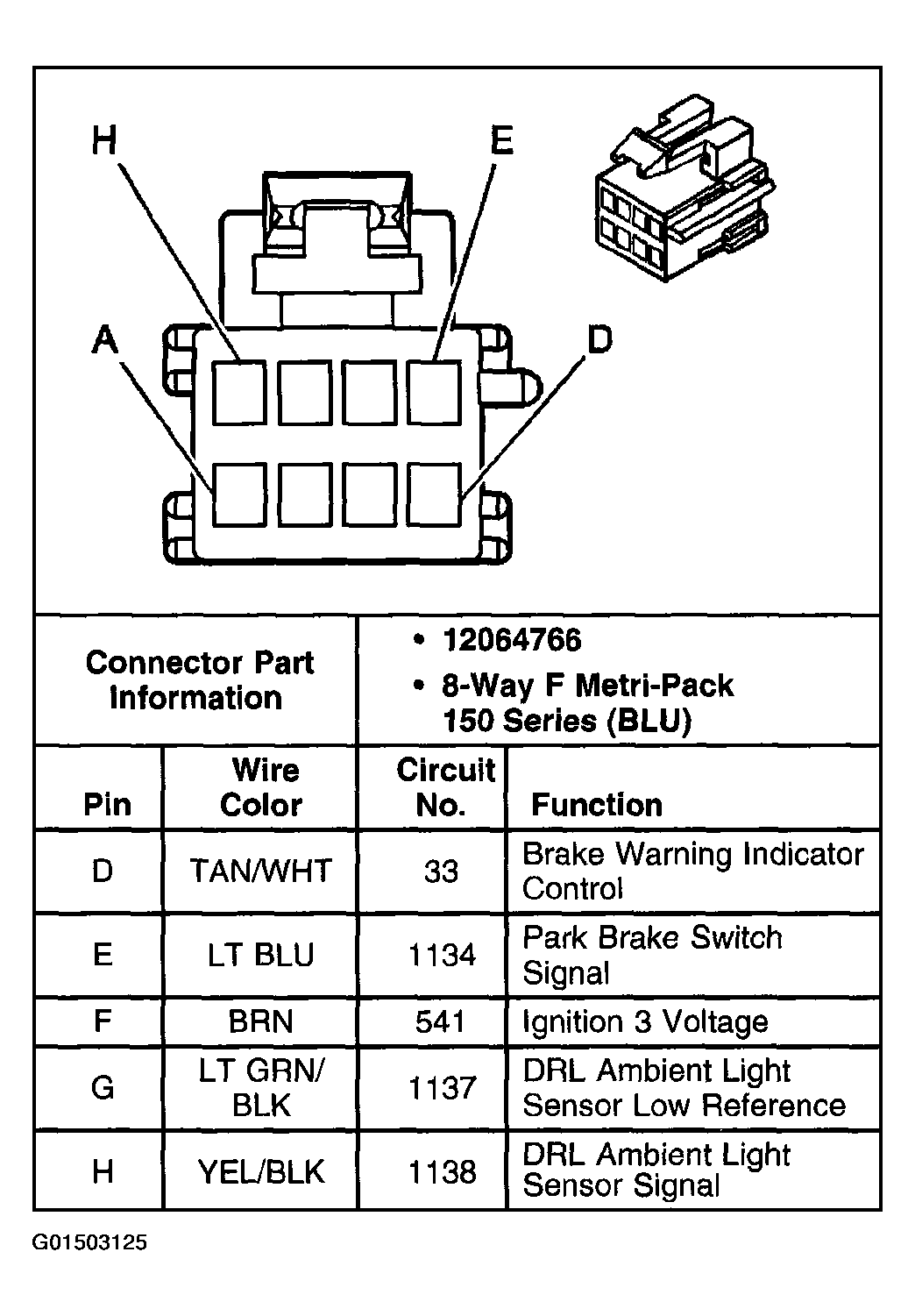

Fig 11: Daytime Running Lamps Control Module, C2 Connector End View (2 Of 2)
G01503125Courtesy of GENERAL MOTORS CORP.

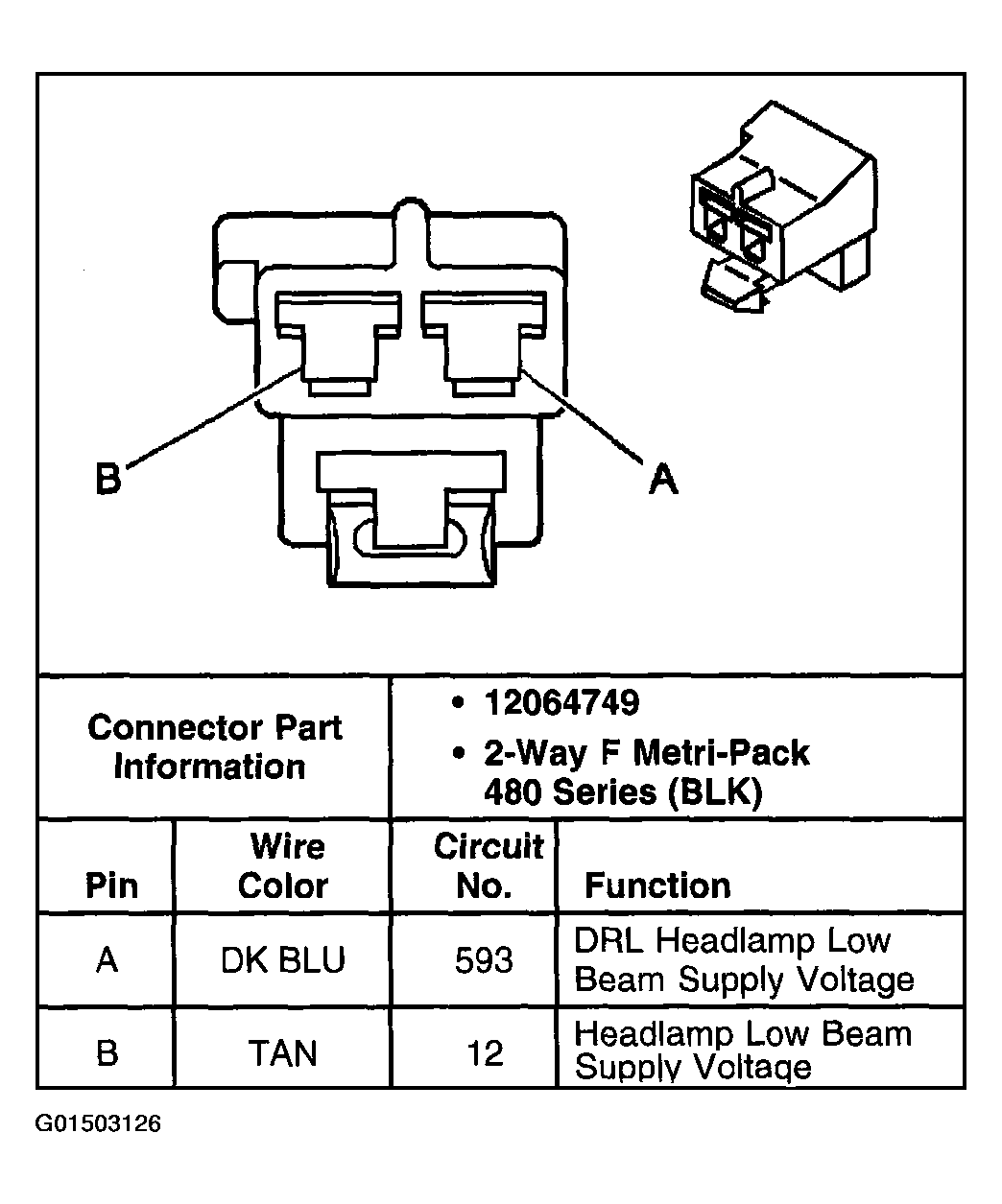

Fig 12: Daytime Running Lamps Diode Connector End View
G01503126Courtesy of GENERAL MOTORS CORP.

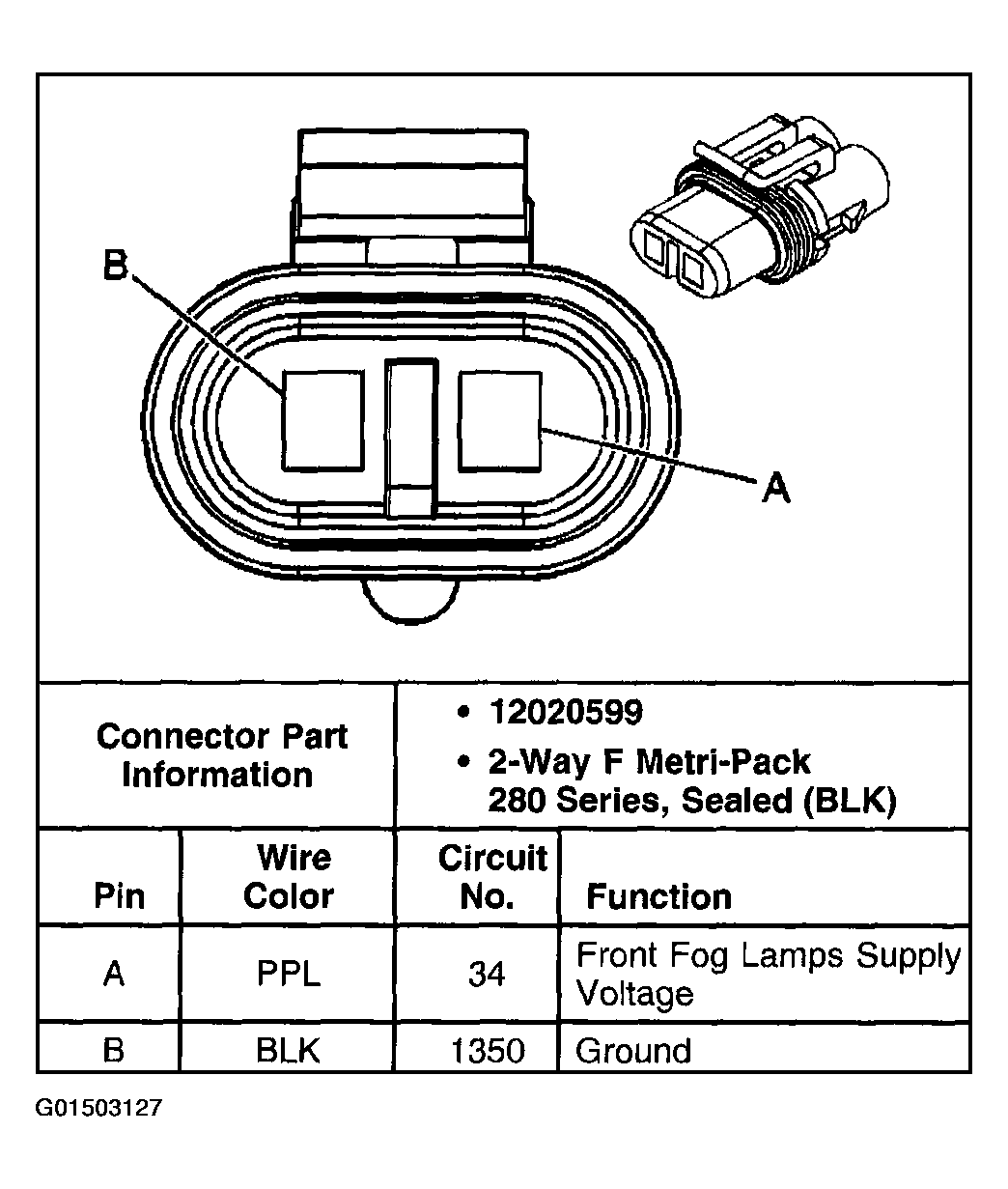

Fig 13: Left Front Fog Lamp Connector End View
G01503127Courtesy of GENERAL MOTORS CORP.

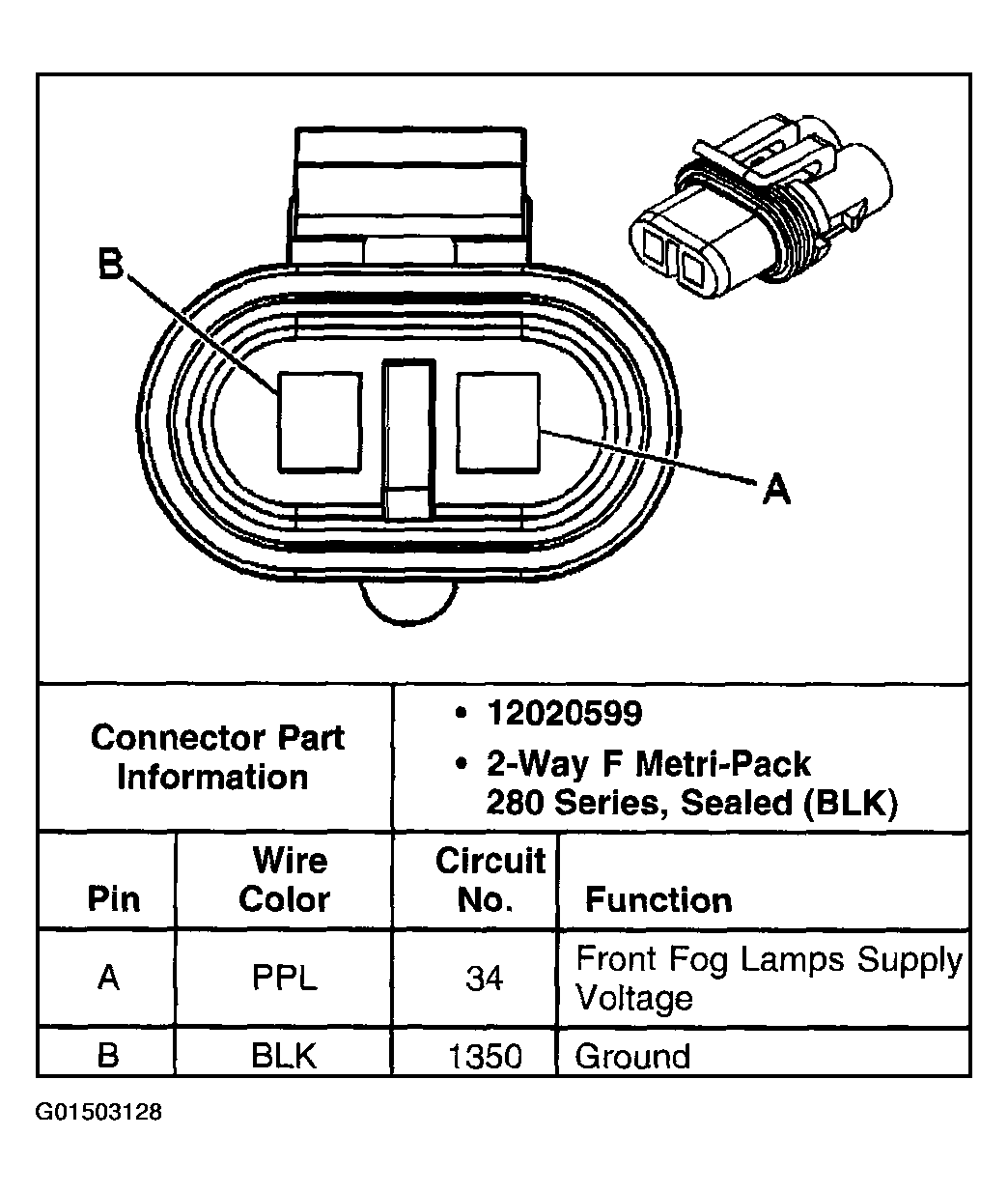

Fig 14: Right Front Fog Lamp Connector End View
G01503128Courtesy of GENERAL MOTORS CORP.

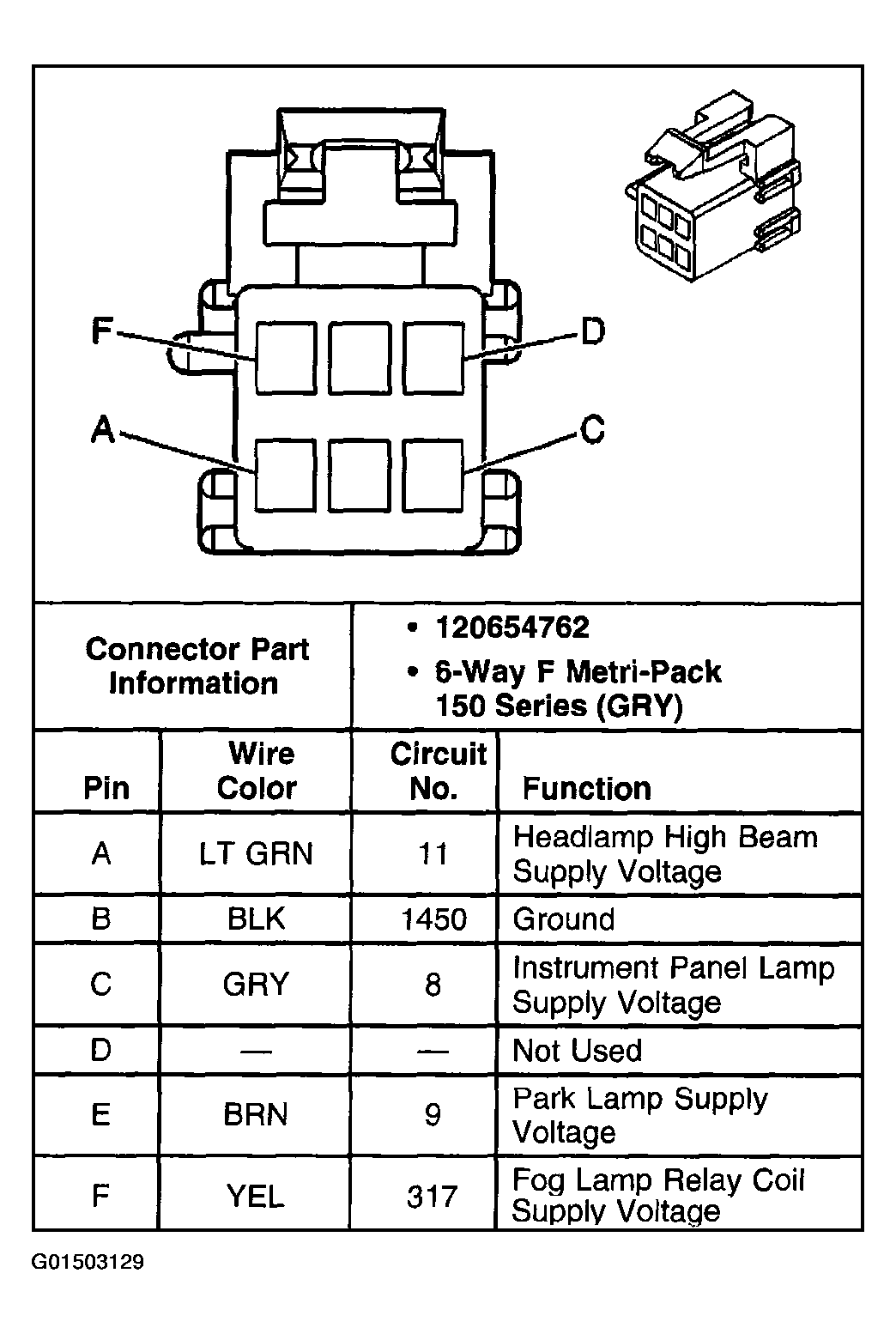

Fig 15: Fog Lamp Switch Connector End View
G01503129Courtesy of GENERAL MOTORS CORP.

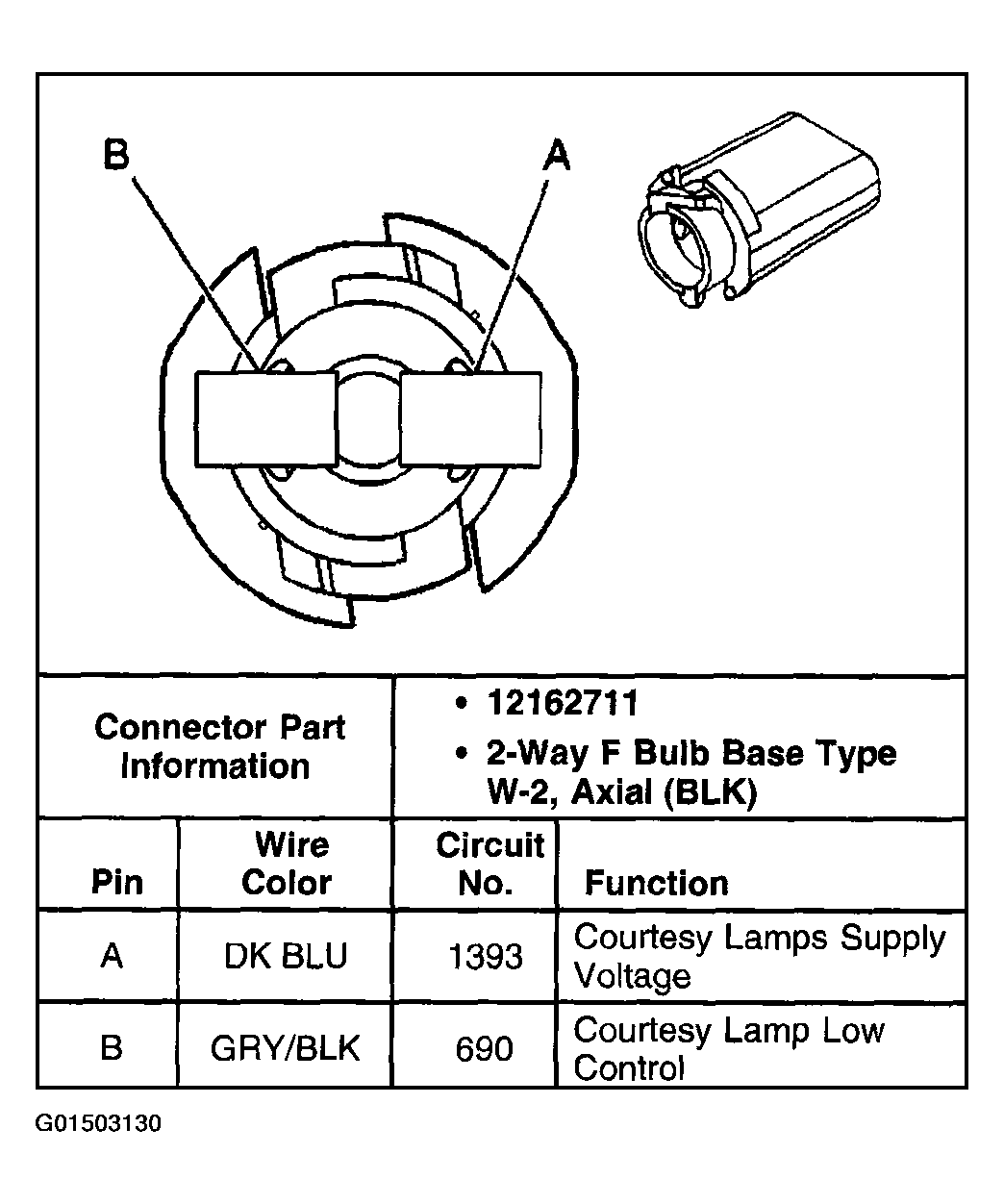

Fig 16: Instrument Panel Left Courtesy Lamp Connector End View
G01503130Courtesy of GENERAL MOTORS CORP.

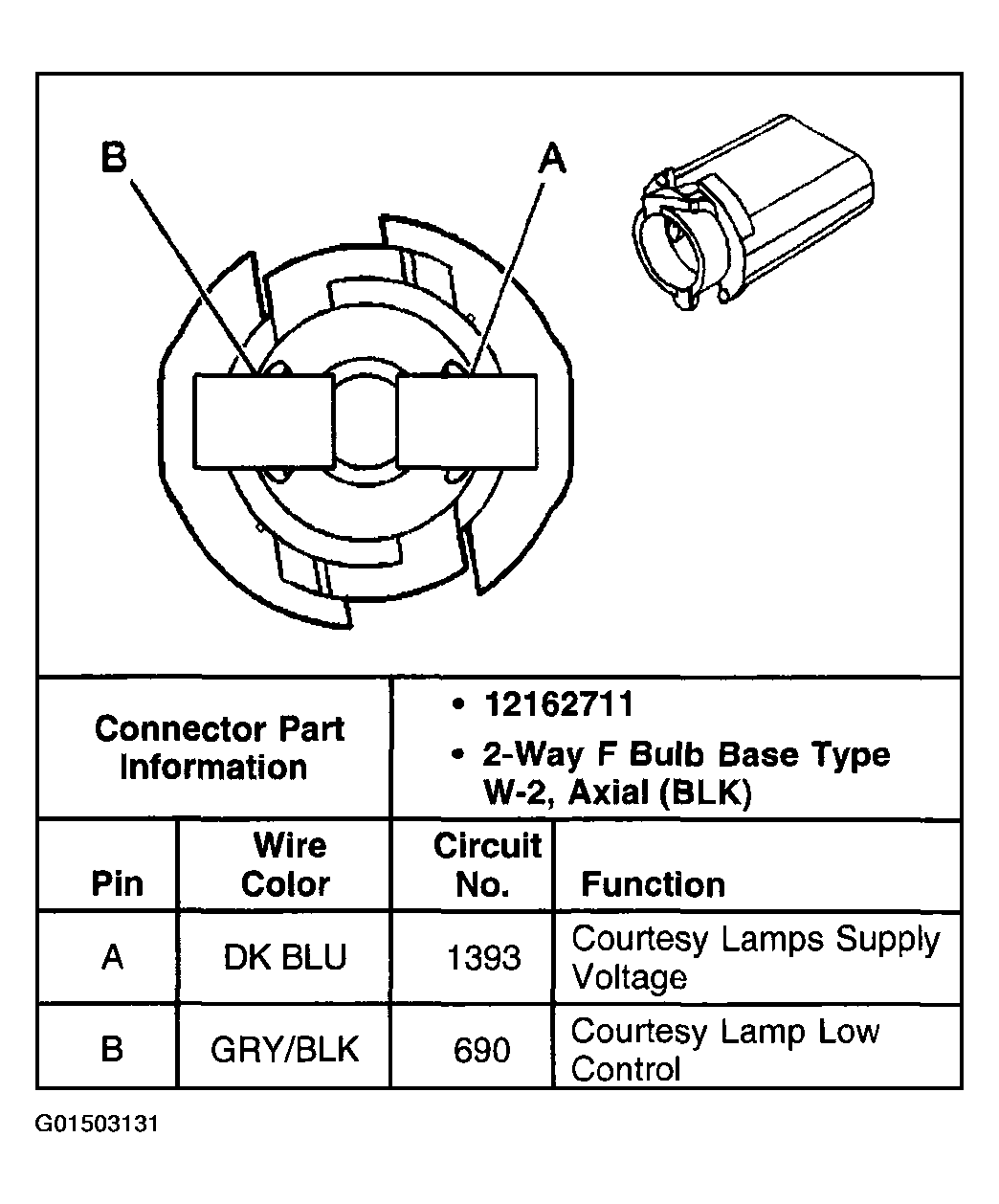

Fig 17: Instrument Panel Right Courtesy Lamp Connector End View
G01503131Courtesy of GENERAL MOTORS CORP.

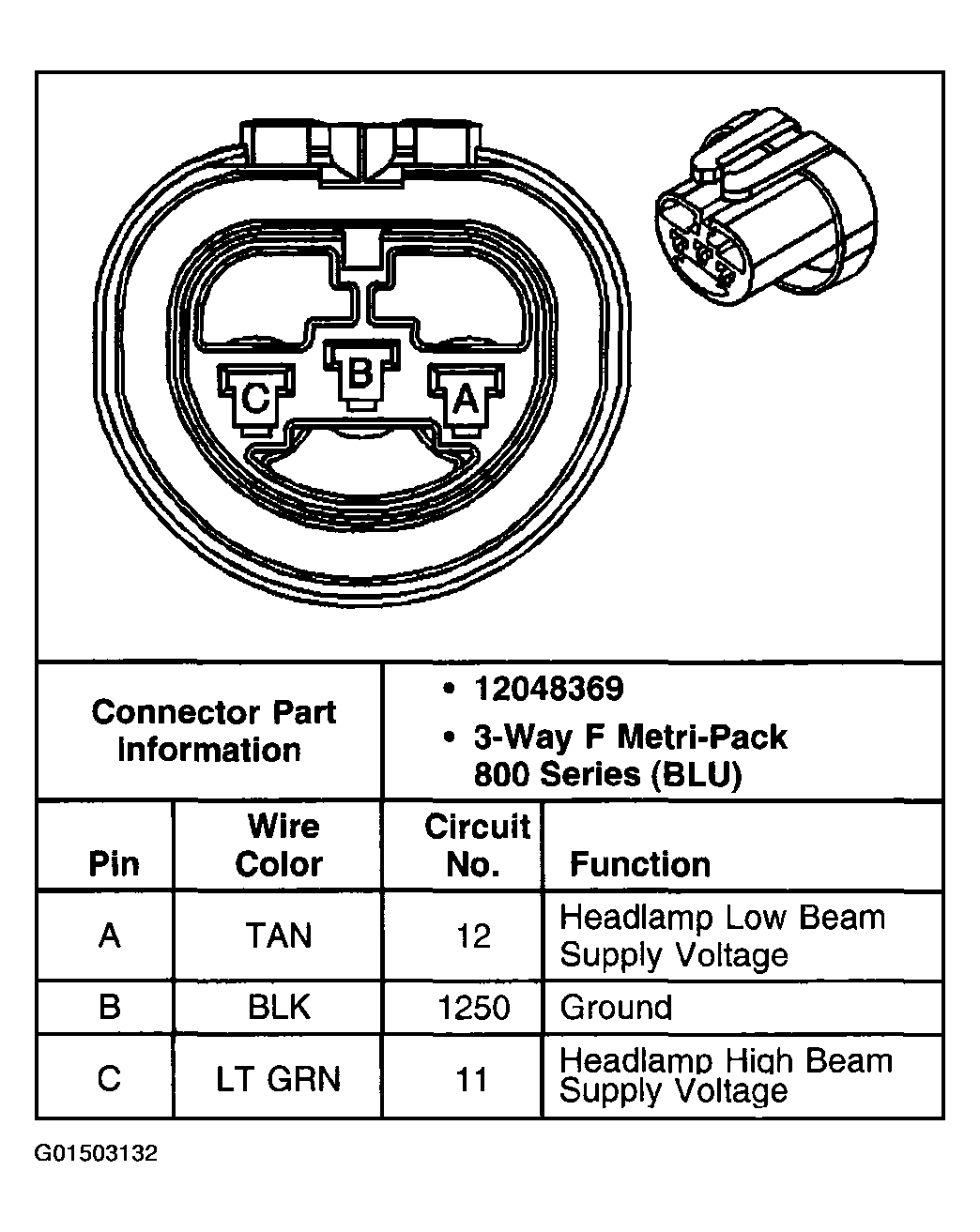

Fig 18: Left Headlamp Connector End View
G01503132Courtesy of GENERAL MOTORS CORP.

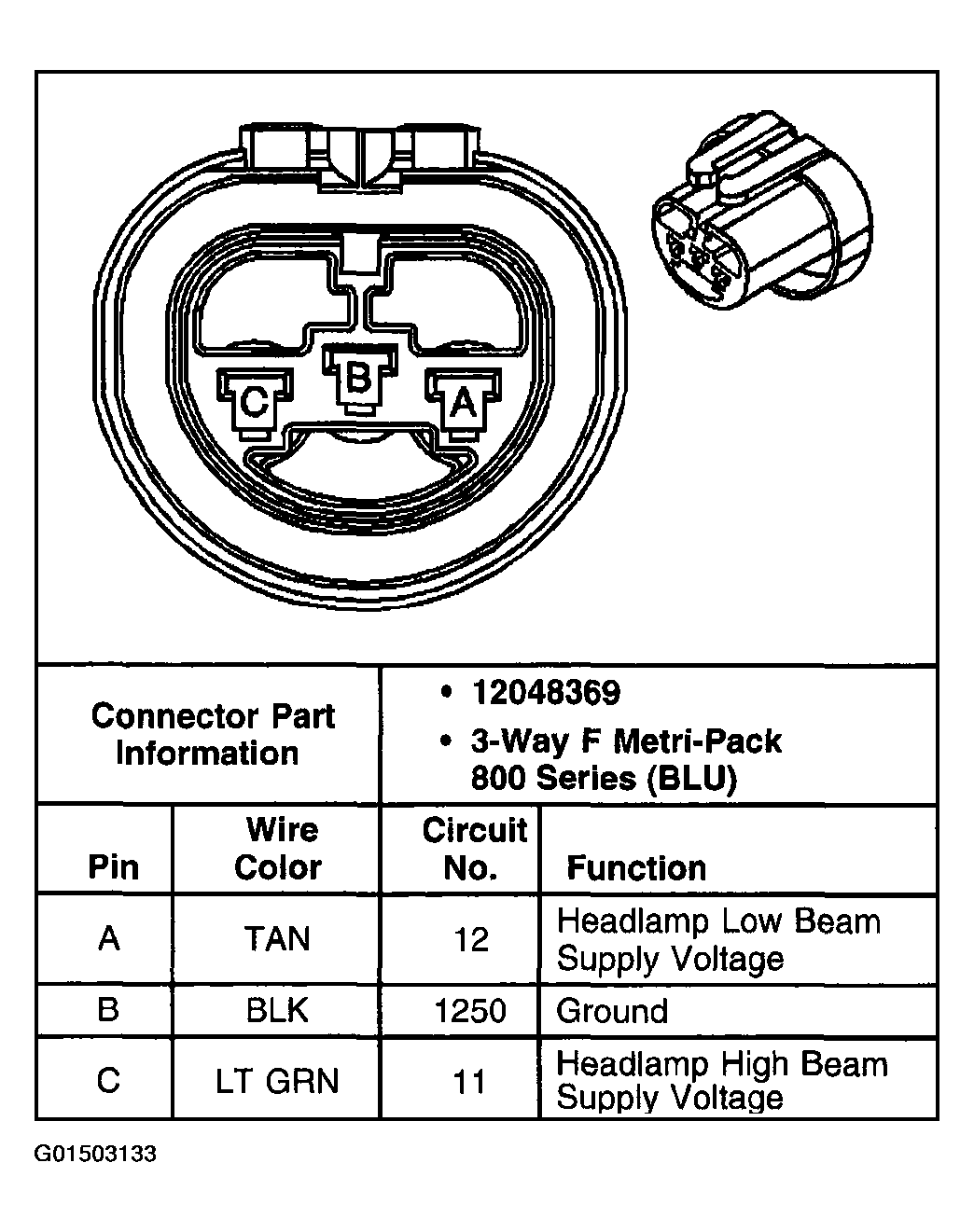

Fig 19: Right Headlamp Connector End View
G01503133Courtesy of GENERAL MOTORS CORP.

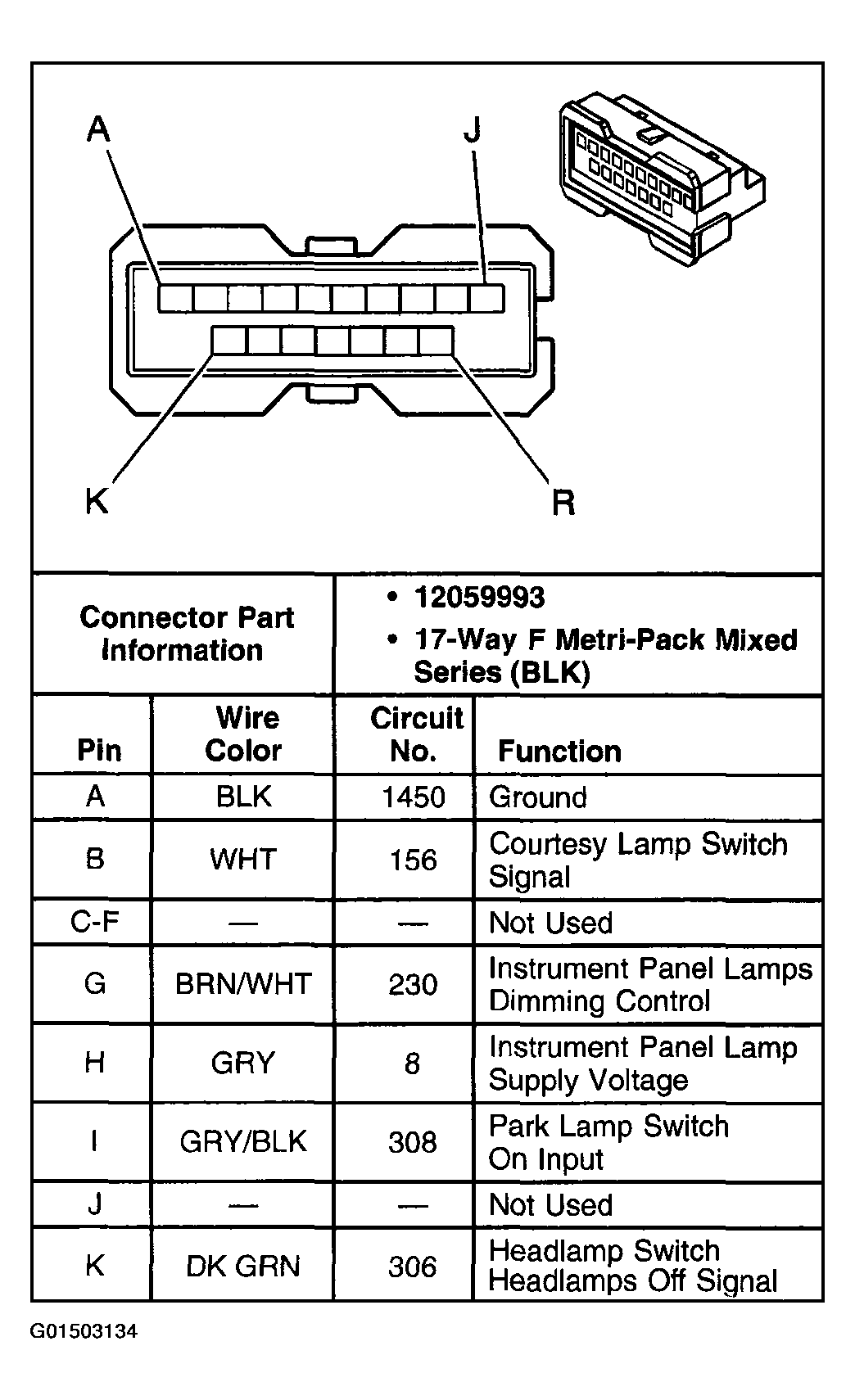

Fig 20: Headlamp Switch Connector End View (1 Of 2)
G01503134Courtesy of GENERAL MOTORS CORP.

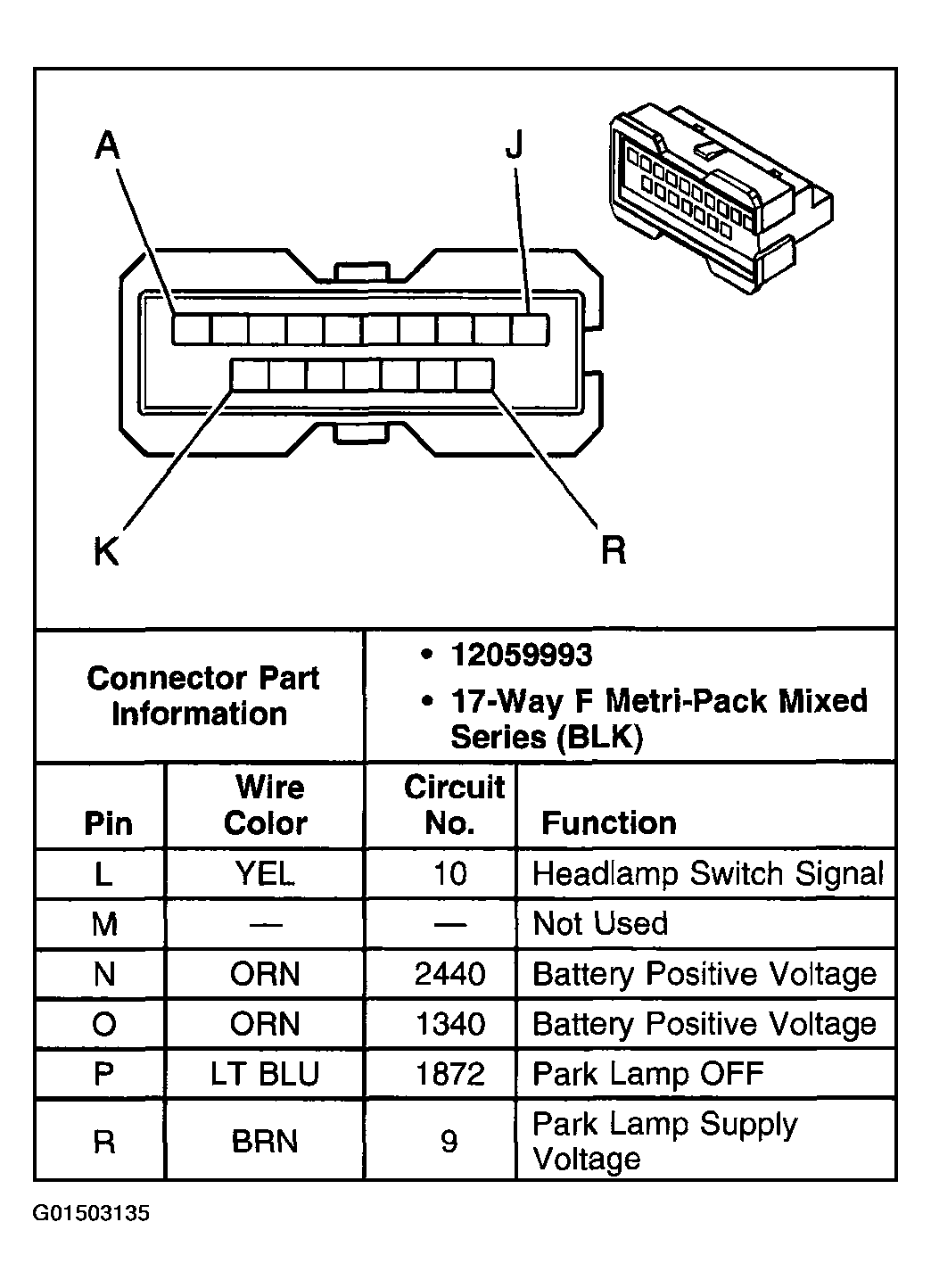

Fig 21: Headlamp Switch Connector End View (2 Of 2)
G01503135Courtesy of GENERAL MOTORS CORP.

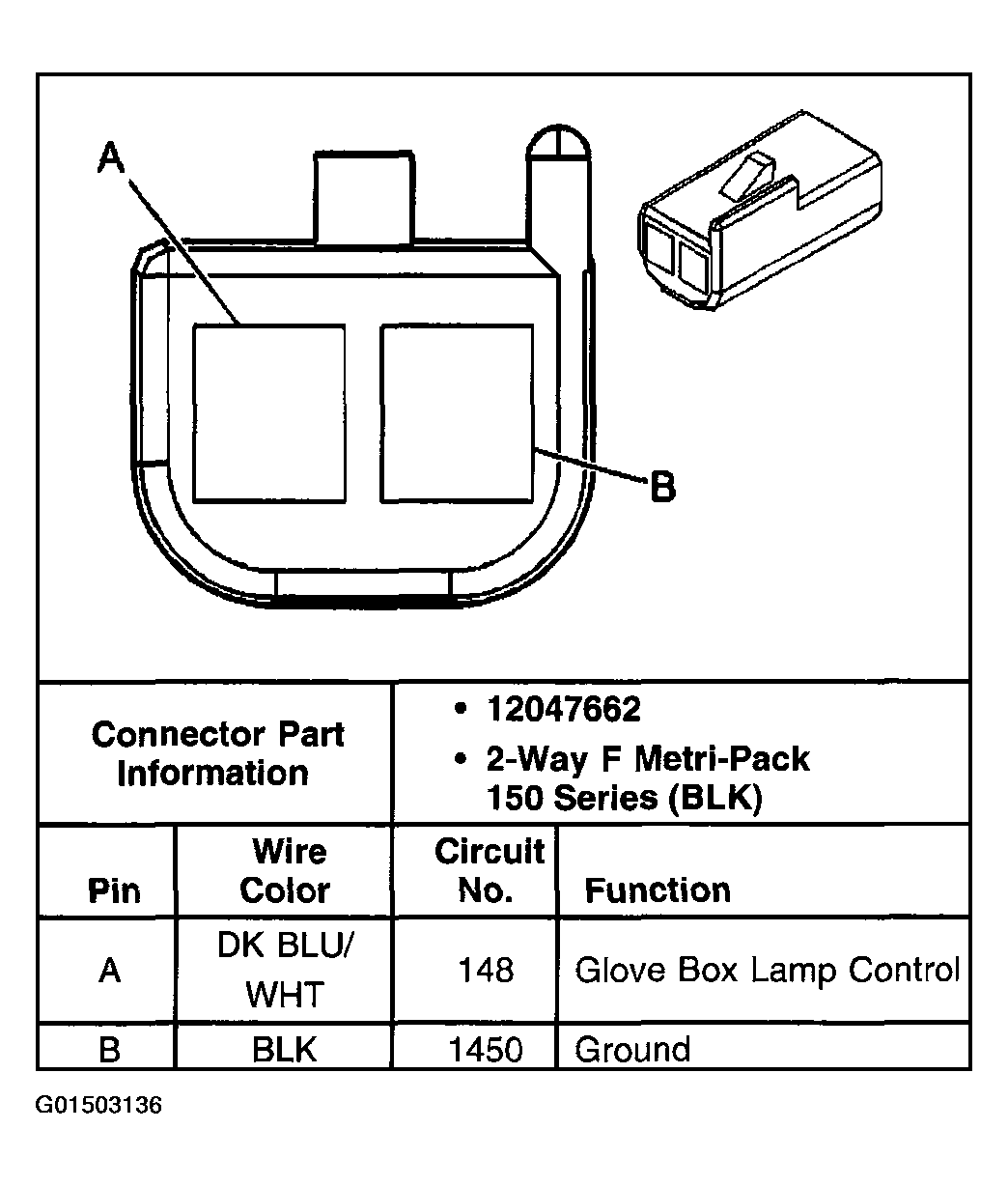

Fig 22: Instrument Panel Compartment Lamp Connector End View
G01503136Courtesy of GENERAL MOTORS CORP.

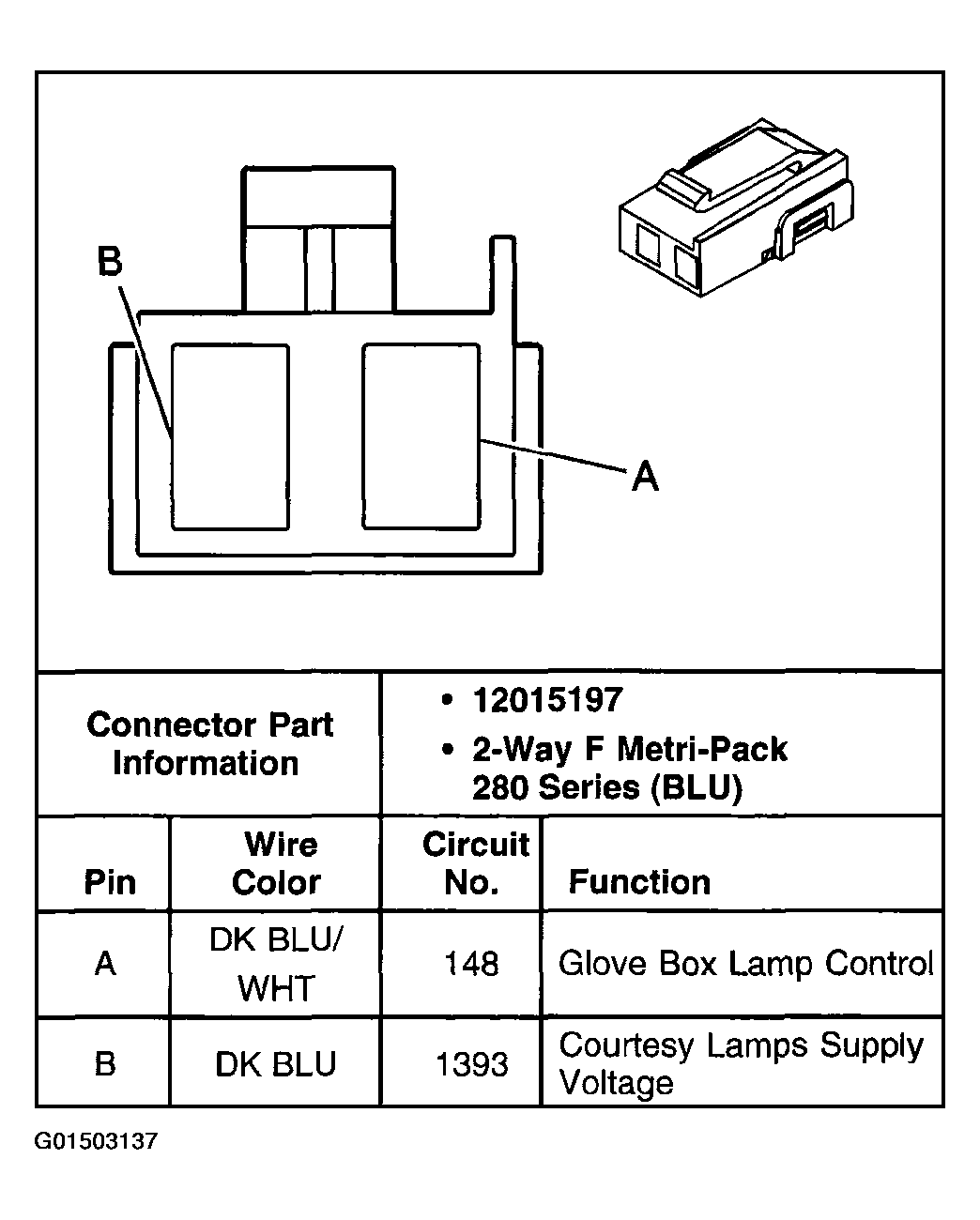

Fig 23: Instrument Panel Compartment Lamp Switch Connector End View
G01503137Courtesy of GENERAL MOTORS CORP.

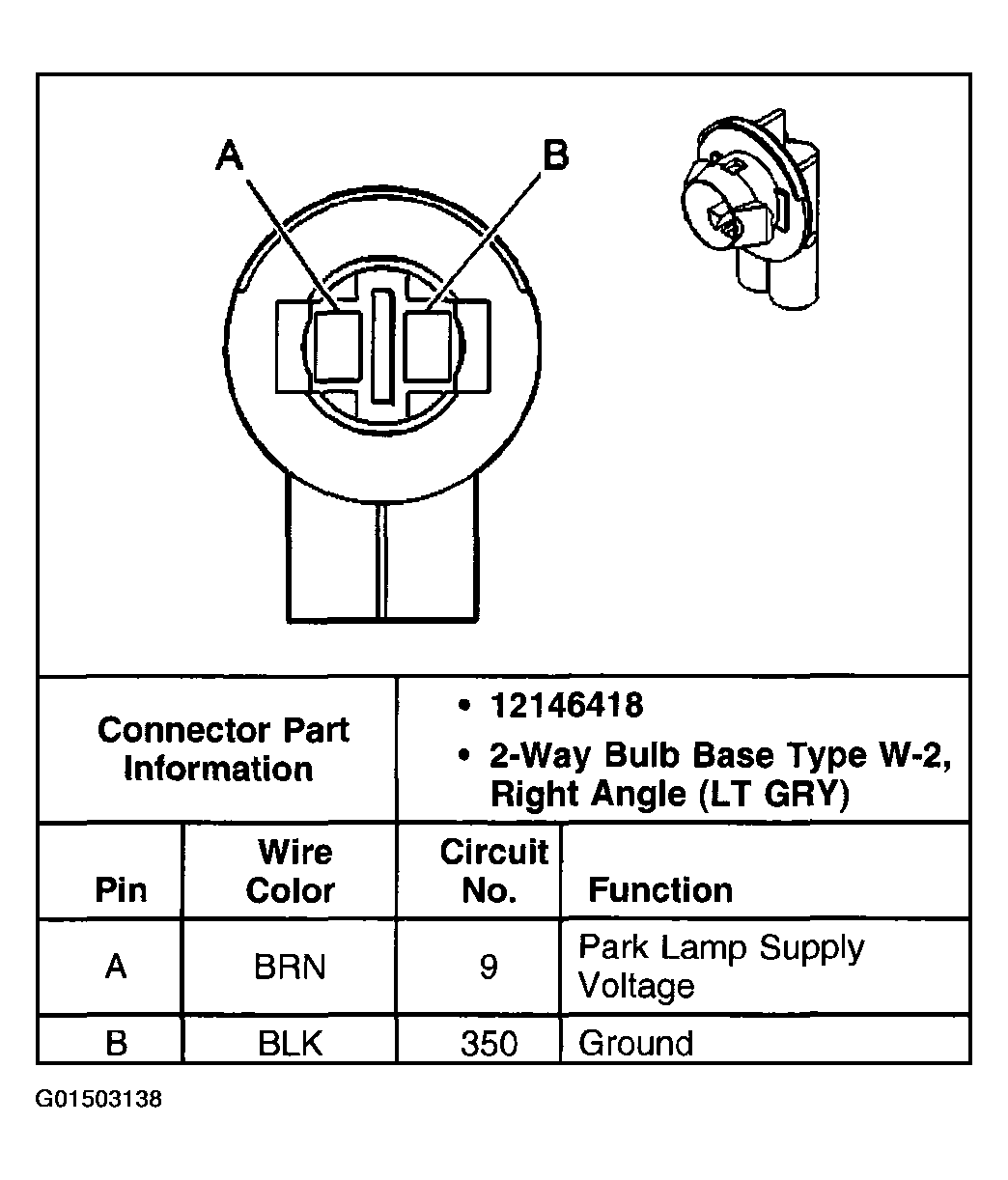

Fig 24: License Lamp Connector End View
G01503138Courtesy of GENERAL MOTORS CORP.

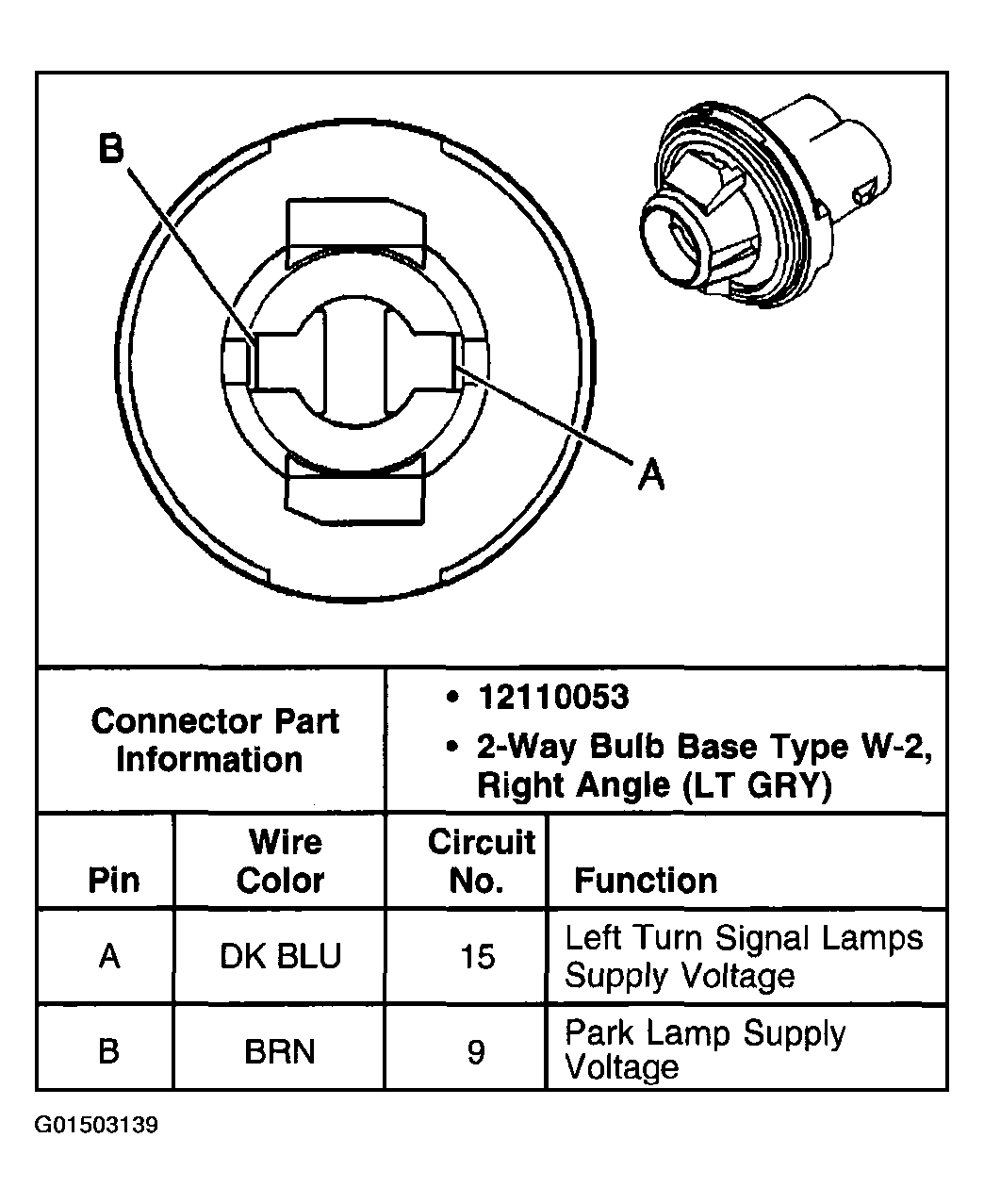

Fig 25: Left Front Marker Lamp Connector End View
G01503139Courtesy of GENERAL MOTORS CORP.

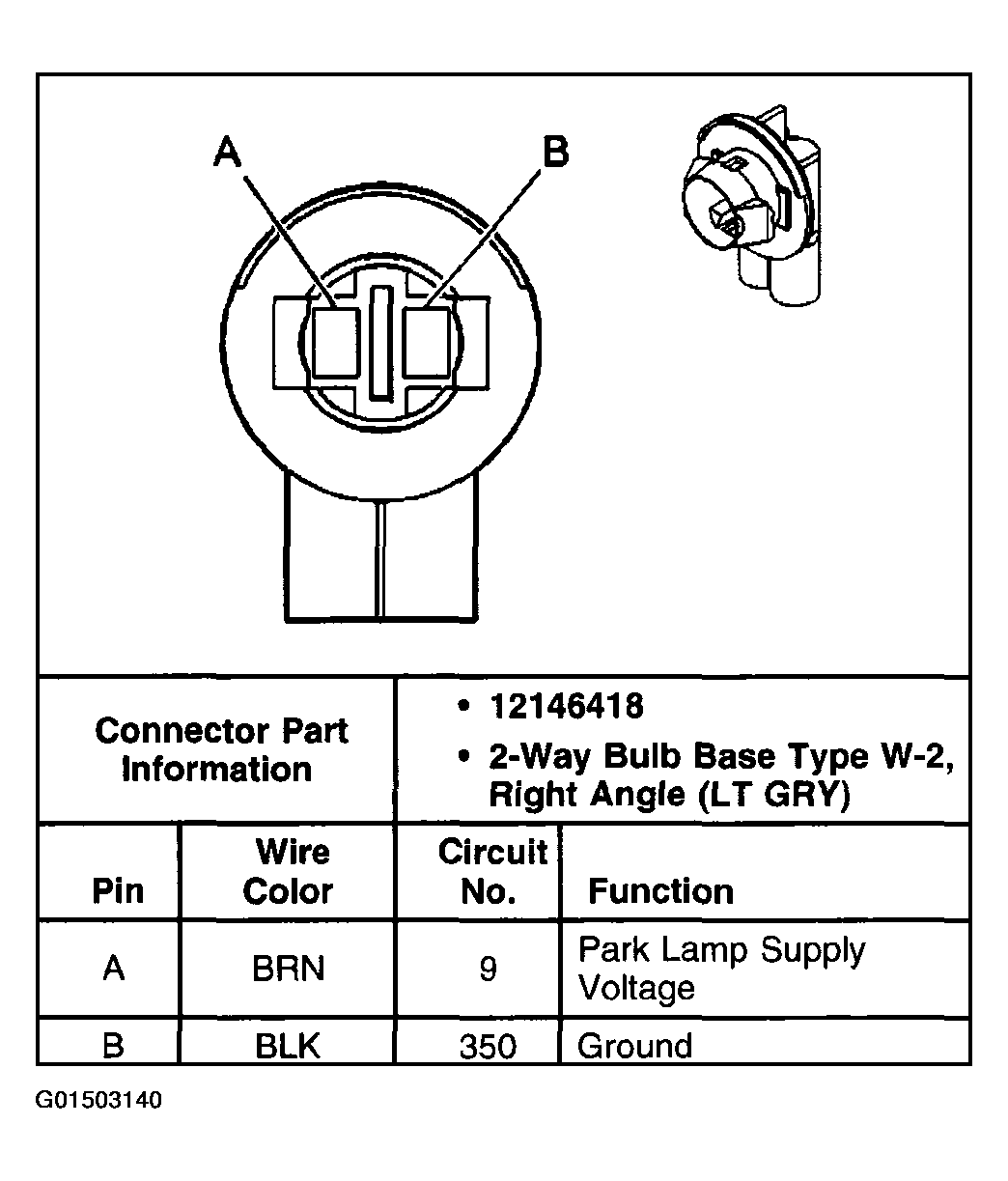

Fig 26: Left Rear Marker Lamp Connector End View
G01503140Courtesy of GENERAL MOTORS CORP.

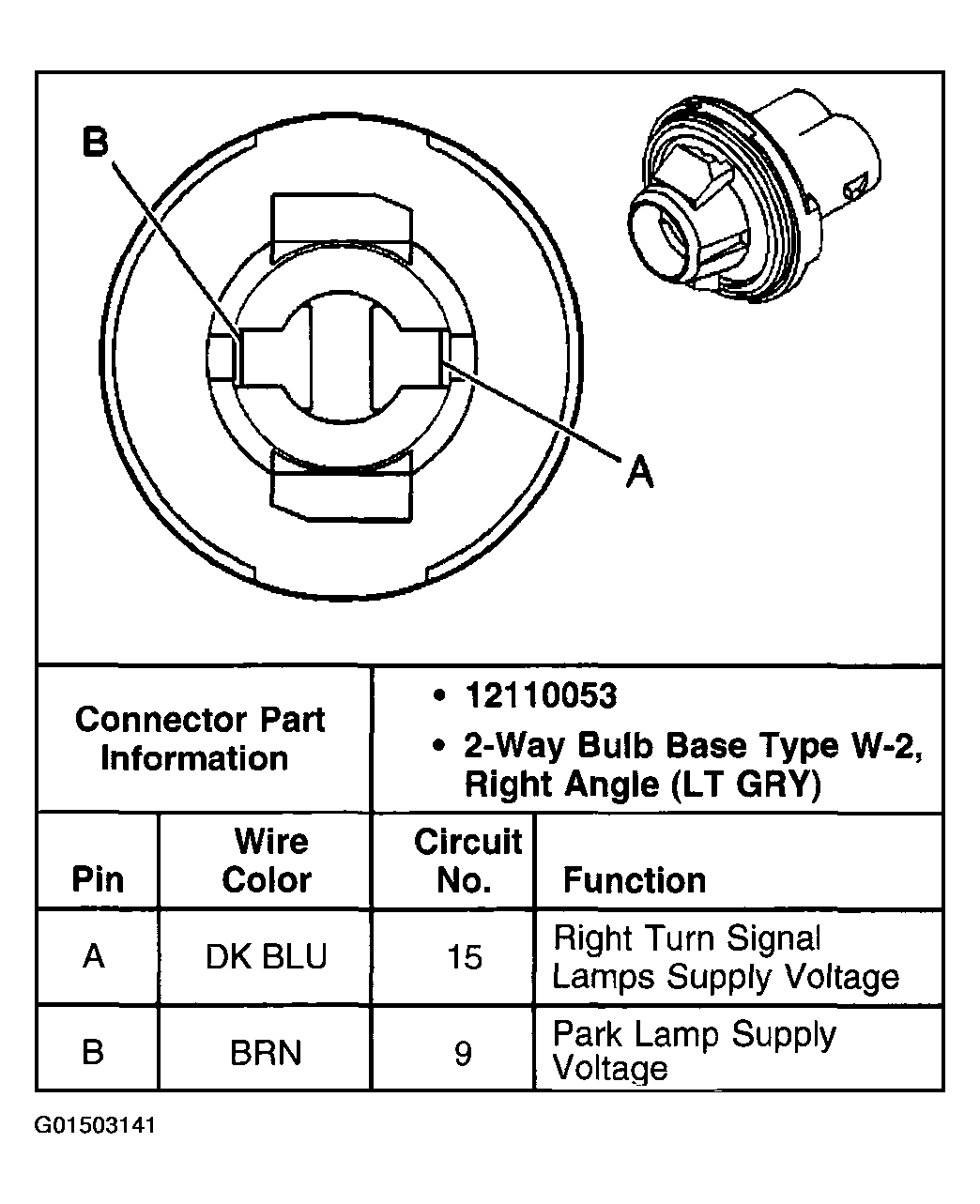

Fig 27: Right Front Marker Lamp Connector End View
G01503141Courtesy of GENERAL MOTORS CORP.

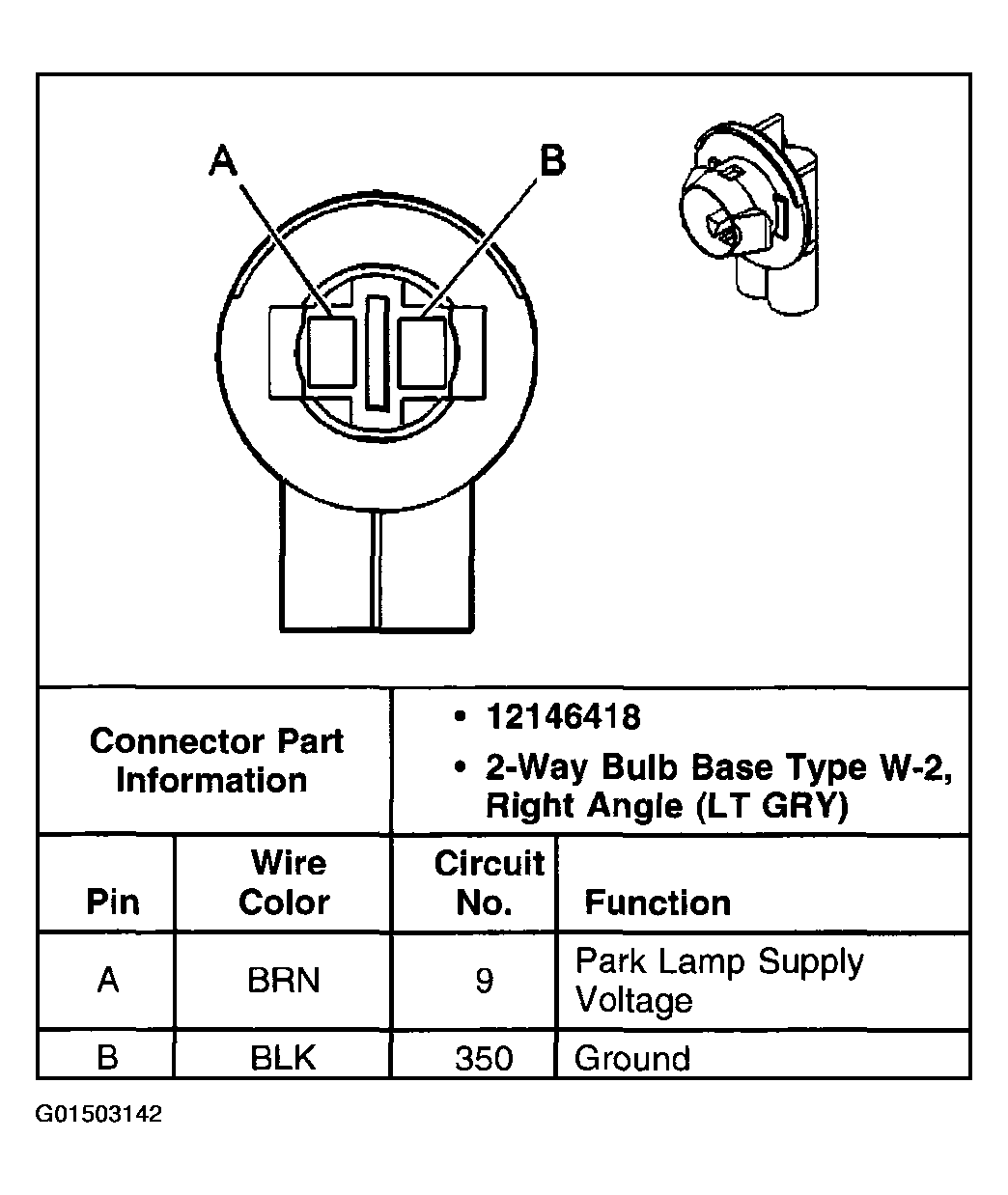

Fig 28: Right Rear Marker Lamp Connector End View
G01503142Courtesy of GENERAL MOTORS CORP.

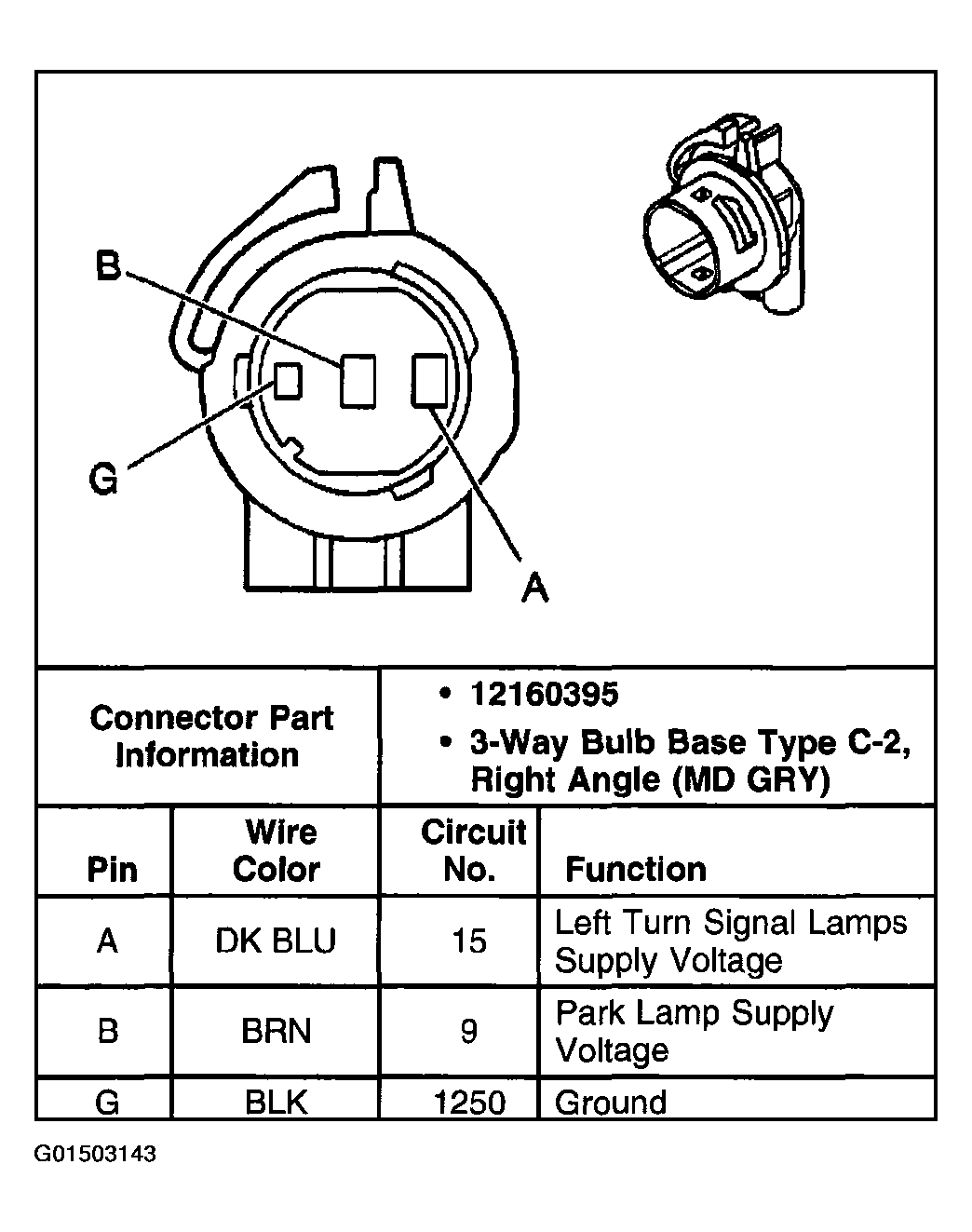

Fig 29: Left Front Park/Turn Signal Lamp Connector End View
G01503143Courtesy of GENERAL MOTORS CORP.

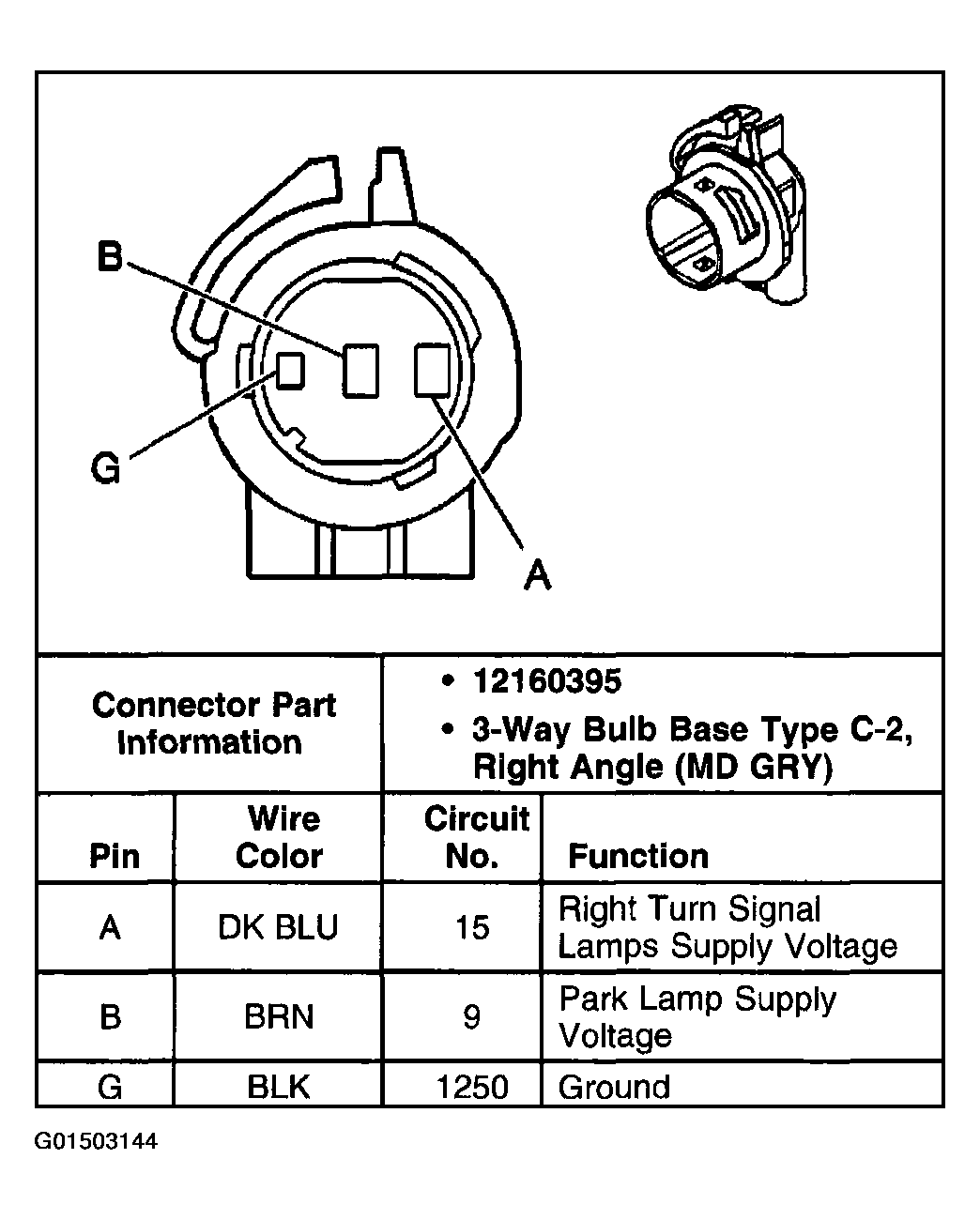

Fig 30: Right Front Park/Turn Signal Lamp Connector End View
G01503144Courtesy of GENERAL MOTORS CORP.

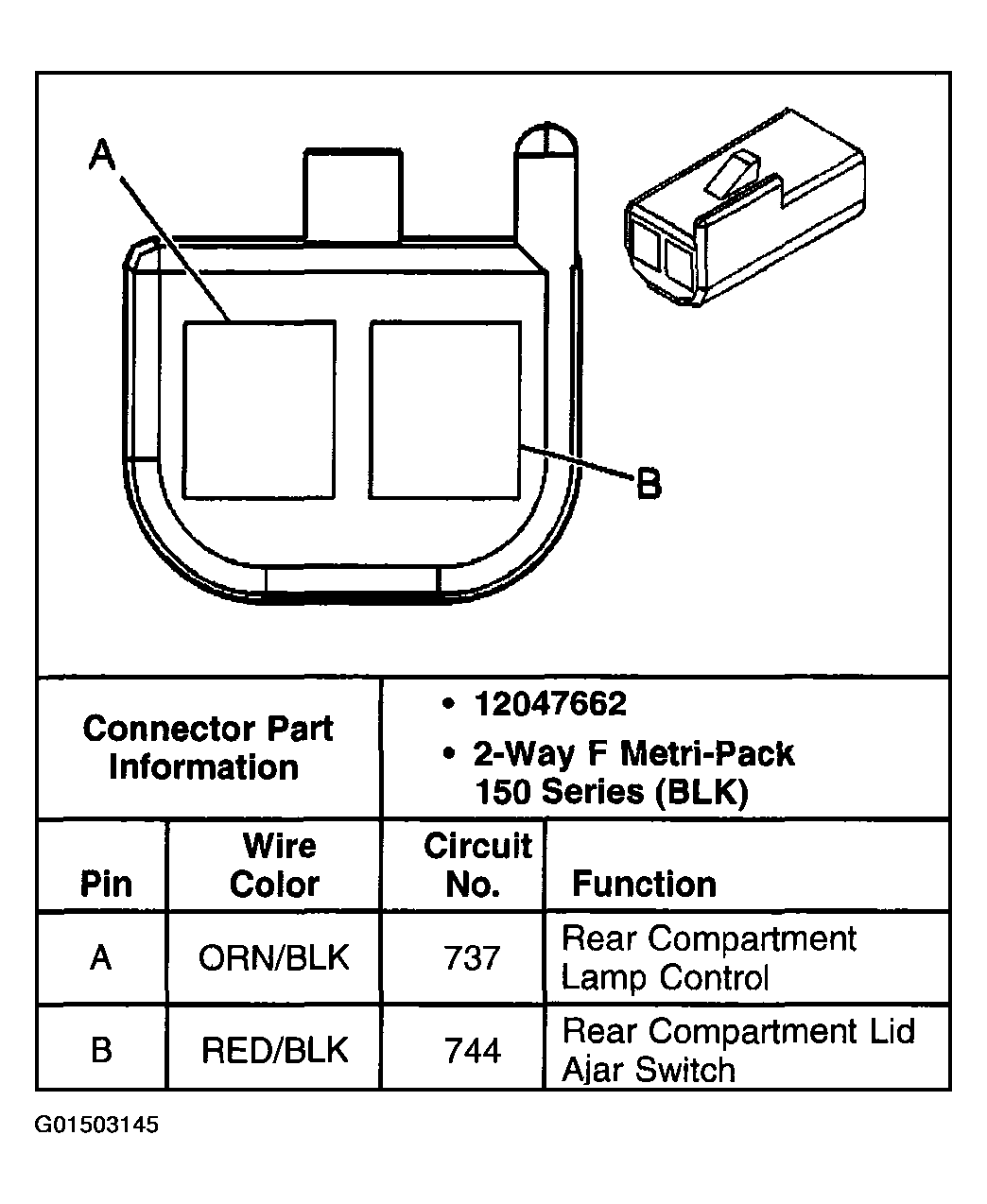

Fig 31: Rear Compartment Courtesy Lamp Connector End View
G01503145Courtesy of GENERAL MOTORS CORP.

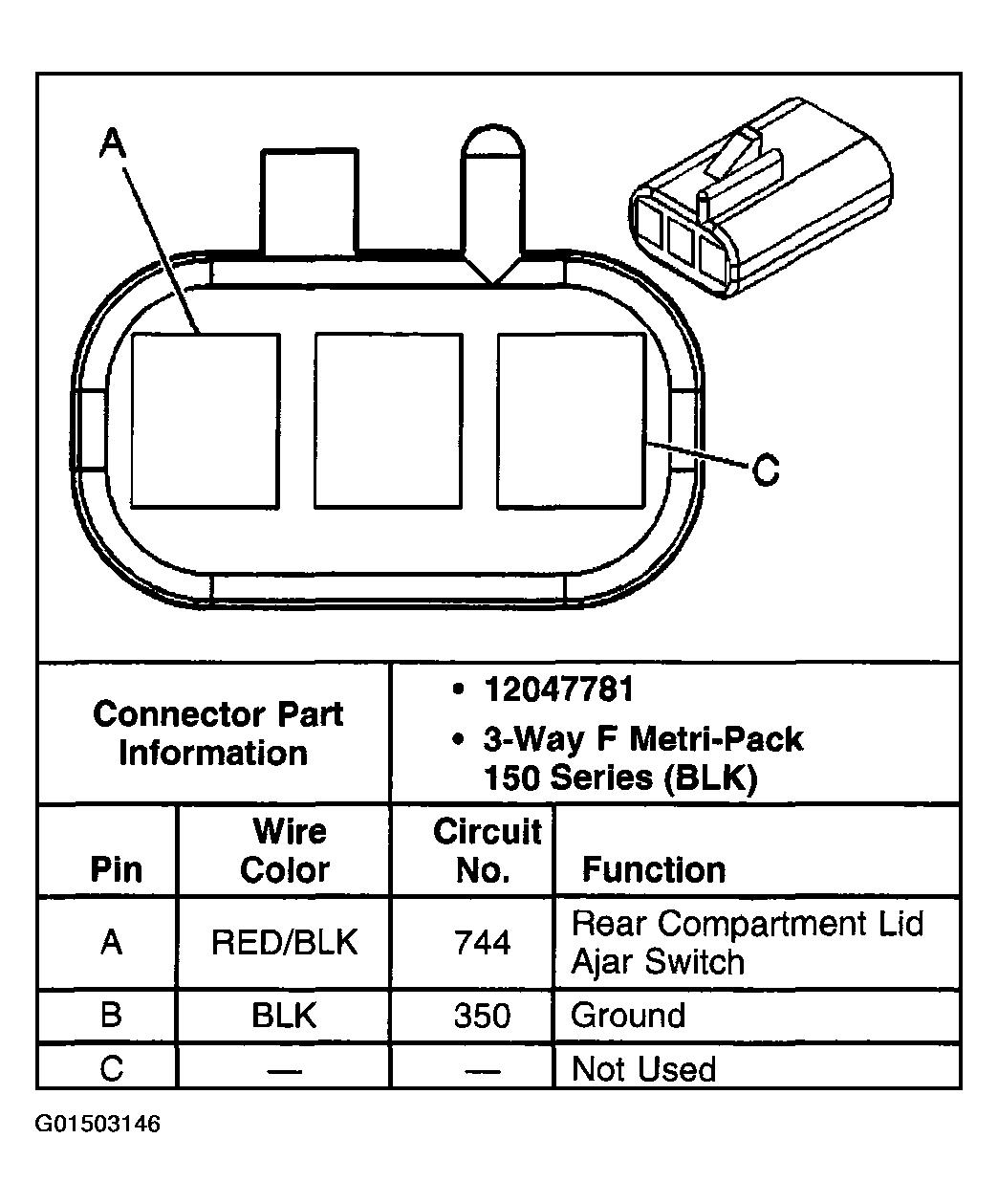

Fig 32: Rear Compartment Courtesy Lamp Switch Connector End View
G01503146Courtesy of GENERAL MOTORS CORP.

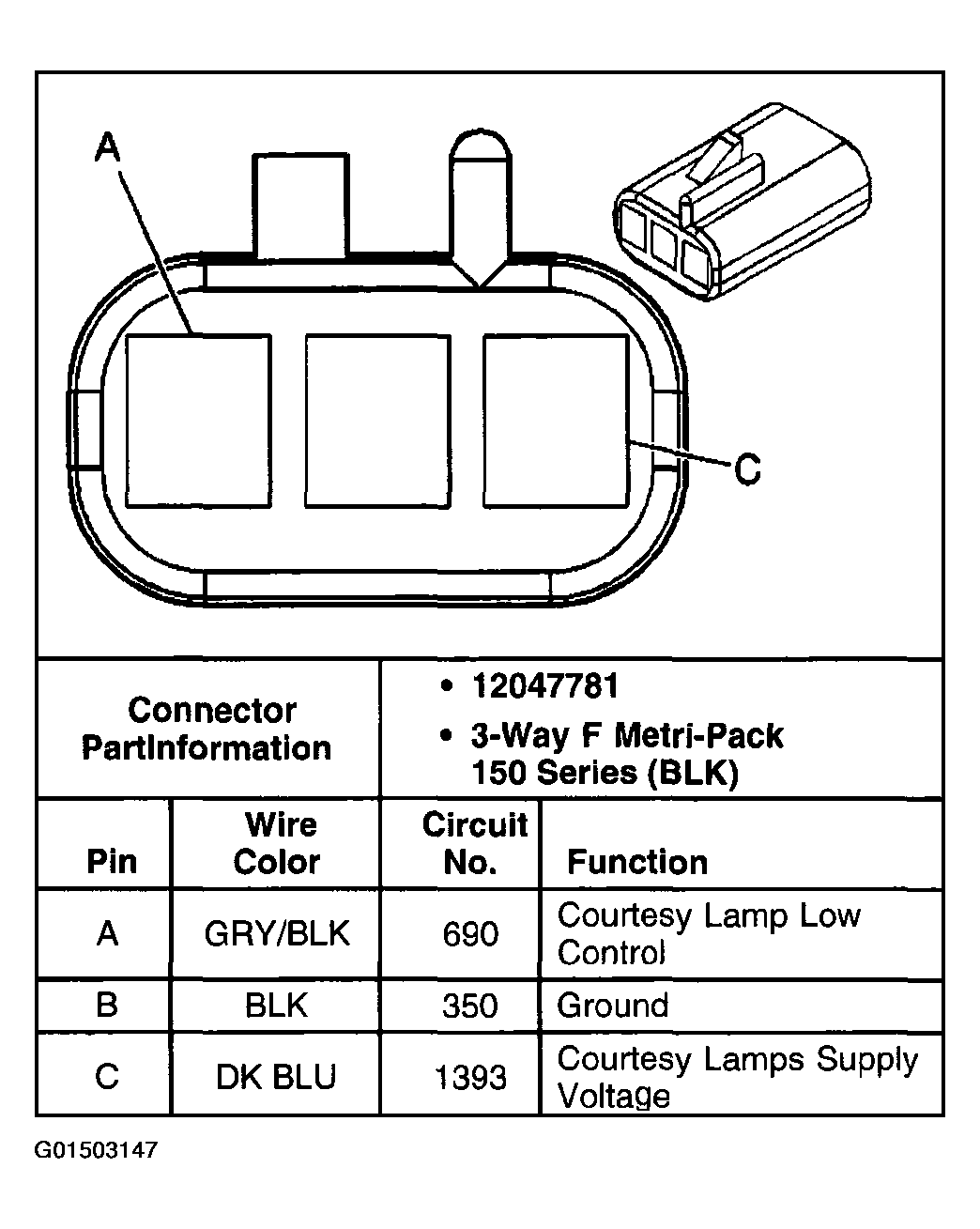

Fig 33: Roof Rail Left Courtesy/Reading Lamp Connector End View
G01503147Courtesy of GENERAL MOTORS CORP.
Fig 34: Roof Rail Right Courtesy/Reading Lamp Connector End View
G01503148Courtesy of GENERAL MOTORS CORP.

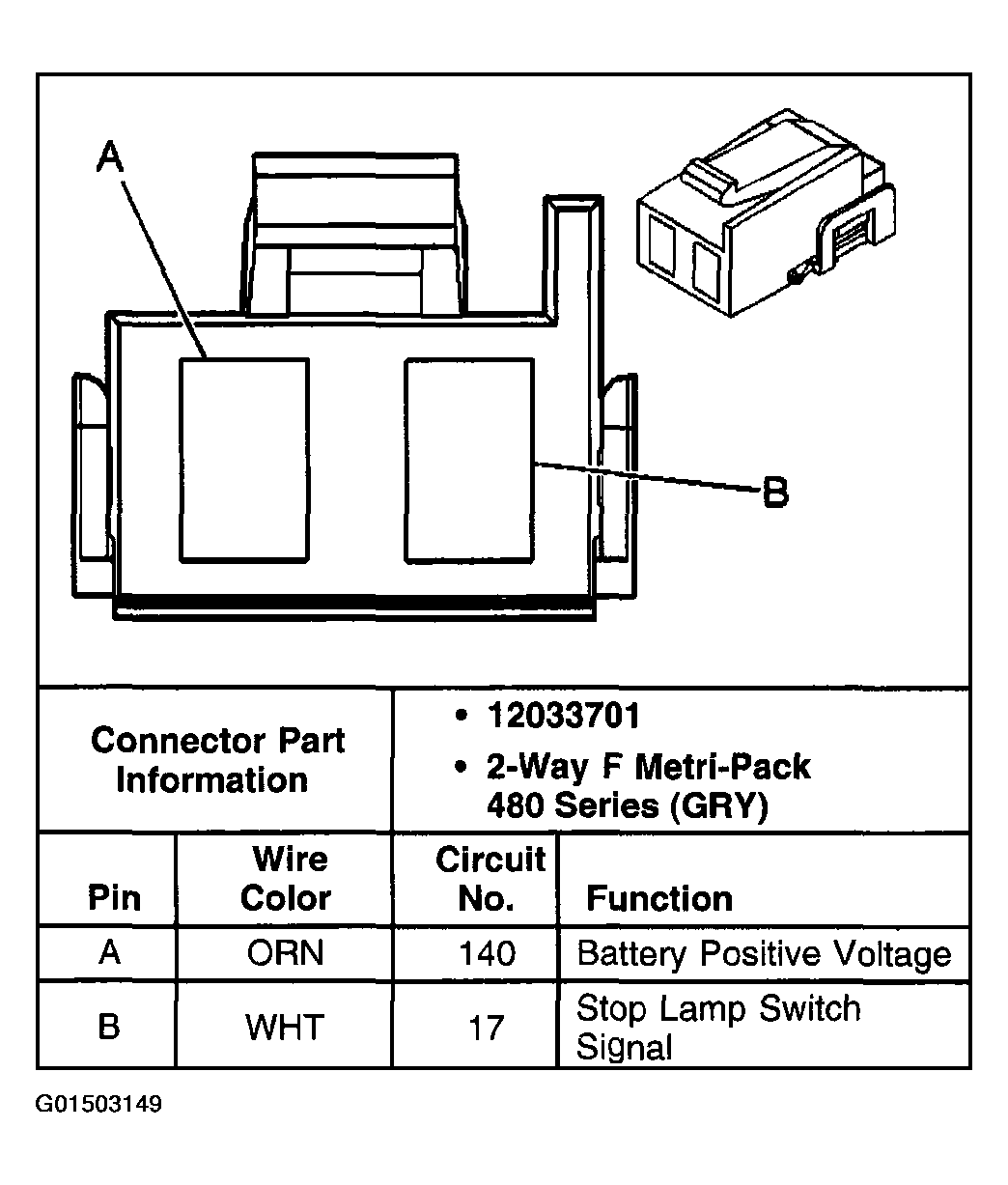

Fig 35: Stop Lamp Switch, C1 Connector End View
G01503149Courtesy of GENERAL MOTORS CORP.

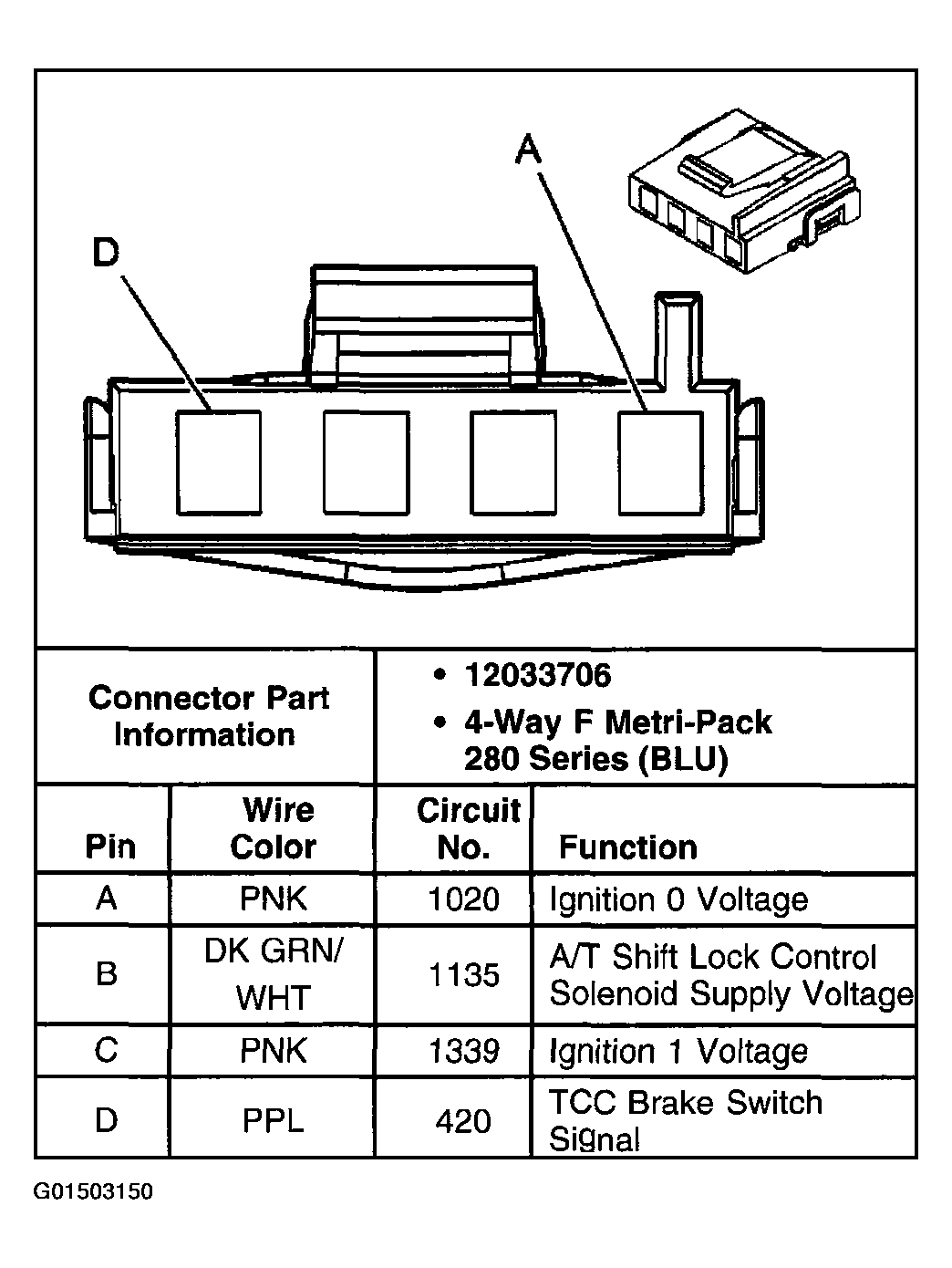

Fig 36: Stop Lamp Switch, C2 Connector End View
G01503150Courtesy of GENERAL MOTORS CORP.

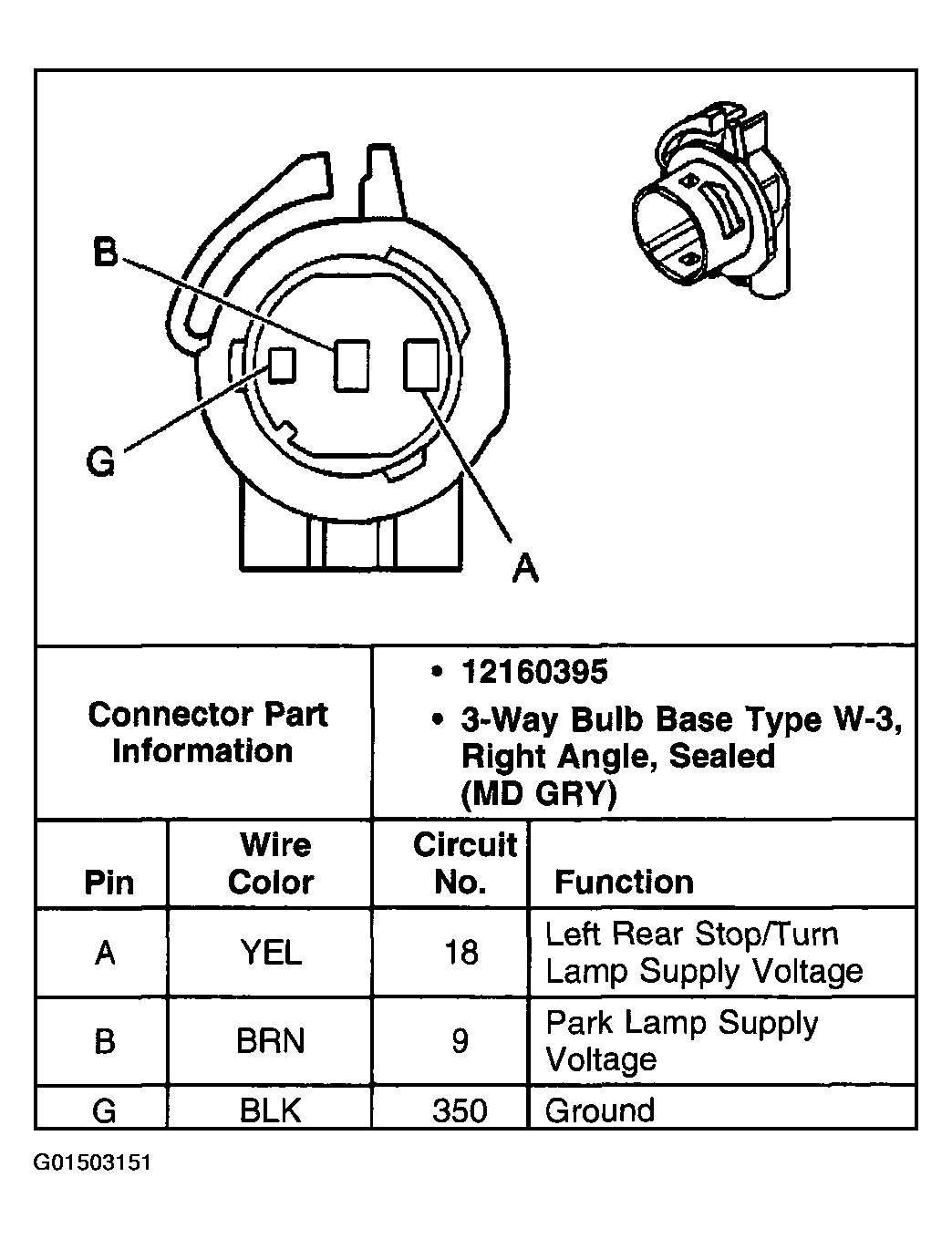

Fig 37: Left Tail/Stop And Turn Signal Lamp Connector End View
G01503151Courtesy of GENERAL MOTORS CORP.

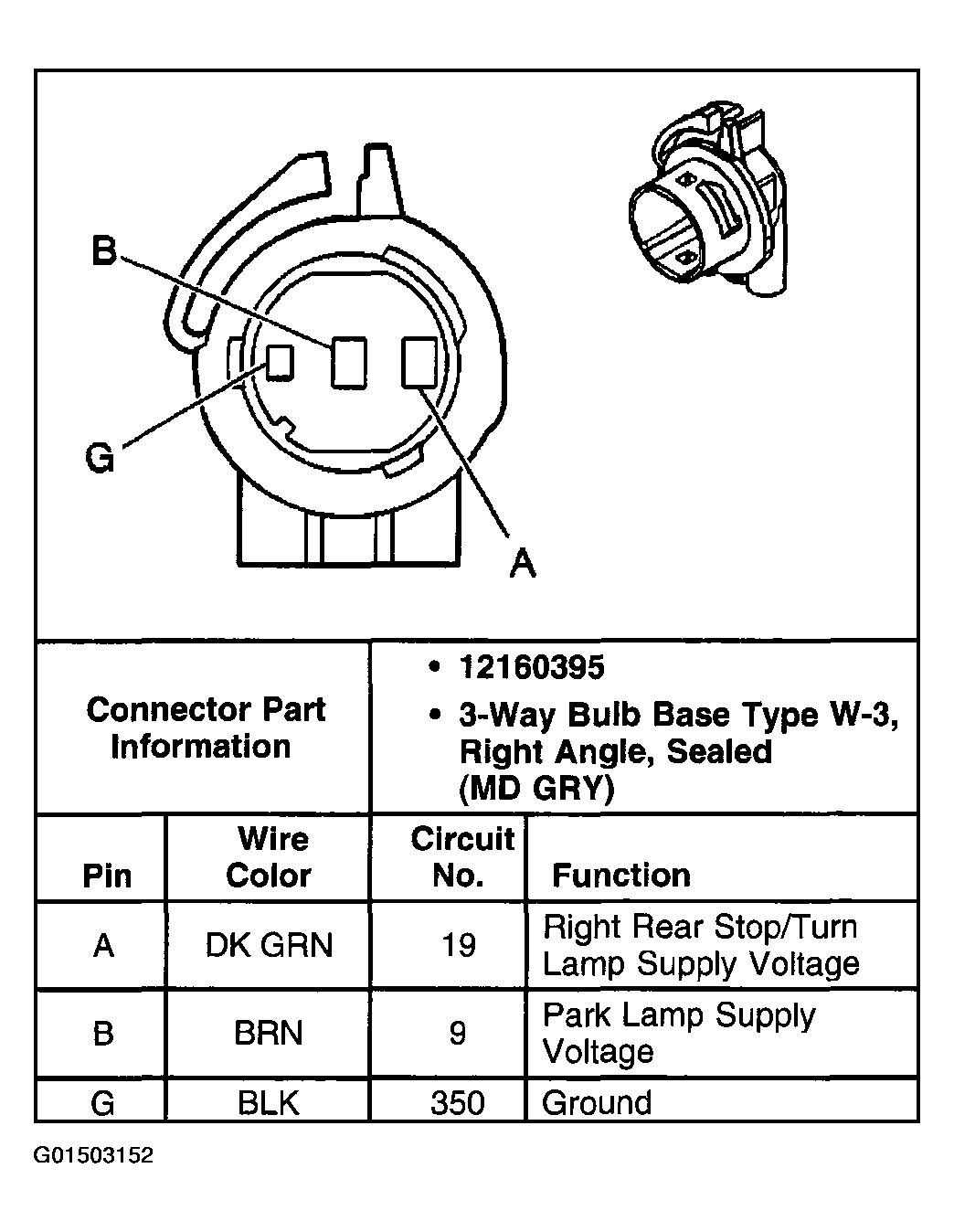

Fig 38: Right Tail/Stop And Turn Signal Lamp Connector End View
G01503152Courtesy of GENERAL MOTORS CORP.

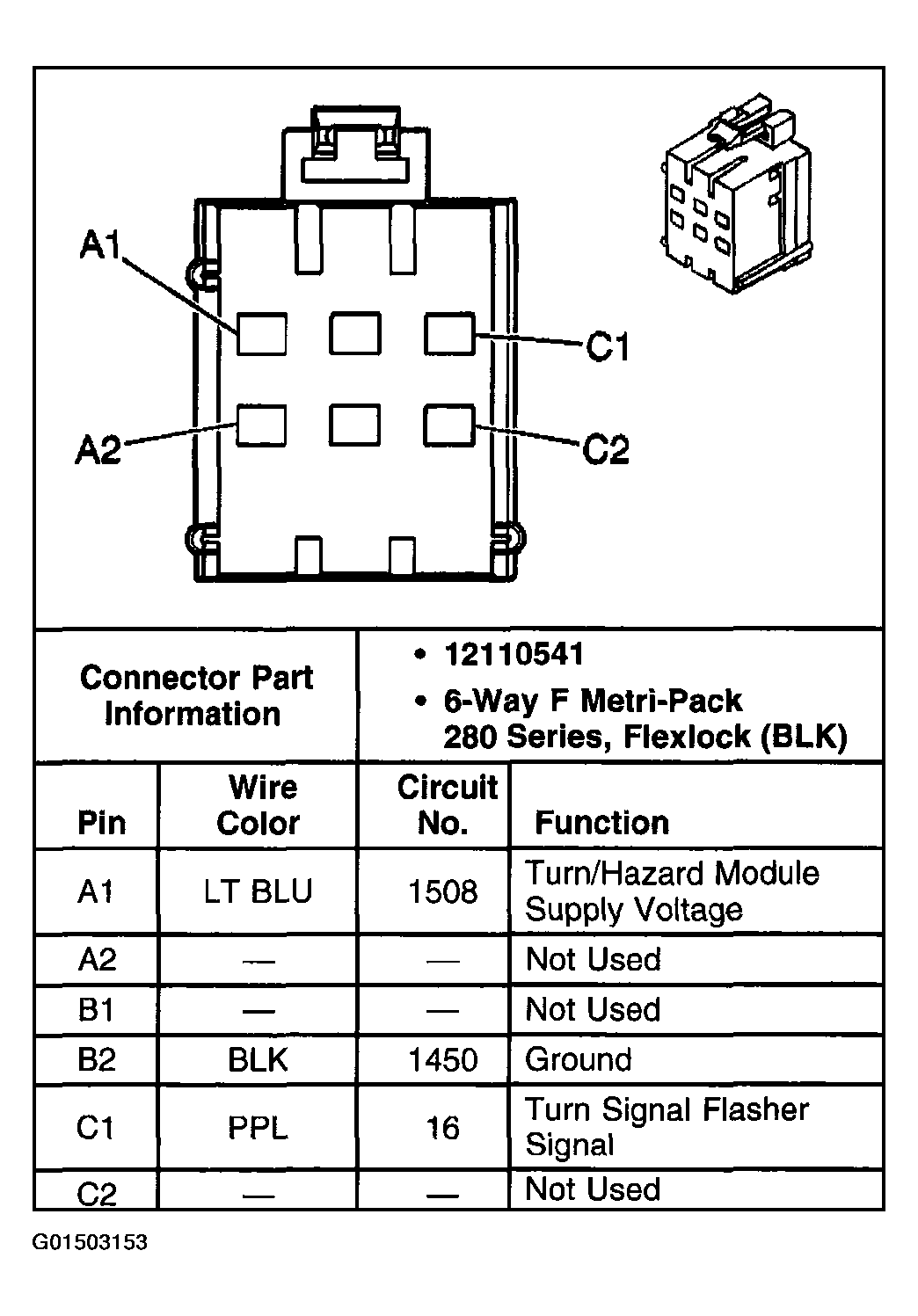

Fig 39: Turn Signal/Hazard Flasher Module Connector End View
G01503153Courtesy of GENERAL MOTORS CORP.

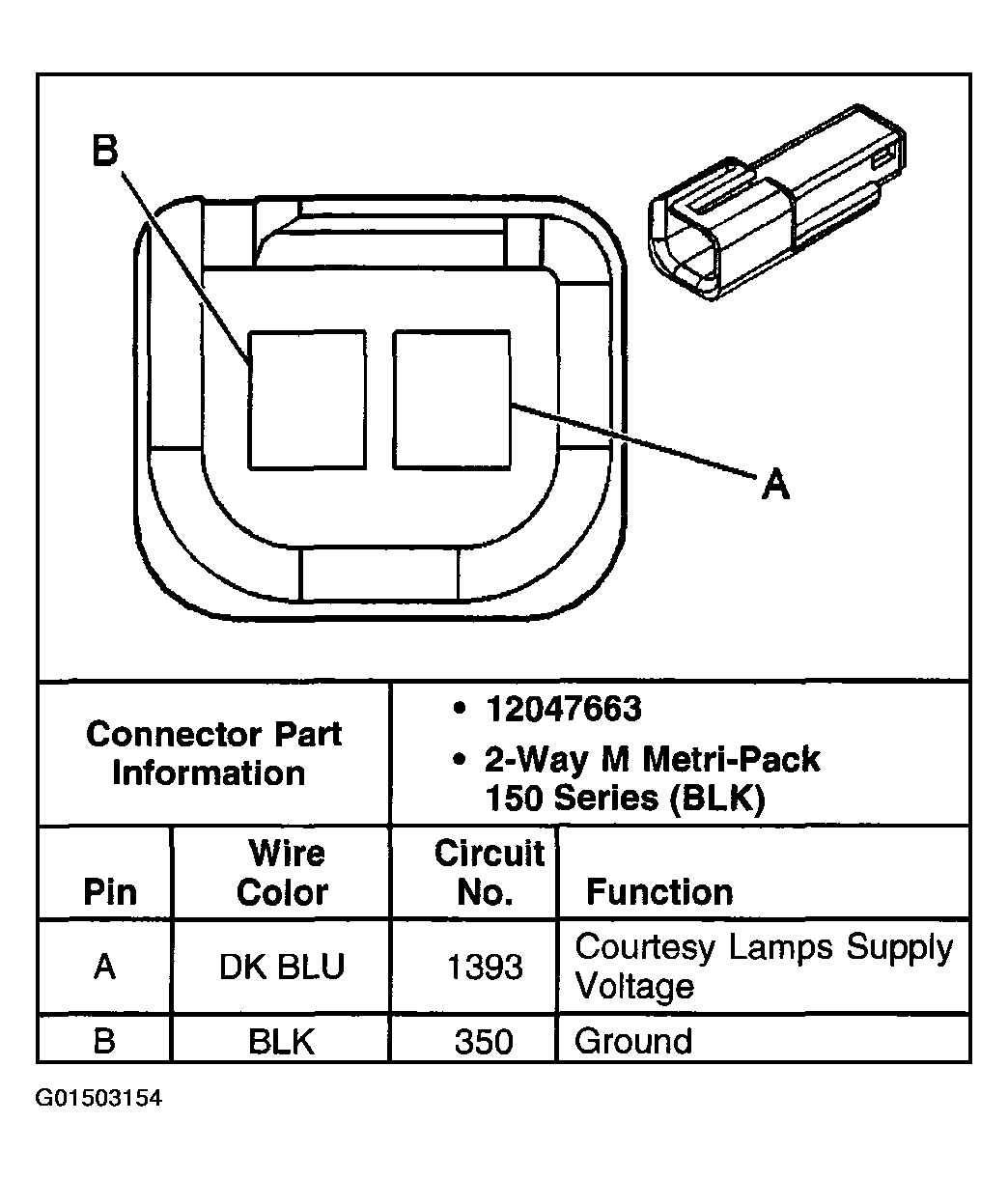

Fig 40: Left Vanity Mirror Lamp Connector End View
G01503154Courtesy of GENERAL MOTORS CORP.

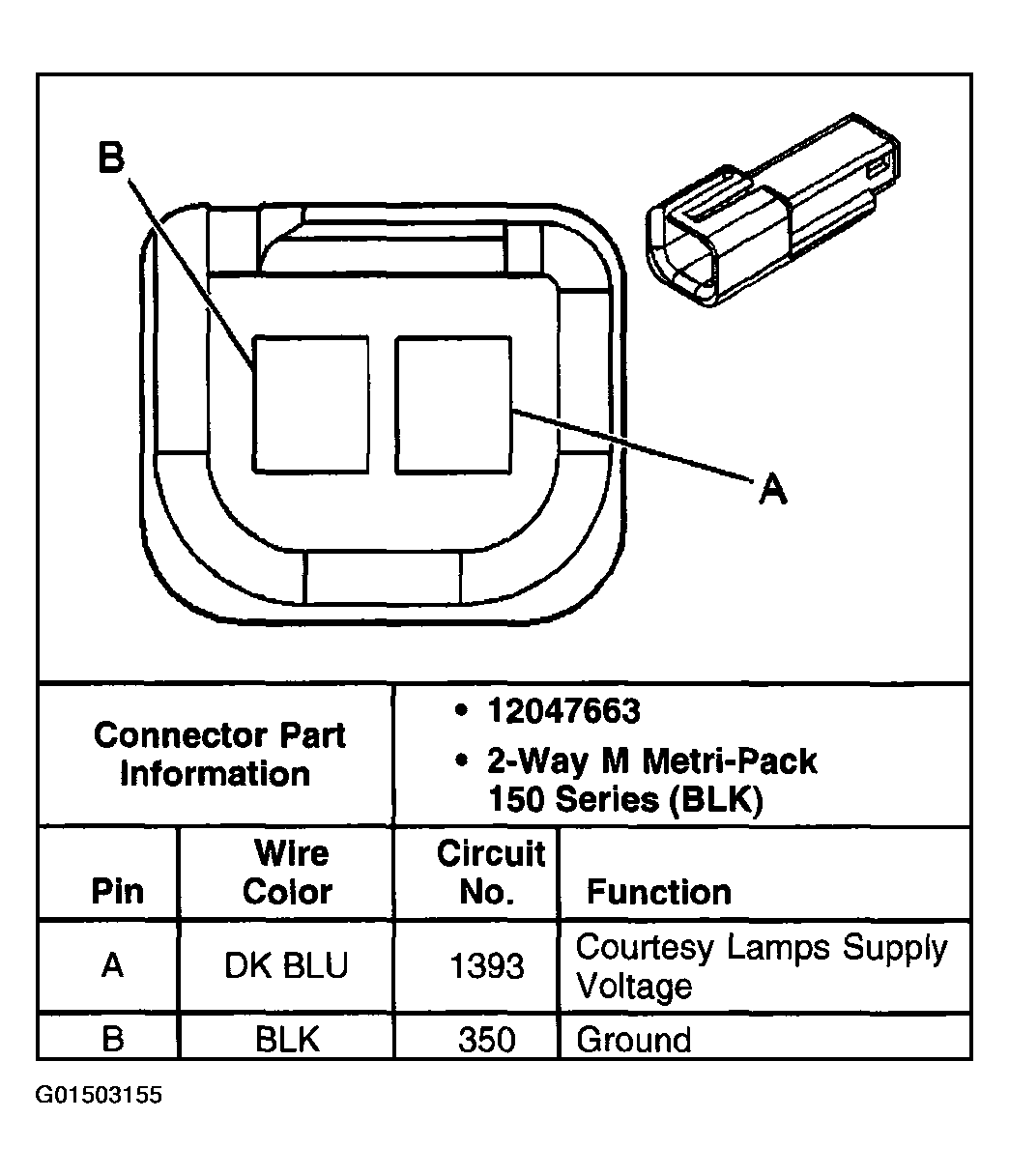

Fig 41: Right Vanity Mirror Lamp Connector End View
G01503155Courtesy of GENERAL MOTORS CORP.
