Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Grasp the daytime running lamp (DRL) module and slide it upward to release the module tabs from the retaining slots on the body control module (BCM) bracket. Reposition the module.
  3. Disconnect the electrical connectors from the DRL module and remove the module.

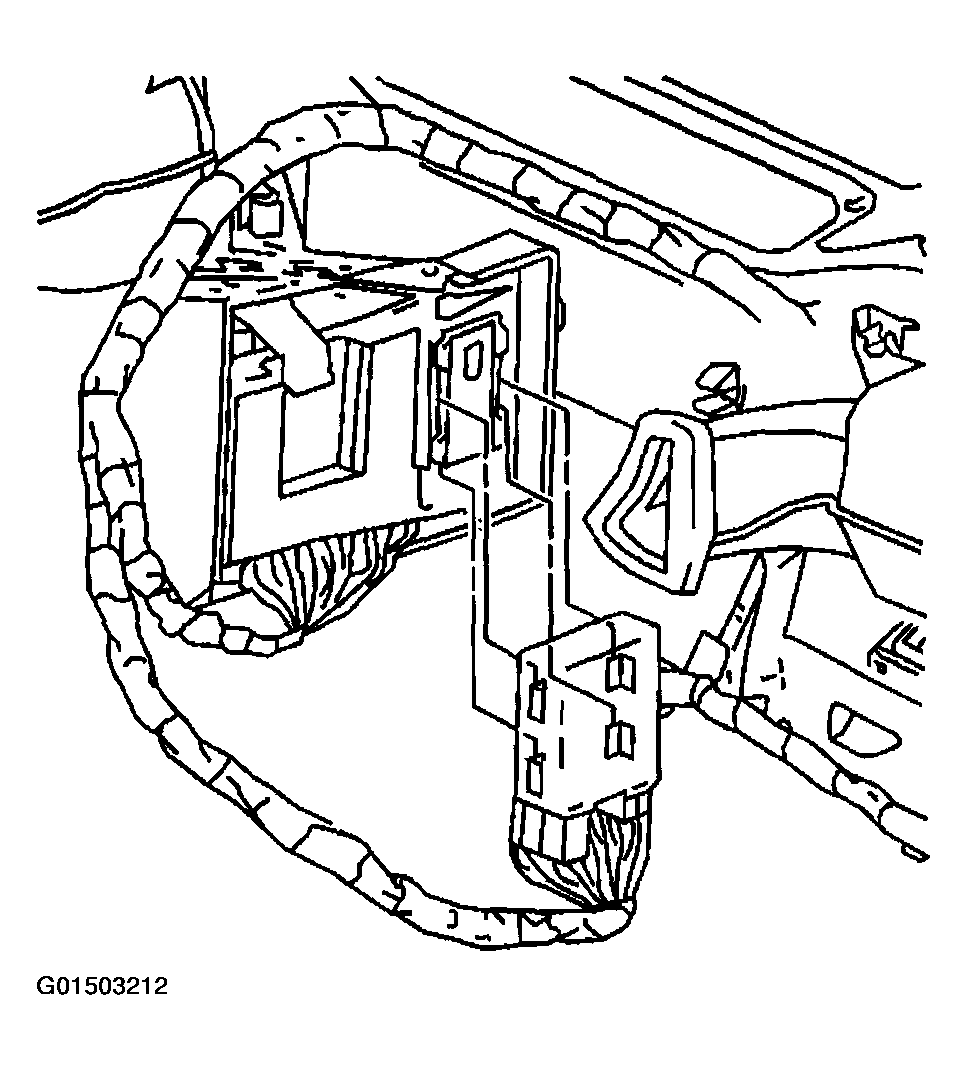

    Fig 1: Disconnecting Electrical Connectors From Daytime Running Lights Control Module
    G01503212Courtesy of GENERAL MOTORS CORP.
