Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamp bulb/socket to the fog lamp, turning clockwise, if required.

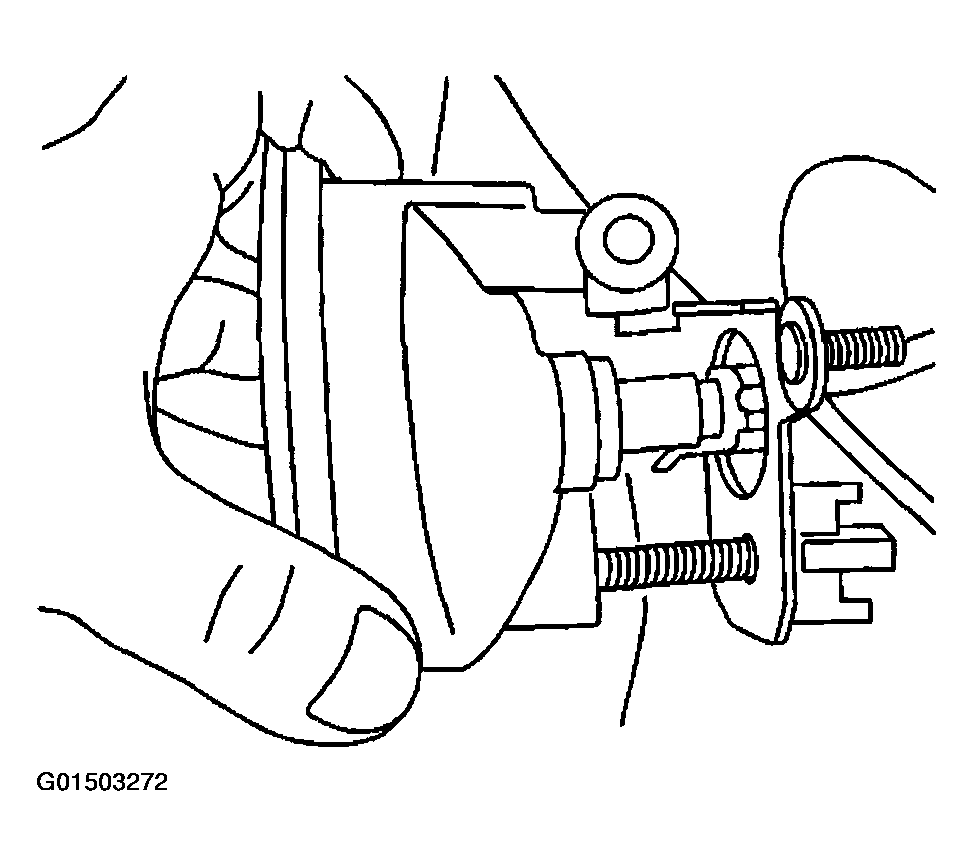

Fig 1: Installing Fog Lamp Bulb/Socket To Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the fog lamp bulb/socket.

Fig 2: Connecting Electrical Connector To Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
Install the fog lamp to the front bumper fascia.

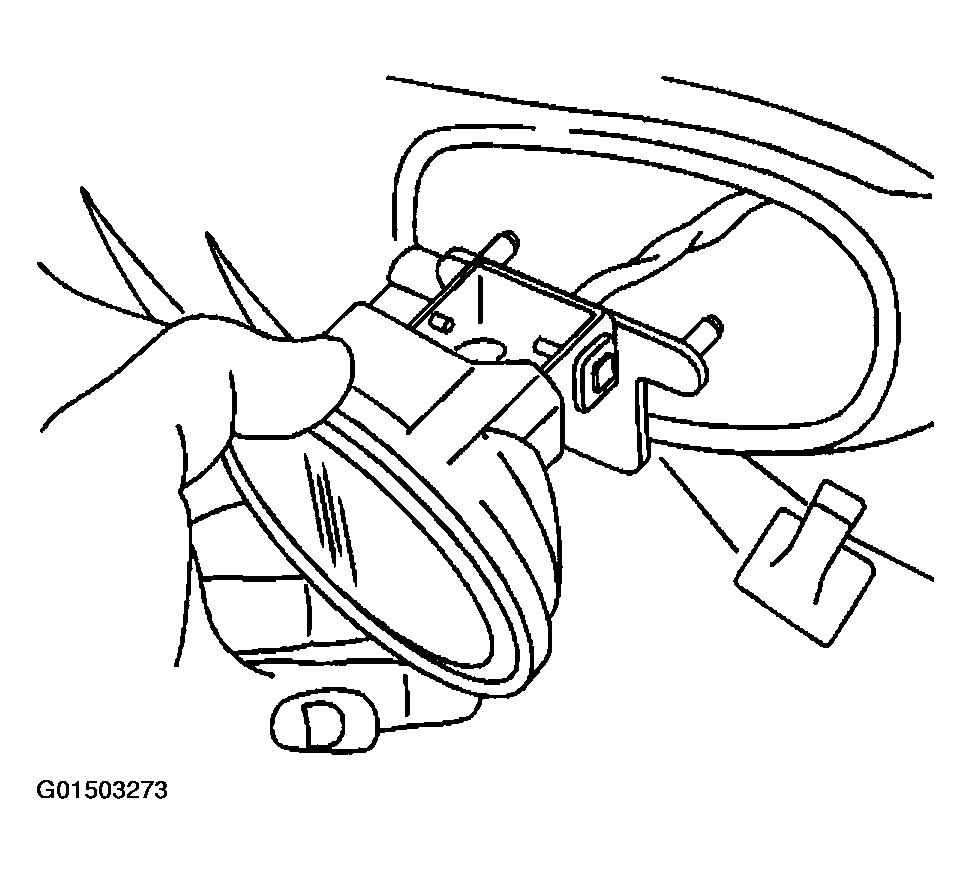

Fig 3: Installing Fog Lamp To Front Bumper Fascia
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the front fog lamp nuts to the fog lamp.
Tighten

Tighten the front fog lamp nuts to 10 N.m (89 lb in).
Lower the vehicle.
Check and adjust the front fog lamp aim as necessary. Refer to FOG LAMP AIMING PROCEDURE .
