Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
Remove the front fog lamp nuts from the fog lamp.

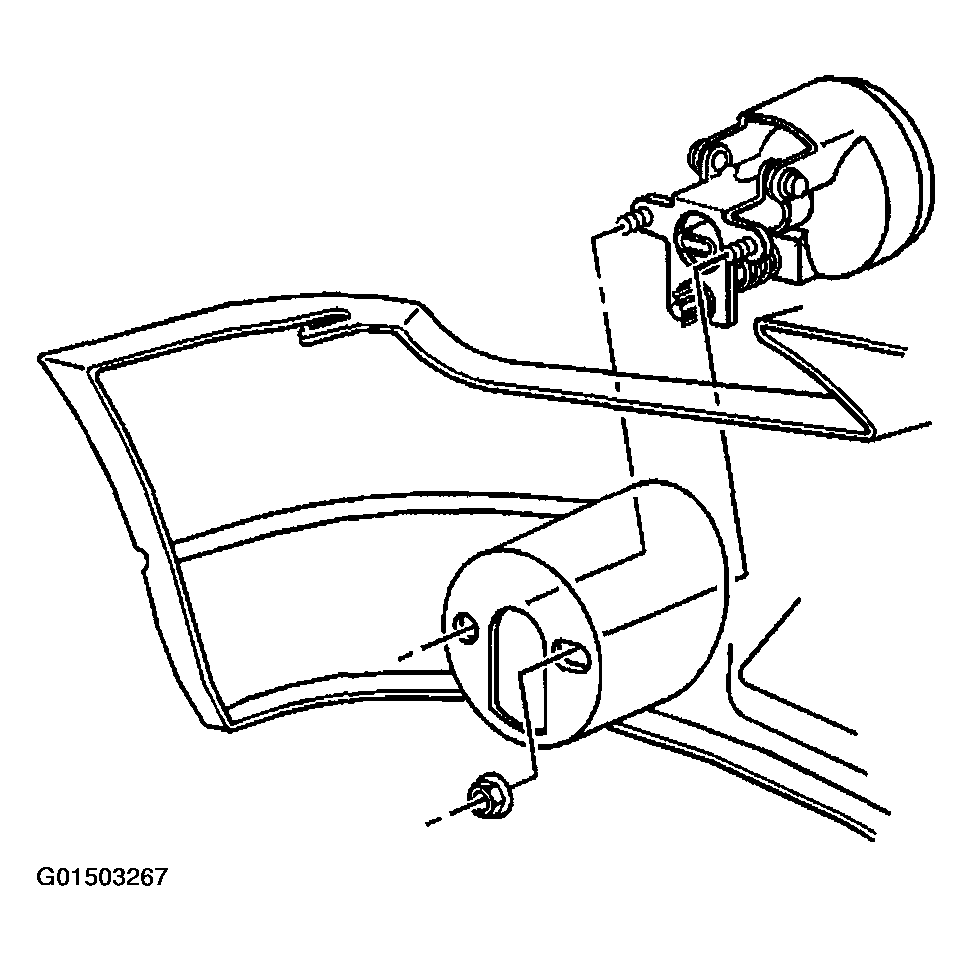

Fig 1: Removing Front Fog Lamp Nuts From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp from the front bumper fascia.

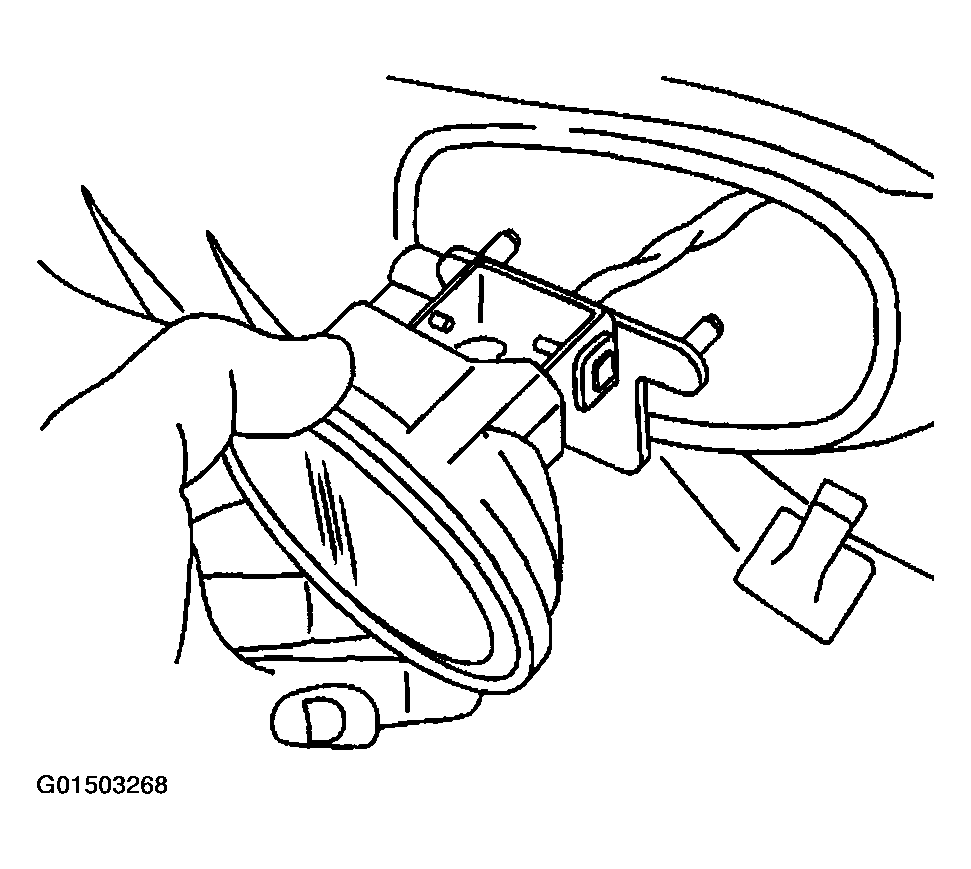

Fig 2: Removing Fog Lamp From Front Bumper Fascia
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the fog lamp bulb/socket.

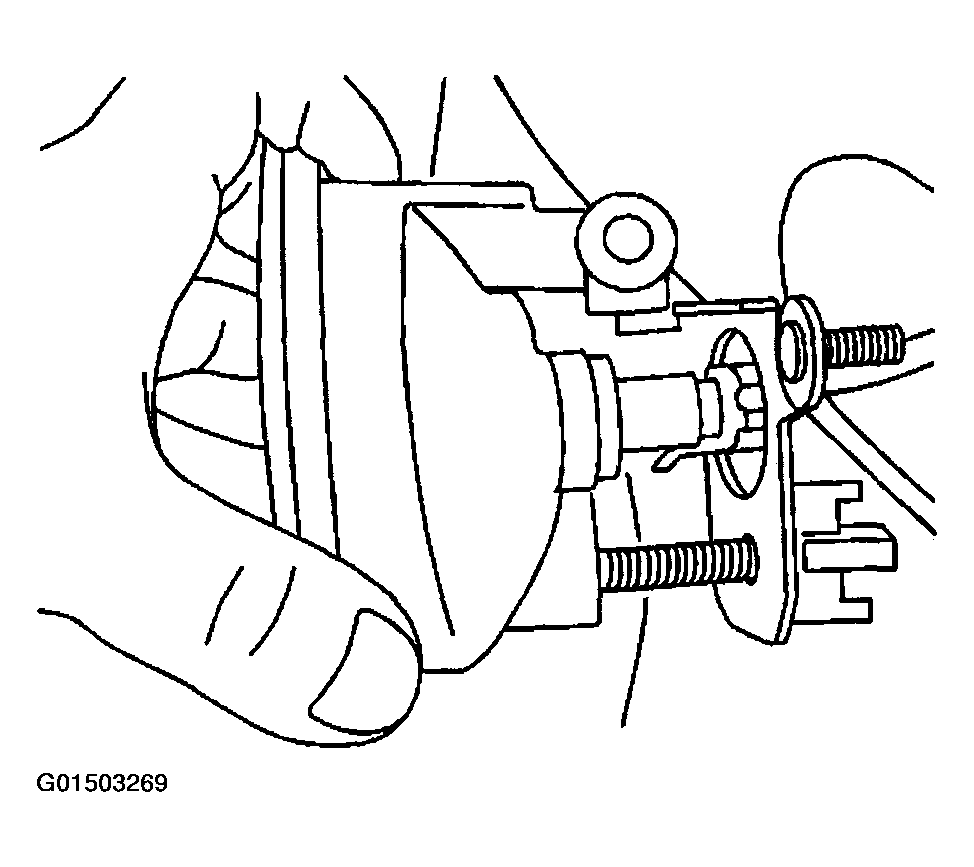

Fig 3: Disconnecting Electrical Connector From Fog Lamp Bulb/Socket
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp bulb/socket from the fog lamp, turning counterclockwise, if required.

Fig 4: Removing Fog Lamp Bulb/Socket From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
