Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fog lamp switch to the IPC trim plate, then press into place to secure.
  2. Connect the electrical connector to the fog lamp switch.
  3. Install the IPC trim plate to the IP. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.

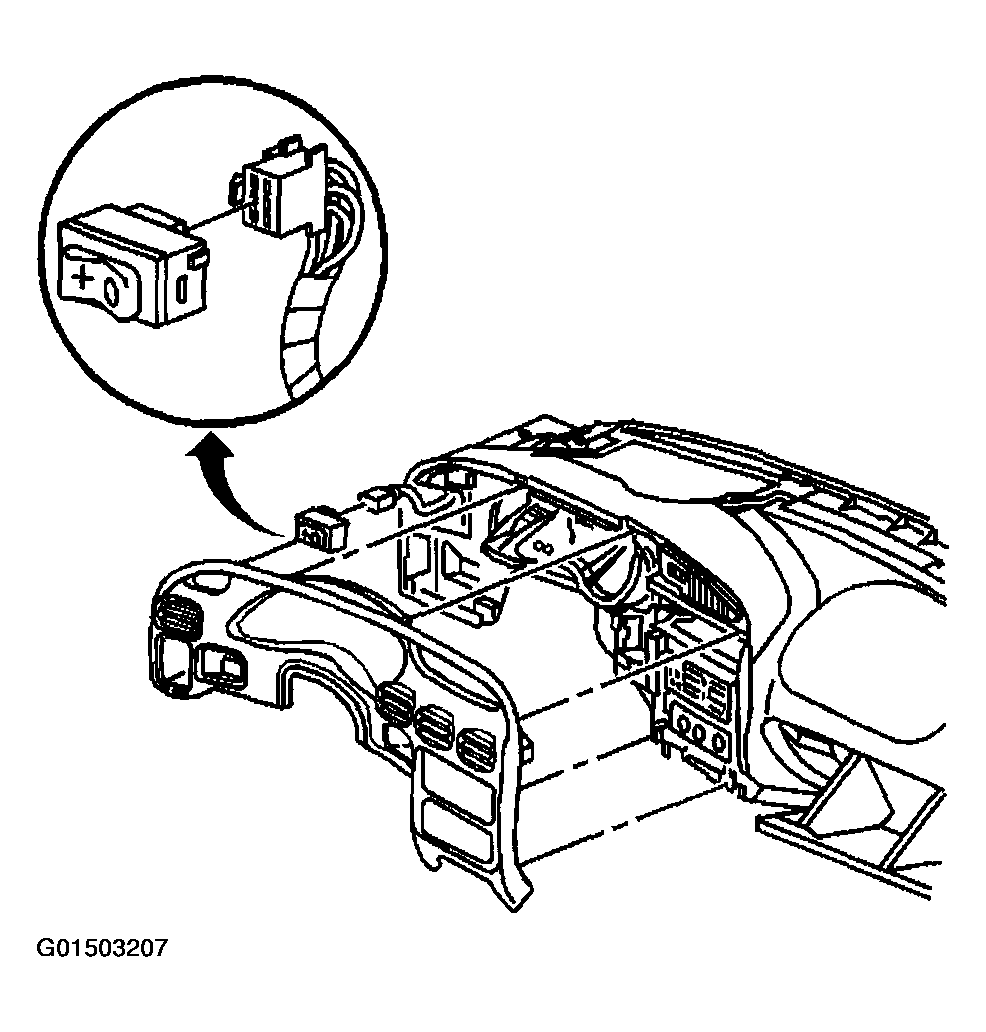

    Fig 1: Installing Fog Lamp Switch Into Instrument Panel Cluster Trim Plate
    G01503207Courtesy of GENERAL MOTORS CORP.
