Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the hazard and turn signal flasher.
  2. Position the hazard and turn signal flasher to the BCM bracket, slide the flasher to the left, securing the flasher tabs into the retaining slots on the bracket.
  3. Install the steering column filler panel. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages and Console.
  4. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

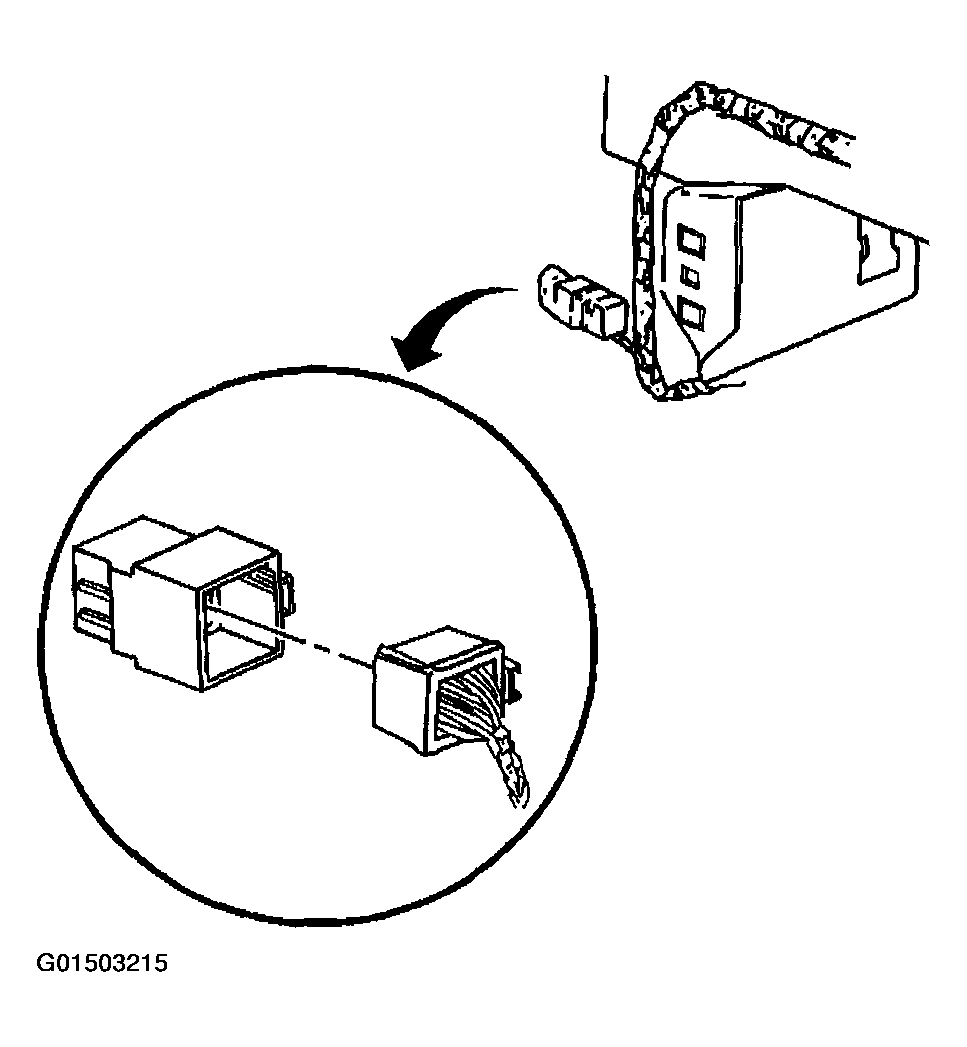

    Fig 1: Connecting Electrical Connector To Hazard And Turn Signal Flasher
    G01503215Courtesy of GENERAL MOTORS CORP.
