Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the headlamp switch.
  2. Align the headlamp switch to the instrument panel, then press into place to secure the retainers.
  3. Install the IPC trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.

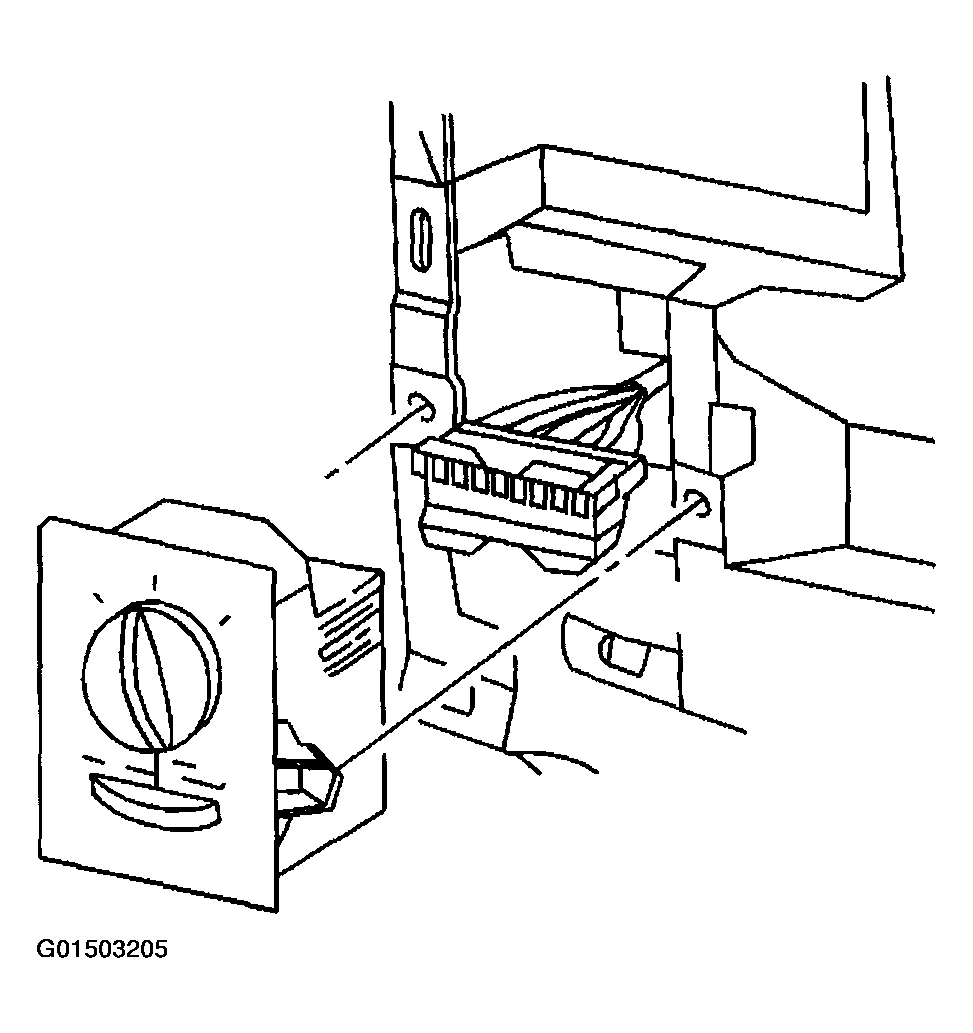

    Fig 1: Installing Headlamp Switch
    G01503205Courtesy of GENERAL MOTORS CORP.
