Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
  2. Grasp the headlamp switch and pull firmly to release the retaining tabs from the instrument panel.
  3. Disconnect the electrical connector from the headlamp switch.
  4. Remove the headlamp switch.

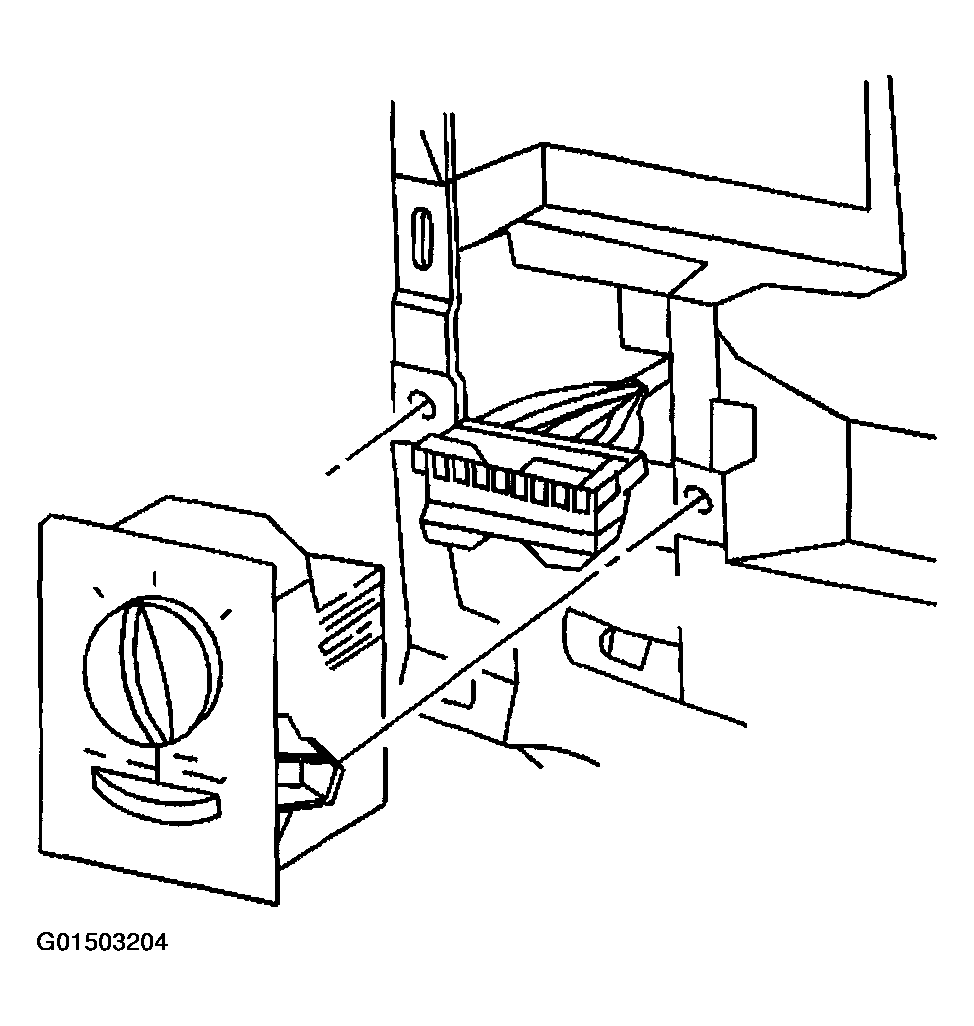

    Fig 1: Removing Headlamp Switch
    G01503204Courtesy of GENERAL MOTORS CORP.
